Toyota Celica

1989-10 → 1993-11 · chassis AT180,ST18# · catalogue 252560 · Europe

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

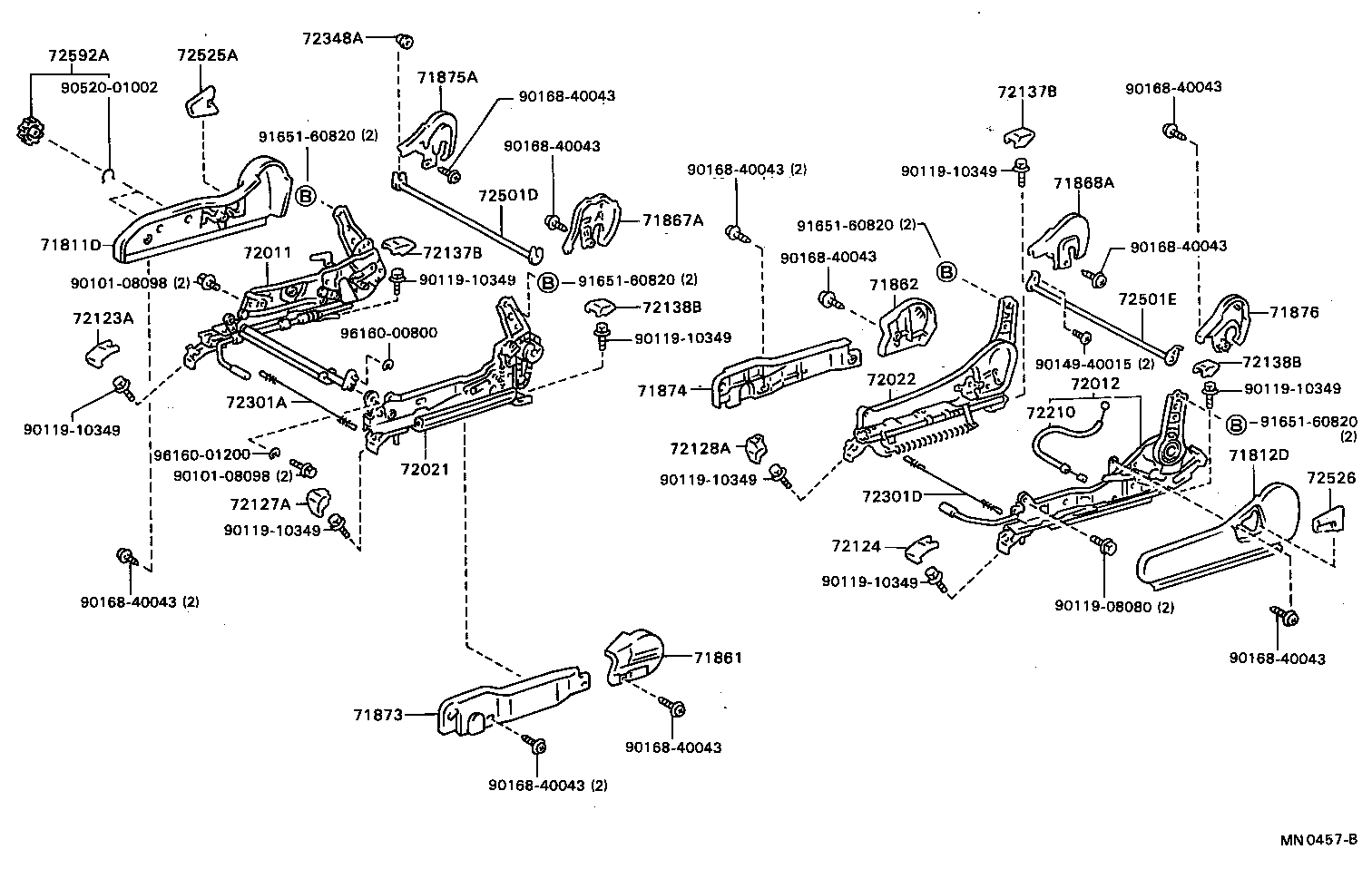

Exploded illustration MN0457B 72348A — HOOK, RECLINING CONECTING, NO.2, RH (1 parts) 72592A — KNOB,RECLINING ADJUSTER, RH (2 parts) 72525A — HANDLE, RECLINING ADJUSTER RELEASE, RH (4 parts) 71875A — COVER, RECLINING ADJUSTER INSIDE, RH (4 parts) 9052001002 — not listed in this catalogue 9016840043 — not listed in this catalogue 72137B — COVER, SEAT TRACK, RH (2 parts) 9016840043 — not listed in this catalogue 9165160820 — not listed in this catalogue 9016840043 — not listed in this catalogue 9016840043 — not listed in this catalogue 9011910349 — not listed in this catalogue 71868A — SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH (8 parts) 72501D — PIPE SUB-ASSY, RECLINING CONNECTING, RH (2 parts) 71867A — SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH (4 parts) 9165160820 — not listed in this catalogue 71811D — SHIELD, FRONT SEAT CUSHION, RH (4 parts) 9016840043 — not listed in this catalogue 72137B — COVER, SEAT TRACK, RH (2 parts) 72011 — ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH (4 parts) 9016840043 — not listed in this catalogue 9010108098 — not listed in this catalogue 9011910349 — not listed in this catalogue 9165160820 — not listed in this catalogue 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (8 parts) 72501E — PIPE SUB-ASSY, RECLINING CONNECTING, LH (4 parts) 72138B — COVER, SEAT TRACK, LH (2 parts) 71876 — COVER, RECLINING ADJUSTER INSIDE, LH (8 parts) 72123A — COVER, SEAT TRACK BRACKET, OUTER FRONT RH (4 parts) 9616000800 — not listed in this catalogue 9011910349 — not listed in this catalogue 72138B — COVER, SEAT TRACK, LH (2 parts) 9014940015 — not listed in this catalogue 72022 — ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH (8 parts) 72012 — ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH (7 parts) 9011910349 — not listed in this catalogue 71874 — SHIELD, FRONT SEAT CUSHION, LOWER LH (1 parts) 72301A — WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH (2 parts) 72210 — CABLE ASSY, SEAT TRACK CONTROL (2 parts) 9165160820 — not listed in this catalogue 9011910349 — not listed in this catalogue 72128A — COVER, SEAT TRACK BRACKET, INNER FRONT LH (2 parts) 9616001200 — not listed in this catalogue 71812D — SHIELD, FRONT SEAT CUSHION, LH (10 parts) 9010108098 — not listed in this catalogue 72021 — ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH (5 parts) 72526 — HANDLE, RECLINING ADJUSTER RELEASE, LH (8 parts) 9011910349 — not listed in this catalogue 72301D — WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH (1 parts) 72127A — COVER, SEAT TRACK BRACKET, INNER FRONT RH (2 parts) 9011910349 — not listed in this catalogue 72124 — COVER, SEAT TRACK BRACKET, OUTER FRONT LH (3 parts) 9011910349 — not listed in this catalogue 9016840043 — not listed in this catalogue 9011908080 — not listed in this catalogue 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (4 parts) 9016840043 — not listed in this catalogue 71873 — SHIELD, FRONT SEAT CUSHION, LOWER RH (1 parts) 9016840043 — not listed in this catalogue 9016840043 — not listed in this catalogue
MN0457B · 31 callouts, 29 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
117 parts on this figure
Part number Description Fitment Price
71811D — Shield, Front Seat Cushion, RH
71811-20200-03 note Shield, Front Seat Cushion, RH
1989-10 → 1993-11 ended
AT180,ST18# LHD —
71811-20200-04 note Shield, Front Seat Cushion, RH
1989-10 → 1993-11 ended
AT180,ST182 LHD (CP,LB) —
71811-20210-03 note Shield, Front Seat Cushion, RH
1989-10 → 1993-11 ended
ST18# RHD —
71811-20210-04 note Shield, Front Seat Cushion, RH
1989-10 → 1993-11 ended
ST182 RHD LB —
71812D — Shield, Front Seat Cushion, LH
71812-20160-03 note Shield, Front Seat Cushion, LH
1989-10 → 1993-11 ended
ST18# RHD —
71812-20160-04 note Shield, Front Seat Cushion, LH
1989-10 → 1993-11 ended
ST182 RHD LB —
71812-20180-03 note Shield, Front Seat Cushion, LH
1989-10 → 1993-11 ended
AT180 —
71812-20180-04 note Shield, Front Seat Cushion, LH
1989-10 → 1993-11 ended
AT180 —
71812-20190-03 note Shield, Front Seat Cushion, LH
1991-08 → 1993-11 ended
AT180 —
71812-20190-03 note Shield, Front Seat Cushion, LH
1989-10 → 1993-11 ended
ST18# LHD —
71812-20190-03 note Shield, Front Seat Cushion, LH
1989-10 → 1991-08 ended
AT180 —
71812-20190-04 note Shield, Front Seat Cushion, LH
1989-10 → 1991-08 ended
AT180 —
71812-20190-04 note Shield, Front Seat Cushion, LH
1989-10 → 1993-11 ended
ST182 LHD LB —
71812-20190-04 note Shield, Front Seat Cushion, LH
1991-08 → 1993-11 ended
AT180 —
71861 — Shield, Front Seat Cushion, Inner RH
71861-20090-03 note Shield, Front Seat Cushion, Inner RH
1989-10 → 1993-11 ended
AT180,ST18# LHD —
71861-20090-04 note Shield, Front Seat Cushion, Inner RH
1989-10 → 1993-11 ended
AT180,ST182 LHD (CP,LB) —
71861-20100-03 note Shield, Front Seat Cushion, Inner RH
1989-10 → 1993-11 ended
ST18# RHD —
71861-20100-04 note Shield, Front Seat Cushion, Inner RH
1989-10 → 1993-11 ended
ST182 RHD LB —
71862 — Shield, Front Seat Cushion, Inner LH
71862-20090-03 note Shield, Front Seat Cushion, Inner LH
1989-10 → 1993-11 ended
AT180;ST18# RHD —
71862-20090-04 note Shield, Front Seat Cushion, Inner LH
1989-10 → 1993-11 ended
AT180;ST182 RHD LB —
71862-20100-03 note Shield, Front Seat Cushion, Inner LH
1989-10 → 1991-08 ended
AT180 —
71862-20100-03 note Shield, Front Seat Cushion, Inner LH
1991-08 → 1993-11 ended
AT180 —
71862-20100-03 note Shield, Front Seat Cushion, Inner LH
1989-10 → 1993-11 ended
ST18# LHD —
71862-20100-04 note Shield, Front Seat Cushion, Inner LH
1989-10 → 1993-11 ended
ST182 LHD LB —
71862-20100-04 note Shield, Front Seat Cushion, Inner LH
1989-10 → 1991-08 ended
AT180 —
71862-20100-04 note Shield, Front Seat Cushion, Inner LH
1991-08 → 1993-11 ended
AT180 —
71867A — Shield, Front Seat Cushion, Inner NO.1 RH
71867-20010-03 note Shield, Front Seat Cushion, Inner NO.1 RH
1989-10 → 1993-11 ended
AT180,ST18# LHD —
71867-20010-04 note Shield, Front Seat Cushion, Inner NO.1 RH
1989-10 → 1993-11 ended
AT180,ST182 LHD (CP,LB) —
71867-20020-03 note Shield, Front Seat Cushion, Inner NO.1 RH
1989-10 → 1993-11 ended
ST18# RHD —
71867-20020-04 note Shield, Front Seat Cushion, Inner NO.1 RH
1989-10 → 1993-11 ended
ST182 RHD LB —
71868A — Shield, Front Seat Cushion, Inner NO.1 LH
71868-20010-03 note Shield, Front Seat Cushion, Inner NO.1 LH
1989-10 → 1993-11 ended
AT180;ST18# RHD —
71868-20010-04 note Shield, Front Seat Cushion, Inner NO.1 LH
1989-10 → 1993-11 ended
AT180;ST182 RHD LB —
71868-20020-03 note Shield, Front Seat Cushion, Inner NO.1 LH
1989-10 → 1991-08 ended
AT180 —
71868-20020-03 note Shield, Front Seat Cushion, Inner NO.1 LH
1991-08 → 1993-11 ended
AT180 —
71868-20020-03 note Shield, Front Seat Cushion, Inner NO.1 LH
1989-10 → 1993-11 ended
ST18# LHD —
71868-20020-04 note Shield, Front Seat Cushion, Inner NO.1 LH
1989-10 → 1993-11 ended
ST182 LHD LB —
71868-20020-04 note Shield, Front Seat Cushion, Inner NO.1 LH
1989-10 → 1991-08 ended
AT180 —
71868-20020-04 note Shield, Front Seat Cushion, Inner NO.1 LH
1991-08 → 1993-11 ended
AT180 —
71873 — Shield, Front Seat Cushion, Lower RH
71873-20030 Shield, Front Seat Cushion, Lower RH
1989-10 → 1993-11 ended
AT180,ST18# —
71874 — Shield, Front Seat Cushion, Lower LH
71874-20030 Shield, Front Seat Cushion, Lower LH
1989-10 → 1993-11 ended
AT180,ST18# —
71875A — Cover, Reclining Adjuster Inside, RH
71875-20020-03 note Cover, Reclining Adjuster Inside, RH
1989-10 → 1993-11 ended
AT180,ST18# LHD —
71875-20020-04 note Cover, Reclining Adjuster Inside, RH
1989-10 → 1993-11 ended
AT180,ST182 LHD (CP,LB) —
71875-20030-03 note Cover, Reclining Adjuster Inside, RH
1989-10 → 1993-11 ended
ST18# RHD —
71875-20030-04 note Cover, Reclining Adjuster Inside, RH
1989-10 → 1993-11 ended
ST182 RHD LB —
71876 — Cover, Reclining Adjuster Inside, LH
71876-20020-03 note Cover, Reclining Adjuster Inside, LH
1989-10 → 1993-11 ended
AT180;ST18# RHD —
71876-20020-04 note Cover, Reclining Adjuster Inside, LH
1989-10 → 1993-11 ended
AT180;ST182 RHD LB —
71876-20030-03 note Cover, Reclining Adjuster Inside, LH
1989-10 → 1991-08 ended
AT180 —
71876-20030-03 note Cover, Reclining Adjuster Inside, LH
1989-10 → 1993-11 ended
ST18# LHD —
71876-20030-03 note Cover, Reclining Adjuster Inside, LH
1991-08 → 1993-11 ended
AT180 —
71876-20030-04 note Cover, Reclining Adjuster Inside, LH
1989-10 → 1991-08 ended
AT180 —
71876-20030-04 note Cover, Reclining Adjuster Inside, LH
1989-10 → 1993-11 ended
ST182 LHD LB —
71876-20030-04 note Cover, Reclining Adjuster Inside, LH
1991-08 → 1993-11 ended
AT180 —
72011 — Adjuster Sub-assy, Front Seat, Outer RH
72011-20100 Adjuster Sub-assy, Front Seat, Outer RH
1989-10 → 1993-11 ended
ST18# RHD LB —
72011-20120 Adjuster Sub-assy, Front Seat, Outer RH
1989-10 → 1993-11 ended
AT180,ST18# LHD (CP,LB) —
72011-20140 Adjuster Sub-assy, Front Seat, Outer RH
1990-10 → 1991-09 ended
ST182 RHD CVT —
72011-20150 Adjuster Sub-assy, Front Seat, Outer RH
1990-10 → 1993-11 ended
ST182 LHD CVT —
72012 — Adjuster Sub-assy, Front Seat, Outer LH
72012-20110 note Adjuster Sub-assy, Front Seat, Outer LH
1991-08 → 1993-11 ended
AT180 —
72012-20110 Adjuster Sub-assy, Front Seat, Outer LH
1989-10 → 1993-11 ended
ST18# LHD LB —
72012-20110 note Adjuster Sub-assy, Front Seat, Outer LH
1989-10 → 1991-08 ended
AT180 —
72012-20140 Adjuster Sub-assy, Front Seat, Outer LH
1989-10 → 1993-11 ended
AT180 —
72012-20150 Adjuster Sub-assy, Front Seat, Outer LH
1989-10 → 1993-11 ended
ST18# RHD LB —
72012-20190 Adjuster Sub-assy, Front Seat, Outer LH
1990-10 → 1991-09 ended
ST182 RHD CVT —
72012-20210 Adjuster Sub-assy, Front Seat, Outer LH
1990-10 → 1993-11 ended
ST182 LHD CVT —
72021 — Adjuster Sub-assy, Front Seat, Inner RH
72021-20060 Adjuster Sub-assy, Front Seat, Inner RH
1989-10 → 1993-11 ended
ST182 RHD —
72021-20080 Adjuster Sub-assy, Front Seat, Inner RH
1989-10 → 1993-11 ended
AT180,ST182 LHD (CP,LB) —
72021-20100 Adjuster Sub-assy, Front Seat, Inner RH
1989-10 → 1993-11 ended
ST185 RHD —
72021-20110 Adjuster Sub-assy, Front Seat, Inner RH
1989-10 → 1993-11 ended
ST185 LHD —
72021-20140 Adjuster Sub-assy, Front Seat, Inner RH
1990-10 → 1993-11 ended
ST182 LHD CVT —
72022 — Adjuster Sub-assy, Front Seat, Inner LH
72022-20060 Adjuster Sub-assy, Front Seat, Inner LH
1989-10 → 1993-11 ended
ST182 LHD —
72022-20070 note Adjuster Sub-assy, Front Seat, Inner LH
1991-08 → 1993-11 ended
AT180 —
72022-20070 note Adjuster Sub-assy, Front Seat, Inner LH
1989-10 → 1991-08 ended
AT180 —
72022-20090 Adjuster Sub-assy, Front Seat, Inner LH
1989-10 → 1993-11 ended
AT180 —
72022-20100 Adjuster Sub-assy, Front Seat, Inner LH
1989-10 → 1993-11 ended
ST182 RHD LB —
72022-20130 Adjuster Sub-assy, Front Seat, Inner LH
1989-10 → 1993-11 ended
ST185 LHD —
72022-20140 Adjuster Sub-assy, Front Seat, Inner LH
1989-10 → 1993-11 ended
ST185 RHD —
72022-20200 Adjuster Sub-assy, Front Seat, Inner LH
1990-10 → 1991-09 ended
ST182 RHD CVT —
72123A — Cover, Seat Track Bracket, Outer Front RH
72123-20120-03 note Cover, Seat Track Bracket, Outer Front RH
1989-10 → 1991-08 ended
AT180,ST18# —
72123-20120-03 note Cover, Seat Track Bracket, Outer Front RH
1991-08 → 1993-11 ended
ST182 CVT;AT180,ST18# LHD (CP,LB) —
72123-20120-04 note Cover, Seat Track Bracket, Outer Front RH
1991-08 → 1993-11 ended
AT180,ST182 LHD (CP,LB) —
72123-20120-04 note Cover, Seat Track Bracket, Outer Front RH
1989-10 → 1991-08 ended
AT180,ST182 CP,LB —
72124 — Cover, Seat Track Bracket, Outer Front LH
72123-20120-03 note Cover, Seat Track Bracket, Outer Front LH
1990-10 → 1991-08 ended
ST182 CVT —
72123-20120-03 note Cover, Seat Track Bracket, Outer Front LH
1991-08 → 1993-11 ended
ST18# RHD;ST182 LHD CVT —
72123-20120-04 note Cover, Seat Track Bracket, Outer Front LH
1991-08 → 1993-11 ended
ST182 RHD LB —
72127A — Cover, Seat Track Bracket, Inner Front RH
72127-20040-03 note Cover, Seat Track Bracket, Inner Front RH
1989-10 → 1993-11 ended
AT180,ST18# —
72127-20040-04 note Cover, Seat Track Bracket, Inner Front RH
1989-10 → 1993-11 ended
AT180,ST182 CP,LB —
72128A — Cover, Seat Track Bracket, Inner Front LH
72128-20030-03 note Cover, Seat Track Bracket, Inner Front LH
1989-10 → 1993-11 ended
AT180,ST18# —
72128-20030-04 note Cover, Seat Track Bracket, Inner Front LH
1989-10 → 1993-11 ended
AT180,ST182 CP,LB —
72137B — Cover, Seat Track, RH
72137-20050-03 note Cover, Seat Track, RH
1989-10 → 1993-11 ended
AT180,ST18# —
72137-20050-04 note Cover, Seat Track, RH
1989-10 → 1993-11 ended
AT180,ST182 CP,LB —
72138B — Cover, Seat Track, LH
72137-20050-03 note Cover, Seat Track, LH
1989-10 → 1993-11 ended
AT180,ST18# —
72137-20050-04 note Cover, Seat Track, LH
1989-10 → 1993-11 ended
AT180,ST182 CP,LB —
72210 — Cable Assy, Seat Track Control
72210-20060 Cable Assy, Seat Track Control
1989-10 → 1993-11 ended
ST18# RHD —
72210-20070 Cable Assy, Seat Track Control
1989-10 → 1993-11 ended
AT180,ST18# LHD —
72301A — Wire Sub-assy, Seat Track Equalizing, RH
72301-20260 Wire Sub-assy, Seat Track Equalizing, RH
1989-10 → 1993-11 ended
ST185 —
72301-20270 Wire Sub-assy, Seat Track Equalizing, RH
1989-10 → 1993-11 ended
AT180,ST182 —
72301D — Wire Sub-assy, Seat Track Equalizing, LH
72301-20270 Wire Sub-assy, Seat Track Equalizing, LH
1989-10 → 1993-11 ended
AT180,ST18# —
72348A — Hook, Reclining Conecting, NO.2, RH
72348-20010 Hook, Reclining Conecting, NO.2, RH
1989-10 → 1993-11 ended
ST18# RHD —
72501D — Pipe Sub-assy, Reclining Connecting, RH
72501-20020 Pipe Sub-assy, Reclining Connecting, RH
1989-10 → 1993-11 ended
ST18# RHD —
72501-20030 Pipe Sub-assy, Reclining Connecting, RH
1989-10 → 1993-11 ended
AT180,ST18# LHD —
72501E — Pipe Sub-assy, Reclining Connecting, LH
72501-20020 note Pipe Sub-assy, Reclining Connecting, LH
1991-08 → 1993-11 ended
AT180 —
72501-20020 note Pipe Sub-assy, Reclining Connecting, LH
1989-10 → 1991-08 ended
AT180 —
72501-20020 Pipe Sub-assy, Reclining Connecting, LH
1989-10 → 1993-11 ended
ST18# LHD —
72501-20030 Pipe Sub-assy, Reclining Connecting, LH
1989-10 → 1993-11 ended
AT180;ST18# RHD —
72525A — Handle, Reclining Adjuster Release, RH
72525-20120-03 note Handle, Reclining Adjuster Release, RH
1989-10 → 1993-11 ended
ST18# RHD —
72525-20120-04 note Handle, Reclining Adjuster Release, RH
1989-10 → 1993-11 ended
ST182 RHD LB —
72525-20130-03 note Handle, Reclining Adjuster Release, RH
1989-10 → 1993-11 ended
AT180,ST18# LHD —
72525-20130-04 note Handle, Reclining Adjuster Release, RH
1989-10 → 1993-11 ended
AT180,ST182 LHD (CP,LB) —
72526 — Handle, Reclining Adjuster Release, LH
72526-20080-03 note Handle, Reclining Adjuster Release, LH
1989-10 → 1991-08 ended
AT180 —
72526-20080-03 note Handle, Reclining Adjuster Release, LH
1989-10 → 1993-11 ended
ST18# LHD —
72526-20080-03 note Handle, Reclining Adjuster Release, LH
1991-08 → 1993-11 ended
AT180 —
72526-20080-04 note Handle, Reclining Adjuster Release, LH
1989-10 → 1991-08 ended
AT180 —
72526-20080-04 note Handle, Reclining Adjuster Release, LH
1991-08 → 1993-11 ended
AT180 —
72526-20080-04 note Handle, Reclining Adjuster Release, LH
1989-10 → 1993-11 ended
ST182 LHD LB —
72526-20090-03 note Handle, Reclining Adjuster Release, LH
1989-10 → 1993-11 ended
AT180;ST18# RHD —
72526-20090-04 note Handle, Reclining Adjuster Release, LH
1989-10 → 1993-11 ended
AT180;ST182 RHD LB —
72592A — Knob,Reclining Adjuster, RH
72592-20040-03 note Knob,Reclining Adjuster, RH
1989-10 → 1993-09 ended
ST18# RHD —
72592-20040-04 note Knob,Reclining Adjuster, RH
1989-10 → 1993-11 ended
ST182 RHD LB —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
