Toyota Celica
1989-10 → 1993-11 · chassis AT180,ST18# · catalogue 252560 · Europe
Discontinued model
Data version 1994-04

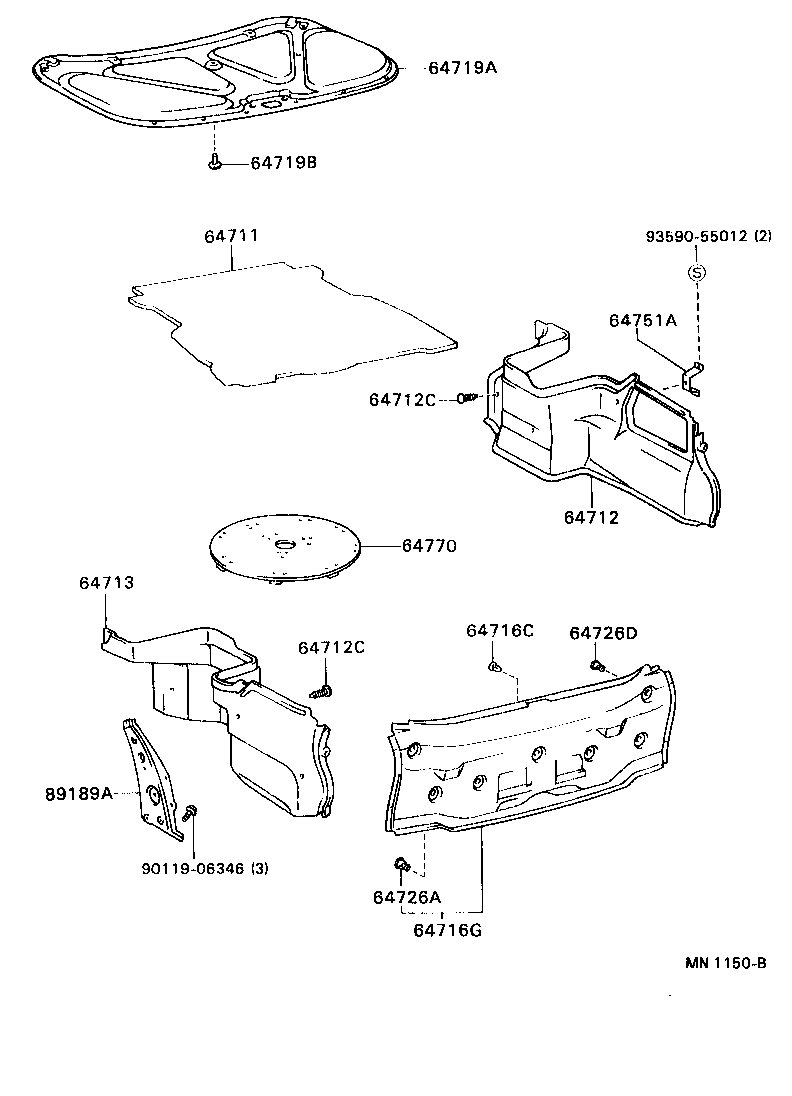

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 64711 — Mat, Luggage Compartment Floor | ||||
| 64711-20630-03 note |
Mat, Luggage Compartment Floor
1989-10 → 1991-08
ended
|
AT180 CP | — | |
| 64711-20650-03 note |
Mat, Luggage Compartment Floor
1989-10 → 1990-08
ended
|
AT180 CP | — | |
| 64711-20650-03 note |
Mat, Luggage Compartment Floor
1990-08 → 1991-08
ended
|
AT180 CP | — | |
| 64711-20650-C0 note |
Mat, Luggage Compartment Floor
1991-08 → 1993-11
ended
|
AT180 CP | — | |
| 64711-20780-01 note |
Mat, Luggage Compartment Floor
1990-10 → 1993-11
ended
|
ST182 CVT | — | |
| 64712 — Cover, Luggage Compartment Trim, RH | ||||
| 64712-20170-03 note |
Cover, Luggage Compartment Trim, RH
1989-10 → 1991-08
ended
|
AT180 CP | — | |
| 64712-20170-C0 note |
Cover, Luggage Compartment Trim, RH
1991-08 → 1993-11
ended
|
AT180 CP | — | |
| 64712-20180-01 note |
Cover, Luggage Compartment Trim, RH
1990-10 → 1993-11
ended
|
ST182 LHD CVT | — | |
| 64712C — Clip(FOR LUGGAGE COMPARTMENT TRIM COVER) | ||||
| 90467-06077 |
Clip(FOR LUGGAGE COMPARTMENT TRIM COVER)
1990-10 → 1993-11
ended
|
ST182 LHD CVT | — | |
| 90467-08056-23 note |
Clip(FOR LUGGAGE COMPARTMENT TRIM COVER)
1989-10 → 1991-08
ended
|
AT180 CP | — | |
| 90467-08056-C0 note |
Clip(FOR LUGGAGE COMPARTMENT TRIM COVER)
1991-08 → 1993-11
ended
|
AT180 CP | — | |
| 64713 — Cover, Luggage Compartment Trim, LH | ||||
| 64713-20170-03 note |
Cover, Luggage Compartment Trim, LH
1989-10 → 1991-08
ended
|
AT180 CP | — | |
| 64713-20170-C0 note |
Cover, Luggage Compartment Trim, LH
1991-08 → 1993-11
ended
|
AT180 CP | — | |
| 64713-20180-01 note |
Cover, Luggage Compartment Trim, LH
1990-10 → 1993-11
ended
|
ST182 LHD CVT | — | |
| 64716C — Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) | ||||
| 90467-07053-01 note |
Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1990-10 → 1991-09
ended
|
ST182 LHD CVT W | — | |
| 90467-07053-01 note |
Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1991-08 → 1991-09
ended
|
AT180 CP | — | |
| 90467-07053-01 note |
Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1991-09 → 1993-11
ended
|
ST182 CVT | — | |
| 90467-07053-01 note |
Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1991-09 → 1993-11
ended
|
AT180 CP | — | |
| 90467-07053-23 note |
Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1989-10 → 1991-08
ended
|
AT180 CP | — | |
| 64716G — Cover, Luggage Compartment Trim, Rear | ||||
| 64716-20320-03 note |
Cover, Luggage Compartment Trim, Rear
1989-10 → 1991-08
ended
|
AT180 CP | — | |
| 64716-20320-C0 note |
Cover, Luggage Compartment Trim, Rear
1991-08 → 1993-11
ended
|
AT180 CP | — | |
| 64716-20440-01 note |
Cover, Luggage Compartment Trim, Rear
1991-09 → 1993-11
ended
|
ST182 CVT | — | |
| 64716-20440-01 note |
Cover, Luggage Compartment Trim, Rear
1990-10 → 1991-09
ended
|
ST182 LHD CVT W | — | |
| 64719A — Cover, Luggage Compartment Door | ||||
| 64719-20100-01 note |
Cover, Luggage Compartment Door
1990-10 → 1993-11
ended
|
ST182 CVT | — | |
| 64719B — Clip(FOR LUGGAGE COMPARTMENT DOOR) | ||||
| 90467-07059-01 note |
Clip(FOR LUGGAGE COMPARTMENT DOOR)
1990-10 → 1991-09
ended
|
ST182 CVT | — | |
| 90467-07059-22 note |
Clip(FOR LUGGAGE COMPARTMENT DOOR)
1991-09 → 1993-11
ended
|
ST182 CVT | — | |
| 64726A — Clip, Luggage Trim, Rear | ||||
| 64726-20020-01 note |
Clip, Luggage Trim, Rear
1991-09 → 1993-11
ended
|
ST182 CVT | — | |
| 64726-20020-01 note |
Clip, Luggage Trim, Rear
1991-08 → 1993-11
ended
|
AT180 CP | — | |
| 64726-20020-01 note |
Clip, Luggage Trim, Rear
1990-10 → 1991-01
ended
|
ST182 LHD CVT W | — | |
| 64726-20020-03 note |
Clip, Luggage Trim, Rear
1989-10 → 1991-08
ended
|
AT180 CP | — | |
| 64726D — Clip, Luggage Trim, Rear | ||||
| 64726-20020-01 note |
Clip, Luggage Trim, Rear
1990-10 → 1991-01
ended
|
ST182 LHD CVT | — | |
| 64726-20020-01 note |
Clip, Luggage Trim, Rear
1991-09 → 1993-11
ended
|
ST182 CVT | — | |
| 64751A — Bracket, Luggage Compartment Cover, NO.1 | ||||
| 64751-20020 |
Bracket, Luggage Compartment Cover, NO.1
1990-10 → 1993-11
ended
|
ST182 LHD CVT | — | |
| 64770 — Cover Assy, Spare Wheel | ||||
| 64770-20080 |
Cover Assy, Spare Wheel
1989-10 → 1991-08
ended
|
AT180 CP | — | |
| 64770-20090 note |
Cover Assy, Spare Wheel
1989-10 → 1990-08
ended
|
AT180 CP | — | |
| 64770-20090 note |
Cover Assy, Spare Wheel
1990-08 → 1991-08
ended
|
AT180 CP | — | |
| 64770-20090 |
Cover Assy, Spare Wheel
1990-10 → 1991-08
ended
|
ST182 CVT | — | |
| 64770-20090 |
Cover Assy, Spare Wheel
1991-08 → 1993-11
ended
|
AT180,ST182 CP,CVT | — | |
| 89189A — Bracket, Luggage Compartment Trim | ||||
| 89189-20010 |
Bracket, Luggage Compartment Trim
1990-10 → 1993-11
ended
|
ST182 CVT | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
