Toyota Celica

1989-10 → 1993-11 · chassis AT180,ST18# · catalogue 252560 · Europe

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

16 part groups · 6 illustrations

Illustrations

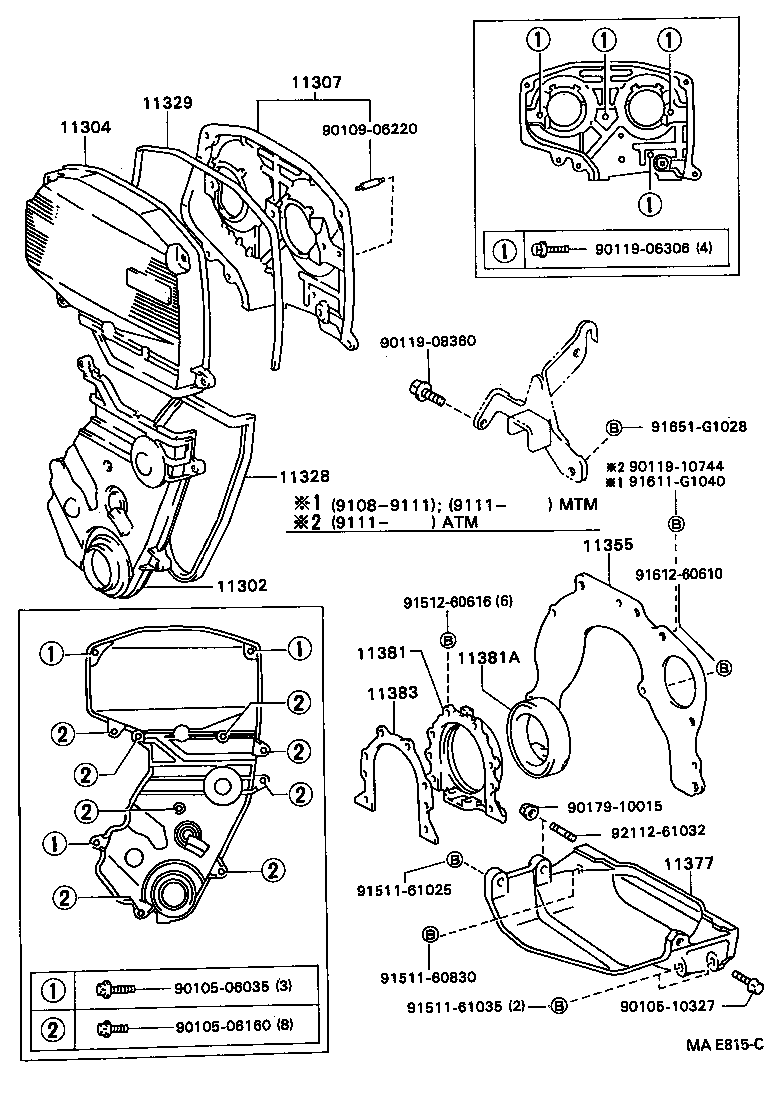

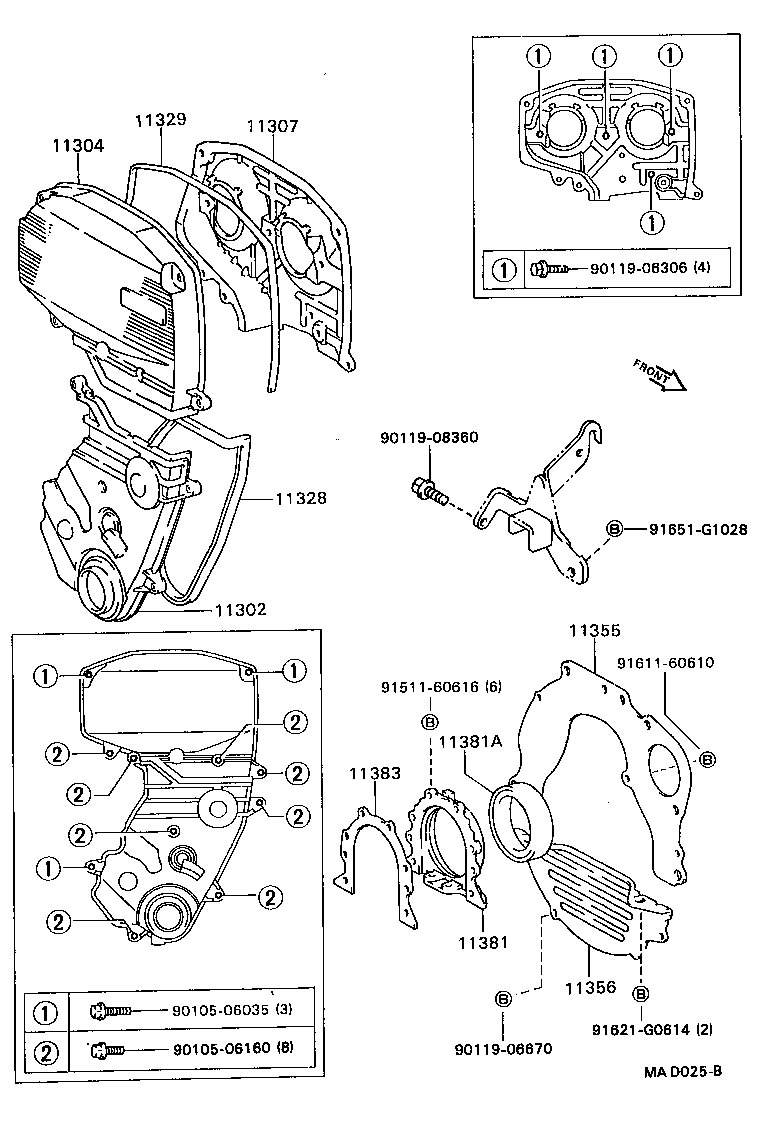

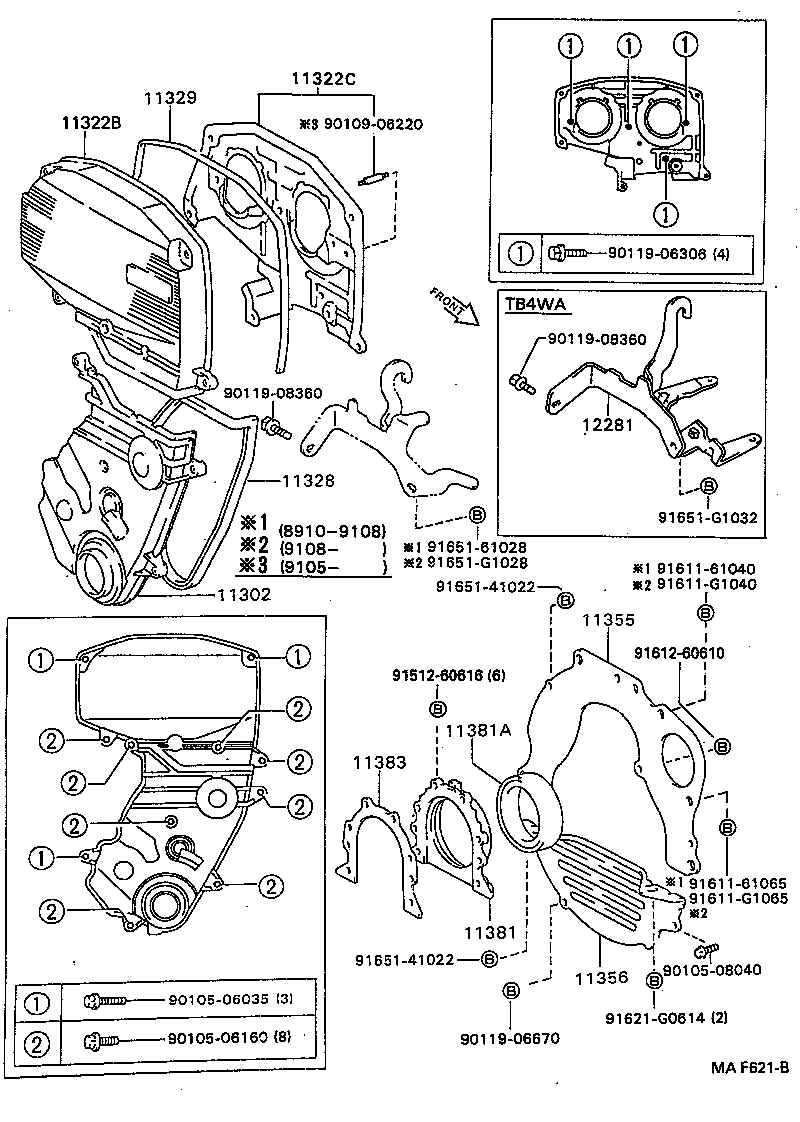

Figure MAC644C MAC644C 1989-10 → — Figure MAD025B MAD025B 1989-10 → 1991-08 Figure MAD025B MAD025B 1991-08 → 1991-09 Figure MAE815C MAE815C 1991-08 → 1991-09 Figure MAE815C MAE815C 1991-09 → — Figure MAF621B MAF621B 1989-10 → —

Part groups

PNCDescription
11302 Cover Sub-assy, Timing Chain OR Belt
11302T Plug, Hole
11303 Cover Sub-assy, Crankshaft Gear OR Pulley
11304 Cover, Timing Chain OR Belt, NO.2
11307 Cover, Sub-assy, Timing Belt, NO.3
11322B Cover, Timing Belt, NO.2
11322C Cover, Timing Belt, NO.3
11328 Gasket, Timing Gear OR Chain Cover
11329 Gasket, Timing Gear Rear Cover
11355 Plate, Rear End
11356 Plate, Rear End, NO.2
11377 Stiffener, Rear End Plate
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
12281 Hanger, Engine, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
