Toyota Celica
1989-10 → 1993-11 · chassis AT180,ST18# · catalogue 252560 · Europe
Discontinued model
Data version 1994-04

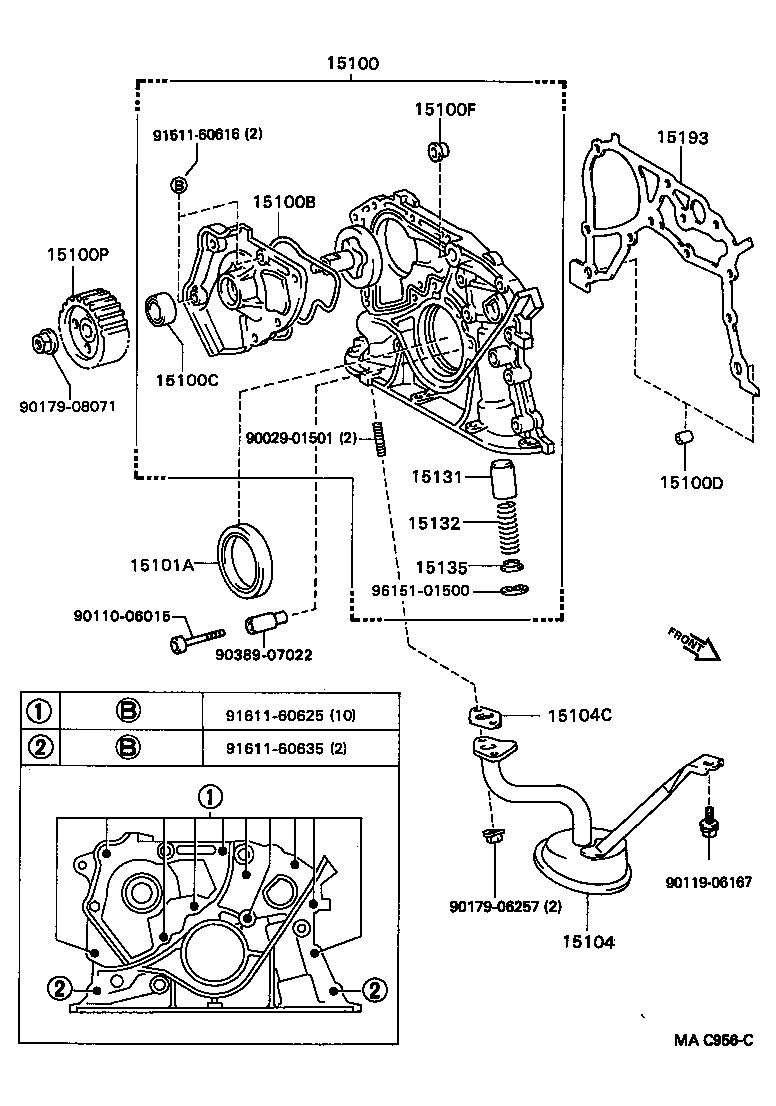

Engine Oil Pump
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 15100 | Pump Assy, Oil |
| 15100A | Pin, Ring(FOR OIL PUMP SET) |
| 15100B | Ring, O(FOR OIL PUMP) |
| 15100C | Seal(FOR OIL PUMP) |
| 15100D | Pin(FOR OIL PUMP SET) |
| 15100F | Bush (FOR OIL PUMP) |
| 15100P | Pulley, Oil Pump Drive Shaft |
| 15101 | Body Sub-assy, Oil Pump |
| 15101A | Seal(FOR CRANKSHAFT) |
| 15103 | Gear Set, Oil Pump |
| 15104 | Strainer Sub-assy, Oil |
| 15104C | Gasket(FOR OIL STRAINER) |
| 15115 | Cover, Oil Pump |
| 15121 | Gear, Oil Pump Drive |
| 15122 | Gear, Oil Pump Driven |
| 15131 | Valve, Oil Pump Relief |
| 15132 | Spring, Oil Pump Relief Valve |
| 15135 | Retainer, Oil Pump Relief Valve |
| 15149 | Gasket, Oil Strainer Flange |
| 15193 | Gasket, Oil Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
