Toyota Celica

1989-10 → 1993-11 · chassis AT180,ST18# · catalogue 252560 · Europe

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

13 part groups · 2 illustrations

Illustrations

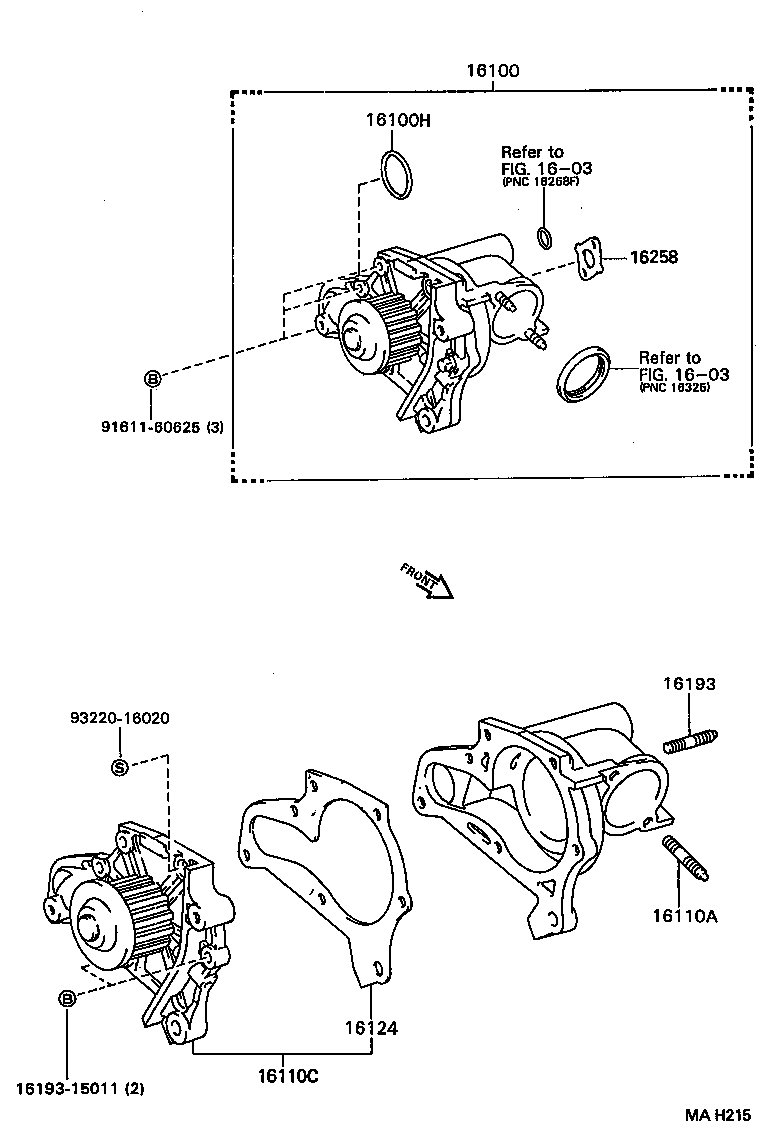

Figure MAC452C MAC452C 1989-10 → — Figure MAH215 MAH215 1989-10 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16100H Ring, O(FOR WATER PUMP)
16104 Seal Set, Water Pump
16110 Pump Assy, Water, W/O Coupling
16110A Bolt, Stud(FOR WATER OUTLET SETTING)
16110C Pump Assy, Water, W/O Cover
16124 Gasket, Water Pump Cover
16131 Rotor, Water Pump
16131A Bearing, Water Pump
16171 Seat, Water Pump Pulley
16193 Bolt, Stud(FOR WATER PUMP COVER)
16258 Gasket(FOR HEATER RETURN)
16371 Pulley, Fan
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
