Toyota Celica

1989-10 → 1993-11 · chassis AT180,ST18# · catalogue 252560 · Europe

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

24 part groups · 12 illustrations

Illustrations

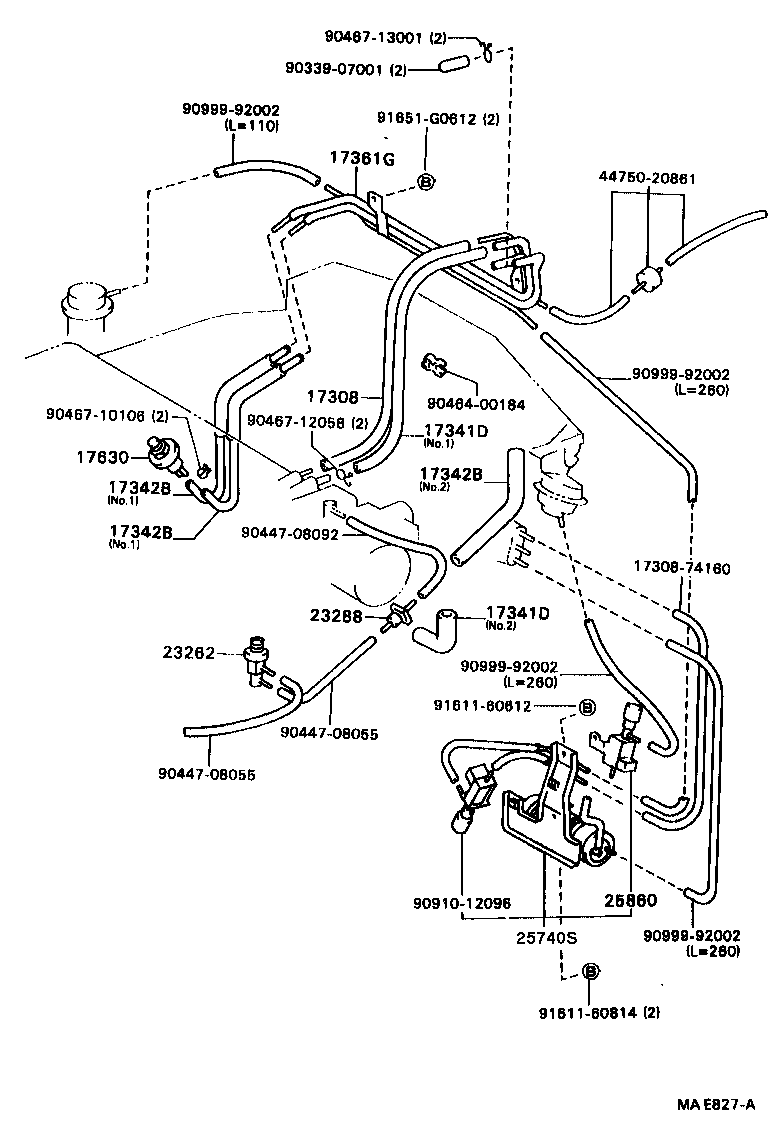

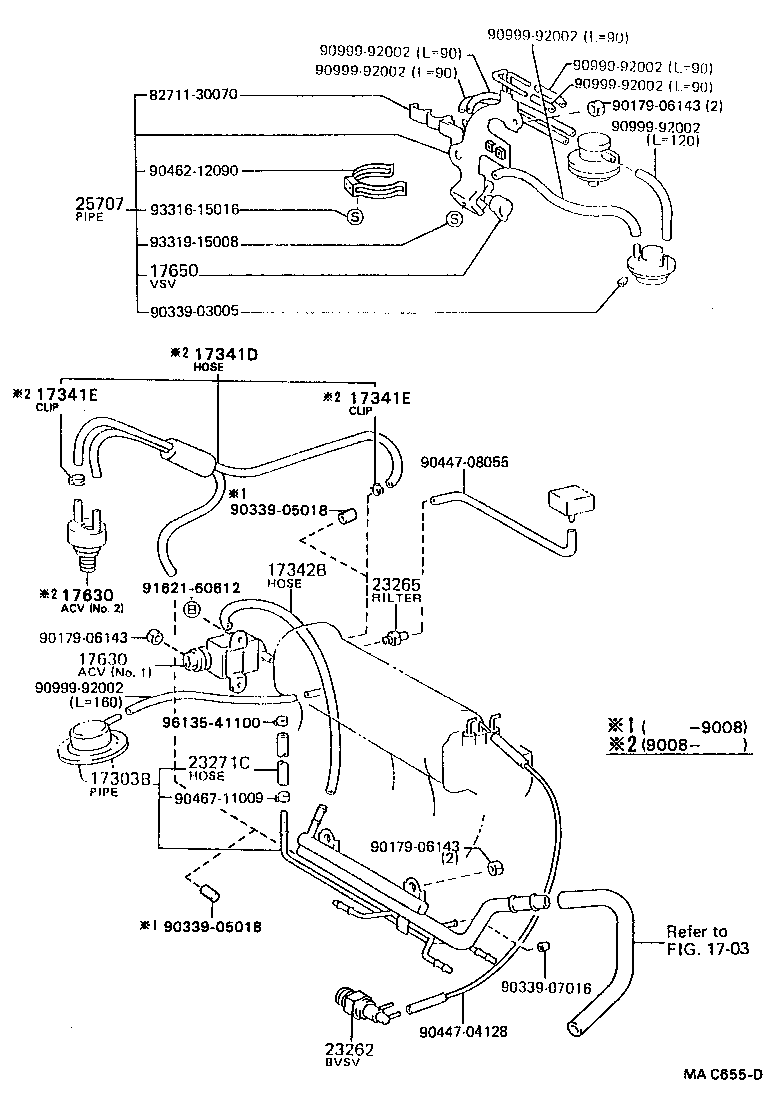

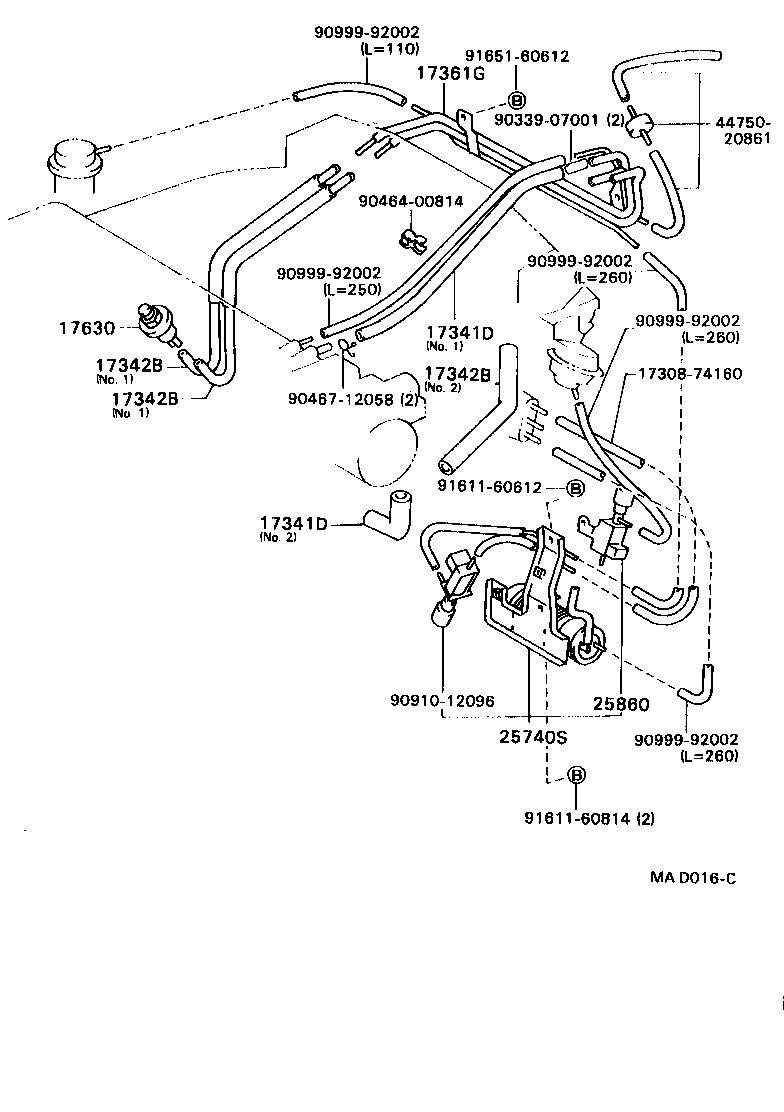

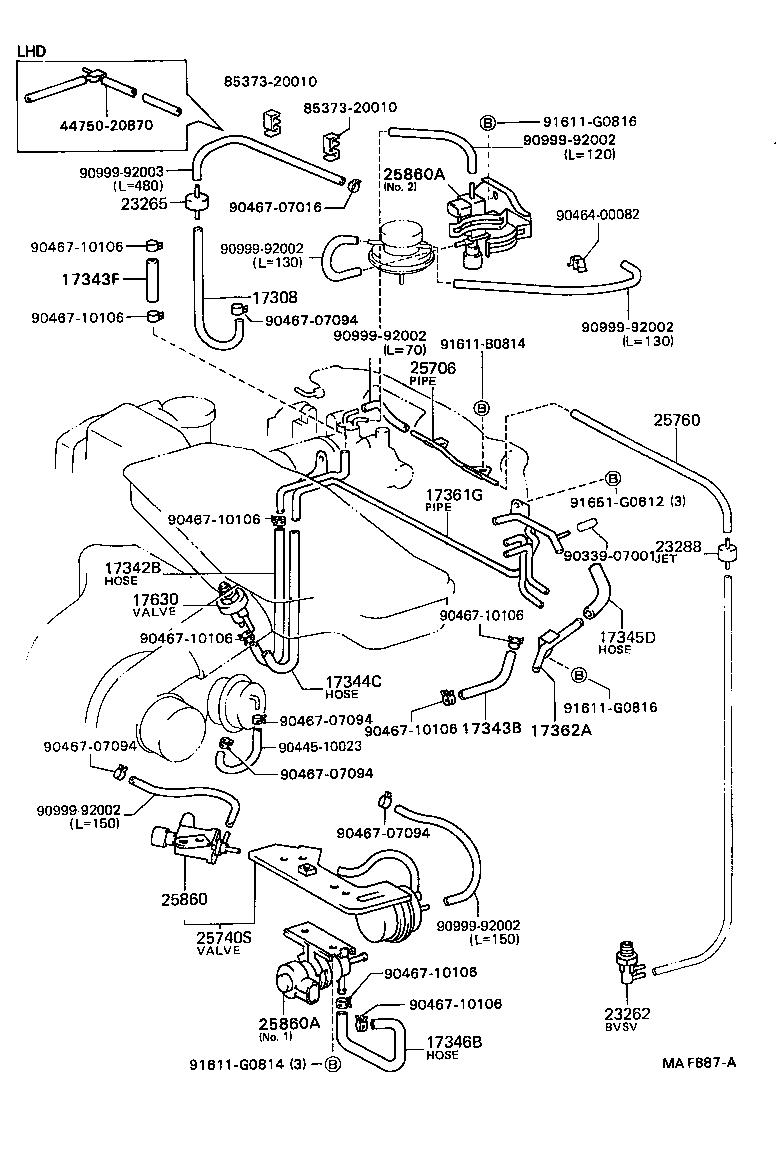

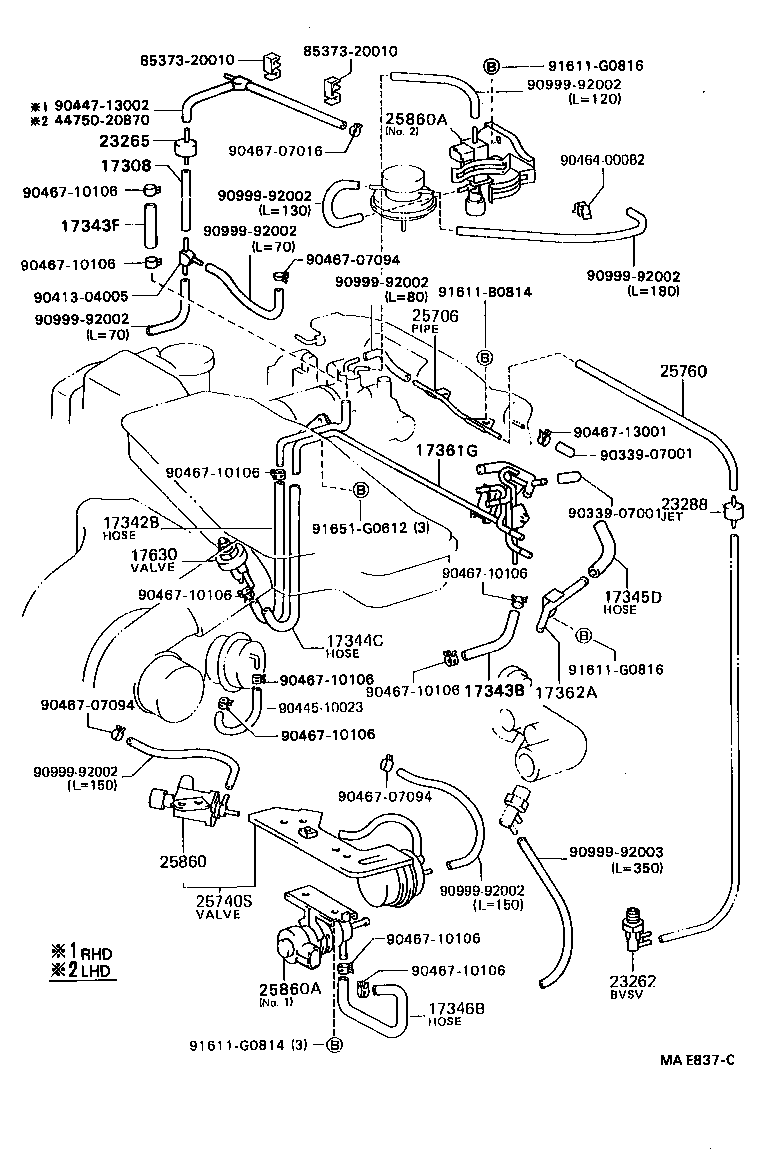

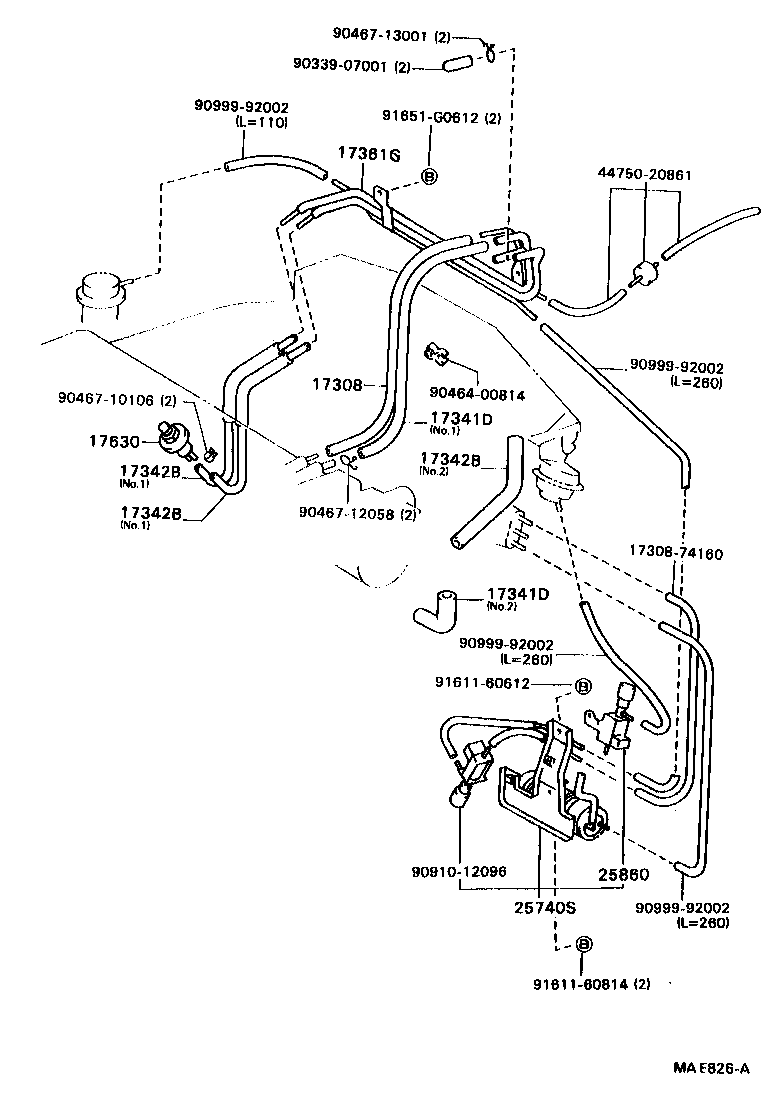

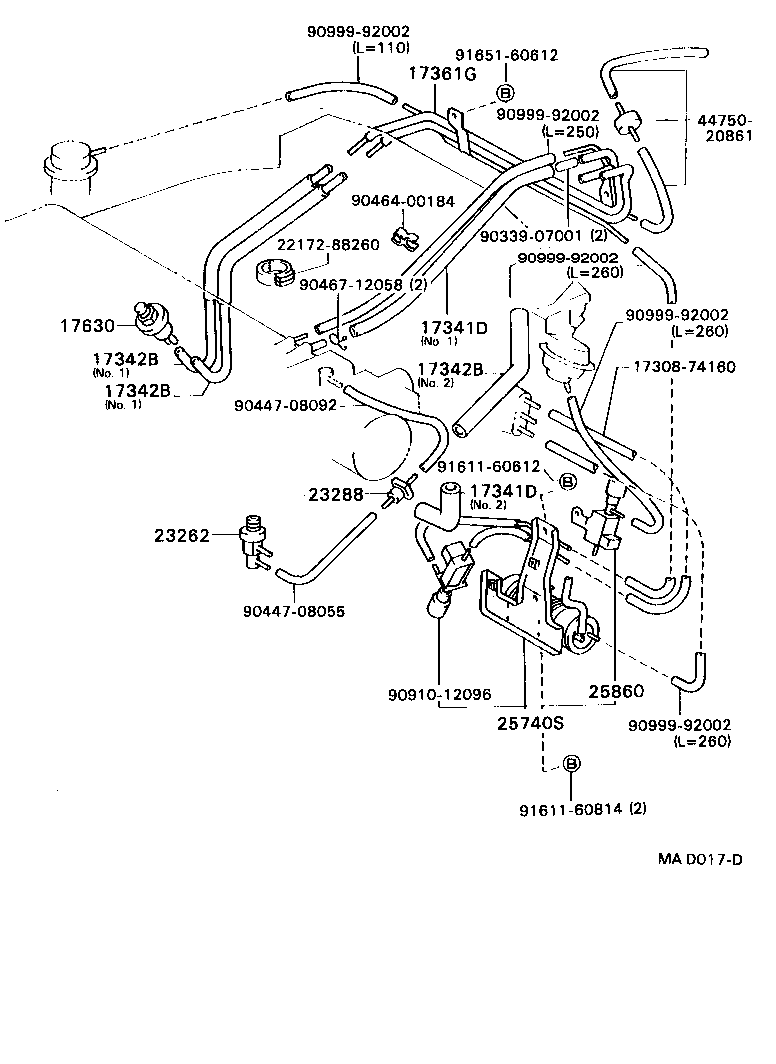

Figure MA9504B MA9504B 1989-10 → — Figure MAC655D MAC655D 1989-10 → — Figure MA9504B MA9504B 1989-10 → — Figure MAD016C MAD016C 1989-10 → 1991-08 Figure MAD016C MAD016C 1991-08 → 1991-09 Figure MAE826A MAE826A 1991-08 → — Figure MAD017D MAD017D 1989-10 → 1991-08 Figure MAD017D MAD017D 1991-08 → 1991-09 Figure MAE827A MAE827A 1991-08 → 1991-09 Figure MAE827A MAE827A 1991-09 → — Figure MAF887A MAF887A 1989-10 → 1991-08 Figure MAE837C MAE837C 1991-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17343B Hose, NO.3(FOR IDLE-UP)
17343F Hose, Air, NO.3
17344C Hose, NO.4(FOR IDLE-UP)
17345D Hose, Air, NO.5
17346B Hose, Air, NO.6
17361G Tube, Air(FOR IDLE-UP)
17362A Tube, Air, NO.2
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23271C Hose, Fuel
23288 Jet, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25740S Valve Assy, Air Control(FOR IDLE SPEED CONTROL)
25760 Hose Assy, Vacuum Transmitting
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
