Toyota Celica

1989-10 → 1993-11 · chassis AT180,ST18# · catalogue 252560 · Europe

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

13 part groups · 7 illustrations

Illustrations

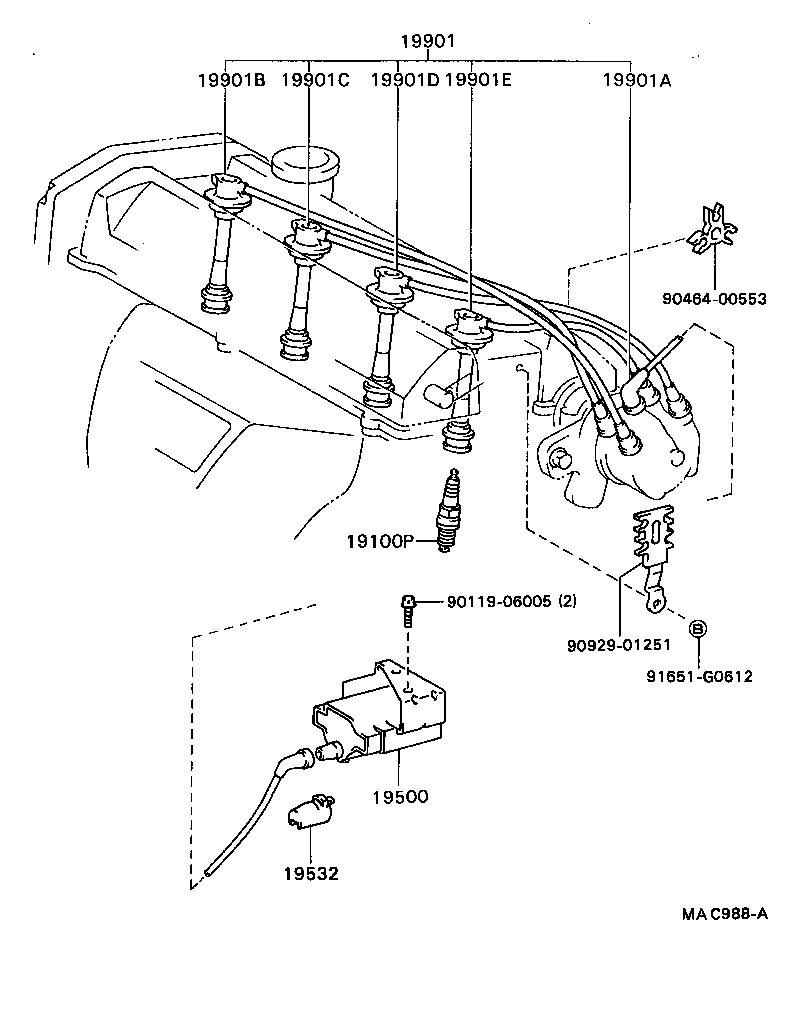

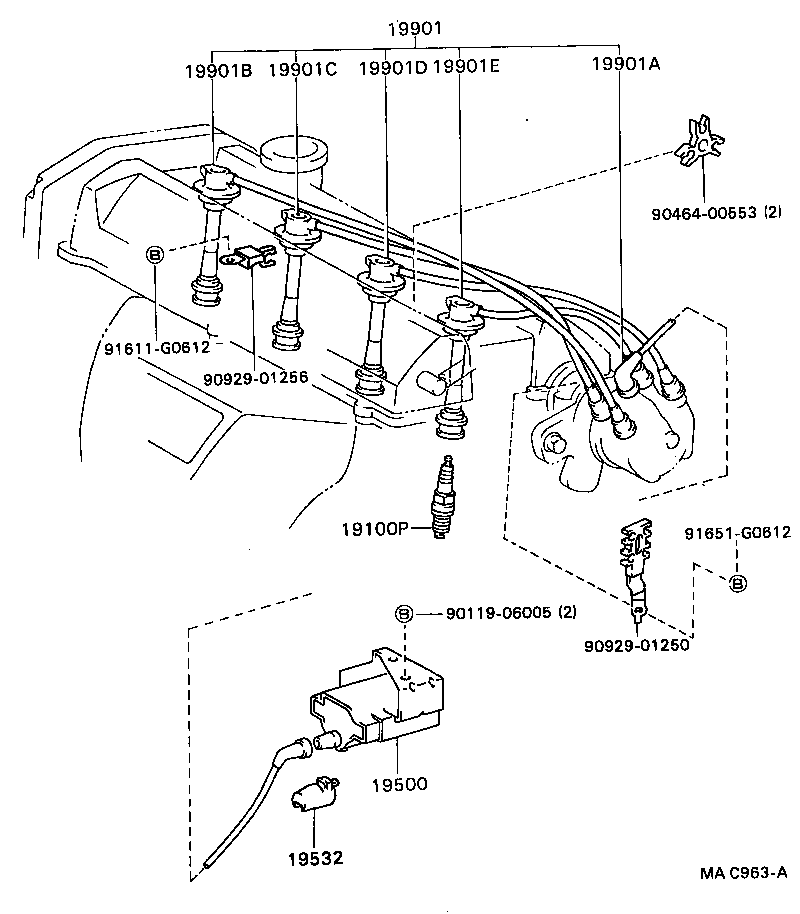

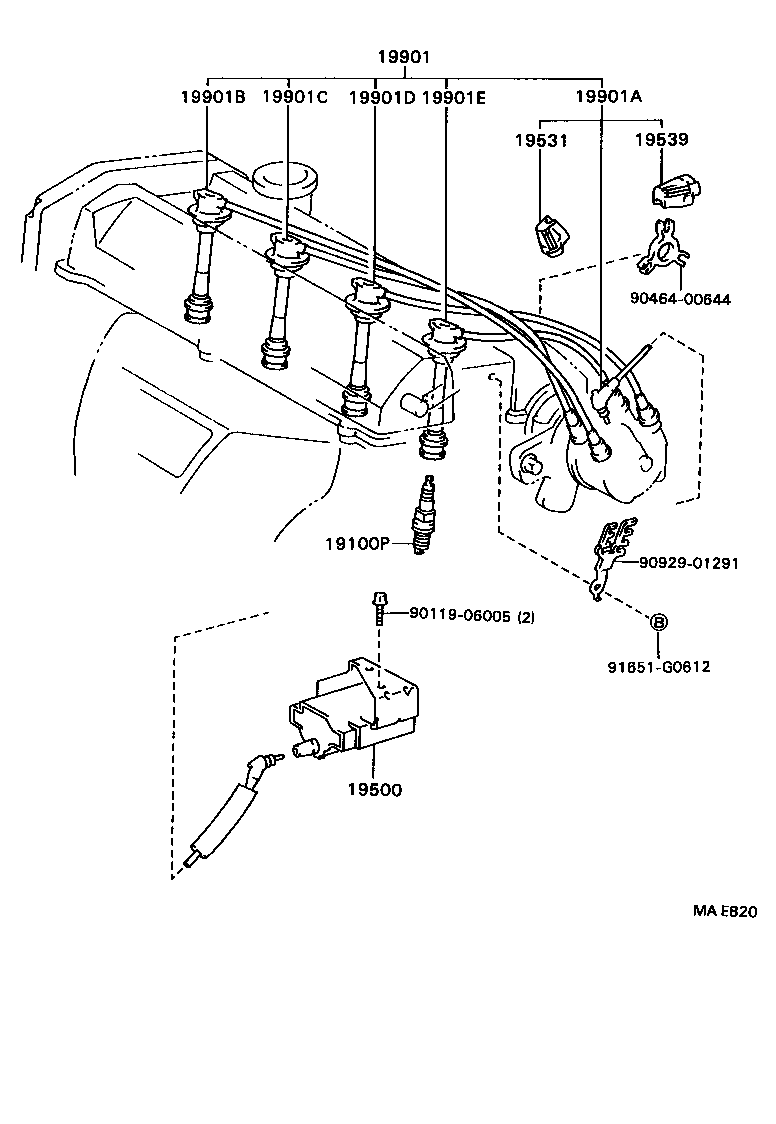

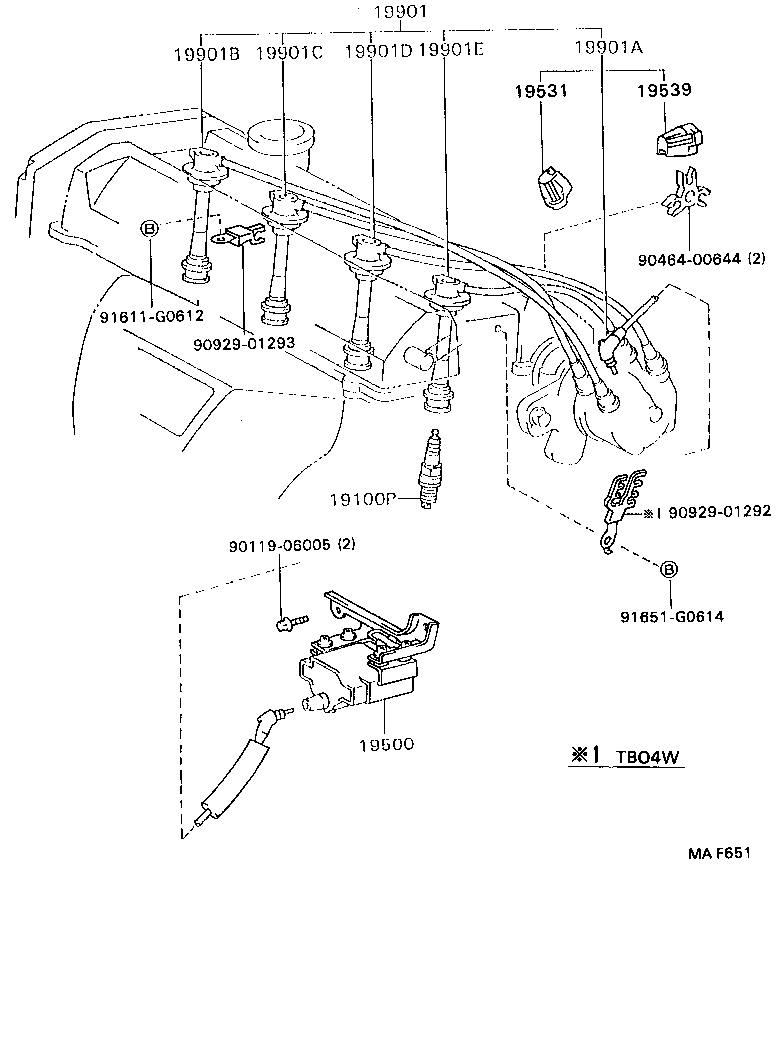

Figure NA0153B NA0153B 1989-10 → — Figure MAC988A MAC988A 1989-10 → 1991-08 Figure MAC988A MAC988A 1991-08 → 1991-09 Figure MAE820 MAE820 1991-08 → 1991-09 Figure MAE820 MAE820 1991-09 → — Figure MAC963A MAC963A 1989-10 → 1991-08 Figure MAF651 MAF651 1991-08 → —

Part groups

PNCDescription
19100P Plug, Spark
19500 Coil Assy, Ignition
19531 Holder, Resistive Cord, NO.1
19532 Holder, Resistive Code, NO.2
19539 Holder, Resistive Code, NO.4
19901 Cord Set, Coil & Spark, W/Resistive
19901A Cord, Coil Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19901E Cord, Spark Plug Resistive, NO.4
19941 Clamp, Resistive Cord, NO.1
19941A Clamp(FOR RESISTIVE CORD)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
