Toyota Celica

1989-10 → 1993-11 · chassis AT180,ST18# · catalogue 252560 · Europe

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Axle Shaft & Hub

30 part groups · 4 illustrations

Illustrations

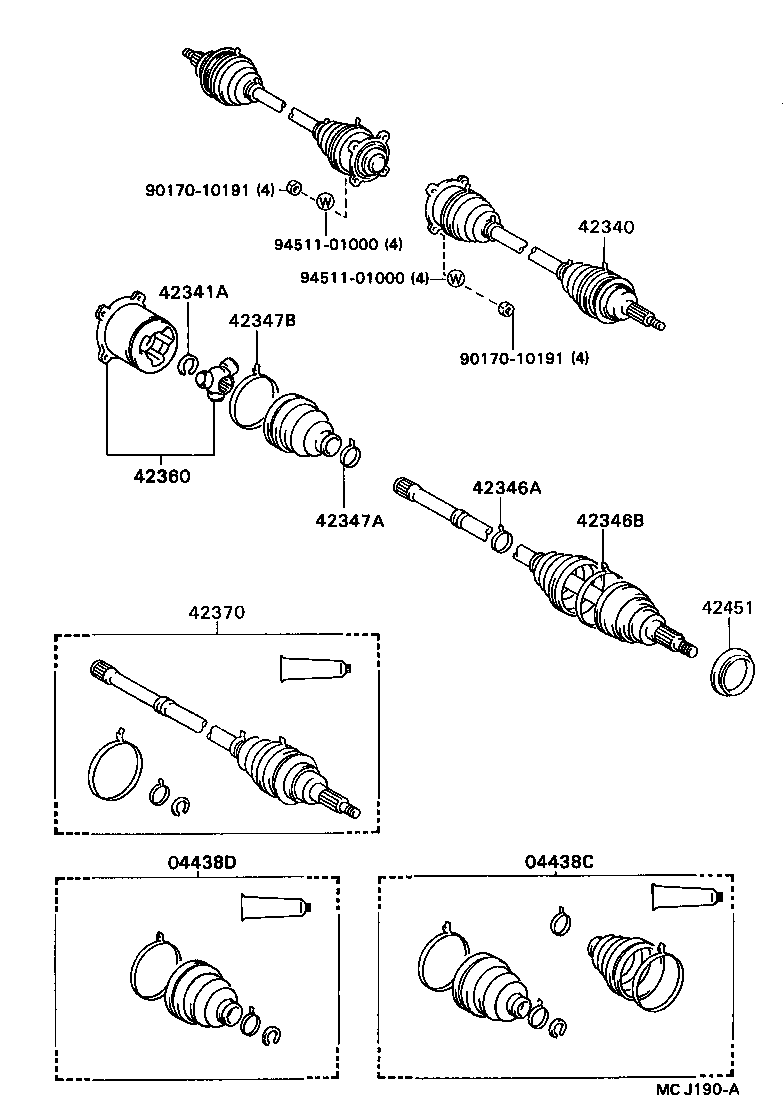

Figure MCJ187B MCJ187B 1989-10 → 1993-07 Figure MCR589 MCR589 1993-07 → — Figure MCJ189A MCJ189A 1989-10 → — Figure MCJ190A MCJ190A 1989-10 → —

Part groups

PNCDescription
04438C Boot Kit, Rear Drive Shaft
04438D Boot Kit, Rear Drive Shaft Inboard Joint
42301 Shaft Sub-assy, Rear Axle
42311A Seal, Oil(FOR REAR AXLE SHAFT)
42311C Bearing(FOR REAR AXLE SHAFT)
42311D Ring, Snap(FOR REAR AXLE SHAFT)
42311F Washer, Plate(FOR REAR AXLE SHAFT)
42311G Nut(FOR REAR AXLE SHAFT)
42340 Shaft Assy, Rear Drive
42341A Ring, Snap (FOR REAR DRIVE SHAFT)
42346A Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)
42346B Clamp, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)
42347A Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42347B Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42360 Joint Assy, Rear Drive Shaft Inboard
42370 Shaft Assy, Rear Drive Outboard Joint
42403 Drum Sub-assy, Rear Brake
42410 Hub & Bearing Assy, Rear Axle, RH
42421 Case, Rear Axle Bearing
42421E Bolt (FOR REAR AXLE BEARING CASE RH)
42421F Ring, O (FOR REAR AXLE BEARING CASE RH)
42422A Bolt (FOR REAR AXLE BEARING CASE LH)
42422B Ring, O (FOR REAR AXLE BEARING CASE LH)
42431 Disc, Rear
42440 Hub & Bearing Assy, Rear Axle, LH
42450 Hub & Bearing Assy, Rear Axle
42451 Deflector, Rear Wheel Bearing Dust, NO.1
42491 Plug, Shoe Adjusting Hole (FOR PARKING BRAKE)
42611E Bolt, Hub (FOR REAR AXLE)
43525A Cap, Rear Wheel Adjusting Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
