Toyota Celica

1989-10 → 1993-11 · chassis AT180,ST18# · catalogue 252560 · Europe

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

21 part groups · 7 illustrations

Illustrations

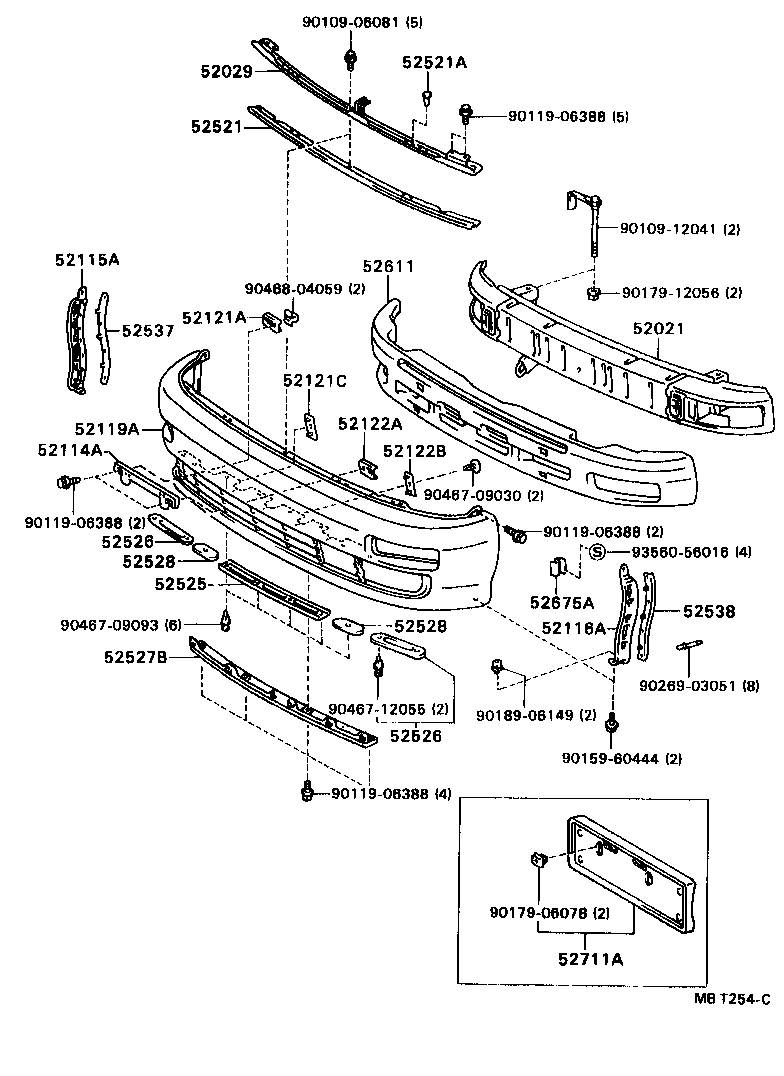

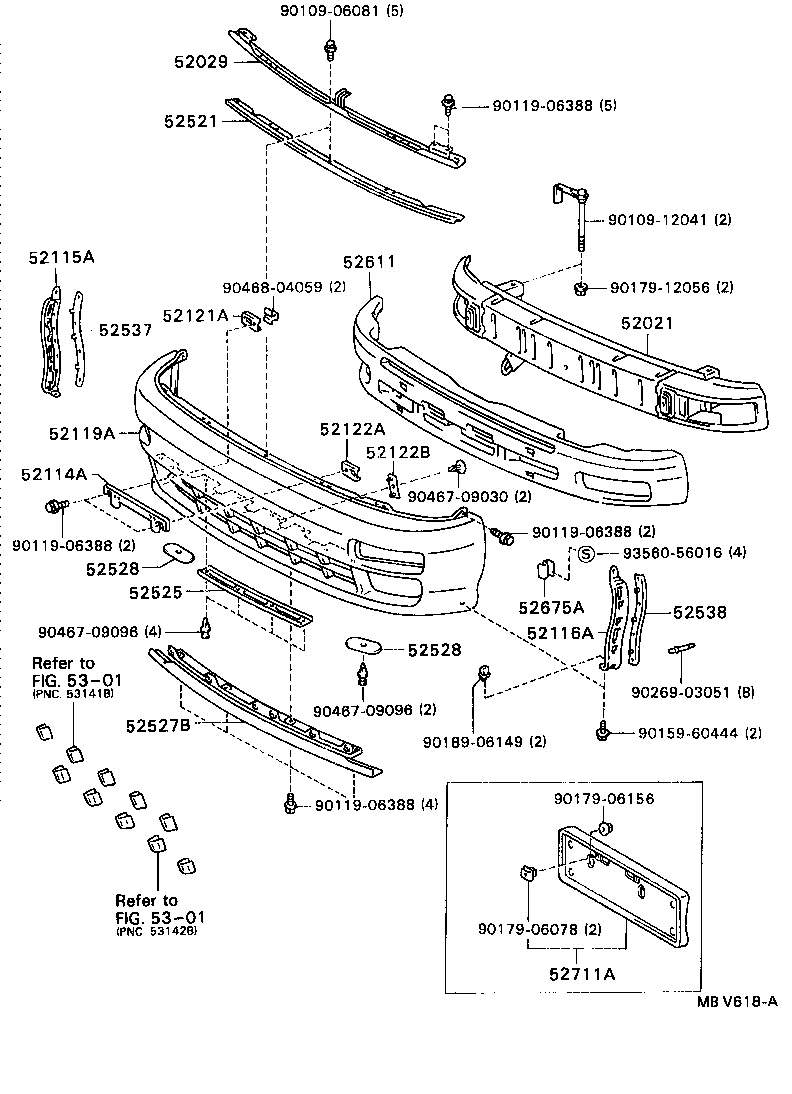

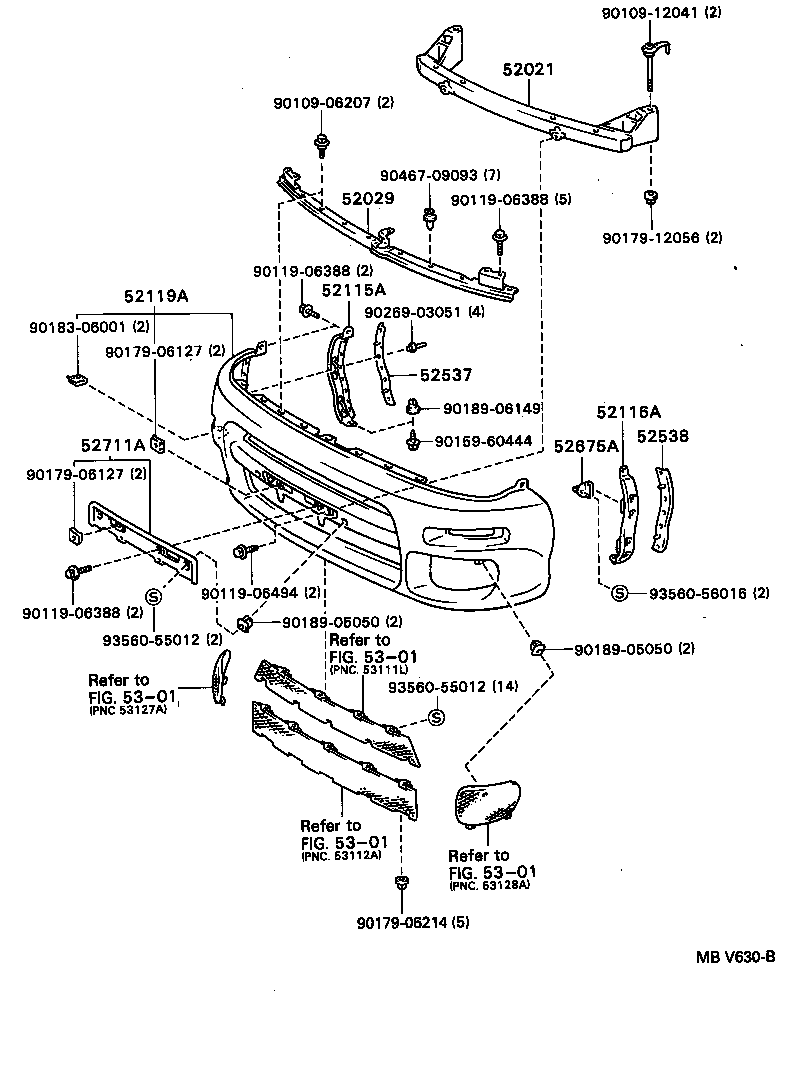

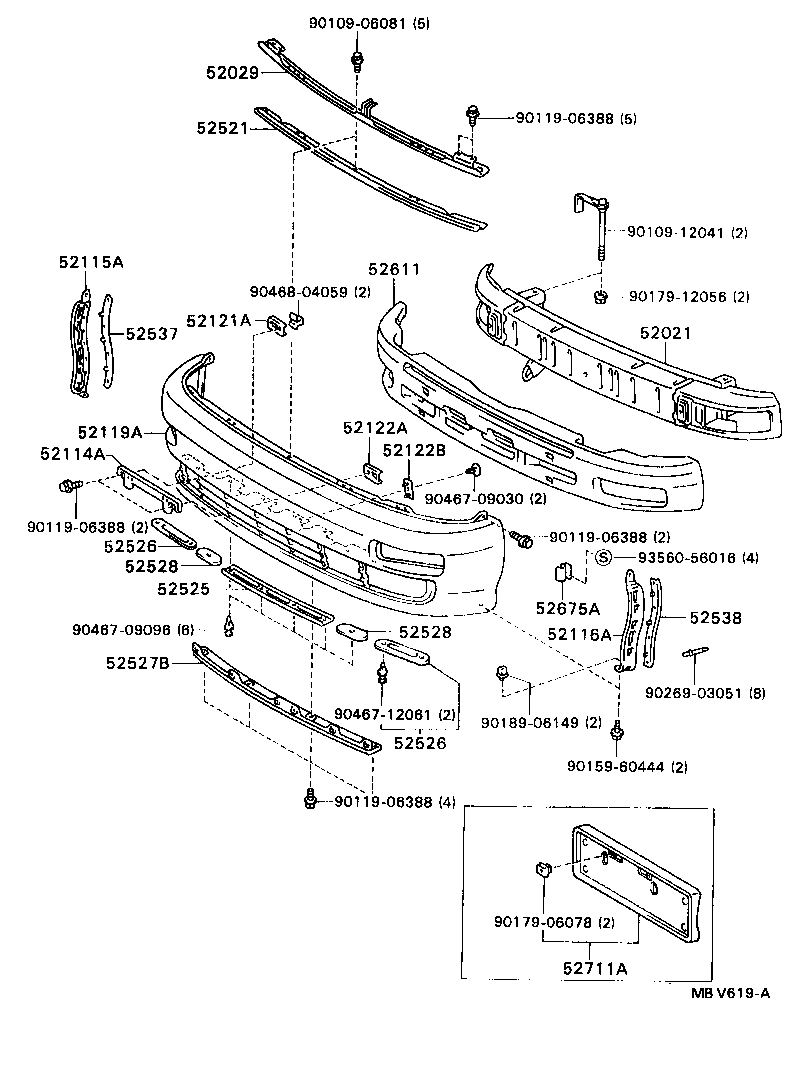

Figure MBT253B MBT253B 1989-10 → 1991-08 Figure MBT253B MBT253B 1990-10 → 1991-09 Figure MBT254C MBT254C 1989-10 → 1991-08 Figure MBV618A MBV618A 1991-08 → — Figure MBV618A MBV618A 1991-09 → — Figure MBV619A MBV619A 1991-08 → — Figure MBV630B MBV630B 1991-08 → 1992-02

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52029 Reinforcement Sub-assy, Front Bumper, Upper
52114A Bracket, Front Bumper Extension Mounting
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52121A Bracket, Front License Plate Mounting, RH
52121C Bracket, Front License Plate Mounting, NO.2
52122A Bracket, Front License Plate Mounting, LH
52122B Bracket, Front License Plate Mounting, NO.2
52521 Retainer, Front Bumper, Upper Center
52521A Clip(FOR FRONT BUMPER RETAINER)
52525 Retainer, Front Bumper, Lower Center
52526 Retainer, Front Bumper, Lower Side
52527B Retainer, Front Bumper, Lower NO.2
52528 Retainer, Front Bumper, Lower Corner
52537 Retainer, Front Bumper End, RH
52538 Retainer, Front Bumper End, LH
52611 Absorber, Front Bumper Energy
52675A Support, Front Bumper Side, NO.1
52711A Garnish, Front Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
