Toyota Celica

1989-10 → 1993-11 · chassis AT180,ST18# · catalogue 252560 · Europe

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

38 part groups · 3 illustrations

Illustrations

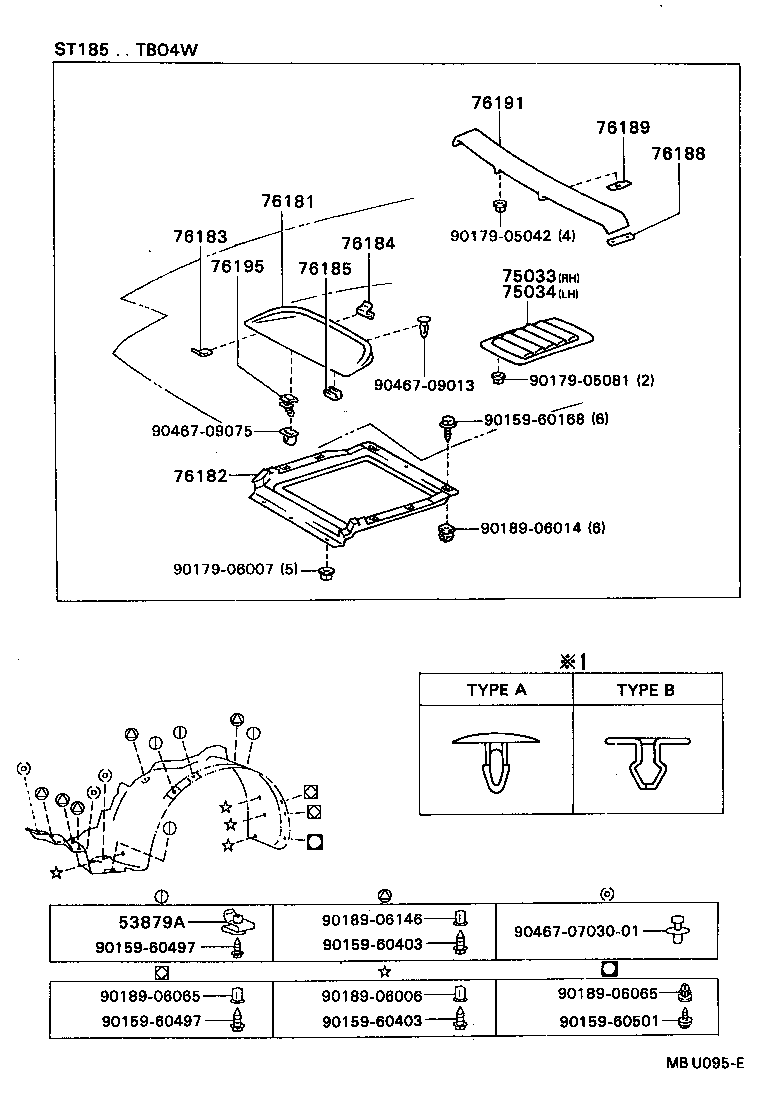

Figure MBT164E MBT164E 1989-10 → — Figure MBU095E MBU095E 1989-10 → — Figure MBV613B MBV613B 1991-08 → 1992-02

Part groups

PNCDescription
53257A Bracket, Front End Panel Mounting, RH
53258A Bracket, Front End Panel Mounting, LH
53301 Hood Sub-assy
53301B Cushion, Hood Bumper
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53349A Retainer, Hood Insulator
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53384A Bumper, Fender TO Hood
53385B Bracket, Fender TO Hood Bumper, RH
53386B Bracket, Fender TO Hood Bumper, LH
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53827B Protector, Front Fender Side Panel
53828B Protector, Front Fender Side Panel, LH
53835A Brace, Front Fender TO Apron, RH
53836A Brace, Front Fender TO Apron, LH
53875A Liner, Front Fender, RH
53876A Liner, Front Fender, LH
53878C Spacer, Front Fender
53879A Retainer, Front Fender Liner
53903B Panel Sub-assy, Front End
58743B Protecter, Front Fender Panel, RH
58744B Protecter, Front Fender Panel, LH
75033 Ornament Sub-assy, Hood, RH
75034 Ornament Sub-assy, Hood, LH
76181 Bulge, Hood
76182 Guide, Hood Air Intake
76183 Protector, Hood Bulge, NO.1
76184 Protector, Hood Bulge, NO.2
76185 Protector, Hood Bulge, NO.3
76186 Seal, Hood Air Intake
76188 Retainer, Hood Air Intake Guide, NO.2
76189 Retainer, Hood Air Intake Guide, NO.3
76191 Guide, Air TO Cowl
76192 Plate, Hood Bulge
76195 Clip, Hood Bulge
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
