Toyota Celica

1989-10 → 1993-11 · chassis AT180,ST18# · catalogue 252560 · Europe

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

18 part groups · 3 illustrations

Illustrations

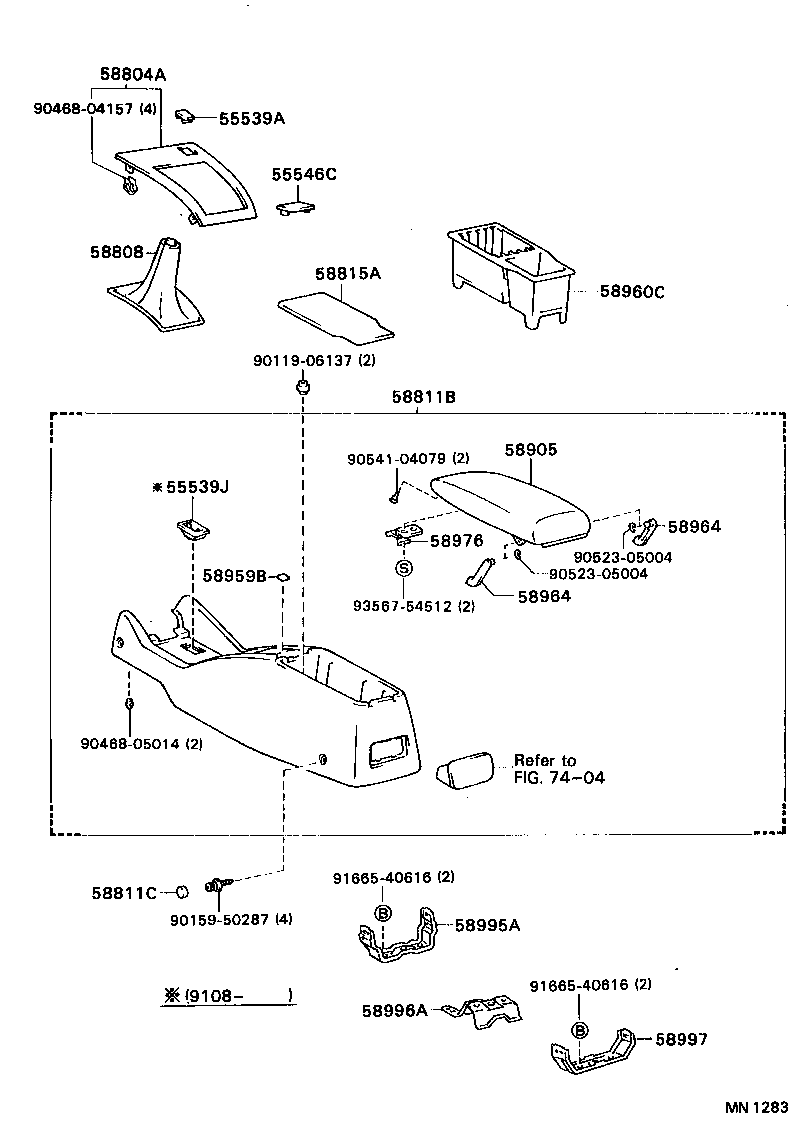

Figure MN0277B MN0277B 1989-10 → — Figure MN1283 MN1283 1989-10 → — Figure MN1283 MN1283 1991-08 → 1992-02

Part groups

PNCDescription
55539A Cover, Spare Switch Hole
55539J Cover, Spare Switch Hole
55546C Cover, Power Seat Switch Hole
55547B Cover, Remote Control Mirror Hole
58804A Panel Sub-assy, Console, Upper
58808 Cover Sub-assy, Shifting Hole
58811B Box, Console
58811C Cap(FOR CONSOLE)
58815A Carpet, Console Box
58905 Door Sub-assy, Console Compartment
58959B Cushion, Console Compartment Door
58960C Holder Assy, Cassette Case
58964 Stopper, Console Compartment Door, NO.1
58965A Stopper, Console Compartment Door, NO.2
58976 Striker, Console Compartment Door Lock
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
58997 Bracket, Console Box Mounting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
