Toyota Celica
1989-10 → 1993-11 · chassis AT180,ST18# · catalogue 252560 · Europe
Discontinued model
Data version 1994-04

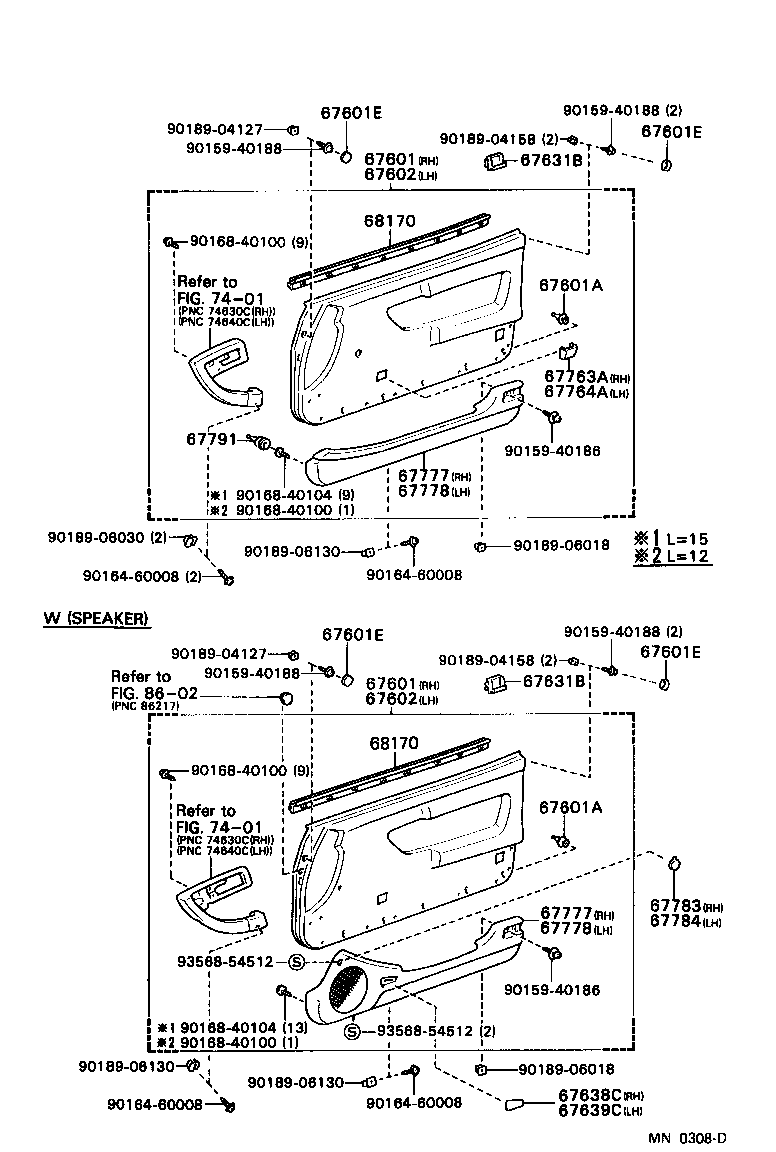

Front Door Panel & Glass
47 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67001 | Panel Sub-assy, Front Door, RH |
| 67001A | Cushion, Front Door Panel |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67111 | Panel, Front Door, Outer RH |
| 67112 | Panel, Front Door, Outer LH |
| 67401G | Guide Sub-assy, Front Door Window, Front RH |
| 67402G | Guide Sub-assy, Front Door Window, Front LH |
| 67403B | Guide Sub-assy, Front Door Window, Rear RH |
| 67404B | Guide Sub-assy, Front Door Window, Rear LH |
| 67441A | Plate, Front Door Front Guide, Upper |
| 67491A | Garnish, Front Door Lower Frame Bracket, RH |
| 67492A | Garnish, Front Door Lower Frame Bracket, LH |
| 67513 | Bracket, Front Door Mirror, RH |
| 67514 | Bracket, Front Door Mirror, LH |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601A | Retainer(FOR FRONT DOOR TRIM BOARD) |
| 67601E | Cap(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67631B | Retainer, Front Door Trim, Upper |
| 67638C | Plate, Front Door Trim, NO.2 RH |
| 67639C | Plate, Front Door Trim, NO.2 LH |
| 67763A | Cover, Front Door Trim, Lower RH |
| 67764A | Cover, Front Door Trim, Lower LH |
| 67777 | Pocket, Front Door Trim, RH |
| 67778 | Pocket, Front Door Trim, LH |
| 67783 | Cover, Front Door Trim, Center RH |
| 67784 | Cover, Front Door Trim, Center LH |
| 67791 | Retainer, Front Door Pocket |
| 67811 | Pad, Front Door Silencer |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67835C | Cover, Front Door Service Hole, NO.3 RH |
| 67836C | Cover, Front Door Service Hole, NO.3 LH |
| 67837E | Cover, Front Door Service Hole, NO.4 RH |
| 67838C | Cover, Front Door Service Hole, NO.4 LH |
| 67855B | Protector, Front Door Panel, RH |
| 67856B | Protector, Front Door Panel, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67868A | Clip, Door Glass Weatherstrip(FOR FRONT DOOR) |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68170 | Weatherstrip Assy, Front Door Glass, Inner |
| 68610 | Check Assy, Front Door |
| 68617 | Pin, Front Door Check |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
