Toyota Celica

1989-10 → 1993-11 · chassis AT180,ST18# · catalogue 252560 · Europe

Discontinued model Data version 1994-04

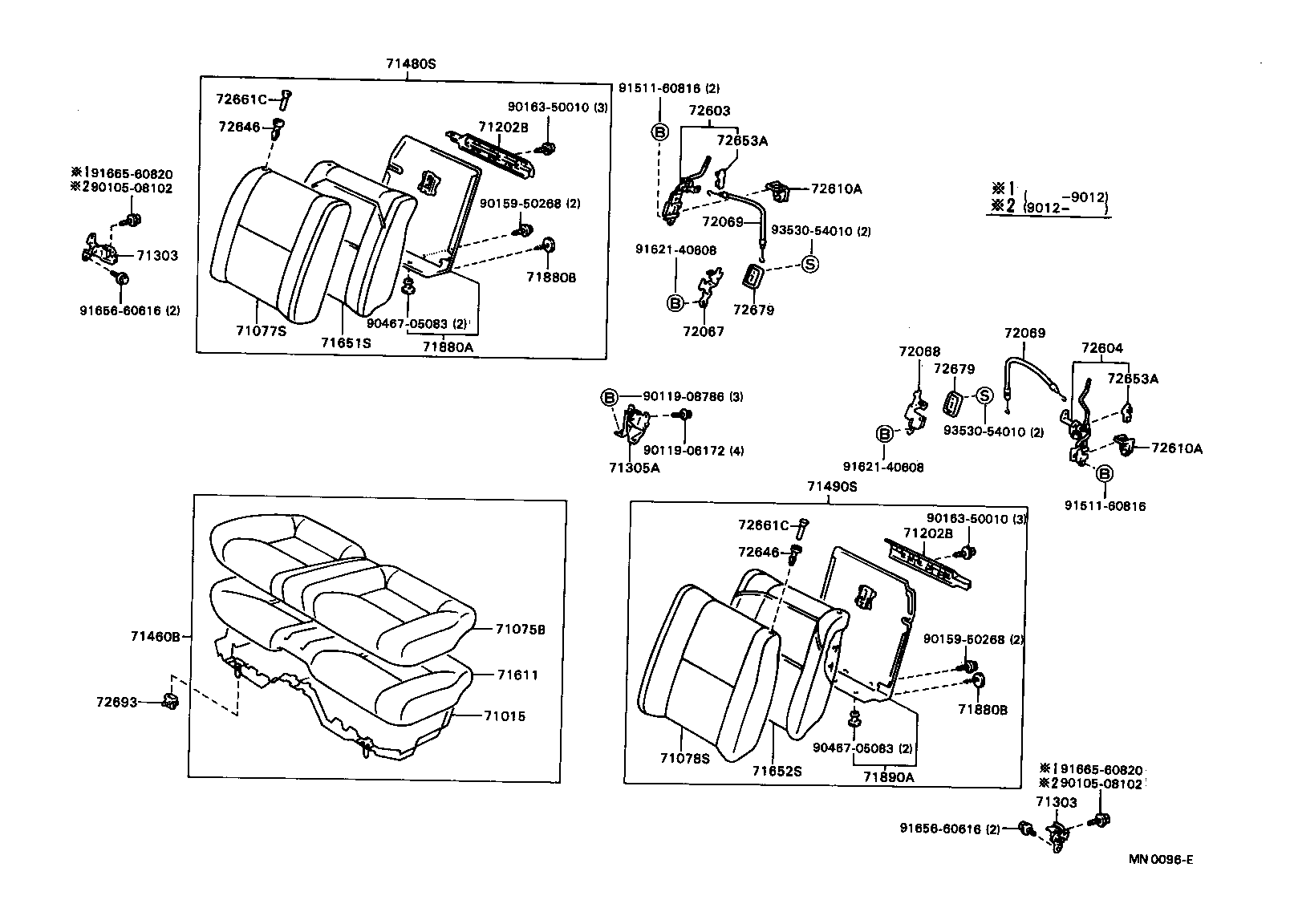

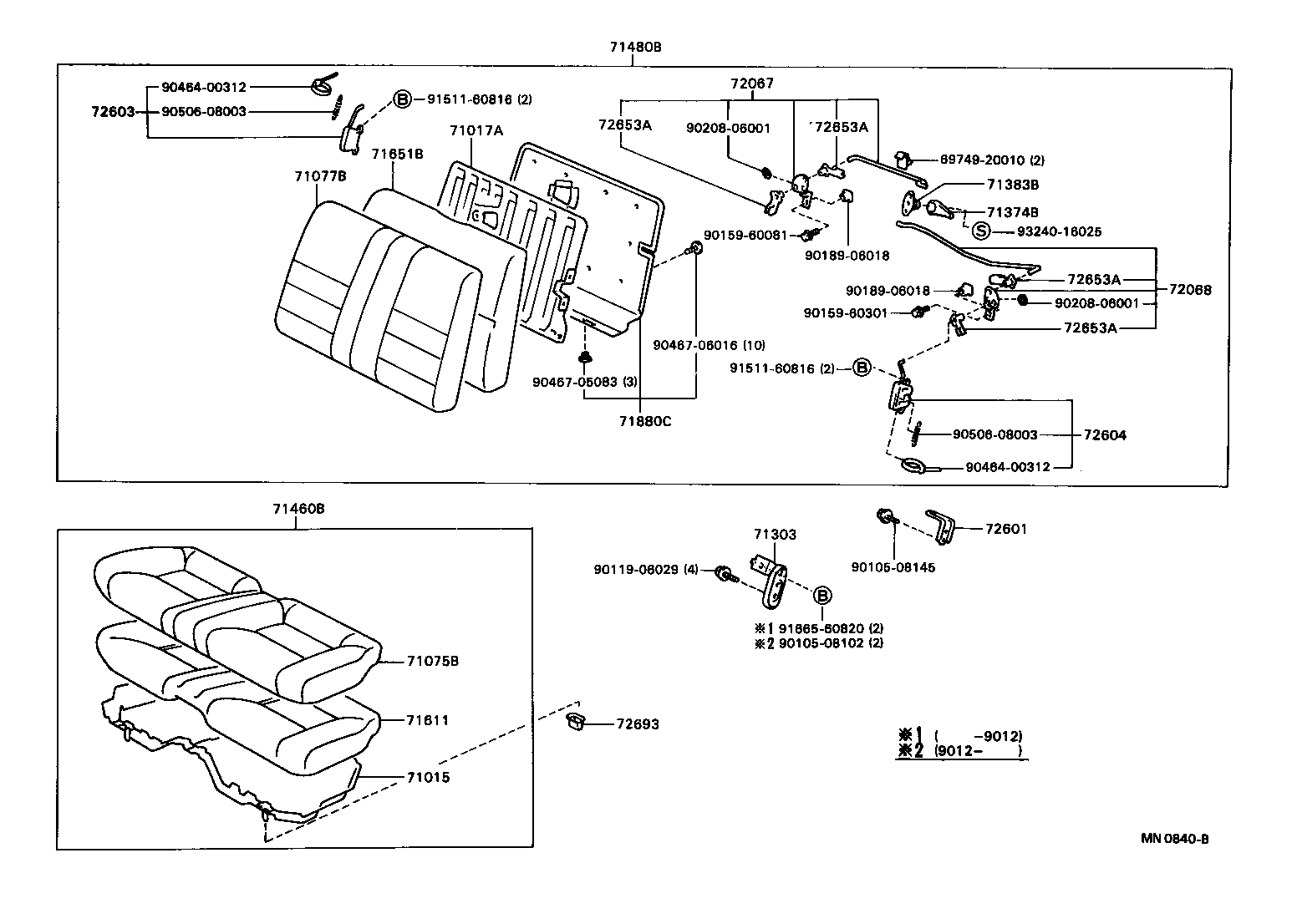

Rear Seat & Seat Track

35 part groups · 3 illustrations

PNC	Description
71015	Frame Sub-assy, Rear Seat Cushion
71017A	Frame Sub-assy, Rear Seatback
71075B	Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B	Cover, Rear Seatback (FOR BENCH TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71202B	Panel, Rear Seatback
71303	Hinge Sub-assy, Rear Seatback
71305A	Hinge Sub-assy, Rear Seatback, Center
71374B	Lever, Rear Seatback Rod Control, Outer
71383B	Lever, Rear Seatback Rod Control, Inner
71460B	Cushion Assy, Rear Seat (FOR BENCH TYPE)
71480B	Back Assy, Rear Seat (FOR BENCH TYPE)
71480S	Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490S	Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71611	Pad, Rear Seat Cushion
71651B	Pad, Rear Seatback(FOR BENCH TYPE)
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71880A	Carpet Assy, Rear Seatback Board, RH
71880B	Clip(FOR REAR SEATBACK CARPET)
71880C	Carpet Assy, Rear Seatback Board
71890A	Carpet Assy, Rear Seatback Board, LH
72067	Lever Sub-assy, Rear Back Lock Control, RH
72068	Lever Sub-assy, Rear Back Lock Control, LH
72069	Cable Sub-assy, Rear Seatback Lock Control
72601	Striker Sub-assy, Rear Seat Lock
72603	Lock Sub-assy, Rear Seatback, RH
72604	Lock Sub-assy, Rear Seatback, LH
72610A	Striker Assy, Rear Seatback Lock
72646	Grommet, Rear Seatback Stop Button
72653A	Snap, Rear Seatback Lock Rod
72661C	Button, Rear Seatback Lock Release
72679	Bezel, Rear Seatback Lock Control
72693	Hook, Rear Seat Cushion Lock

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
