Toyota Celica

1989-10 → 1993-11 · chassis AT180,ST18# · catalogue 252560 · Europe

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Convertible Parts

170 part groups · 18 illustrations

Illustrations

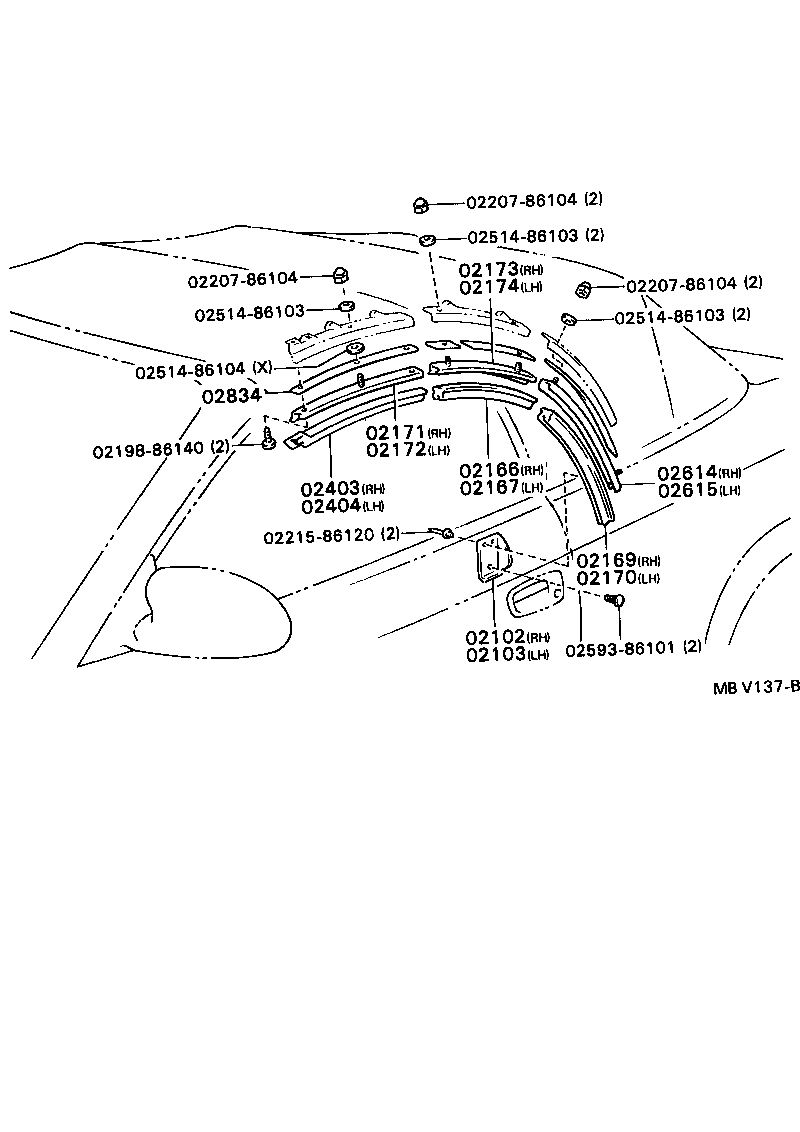

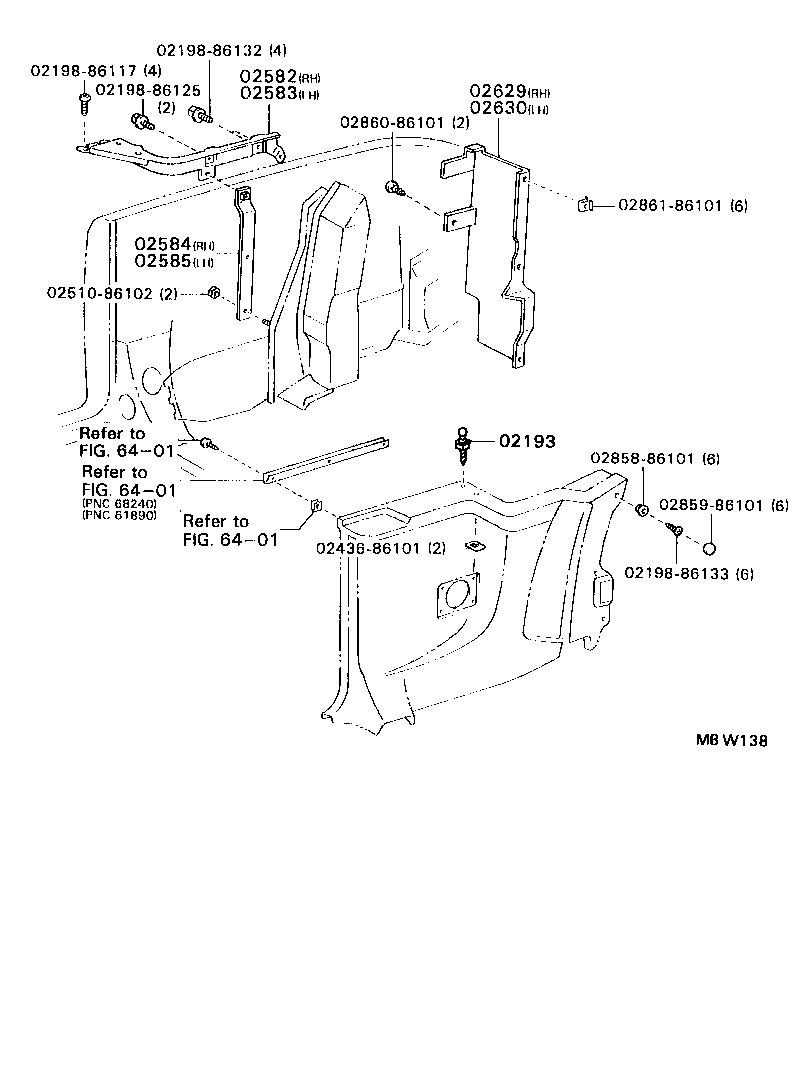

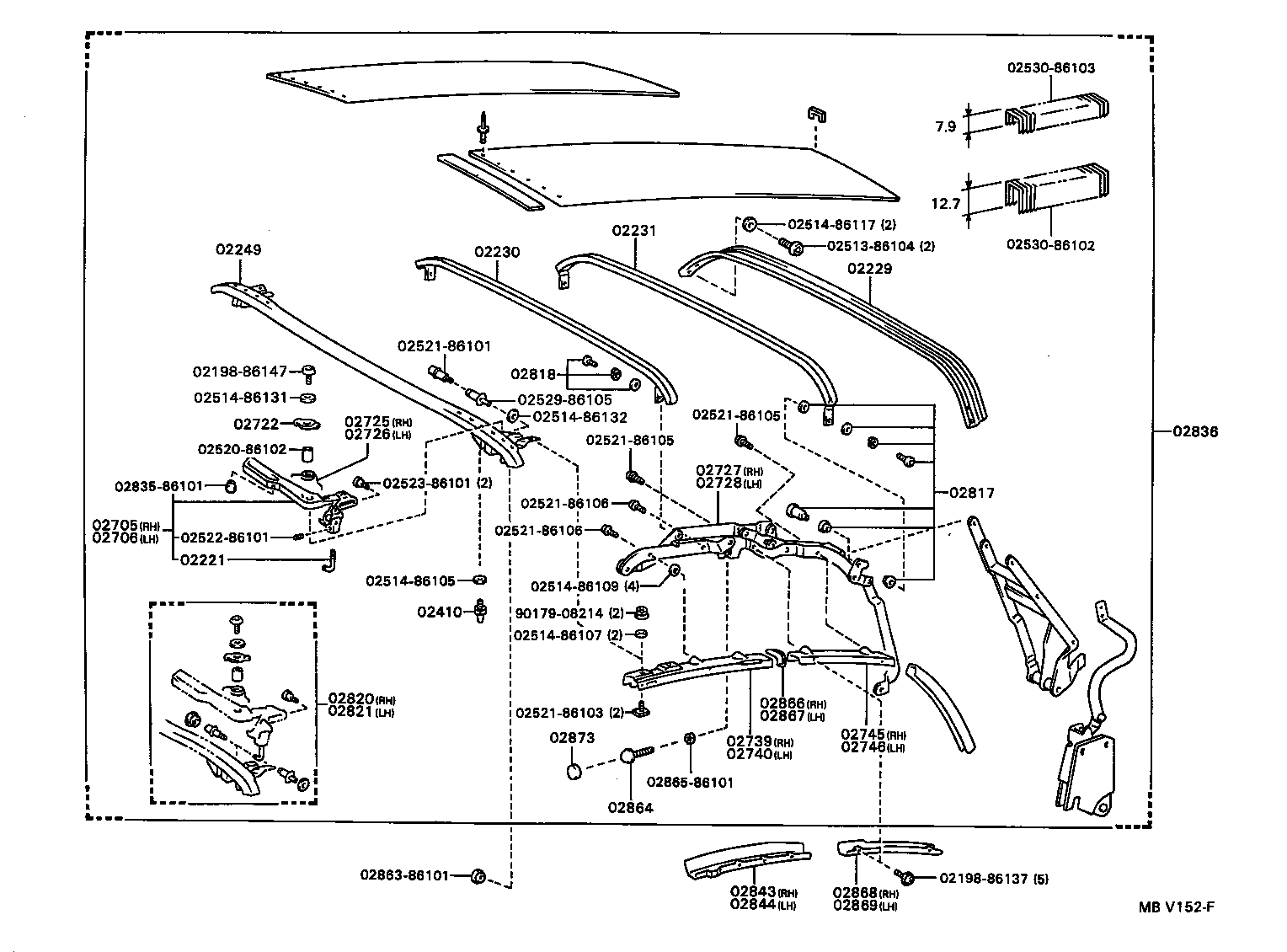

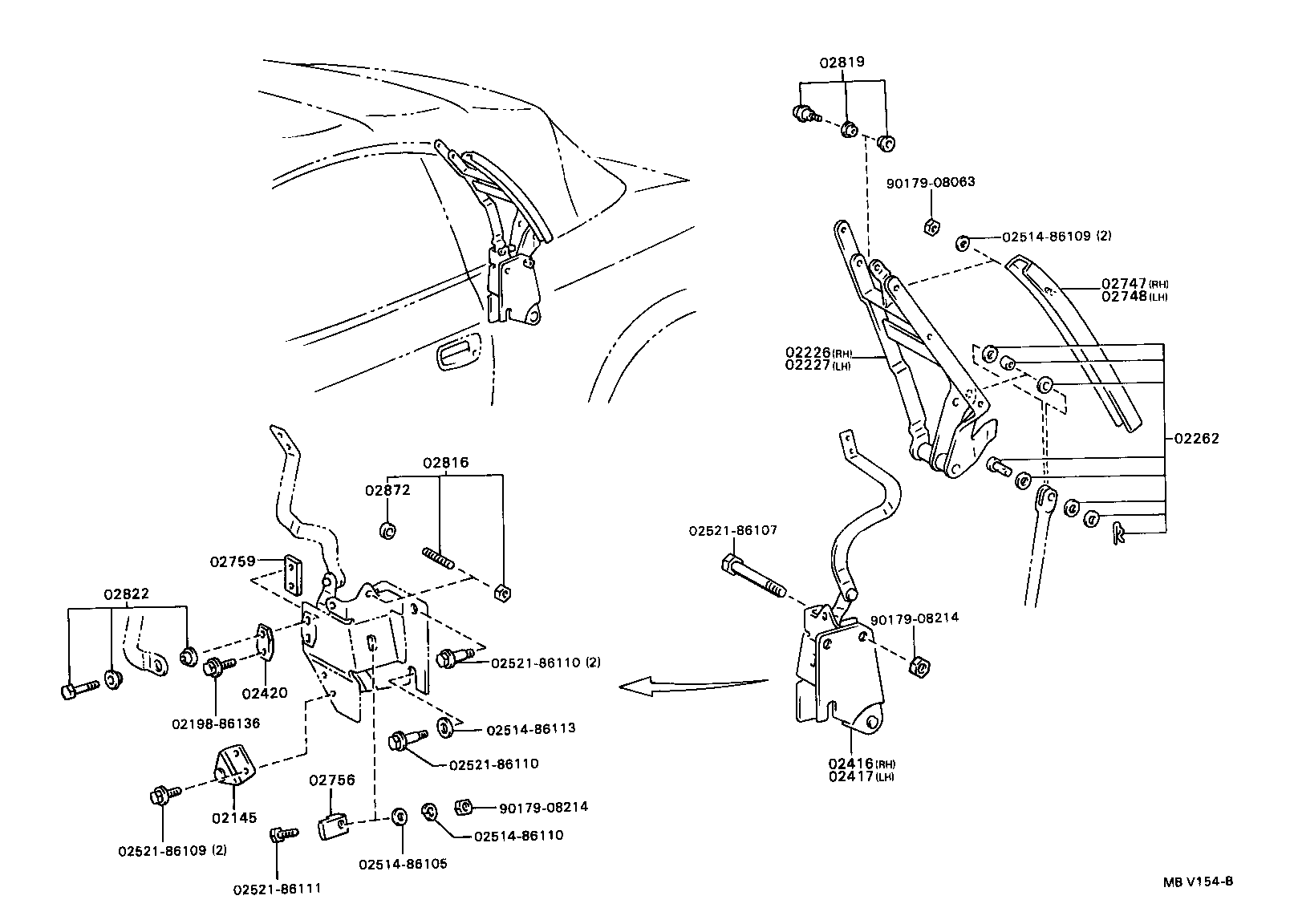

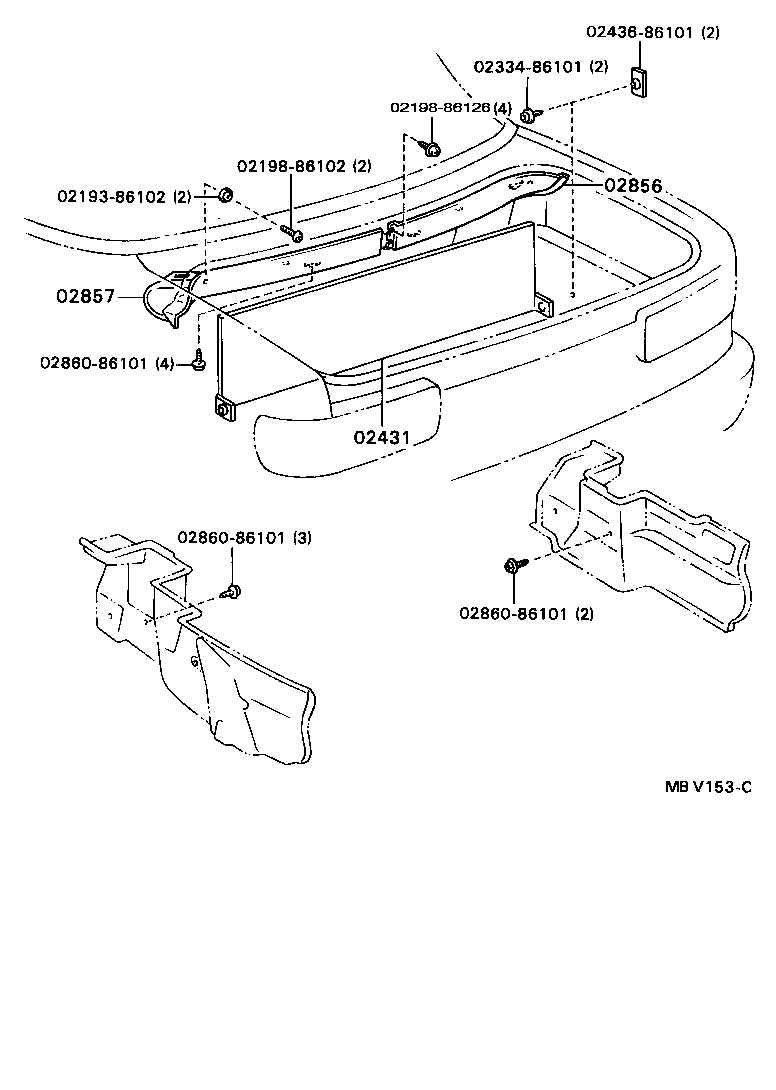

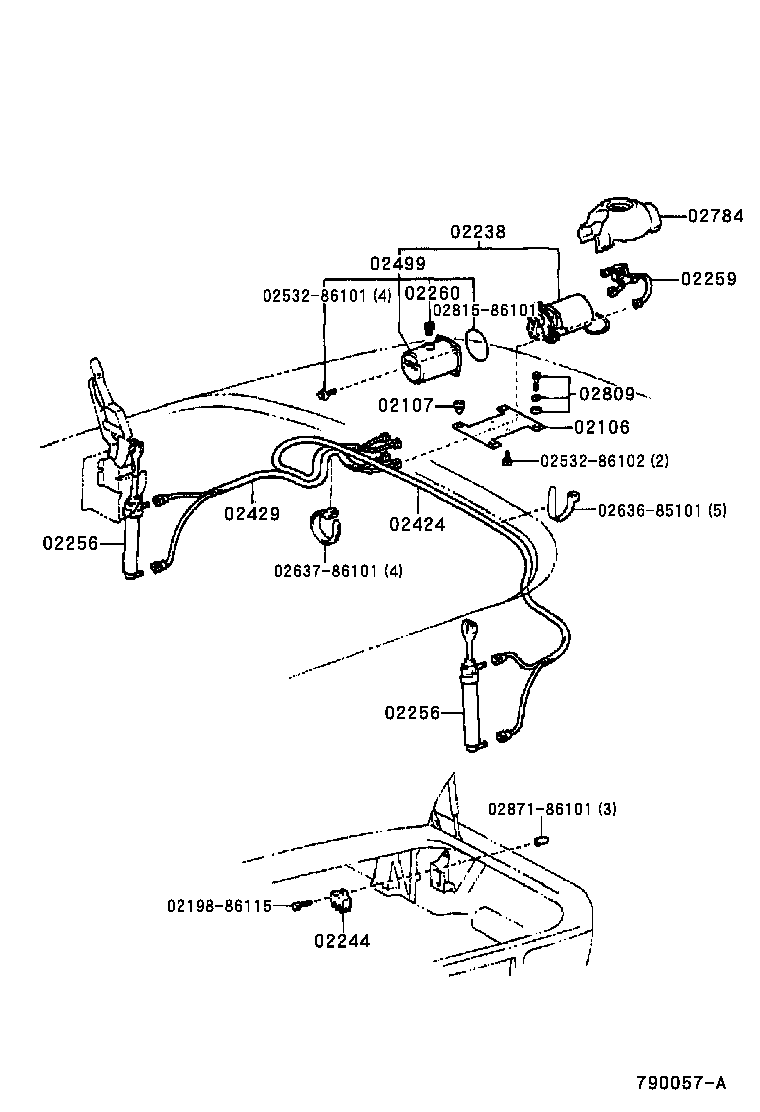

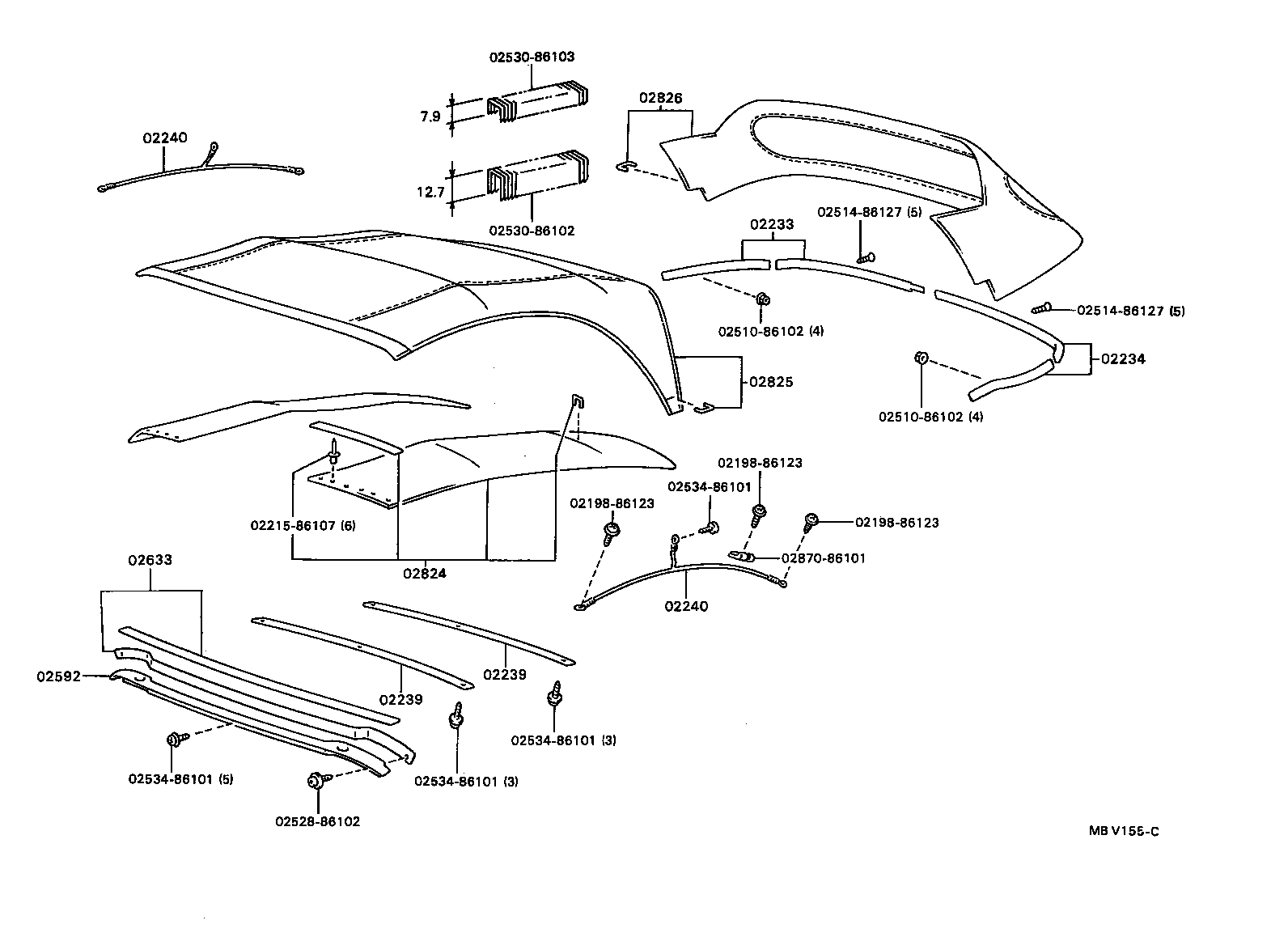

Figure MBU945B MBU945B 1990-10 → — Figure MBV131 MBV131 1990-10 → — Figure MBV128C MBV128C 1990-10 → — Figure MBW138 MBW138 1990-10 → — Figure MBV153C MBV153C 1990-10 → — Figure MBV130B MBV130B 1990-10 → — Figure MBV136C MBV136C 1990-10 → — Figure MBV137B MBV137B 1990-10 → — Figure MBV135A MBV135A 1990-10 → — Figure MBV138B MBV138B 1990-10 → — Figure MBV155C MBV155C 1990-10 → — Figure MBV152F MBV152F 1990-10 → — Figure MBV154B MBV154B 1990-10 → — Figure MBV140 MBV140 1990-10 → — Figure MBV139A MBV139A 1990-10 → — Figure MBV133A MBV133A 1990-10 → — Figure 790057A 790057A 1990-10 → — Figure MBV132 MBV132 1990-10 → —

Part groups

PNCDescription
02102 Deflector Assy, Rear Rail, RH
02103 Deflector Assy, Rear Rail, LH
02106 Pump Bracket
02107 Grommet, Pump & Bracket
02122 Welt, Cord
02125 Headliner Assy, Top Stack
02128 Moulding Assy, Headliner Garnish
02145 Extension Assy, Main Pivot Bracket
02164 Weatherstrip Assy, Front Header
02166 Weatherstrip, Center Rail, RH
02167 Weatherstrip, Center Rail, LH
02169 Weatherstrip Assy, Rear Rail
02170 Weatherstrip Assy, Rear Rail
02171 Retainer Assy, Weatherstrip Front Rail
02171A Retainer
02172 Retainer Assy, Weatherstrip Front Rail
02173 Retainer Assy, Weatherstrip Center Rail, RH
02174 Retainer Assy, Weatherstrip Center Rail, LH
02175 Moulding, Quarter Belt, Rear RH
02176 Moulding, Quarter Belt, Rear LH
02181 Moulding Weatherstrip Header Moulding Exterior
02182 Retainer Assy, Weatherstrip Header Moulding
02183 Cap, W/Shield Header Moulding Exterior, RH
02184 Cap, W/Shield Header Moulding Exterior, LH
02193 Stud
02221 Clamp, Latch
02225 Retainer Assy, Weatherstrip Front Header
02226 Rail, Rear RH
02227 Rail, Rear LH
02229 Bow Assy, NO.4
02230 Package, Bow Assy, NO.2 W/Bracket
02231 Package, Bow Assy, NO.3 W/Bracket
02233 Strip Assy, Tack Side, RH
02234 Strip Assy, Tack Side, LH
02238 Motor & Pump Assy
02239 Retainer, Cover Assy Top
02240 Cable Assy, Side Retainer
02244 Relay Assy, Folding Top
02249 Bow, NO.1
02256 Cylinder Assy
02259 Valve Assy, Needle
02260 Plug
02262 Attachments, Hydraulic Cylinder Package
02292 Tough Assy, Corner Drain, RH
02293 Tough Assy, Corner Drain, LH
02294 Panel Assy, Quarter Inner, Upper RH
02295 Panel Assy, Quarter Inner, Upper LH
02299 Reinforcement Assy, Roof Header Inner
02300 Reinforcement, Roof Header Outer
02301 Extension, Front Piller Upper, RH
02302 Extension, Front Piller Upper, LH
02315 Boot Assy, Folding Top
02324 Retainer, Headliner NO.4 Bow
02390 Reinforcement Assy, Quarter Belt, RH
02391 Reinforcement Assy, Quarter Belt, LH
02392 Brace, Corner, Front RH
02393 Brace, Corner, Front LH
02397 Brace, Pivot Bracket TO Quarter Inner, RH
02398 Brace, Pivot Bracket TO Quarter Inner, LH
02403 Weatherstrip Assy, Front Rail, RH
02404 Weatherstrip Assy, Front Rail, LH
02405 Moulding, Back Belt, RH
02410 Pin, Dowel
02416 Bracket Assy, Main Pivot, RH
02417 Bracket Assy, Main Pivot, LH
02420 Plate, Balance Link Serrated
02424 Hose Assy, RH
02428 Bag, Boot Storage
02429 Hose Assy, LH
02431 Curtain Assy, Backlite Protector
02437 Receiver, Front Header, RH
02438 Receiver, Front Header, LH
02439 Bracket, Headliner Mounting, Front
02499 Ring, O, Reservoir Kit
02554 Bracket, D Ring Support Upper, RH
02555 Bracket, D Ring Support Upper, LH
02556 Brace, D Ring Support, RH
02557 Brace, D Ring Support, LH
02568 Pin Assy, Side Front Door Guide, RH
02569 Pin Assy, Side Front Door Guide, LH
02570 Plug, Door Pin Cover, RH
02571 Plug, Door Pin Cover, LH
02572 Locator, Side Front Door Guide
02573 Grommet, Door Guide Locator
02582 Bracket, Quarter Trim Support, Upper RH
02583 Bracket, Quarter Trim Support, Upper LH
02584 Bracket Assy, Quarter Trim Support, Center RH
02585 Bracket Assy, Quarter Trim Support, Center LH
02592 Retainer, Cover Top Front
02593 Retainer, Front Header
02594 Tape, Trans Adhesive
02595 Tube, Drain Trough
02596 Mirror Assy, Inner Rear View
02597 Extension, Header Trim, RH
02598 Extension, Header Trim, LH
02599 Bracket Assy, Quarter Window Mounting, RH
02600 Bracket Assy, Quarter Window Mounting, LH
02603 Guide Assy, Quarter Window, RH
02604 Guide Assy, Quarter Window, LH
02607 Bracet, Quarter Window UP Stop, Front RH
02608 Bracet, Quarter Window UP Stop, Front LH
02609 Bracet, Quarter Window UP Stop, Rear RH
02610 Bracet, Quarter Window UP Stop, Rear LH
02614 Retainer Assy, Weatherstrip Rear Rail, RH
02615 Retainer Assy, Weatherstrip Rear Rail, LH
02627 Moulding, Front Header Lock, RH
02628 Moulding, Front Header Lock, LH
02629 Cover, Rear Seat, RH
02630 Cover, Rear Seat, LH
02631 Cover Assy, Rear Rail, RH
02632 Cover Assy, Rear Rail, LH
02633 Tape Package, Pvc Form
02705 Latch Assy, RH
02706 Latch Assy, LH
02722 Retainer, Latch Spring N0.1 Bow
02725 Spring, Latch Handle Retainer
02726 Spring, Latch Handle Retainer
02727 Rail Assy, Side Complete, RH
02728 Rail Assy, Side Complete, LH
02739 Seal, Carrier, Front RH
02740 Seal, Carrier, Front LH
02745 Seal, Carrier, Center RH
02746 Seal, Carrier, Center LH
02747 Seal, Carrier Rear Rail, RH
02748 Seal, Carrier Rear Rail, LH
02756 Stop Assy, Down
02759 Plate, Serrated Tapping
02784 Cylinder Assy, Hydralic Pump
02786 Reinforce Assy, Rear Tower, RH
02787 Reinforce Assy, Rear Tower, LH
02800 Bracket, B Pillar Reinforce TO Quarter Inner, RH
02801 Bracket, B Pillar Reinforce TO Quarter Inner, LH
02802 Shield, Water, RH
02803 Shield, Water, LH
02809 Attachment Package, Hydralic Cylinder
02816 Attachment Package, UP Stop Rear Rail
02817 Attachment Package, Bow 3 TO Sid Rail
02818 Attachment Package, Bow 2 TO Link
02819 Attachment Package, Center Rail TO Rear Rail
02820 Attachment Package, Clamp Latch Bowl, RH
02821 Attachment Package, Clamp Latch Bowl, LH
02822 Attachment Package, Balance Link TO Main Pivot Bracket
02824 Package, Stay Pad Side
02825 Package, Top Cover, Front
02826 Package, Top Cover, Rear
02834 Package, Pvc Form Tape
02836 Package, Top Stack, W/Stay Pad
02838 Retainer, A Pillar Weatherstrip, RH
02839 Retainer, A Pillar Weatherstrip, LH
02840 Garnish, Front Pillar, RH
02841 Garnish, Front Pillar, LH
02843 Protector, Front, RH
02844 Protector, Front, LH
02846 Cover, Quarter Trim Upper, RH
02847 Cover, Quarter Trim Upper, LH
02848 Spacer, Rear Seat Belt Retracter
02849 Welt, Rear Seat Belt Protector
02850 Hook, Headliner Pull Down Sail Panel
02854 Cover Assy, Shock Tower Mounting, RH
02855 Cover Assy, Shock Tower Mounting, LH
02856 Garnish Assy, Back Belt Trim, Rear RH
02857 Garnish Assy, Back Belt Trim, Rear LH
02864 Rail, Stop
02866 Seal, Rail Joint, RH
02867 Seal, Rail Joint, LH
02868 Protector, Center, RH
02869 Protector, Center, LH
02872 Cap, UP Stop Rear Rail
02873 Rail, Stop Front Center
67869F Clip, Front Header Weatherstrip
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
