Toyota Celica
1989-10 → 1993-11 · chassis AT180,ST18# · catalogue 252560 · Europe
Discontinued model
Data version 1994-04

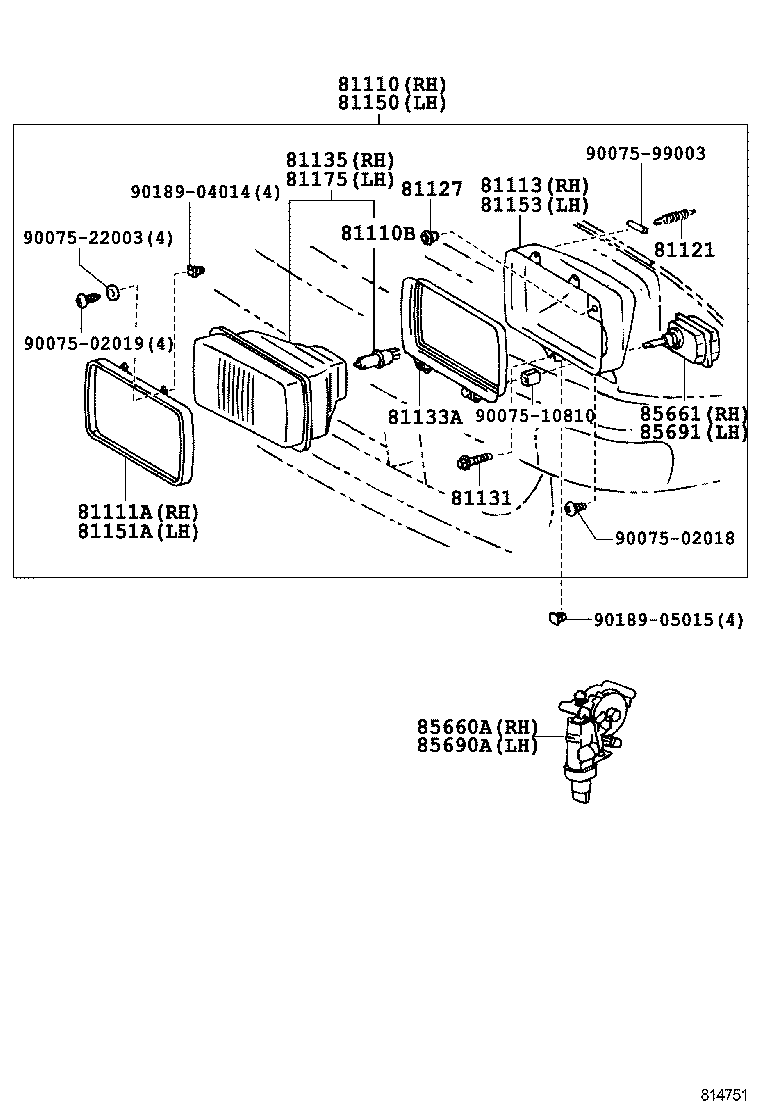

Headlamp
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81111A | Ring, Sealed Beam Retaining, NO.1 RH |
| 81113 | Ring, Sealed Beam Mounting, NO.1 RH |
| 81121 | Spring, Headlamp Tension |
| 81127 | Bearing, Headlamp, NO.1 |
| 81131 | Screw, Headlamp Adjusting |
| 81133A | Ring, Sealed Beam |
| 81135 | Unit Assy, Headlamp, RH |
| 81150 | Headlamp Assy, LH |
| 81151A | Ring, Sealed Beam Retaining, NO.1 LH |
| 81153 | Ring, Sealed Beam Mounting, NO.1 LH |
| 81175 | Unit Assy, Headlamp, LH |
| 85660A | Motor Assy, Light Retractor, RH |
| 85661 | Motor, Headlamp Leveling, RH |
| 85690A | Motor Assy, Light Retractor, LH |
| 85691 | Motor, Headlamp Leveling, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
