Toyota Celica

1989-10 → 1993-11 · chassis AT180,ST18# · catalogue 252560 · Europe

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

38 part groups · 16 illustrations

Illustrations

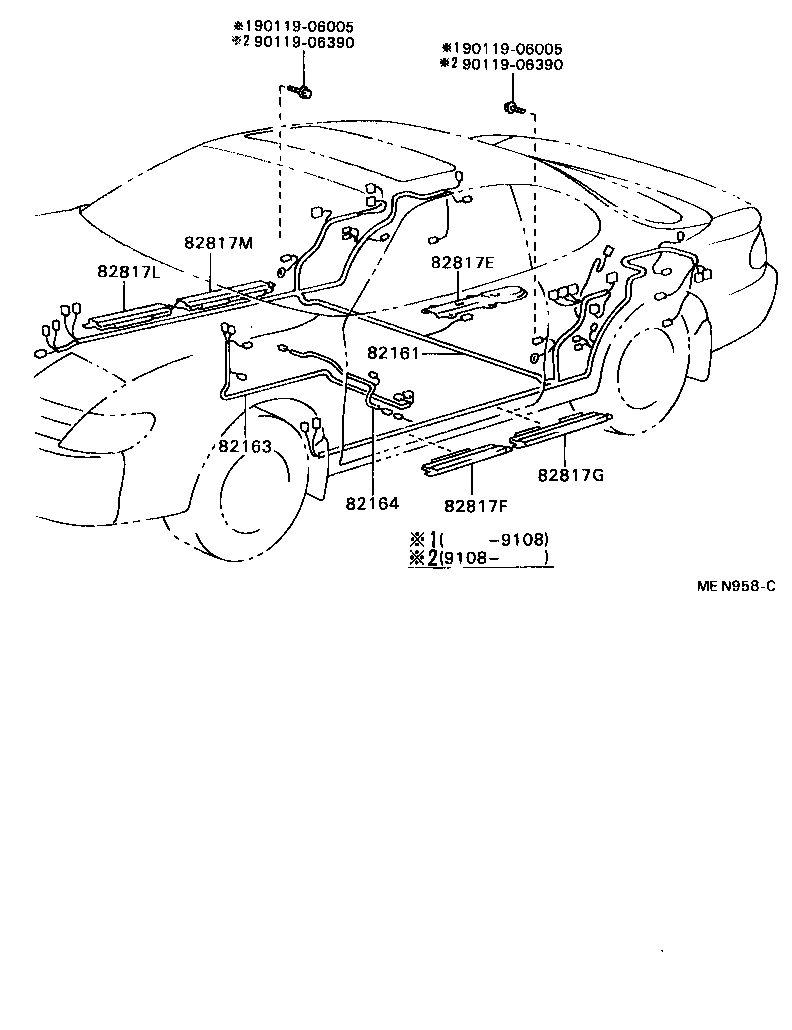

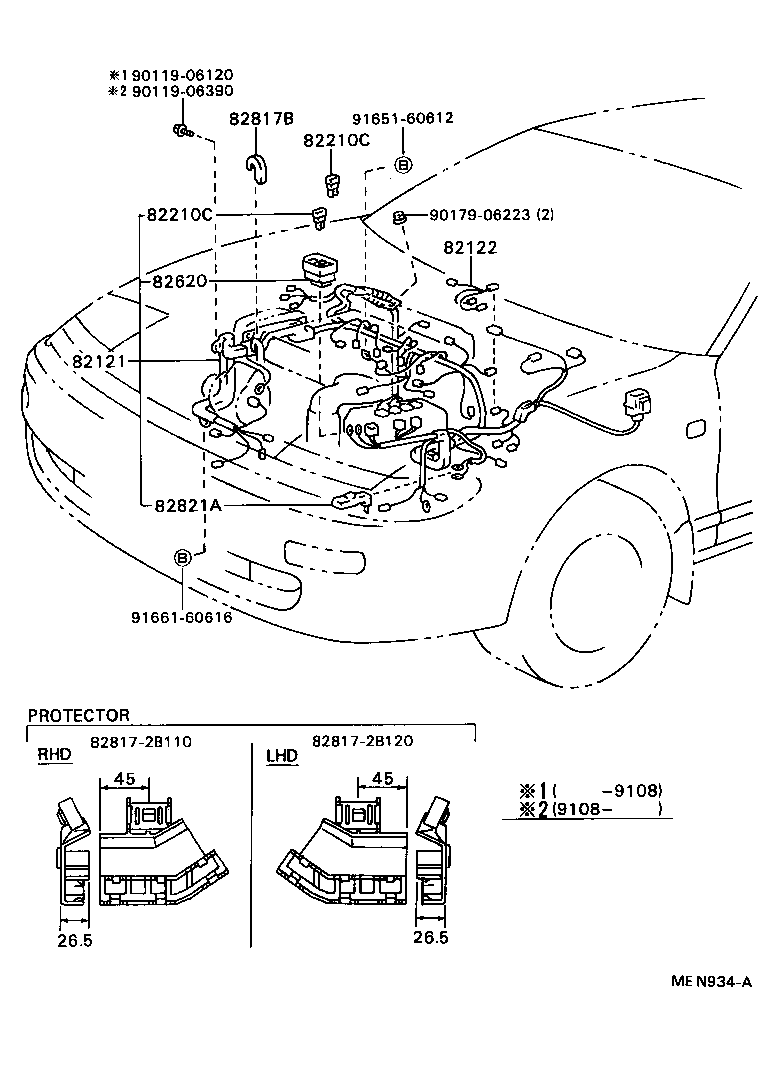

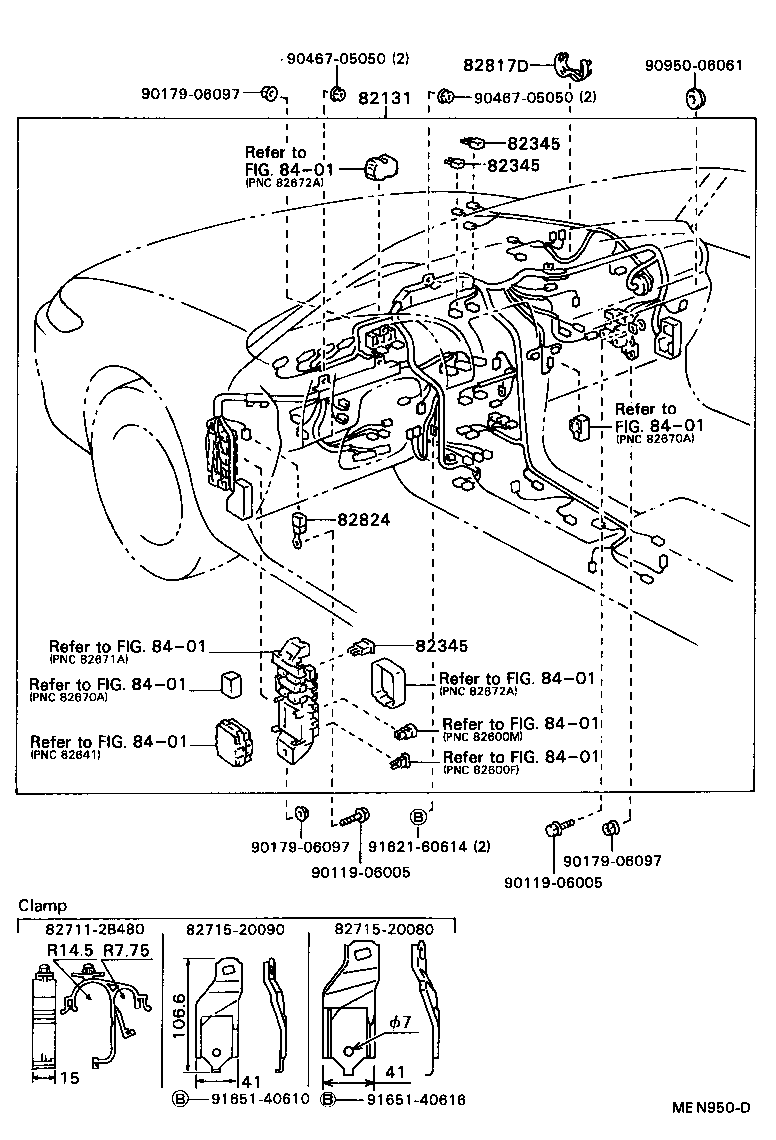

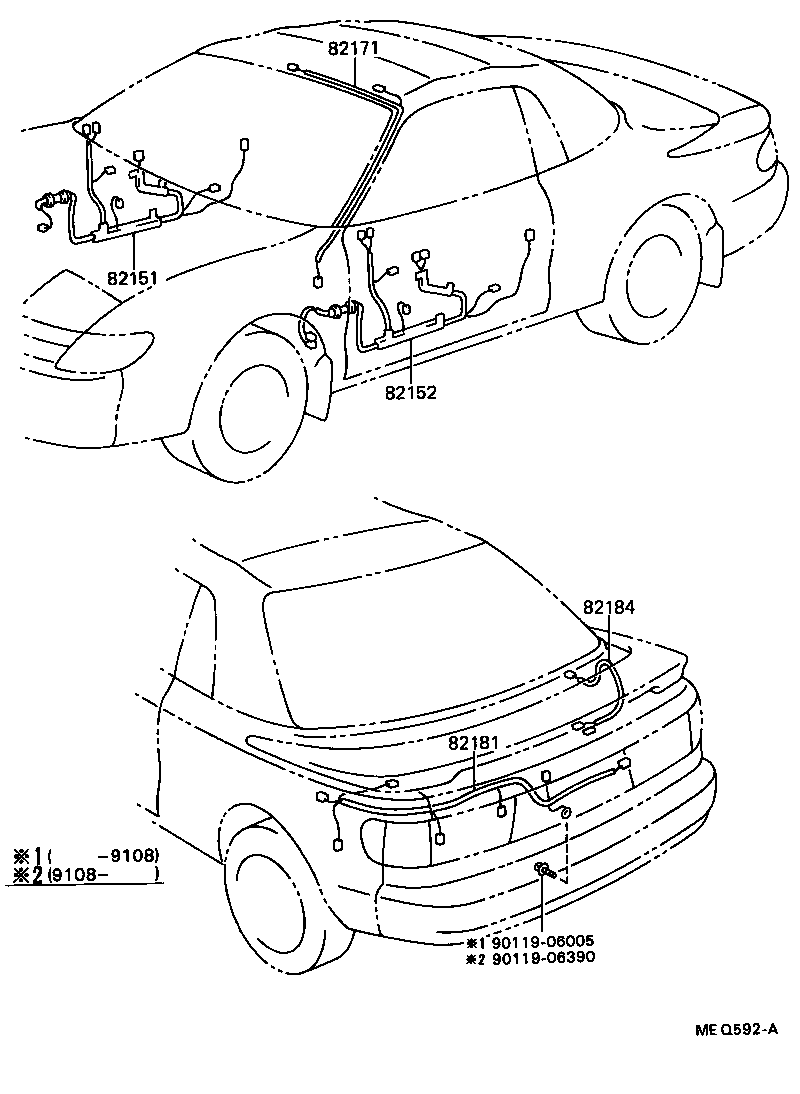

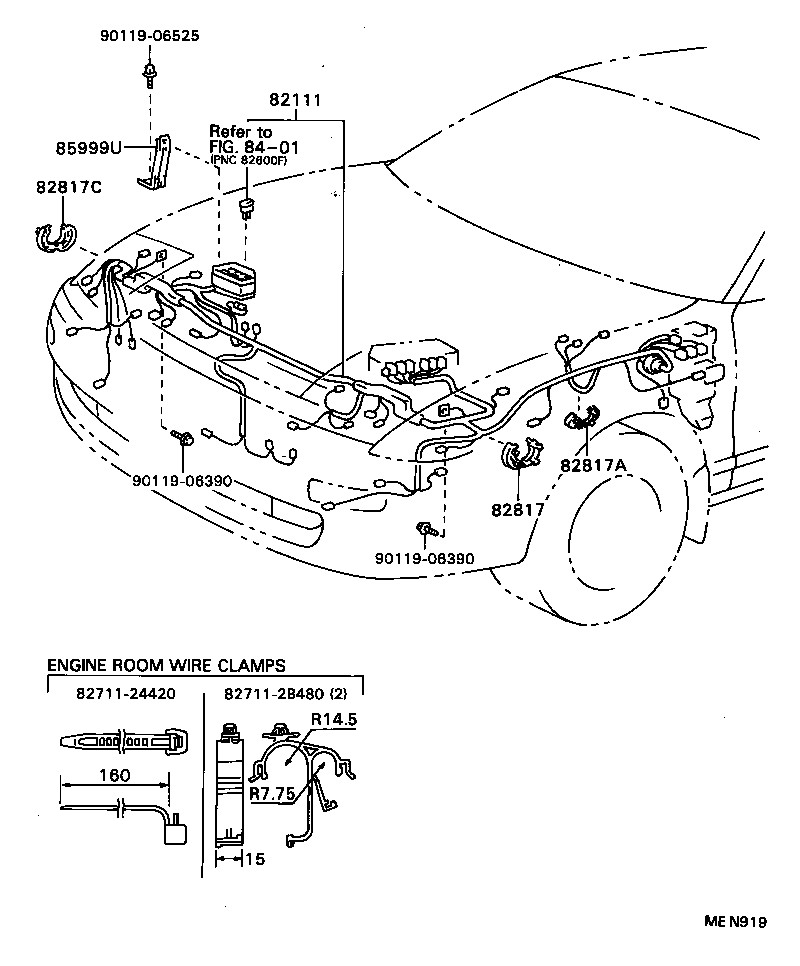

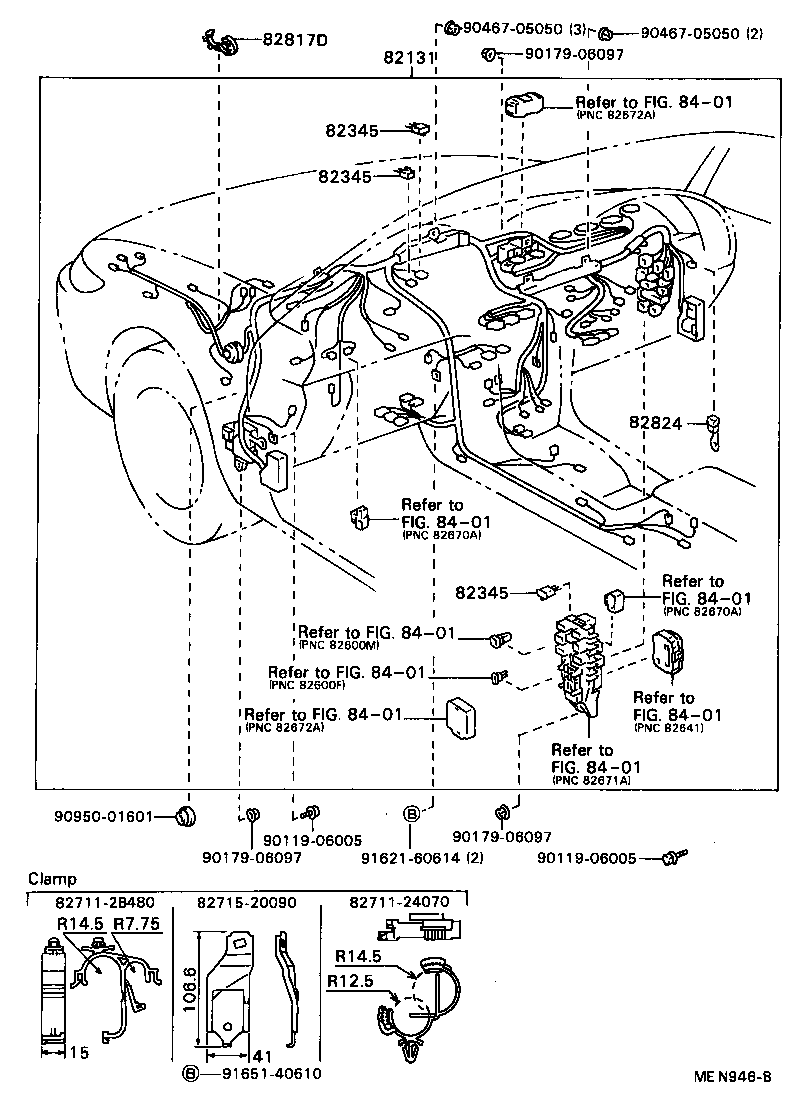

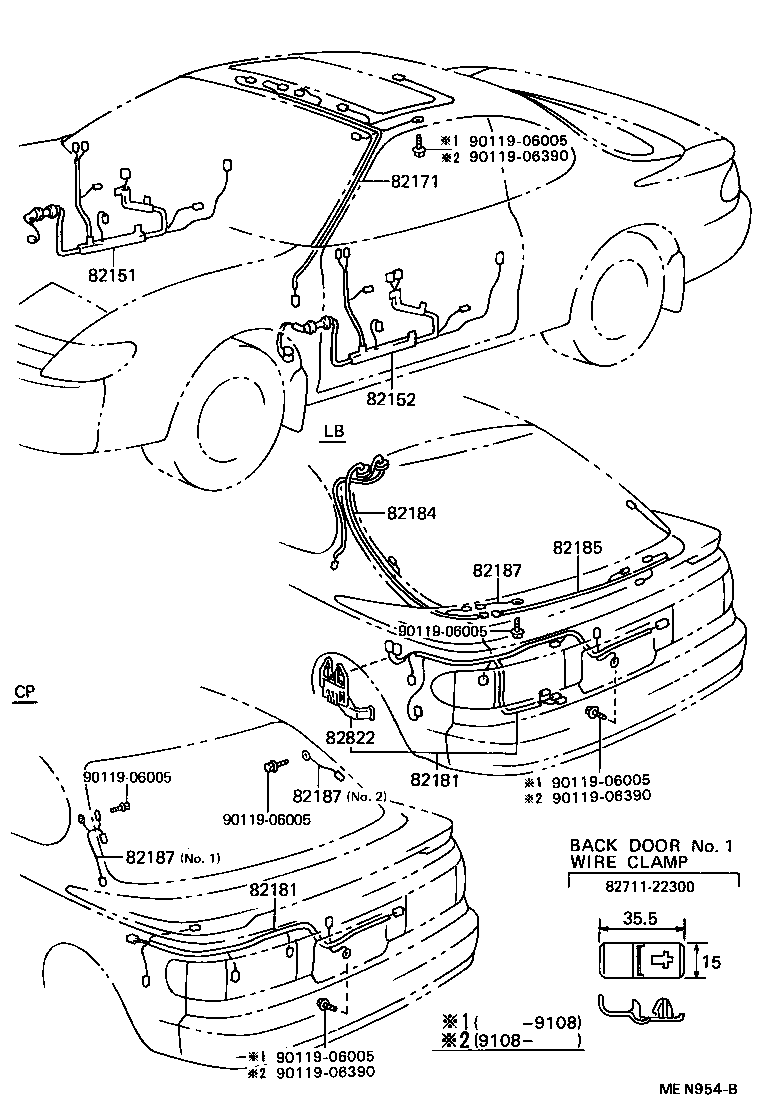

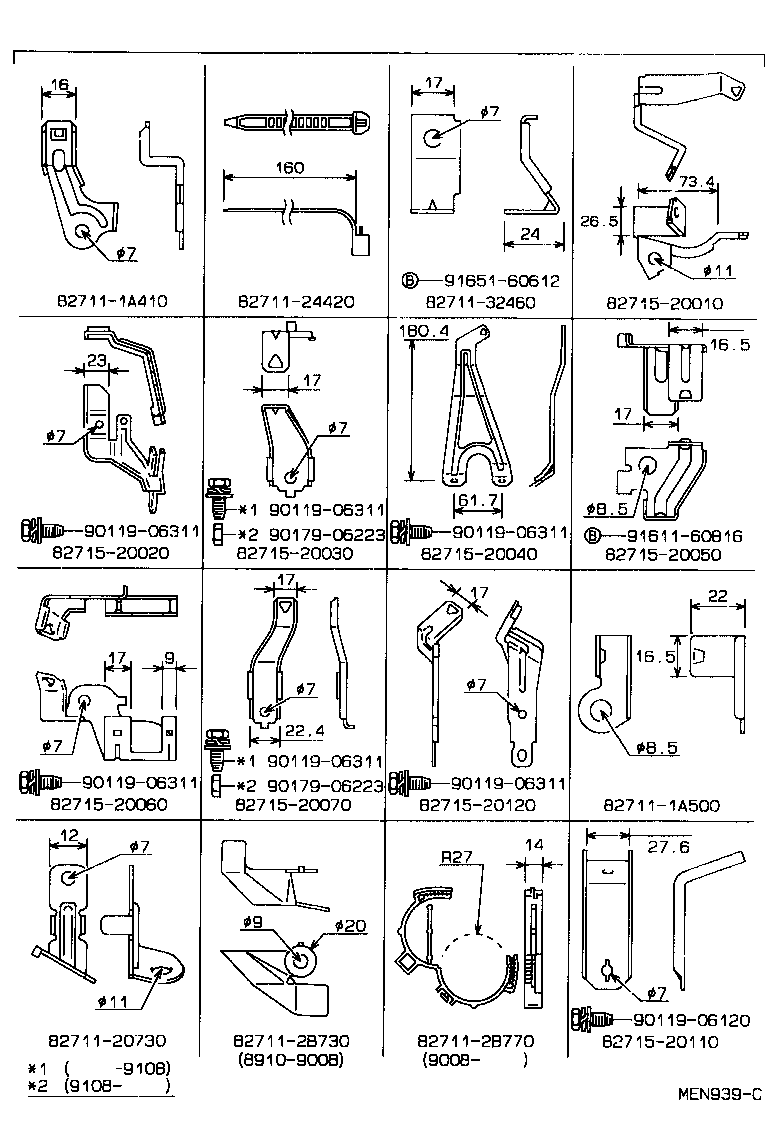

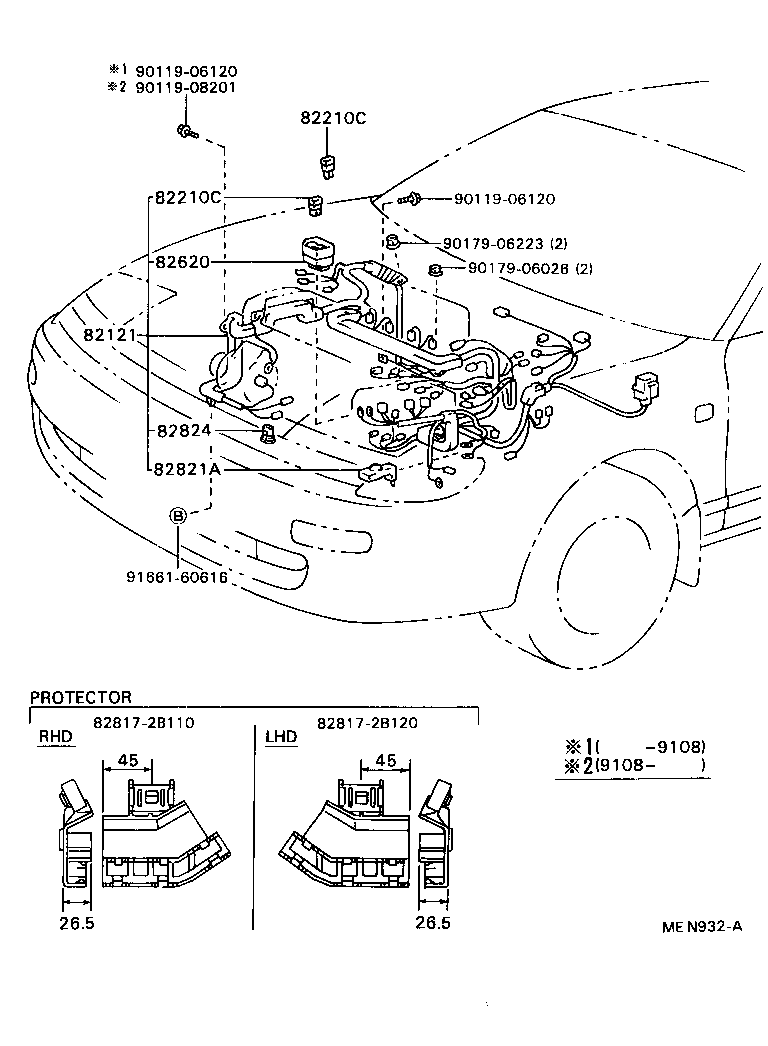

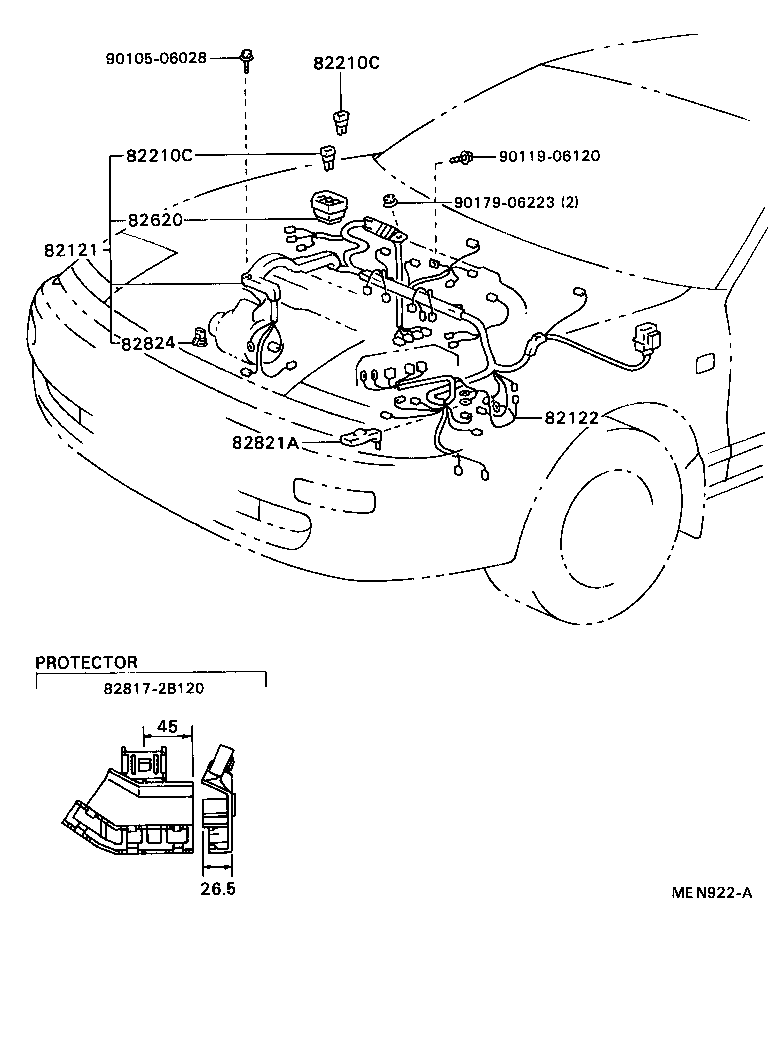

Figure MEN917A MEN917A 1989-10 → — Figure MEN919 MEN919 1989-10 → — Figure MEN922A MEN922A 1989-10 → — Figure MEN932A MEN932A 1989-10 → — Figure MEN934A MEN934A 1989-10 → — Figure MEN939C MEN939C 1989-10 → — Figure MEN946B MEN946B 1989-10 → — Figure MEN950D MEN950D 1989-10 → — Figure MES137A MES137A 1989-10 → — Figure MEN954B MEN954B 1989-10 → — Figure MEQ592A MEQ592A 1990-10 → — Figure MEN958C MEN958C 1989-10 → — Figure MEQ593A MEQ593A 1990-10 → — Figure MEN975A MEN975A 1989-10 → — Figure MEQ602A MEQ602A 1989-10 → — Figure MEQ606A MEQ606A 1989-10 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82131 Wire, Cowl
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82163 Wire, Floor, NO.3
82164 Wire, Frame
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82345 Diode
82620 Block Assy, Fusible Link
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82821A Cover, Connector
82822 Bracket,Connector Block
82824 Connector, Wiring Harness

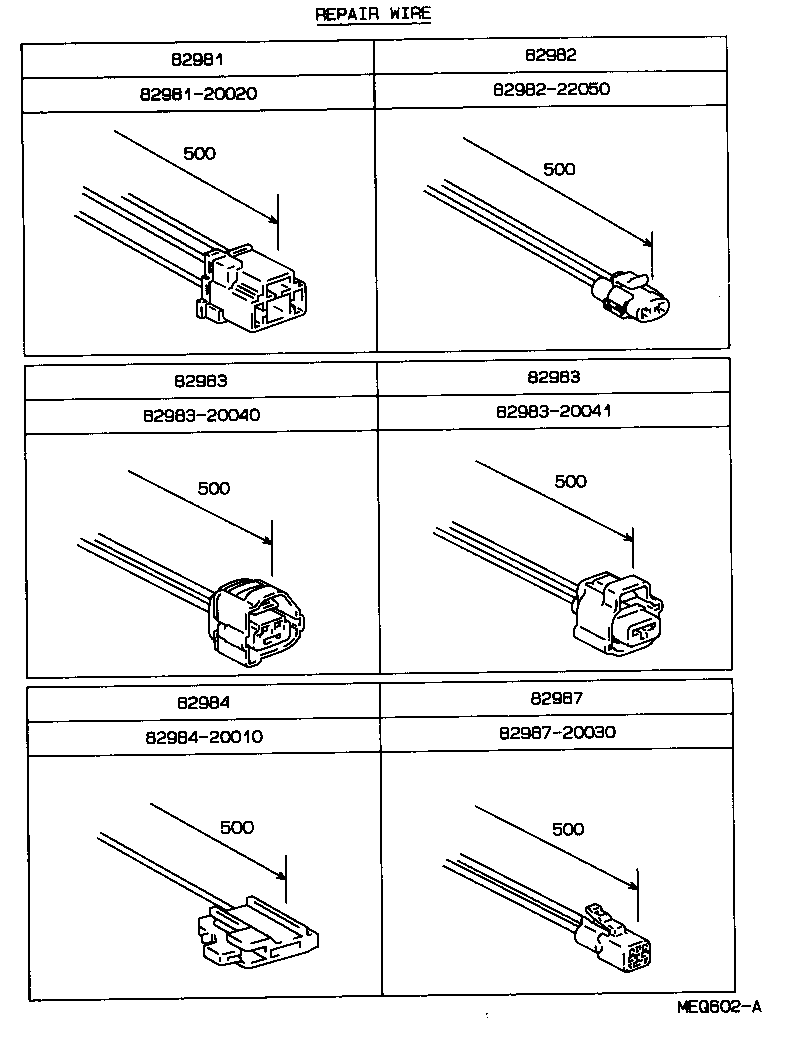

82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82987 Wire, Fog Lamp Repair
82991 Wire, Fusible Link Repair
85999U Bracket, Relay Block
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
