Toyota Celica

1989-10 → 1993-11 · chassis AT180,ST18# · catalogue 252560 · Europe

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

7 part groups · 5 illustrations

Illustrations

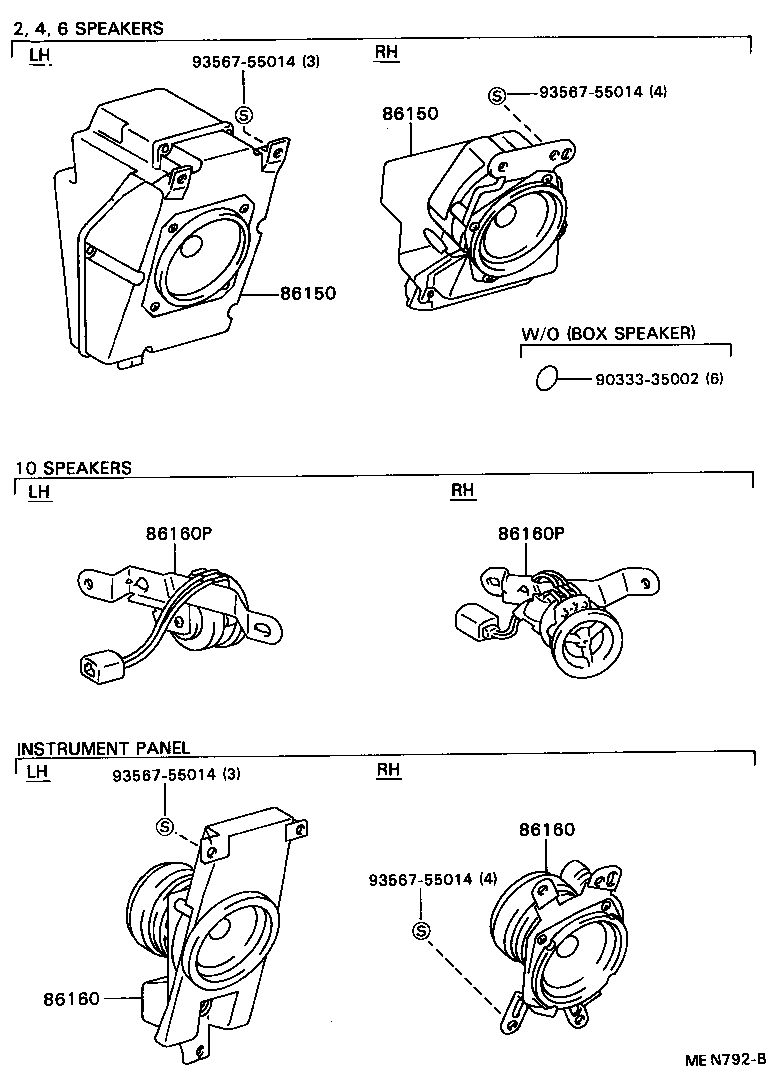

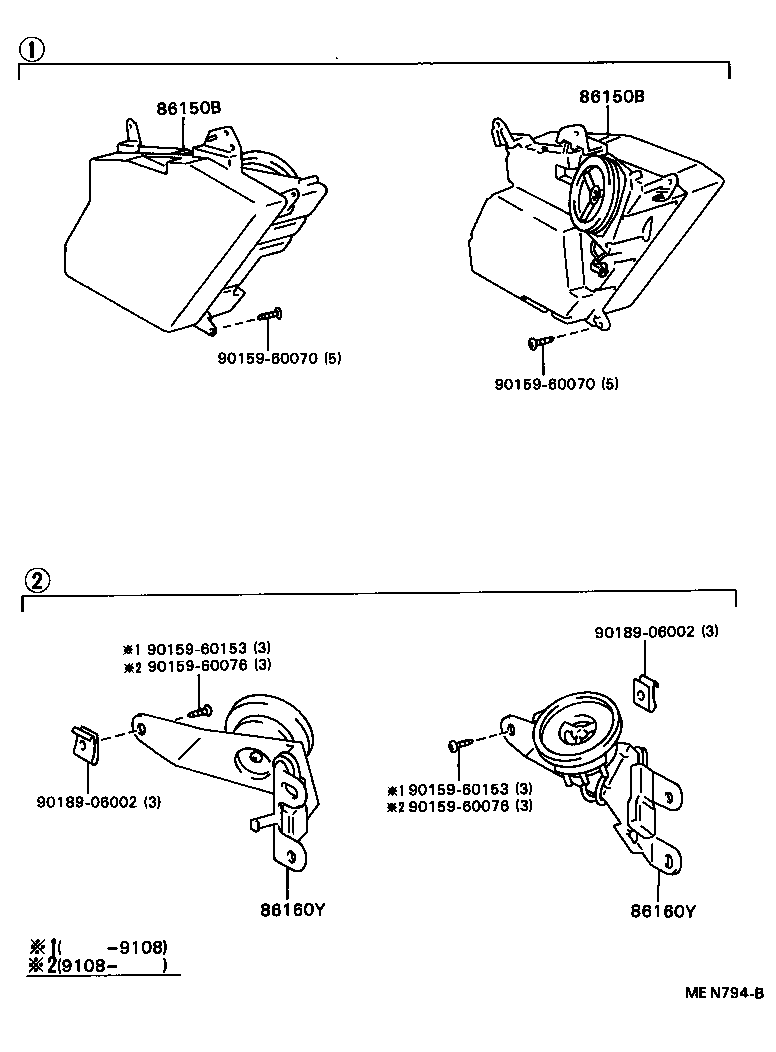

Figure 865744 865744 1989-10 → — Figure MEN792B MEN792B 1989-10 → — Figure MEN793B MEN793B 1989-10 → — Figure MEN794B MEN794B 1989-10 → — Figure MEQ596A MEQ596A 1990-10 → —

Part groups

PNCDescription
86150 Speaker Assy, W/Box, NO.1
86150B Speaker Assy, W/Box, NO.2
86160 Speaker Assy, Front NO.1
86160P Speaker Assy, Front NO.2
86160Y Speaker Assy, Rear NO.2
86167 Screw, Speaker
86217 Ornament, Speaker Box
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
