Toyota Celica
1989-10 → 1993-11 · chassis AT180,ST18# · catalogue 252560 · Europe
Discontinued model
Data version 1994-04

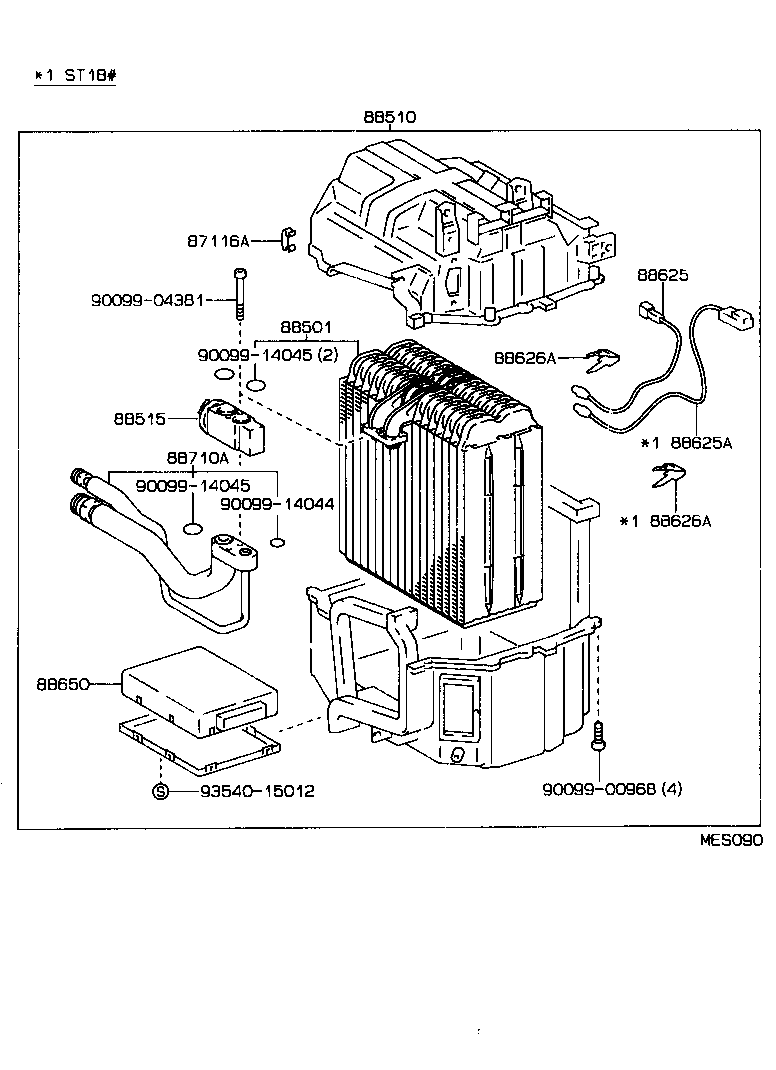

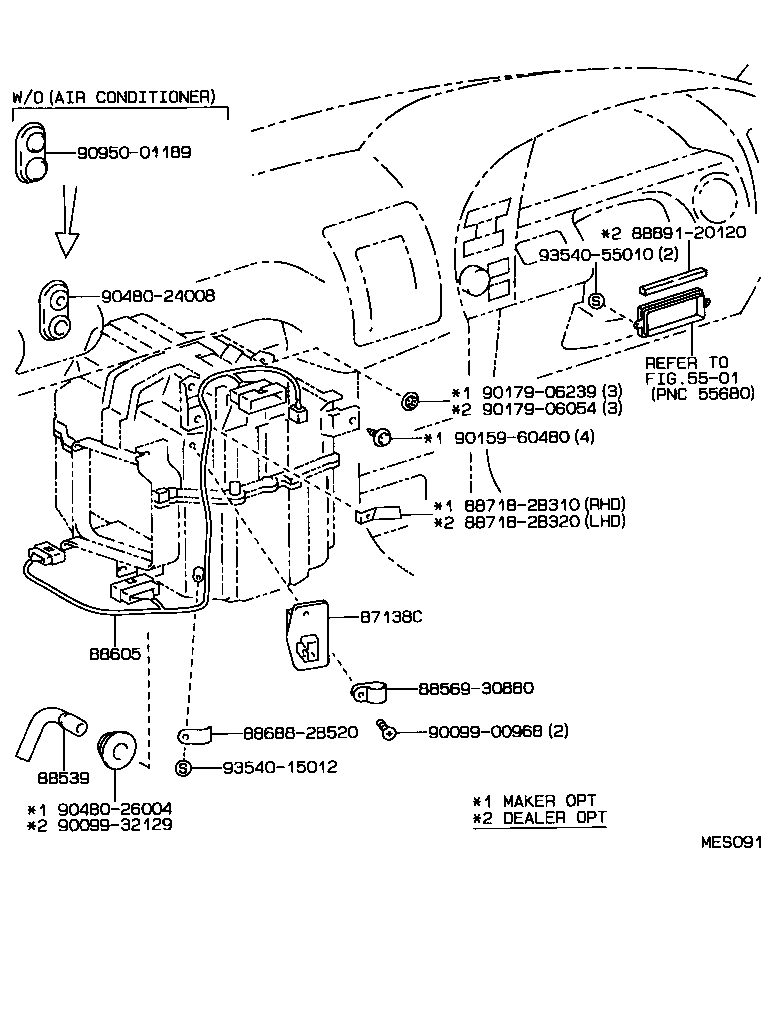

Heating & Air Conditioning - Cooler Unit
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 87116A | Spring, Holding (FOR COOLER UNIT CASE) |
| 87138C | Resistor, Blower |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88510 | Unit Assy, Cooler |
| 88515 | Valve, Cooler Expansion |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88605 | Harness Sub-assy, Cooler Wiring, NO.1 |
| 88625 | Thermistor, Cooler, NO.1 |
| 88625A | Thermistor, Cooler NO.2 |
| 88626A | Holder, Thermistor |
| 88650 | Amplifier Assy, Cooler Stabilizer |
| 88710A | Tube Assy, Air Conditioner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
