Toyota Celica

1989-10 → 1993-11 · chassis AT180,ST18# · catalogue 252560 · Europe

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

17 part groups · 4 illustrations

Illustrations

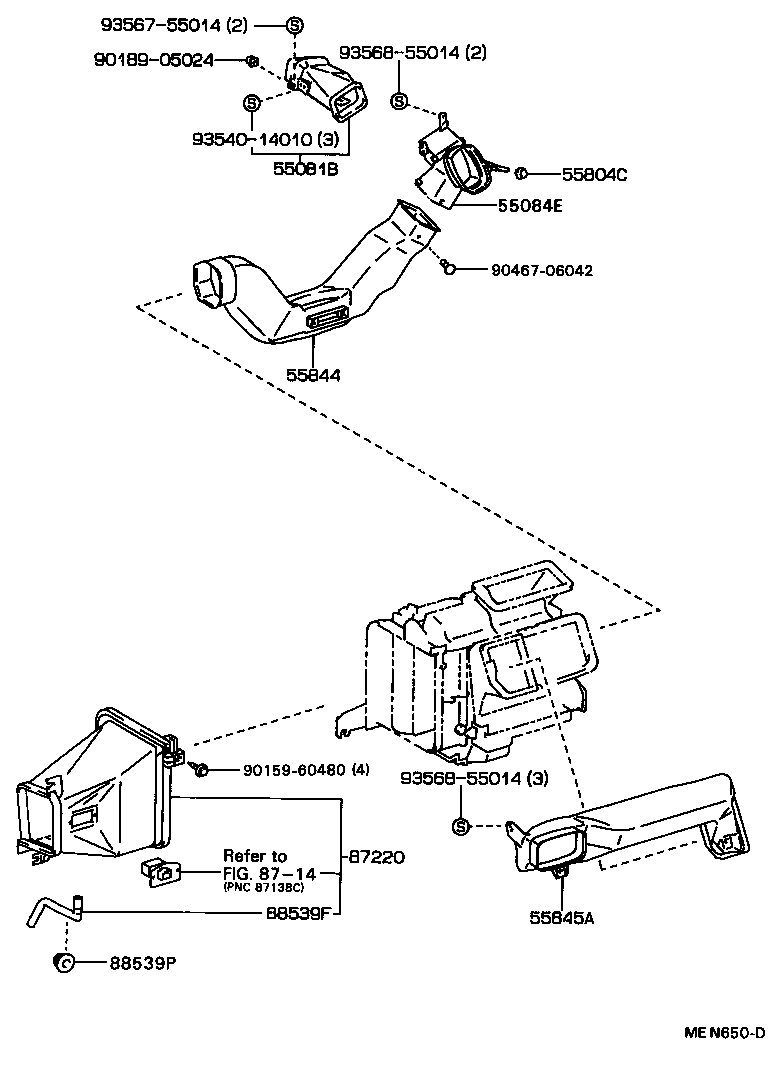

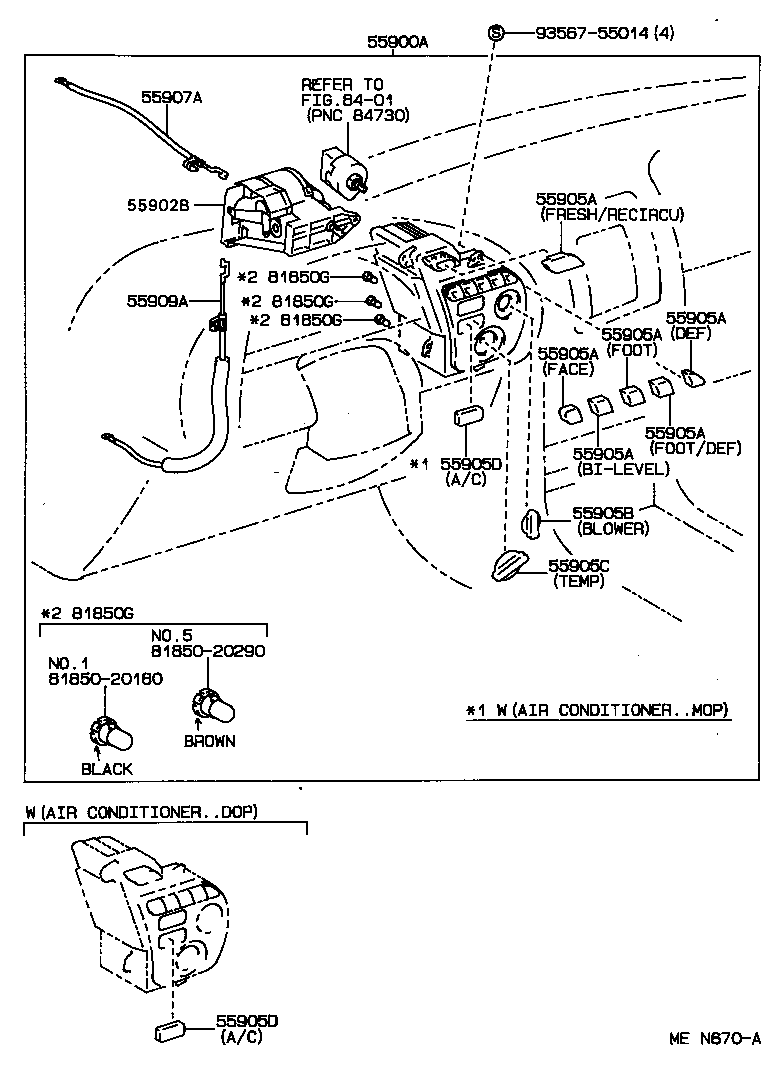

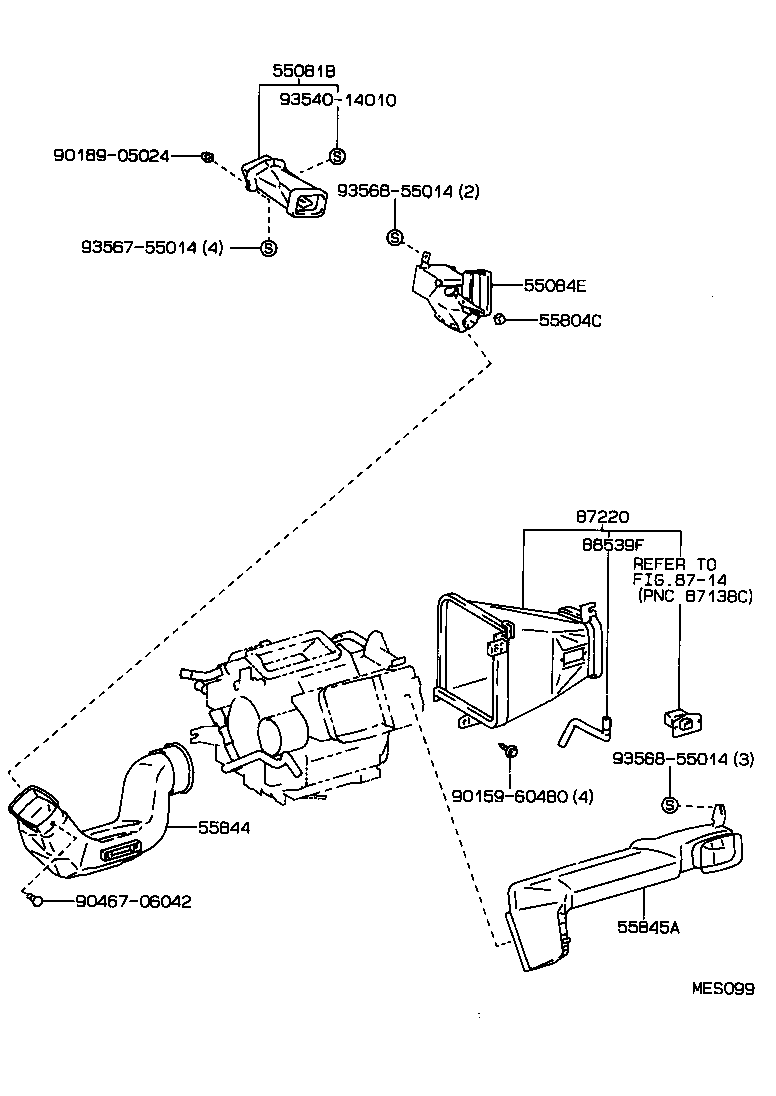

Figure MEQ580 MEQ580 1989-10 → — Figure MEN670A MEN670A 1989-10 → — Figure MEN650D MEN650D 1989-10 → — Figure MES099 MES099 1989-10 → —

Part groups

PNCDescription
55081B Duct Sub-assy, Cowl TO Register
55084E Duct Sub-assy, Heater TO Register, NO.1
55804C Knob Sub-assy, Air Damper Control
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900A Control & Accessory Assy, Heater
55902B Control Sub-assy, Heater
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55905C Knob, Heater Control, NO.3
55905D Knob Sub-assy, Control
55907A Cable Sub-assy, Water Valve Control
55909A Cable Sub-assy, Airmix Damper Control
81850G Lamp Assy, Indicator
87220 Duct Assy, Air
88539F Hose, Drain
88539P Grommet(FOR DRAIN HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
