Toyota Celica

1989-10 → 1993-11 · chassis AT180,ST18# · catalogue 252560 · Europe

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

3 part groups · 3 illustrations

Illustrations

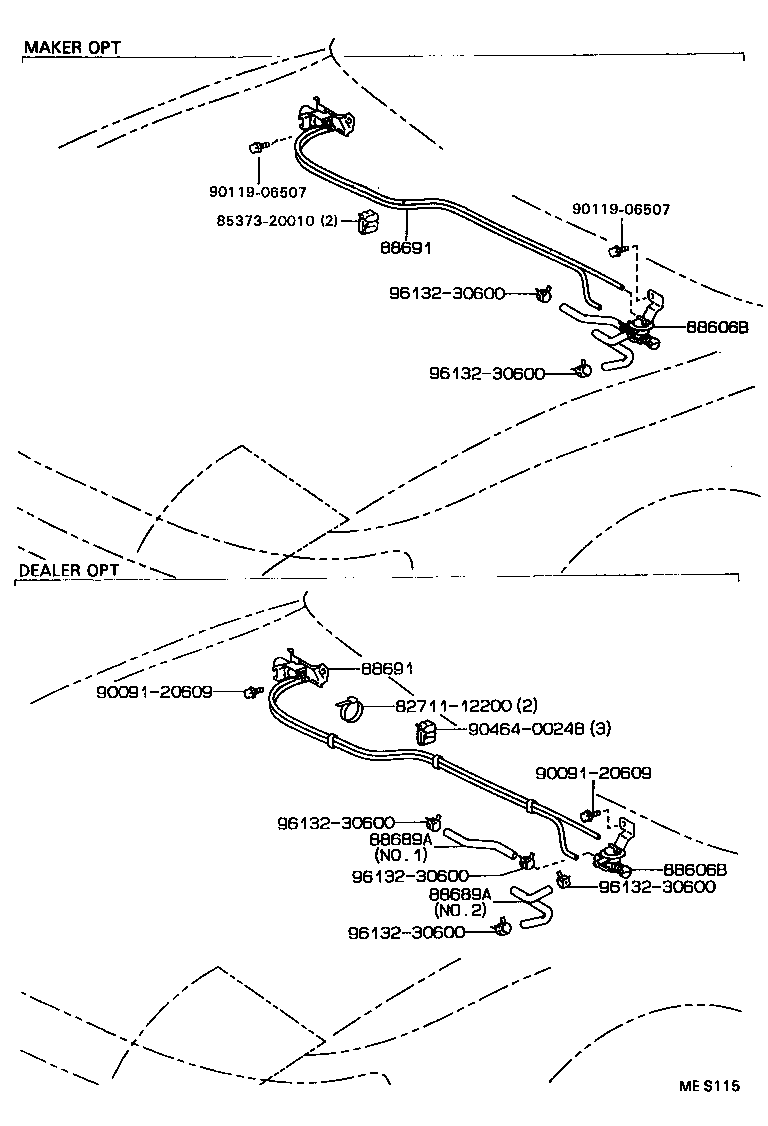

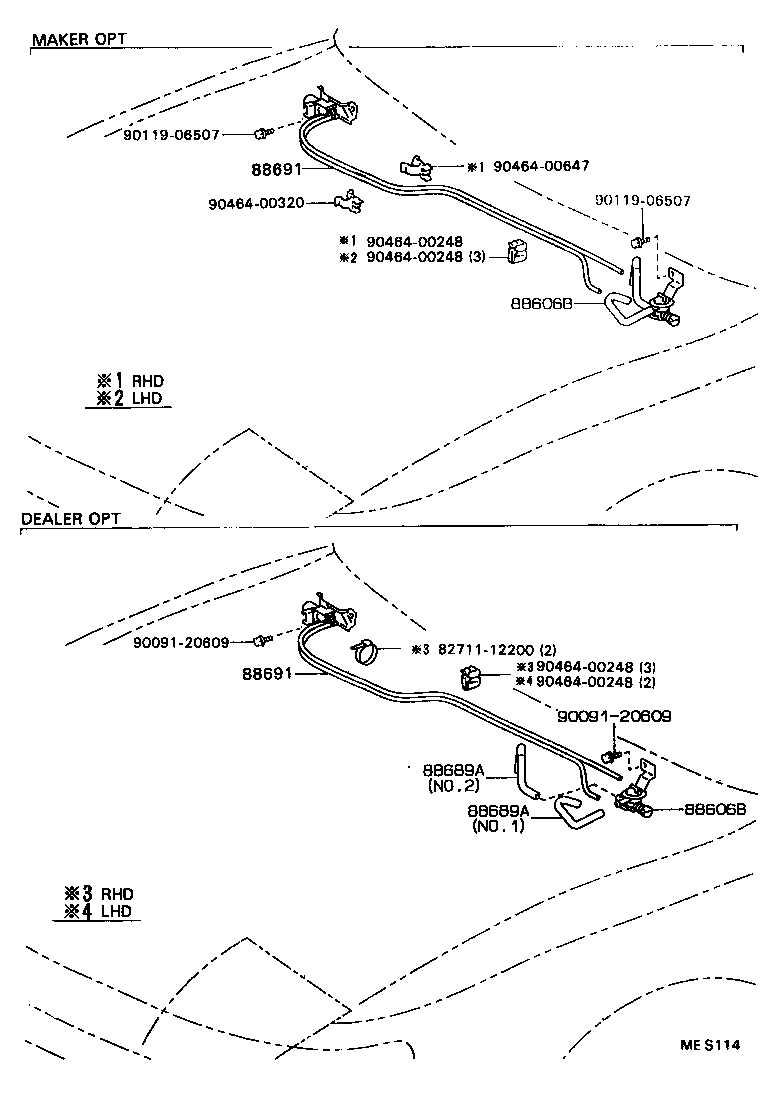

Figure MES113 MES113 1990-08 → — Figure MES114 MES114 1989-10 → — Figure MES115 MES115 1989-10 → —

Part groups

PNCDescription
88606B Diaphragm Sub-assy, Cooler
88689A Hose, Cooler Vacuum NO.1
88691 Valve, Magnet (FOR IDLE UP DEVICE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
