Toyota Celica
1993-11 → 1999-08 · chassis AT200,ST20# · catalogue 252570 · Europe
Discontinued model
Data version 2000-03

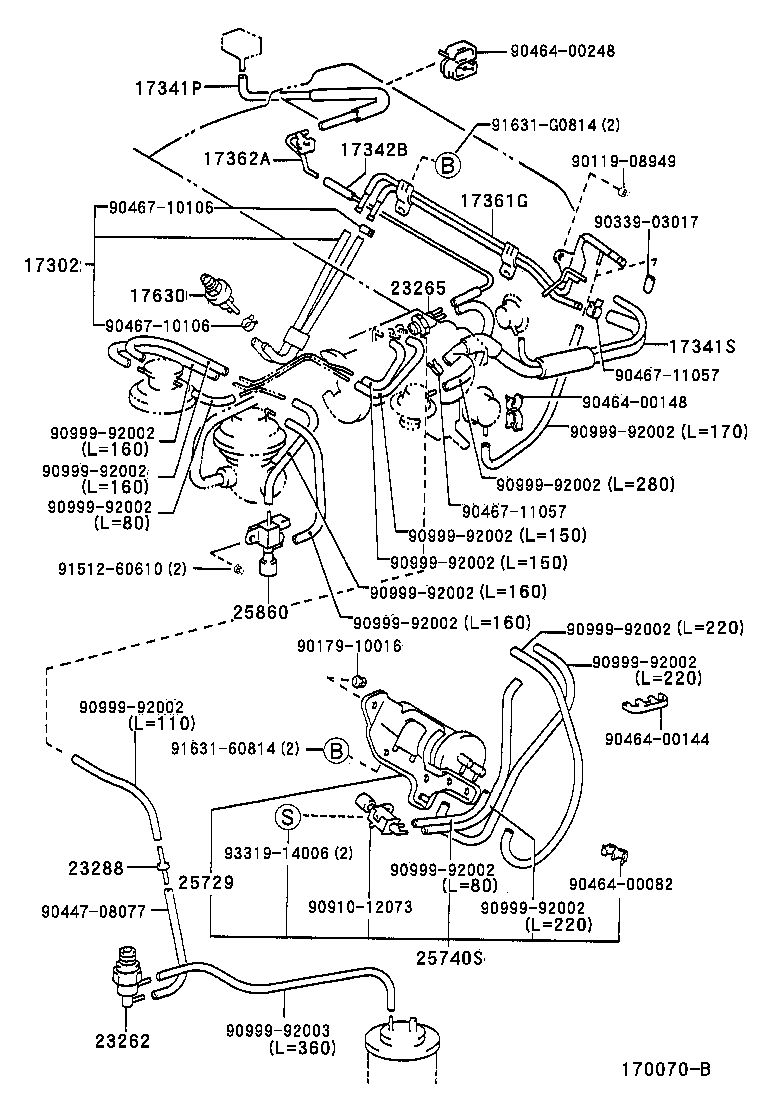

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17302 — Hose Sub-assy, Air | ||||
| 17302-15010 |
Hose Sub-assy, Air
1993-11 → —
|
7AFE AT200 | — | |
| 17302-74100 |
Hose Sub-assy, Air
1993-11 → —
|
3SGE ST202 | — | |
| 17341P — Hose, Air | ||||
| 17341-74610 note |
Hose, Air
1994-02 → 1994-04
ended
|
3SGTE ST205 | — | |
| 17341-74830 |
Hose, Air
1996-06 → —
|
3SGE ST202 | — | |
| 17341S — Hose, Air | ||||
| 17341-88462 |
Hose, Air
1993-11 → —
|
3SGE ST202 | — | |
| 17342B — Hose, NO.2(FOR IDLE-UP) | ||||
| 17342-88460 |
Hose, NO.2(FOR IDLE-UP)
1996-06 → —
|
3SGE ST202 | — | |
| 17342-88480 |
Hose, NO.2(FOR IDLE-UP)
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 17361G — Tube, Air(FOR IDLE-UP) | ||||
| 17361-88460 |
Tube, Air(FOR IDLE-UP)
1993-11 → 1996-06
ended
|
3SGE ST202 | — | |
| 17361-88464 |
Tube, Air(FOR IDLE-UP)
1996-06 → —
|
3SGE ST202 | — | |
| 17361-88480 |
Tube, Air(FOR IDLE-UP)
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 17362A — Tube, Air, NO.2 | ||||
| 17362-88460 |
Tube, Air, NO.2
1996-06 → —
|
3SGE ST202 | — | |
| 17362-88480 |
Tube, Air, NO.2
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 17630 — Valve Assy, Air Control | ||||
| 17630-15080 |
Valve Assy, Air Control
1993-11 → —
|
7AFE AT200 | — | |
| 17630-70020 |
Valve Assy, Air Control
1993-11 → —
|
3SG# ST20# | — | |
| 23262 — Valve, Bimetal Vacuum Switching, NO.1 | ||||
| 90925-05068 |
Valve, Bimetal Vacuum Switching, NO.1
1993-11 → 1995-08
ended
|
7AFE AT200 | — | |
| 90925-05068 |
Valve, Bimetal Vacuum Switching, NO.1
1993-11 → —
|
3SG# ST20# | — | |
| 90925-05068 |
Valve, Bimetal Vacuum Switching, NO.1
1995-08 → —
|
7AFE AT200 | — | |
| 23265 — Filter, Gas, NO.1 | ||||
| 90917-11022 |
Filter, Gas, NO.1
1993-11 → —
|
7AFE AT200 | — | |
| 90917-11031 |
Filter, Gas, NO.1
1993-11 → 1996-01
ended
|
3SG# ST20# | — | |
| 90917-11031 |
Filter, Gas, NO.1
1996-01 → 1996-06
ended
|
3SGTE ST205 | — | |
| 90917-11037 |
Filter, Gas, NO.1
1996-01 → 1996-06
ended
|
3SGE ST202 | — | |
| 90917-11039 |
Filter, Gas, NO.1
1996-06 → —
|
3SGE ST202 | — | |
| 23288 — Jet, NO.1 | ||||
| 90925-04036 |
Jet, NO.1
1993-11 → —
|
3SG# ST20# | — | |
| 25729 — Tank, Vacuum Surge W/Bracket | ||||
| 25729-88460 |
Tank, Vacuum Surge W/Bracket
1995-08 → 1995-12
ended
|
3SGE ST202 LB | — | |
| 25729-88460 |
Tank, Vacuum Surge W/Bracket
1995-12 → —
|
3SGE ST202 | — | |
| 25740S — Valve Assy, Air Control(FOR IDLE SPEED CONTROL) | ||||
| 25740-88462 |
Valve Assy, Air Control(FOR IDLE SPEED CONTROL)
1993-11 → 1995-08
ended
|
3SGE ST202 | — | |
| 25740-88462 |
Valve Assy, Air Control(FOR IDLE SPEED CONTROL)
1995-08 → 1995-12
ended
|
3SGE ST202 CVT | — | |
| 25740-88465 |
Valve Assy, Air Control(FOR IDLE SPEED CONTROL)
1995-08 → 1995-12
ended
|
3SGE ST202 LB | — | |
| 25740-88465 |
Valve Assy, Air Control(FOR IDLE SPEED CONTROL)
1995-12 → 1996-06
ended
|
3SGE ST202 | — | |
| 25740-88466 |
Valve Assy, Air Control(FOR IDLE SPEED CONTROL)
1996-06 → —
|
3SGE ST202 | — | |
| 25740-88480 |
Valve Assy, Air Control(FOR IDLE SPEED CONTROL)
1994-02 → 1994-04
ended
|
3SGTE ST205 | — | |
| 25860 — Valve Assy, Vacuum Switching, NO.1 | ||||
| 25860-74020 |
Valve Assy, Vacuum Switching, NO.1
1993-11 → 1995-08
ended
|
3SGE ST202 | — | |
| 25860-74020 |
Valve Assy, Vacuum Switching, NO.1
1995-08 → 1995-12
ended
|
3SGE ST202 CVT | — | |
| 25860-88460 |
Valve Assy, Vacuum Switching, NO.1
1996-06 → —
|
3SGE ST202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
