Toyota Celica
1993-11 → 1999-08 · chassis AT200,ST20# · catalogue 252570 · Europe
Discontinued model
Data version 2000-03

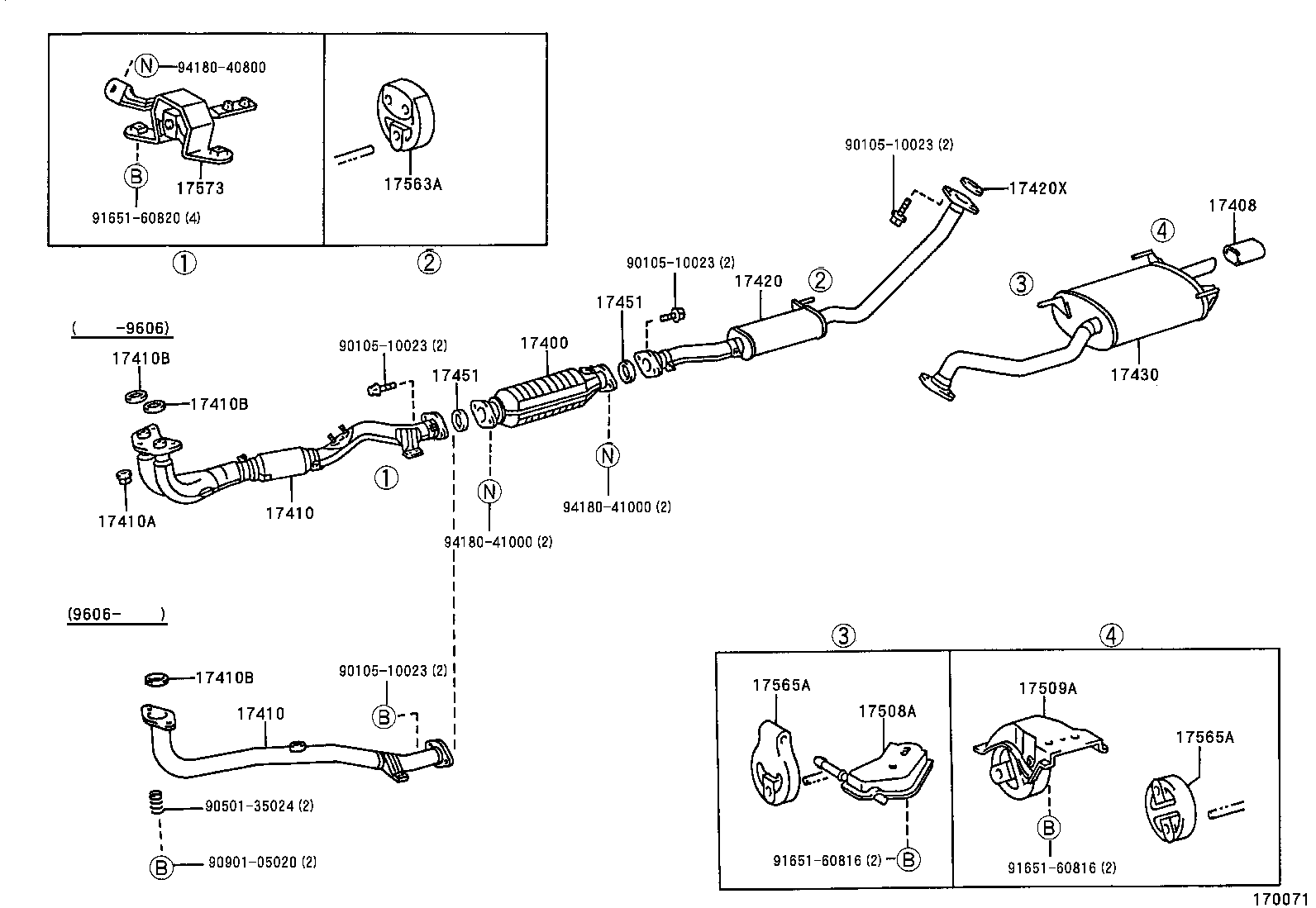

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17400 — Converter Assy, W/Catalyst | ||||
| 18450-16610 |
Converter Assy, W/Catalyst
1993-11 → —
|
7AFE AT200 | — | |
| 18450-74460 |
Converter Assy, W/Catalyst
1993-11 → 1996-06
ended
|
3SGE ST202 | — | |
| 18450-74560 |
Converter Assy, W/Catalyst
1996-06 → —
|
3SGE ST202 | — | |
| 17408 — Baffle Sub Assy, Exhaust Tailpipe | ||||
| 17408-74020 |
Baffle Sub Assy, Exhaust Tailpipe
1993-11 → —
|
3SGE ST202 LB | — | |
| 17408-74030 |
Baffle Sub Assy, Exhaust Tailpipe
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 17408-74050 |
Baffle Sub Assy, Exhaust Tailpipe
1994-08 → —
|
3SGE ST202 CVT | — | |
| 17410 — Pipe Assy, Exhaust, Front | ||||
| 17410-1A130 |
Pipe Assy, Exhaust, Front
1993-11 → 1996-06
ended
|
7AFE AT200 | — | |
| 17410-1A420 |
Pipe Assy, Exhaust, Front
1996-06 → —
|
7AFE AT200 | — | |
| 17410-7A200 |
Pipe Assy, Exhaust, Front
1993-11 → 1994-12
ended
|
3SGE ST202 | — | |
| 17410-7A201 |
Pipe Assy, Exhaust, Front
1994-12 → 1996-06
ended
|
3SGE ST202 | — | |
| 17410-7A280 |
Pipe Assy, Exhaust, Front
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 17410-7A540 |
Pipe Assy, Exhaust, Front
1996-06 → —
|
3SGE ST202 | — | |
| 17410A — Nut, Exhaust Pipe Set Stud Bolt | ||||
| 90179-10070 |
Nut, Exhaust Pipe Set Stud Bolt
1993-11 → 1996-06
ended
|
7AFE,3SG# AT200,ST20# | — | |
| 90179-10070 |
Nut, Exhaust Pipe Set Stud Bolt
1996-06 → —
|
7AFE AT200 | — | |
| 17410B — Gasket, Exhaust Pipe | ||||
| 17451-74050 |
Gasket, Exhaust Pipe
1996-06 → 1996-12
ended
|
3SGE ST202 | — | |
| 17451-74051 |
Gasket, Exhaust Pipe
1996-12 → —
|
3SGE ST202 | — | |
| 90917-06061 |
Gasket, Exhaust Pipe
1993-11 → —
|
7AFE AT200 | — | |
| 90917-06068 |
Gasket, Exhaust Pipe
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 90917-06075 |
Gasket, Exhaust Pipe
1993-11 → 1996-06
ended
|
3SGE ST202 | — | |
| 17420 — Pipe Assy, Exhaust, Center | ||||
| 17420-16620 |
Pipe Assy, Exhaust, Center
1993-11 → —
|
7AFE AT200 | — | |
| 17420-74710 |
Pipe Assy, Exhaust, Center
1993-11 → —
|
3SGE ST202 | — | |
| 17420-74770 |
Pipe Assy, Exhaust, Center
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 17420X — Gasket, Exhaust Pipe, Center | ||||
| 90917-06039 |
Gasket, Exhaust Pipe, Center
1993-11 → —
|
7AFE AT200 | — | |
| 90917-06045 |
Gasket, Exhaust Pipe, Center
1993-11 → —
|
3SGE ST202 | — | |
| 90917-06054 |
Gasket, Exhaust Pipe, Center
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 17430 — Pipe Assy, Exhaust, Tail | ||||
| 17430-1A400 |
Pipe Assy, Exhaust, Tail
1993-11 → —
|
7AFE AT200 | — | |
| 17430-7A310 |
Pipe Assy, Exhaust, Tail
1993-11 → 1996-06
ended
|
3SGE ST202 | — | |
| 17430-7A400 |
Pipe Assy, Exhaust, Tail
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 17430-7A750 |
Pipe Assy, Exhaust, Tail
1996-06 → —
|
3SGE ST202 | — | |
| 17451 — Gasket, Exhaust Pipe | ||||
| 90917-06043 note |
Gasket, Exhaust Pipe
1993-11 → —
|
7AFE AT200 | — | |
| 90917-06054 |
Gasket, Exhaust Pipe
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 90917-06054 note |
Gasket, Exhaust Pipe
1993-11 → —
|
3SGE ST202 | — | |
| 90917-06057 note |
Gasket, Exhaust Pipe
1993-11 → —
|
7AFE AT200 | — | |
| 90917-06073 note |
Gasket, Exhaust Pipe
1993-11 → —
|
3SGE ST202 | — | |
| 17508A — Bracket Sub-assy, Exhaust Pipe NO.3 Support | ||||
| 17508-74040 |
Bracket Sub-assy, Exhaust Pipe NO.3 Support
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 17508-74080 |
Bracket Sub-assy, Exhaust Pipe NO.3 Support
1993-11 → —
|
7AFE,3SGE AT200,ST202 | — | |
| 17509A — Bracket Sub-assy, Exhaust Pipe NO.4 Support | ||||
| 17509-74090 |
Bracket Sub-assy, Exhaust Pipe NO.4 Support
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 17509-74140 |
Bracket Sub-assy, Exhaust Pipe NO.4 Support
1993-11 → —
|
7AFE,3SGE AT200,ST202 | — | |
| 17563A — Support, Exhaust Pipe, NO.3 | ||||
| 17565-63020 |
Support, Exhaust Pipe, NO.3
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 17565-64180 |
Support, Exhaust Pipe, NO.3
1993-11 → —
|
7AFE,3SGE AT200,ST202 | — | |
| 17565A — Support, Exhaust Pipe, NO.4 | ||||
| 17565-16230 note |
Support, Exhaust Pipe, NO.4
1993-11 → —
|
7AFE,3SGE AT200,ST202 | — | |
| 17565-74290 |
Support, Exhaust Pipe, NO.4
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 17565-74290 note |
Support, Exhaust Pipe, NO.4
1993-11 → —
|
7AFE,3SGE AT200,ST202 | — | |
| 17573 — Bracket, Exhaust Pipe NO.1 Support, Lower | ||||
| 17573-74010 |
Bracket, Exhaust Pipe NO.1 Support, Lower
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 17573-74150 |
Bracket, Exhaust Pipe NO.1 Support, Lower
1993-11 → —
|
7AFE,3SGE AT200,ST202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
