Toyota Celica
1993-11 → 1999-08 · chassis AT200,ST20# · catalogue 252570 · Europe
Discontinued model
Data version 2000-03

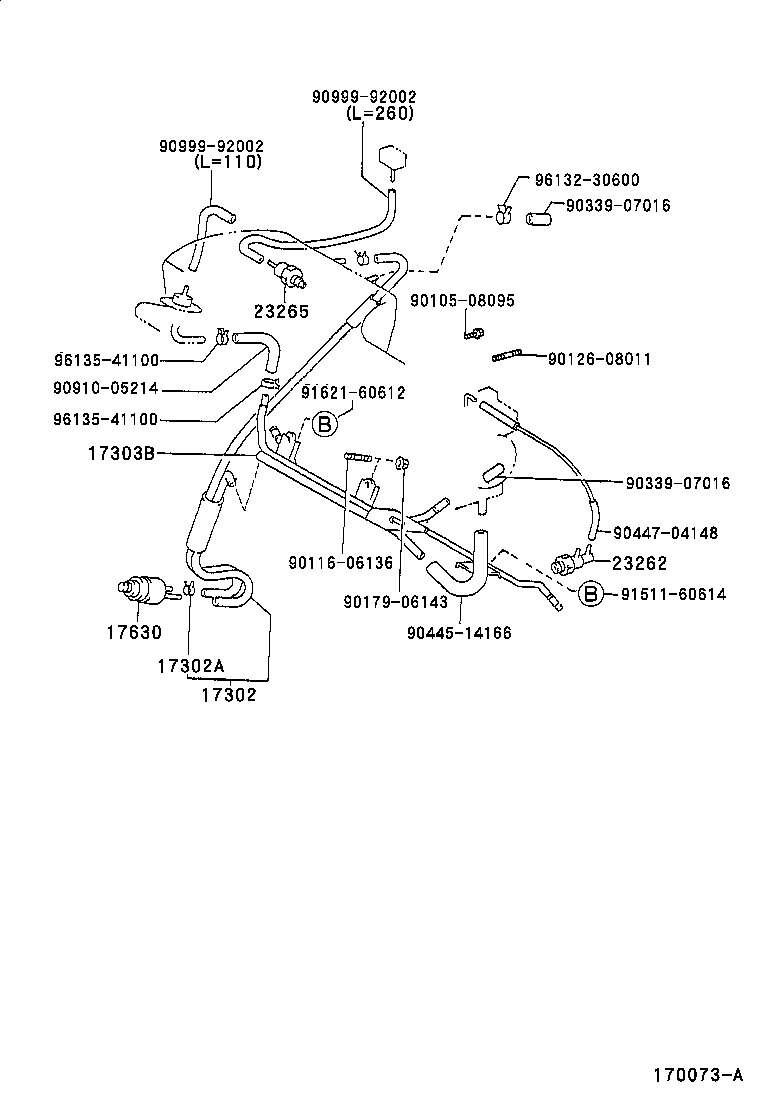

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17302 — Hose Sub-assy, Air | ||||
| 17302-15010 |
Hose Sub-assy, Air
1993-11 → —
|
7AFE AT200 | — | |
| 17302-74100 |
Hose Sub-assy, Air
1993-11 → —
|
3SGE ST202 | — | |
| 17302A — Clip, Hose | ||||
| 96132-51000 |
Clip, Hose
1993-11 → —
|
7AFE AT200 | — | |
| 17303B — Pipe Sub-assy, Air, NO.1 | ||||
| 17303-15060 |
Pipe Sub-assy, Air, NO.1
1993-11 → —
|
7AFE AT200 | — | |
| 17630 — Valve Assy, Air Control | ||||
| 17630-15080 |
Valve Assy, Air Control
1993-11 → —
|
7AFE AT200 | — | |
| 17630-70020 |
Valve Assy, Air Control
1993-11 → —
|
3SG# ST20# | — | |
| 23262 — Valve, Bimetal Vacuum Switching, NO.1 | ||||
| 90925-05068 |
Valve, Bimetal Vacuum Switching, NO.1
1993-11 → 1995-08
ended
|
7AFE AT200 | — | |
| 90925-05068 |
Valve, Bimetal Vacuum Switching, NO.1
1993-11 → —
|
3SG# ST20# | — | |
| 90925-05068 |
Valve, Bimetal Vacuum Switching, NO.1
1995-08 → —
|
7AFE AT200 | — | |
| 23265 — Filter, Gas, NO.1 | ||||
| 90917-11022 |
Filter, Gas, NO.1
1993-11 → —
|
7AFE AT200 | — | |
| 90917-11031 |
Filter, Gas, NO.1
1993-11 → 1996-01
ended
|
3SG# ST20# | — | |
| 90917-11031 |
Filter, Gas, NO.1
1996-01 → 1996-06
ended
|
3SGTE ST205 | — | |
| 90917-11037 |
Filter, Gas, NO.1
1996-01 → 1996-06
ended
|
3SGE ST202 | — | |
| 90917-11039 |
Filter, Gas, NO.1
1996-06 → —
|
3SGE ST202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
