Toyota Celica

1993-11 → 1999-08 · chassis AT200,ST20# · catalogue 252570 · Europe

Discontinued model Data version 2000-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

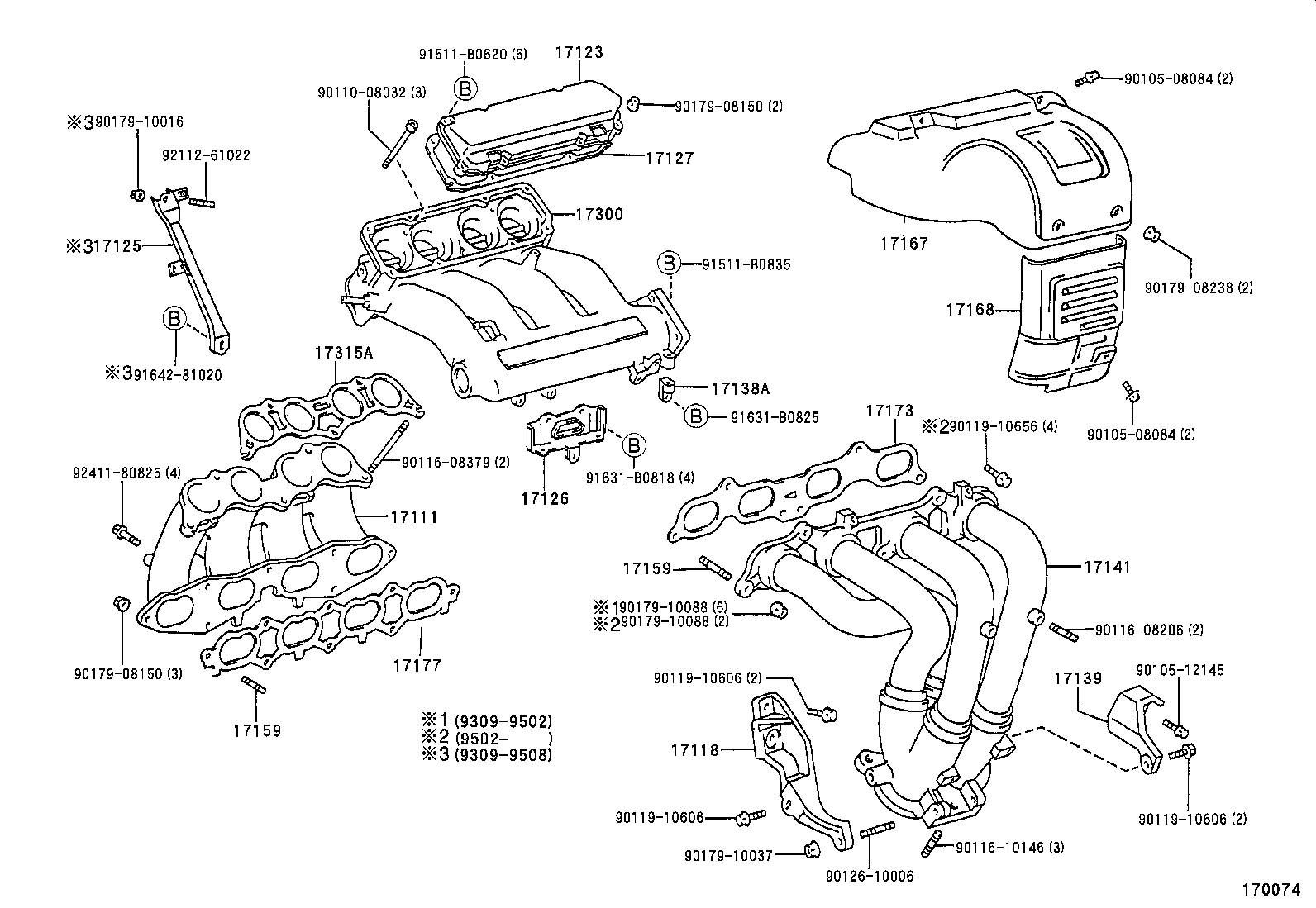

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

52 parts on this figure

Part number	Description	Fitment	Price
17111 — Manifold, Intake
17101-16190	Manifold, Intake 1993-12 → —	7AFE AT200	—
17101-16200	Manifold, Intake 1993-11 → 1993-12 ended	7AFE AT200	—
17101-88460	Manifold, Intake 1993-11 → —	3SGE ST202	—
17101-88482	Manifold, Intake 1994-02 → 1996-06 ended	3SGTE ST205	—
17101-88483 note	Manifold, Intake 1994-02 → 1994-04 ended	3SGTE ST205	—
17118 — Stay, Manifold
17118-16100	Stay, Manifold 1993-11 → —	7AFE AT200	—
17118-88382	Stay, Manifold 1994-02 → 1994-03 ended	3SGTE ST205	—
17118-88460	Stay, Manifold 1993-11 → 1996-06 ended	3SGE ST202	—
17118-88462	Stay, Manifold 1996-06 → —	3SGE ST202	—
17118-88480	Stay, Manifold 1994-03 → 1996-06 ended	3SGTE ST205	—
17123 — Cover, Surge Tank
17123-88460	Cover, Surge Tank 1993-11 → —	3SGE ST202	—
17125 — Stay, Surge Tank, NO.1
17125-16080	Stay, Surge Tank, NO.1 1993-11 → —	7AFE AT200	—
17125-88460	Stay, Surge Tank, NO.1 1995-08 → 1995-12 ended	3SGE ST202 CVT	—
17125-88460	Stay, Surge Tank, NO.1 1993-11 → 1995-08 ended	3SGE ST202	—
17125-88481	Stay, Surge Tank, NO.1 1994-02 → 1996-06 ended	3SGTE ST205	—
17126 — Stay, Surge Tank, NO.2
17126-88460	Stay, Surge Tank, NO.2 1993-11 → —	3SGE ST202	—
17126-88480	Stay, Surge Tank, NO.2 1994-02 → 1996-06 ended	3SGTE ST205	—
17127 — Gasket, Surge Tank Cover
17127-88460	Gasket, Surge Tank Cover 1993-11 → —	3SGE ST202	—
17138A — Stay, Intake Pipe
17138-88460	Stay, Intake Pipe 1993-11 → —	3SGE ST202	—
17139 — Stay, Manifold, NO.2
17139-88460	Stay, Manifold, NO.2 1993-11 → 1996-06 ended	3SGE ST202	—
17139-88462	Stay, Manifold, NO.2 1996-06 → —	3SGE ST202	—
17139-88480	Stay, Manifold, NO.2 1994-02 → 1994-03 ended	3SGTE ST205	—
17139-88481	Stay, Manifold, NO.2 1994-03 → 1996-06 ended	3SGTE ST205	—
17141 — Manifold, Exhaust
17140-88480	Manifold, Exhaust 1994-02 → 1996-06 ended	3SGTE ST205	—
17140-88481 note	Manifold, Exhaust 1994-02 → 1994-04 ended	3SGTE ST205	—
17141-16320	Manifold, Exhaust 1994-10 → —	7AFE AT200	—
17141-16330	Manifold, Exhaust 1993-11 → 1994-10 ended	7AFE AT200	—
17141-88460	Manifold, Exhaust 1993-11 → 1996-06 ended	3SGE ST202	—
17141-88462	Manifold, Exhaust 1996-06 → —	3SGE ST202	—
17159 — Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
90116-08242 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 1993-11 → —	3SG# ST20#	—
90116-10127 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 1994-02 → 1996-06 ended	3SGTE ST205	—
90116-10169 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 1993-11 → 1995-02 ended	3SG# ST20#	—
90116-10169 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 1995-02 → 1996-06 ended	3SGTE ST205	—
90116-10169 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 1995-02 → —	3SGE ST202	—
92112-60825 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 1993-11 → —	7AFE AT200	—
92112-61028 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 1993-11 → —	7AFE AT200	—
17167 — Insulator, Exhaust Manifold Heat, NO.1
17167-16170	Insulator, Exhaust Manifold Heat, NO.1 1993-11 → 1996-01 ended	7AFE AT200	—
17167-16171	Insulator, Exhaust Manifold Heat, NO.1 1996-01 → —	7AFE AT200	—
17167-88460	Insulator, Exhaust Manifold Heat, NO.1 1993-11 → 1996-06 ended	3SGE ST202	—
17167-88462	Insulator, Exhaust Manifold Heat, NO.1 1996-06 → —	3SGE ST202	—
17168 — Insulator, Exhaust Manifold Heat, NO.2
17168-88460	Insulator, Exhaust Manifold Heat, NO.2 1993-11 → 1996-06 ended	3SGE ST202	—
17168-88463	Insulator, Exhaust Manifold Heat, NO.2 1996-06 → —	3SGE ST202	—
17168-88480	Insulator, Exhaust Manifold Heat, NO.2 1994-02 → 1996-06 ended	3SGTE ST205	—
17173 — Gasket, Exhaust Manifold TO Head
17173-15040	Gasket, Exhaust Manifold TO Head 1993-11 → —	7AFE AT200	—
17173-88460	Gasket, Exhaust Manifold TO Head 1993-11 → 1996-04 ended	3SGE ST202	—
17173-88461	Gasket, Exhaust Manifold TO Head 1996-04 → —	3SGE ST202	—
17173-88480	Gasket, Exhaust Manifold TO Head 1994-02 → 1996-06 ended	3SGTE ST205	—
17177 — Gasket, Intake Manifold TO Head, NO.1
17171-15030	Gasket, Intake Manifold TO Head, NO.1 1993-11 → —	7AFE AT200	—
17177-88460	Gasket, Intake Manifold TO Head, NO.1 1993-11 → —	3SG# ST20#	—
17300 — Valve Assy, Intake Air Control
17300-88463	Valve Assy, Intake Air Control 1993-11 → 1996-06 ended	3SGE ST202	—
17300-88466	Valve Assy, Intake Air Control 1996-06 → —	3SGE ST202	—
17315A — Gasket, Intake Air Control Valve
17315-88460	Gasket, Intake Air Control Valve 1993-11 → —	3SGE ST202	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
