Toyota Celica

1993-11 → 1999-08 · chassis AT200,ST20# · catalogue 252570 · Europe

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

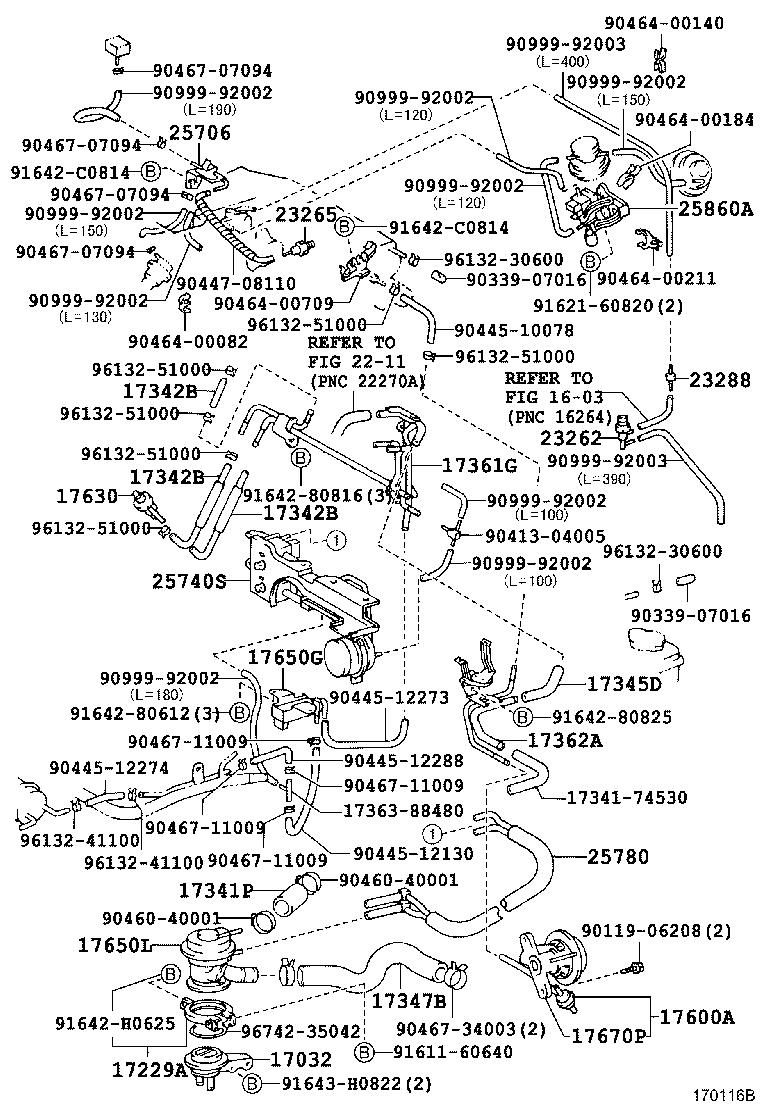

Exploded illustration 170116B 9099992002 — not listed in this catalogue 17650G — VALVE, DUTY VACUUM SWITCHING (1 parts) 25740S — VALVE ASSY, AIR CONTROL(FOR IDLE SPEED CONTROL) (6 parts) 9164280612 — not listed in this catalogue 9613241100 — not listed in this catalogue 9613241100 — not listed in this catalogue 17650L — VALVE ASSY, AIR BY-PASS, NO.2 (1 parts) 17341P — HOSE, AIR (2 parts) 9044512288 — not listed in this catalogue 9044512274 — not listed in this catalogue 9046711009 — not listed in this catalogue 9046711009 — not listed in this catalogue 9046711009 — not listed in this catalogue 9046711009 — not listed in this catalogue 9046040001 — not listed in this catalogue 9044512130 — not listed in this catalogue 9044512273 — not listed in this catalogue 1736388480 — not listed in this catalogue 9046040001 — not listed in this catalogue 9164280825 — not listed in this catalogue 17345D — HOSE, AIR, NO.5 (1 parts) 25780 — HOSE ASSY, VACUUM TRANSMITTING, NO.3 (1 parts) 1734174530 — not listed in this catalogue 9046734003 — not listed in this catalogue 17670P — VALVE ASSY, AIR BY-PASS (1 parts) 17600A — VALVE ASSY, AIR BY-PASS W/HOSE (1 parts) 17032 — BRACKET SUB-ASSY, AIR VALVE (1 parts) 17347B — HOSE, AIR, NO.7 (2 parts) 9011906208 — not listed in this catalogue 17362A — TUBE, AIR, NO.2 (2 parts) 9161160640 — not listed in this catalogue 9674235042 — not listed in this catalogue 17229A — BAND, V (1 parts) 91642H0625 — not listed in this catalogue 17342B — HOSE, NO.2(FOR IDLE-UP) (2 parts) 17630 — VALVE ASSY, AIR CONTROL (2 parts) 9099992002 — not listed in this catalogue 9099992002 — not listed in this catalogue 17361G — TUBE, AIR(FOR IDLE-UP) (3 parts) 17342B — HOSE, NO.2(FOR IDLE-UP) (2 parts) 9613251000 — not listed in this catalogue 9613251000 — not listed in this catalogue 9613251000 — not listed in this catalogue 9044510078 — not listed in this catalogue 9041304005 — not listed in this catalogue 17342B — HOSE, NO.2(FOR IDLE-UP) (2 parts) 9613251000 — not listed in this catalogue 9613251000 — not listed in this catalogue 2211 — not listed in this catalogue 9033907016 — not listed in this catalogue 9613230600 — not listed in this catalogue 9164280816 — not listed in this catalogue 23265 — FILTER, GAS, NO.1 (5 parts) 25706 — PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 (1 parts) 9099992002 — not listed in this catalogue 9099992002 — not listed in this catalogue 9099992002 — not listed in this catalogue 9099992003 — not listed in this catalogue 25860A — VALVE, VACUUM SWITCHING, NO.1 (1 parts) 9044708110 — not listed in this catalogue 9046400709 — not listed in this catalogue 9046707094 — not listed in this catalogue 9046707094 — not listed in this catalogue 9046707094 — not listed in this catalogue 91642C0814 — not listed in this catalogue 91642C0814 — not listed in this catalogue 9046400082 — not listed in this catalogue 9613251000 — not listed in this catalogue 9046400184 — not listed in this catalogue 9046400211 — not listed in this catalogue 9162160820 — not listed in this catalogue 9046400140 — not listed in this catalogue 9099992002 — not listed in this catalogue 9046707094 — not listed in this catalogue 9099992002 — not listed in this catalogue 9099992003 — not listed in this catalogue 23262 — VALVE, BIMETAL VACUUM SWITCHING, NO.1 (3 parts) 1603 — not listed in this catalogue 23288 — JET, NO.1 (1 parts) 91643H0822 — not listed in this catalogue 9099992002 — not listed in this catalogue 9033907016 — not listed in this catalogue 9613230600 — not listed in this catalogue
170116B · 22 callouts, 61 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
38 parts on this figure
Part number Description Fitment Price
17032 — Bracket Sub-assy, Air Valve
17032-74011 note Bracket Sub-assy, Air Valve
1994-02 → 1994-04 ended
3SGTE ST205 —
17229A — Band, V
17229-74010 note Band, V
1994-02 → 1994-04 ended
3SGTE ST205 —
17341P — Hose, Air
17341-74610 note Hose, Air
1994-02 → 1994-04 ended
3SGTE ST205 —
17341-74830 Hose, Air
1996-06 → —
3SGE ST202 —
17342B — Hose, NO.2(FOR IDLE-UP)
17342-88460 Hose, NO.2(FOR IDLE-UP)
1996-06 → —
3SGE ST202 —
17342-88480 Hose, NO.2(FOR IDLE-UP)
1994-02 → 1996-06 ended
3SGTE ST205 —
17345D — Hose, Air, NO.5
17345-88381 Hose, Air, NO.5
1994-02 → 1996-06 ended
3SGTE ST205 —
17347B — Hose, Air, NO.7
17347-74030 Hose, Air, NO.7
1994-02 → 1996-06 ended
3SGTE ST205 —
17347-74040 note Hose, Air, NO.7
1994-02 → 1994-04 ended
3SGTE ST205 —
17361G — Tube, Air(FOR IDLE-UP)
17361-88460 Tube, Air(FOR IDLE-UP)
1993-11 → 1996-06 ended
3SGE ST202 —
17361-88464 Tube, Air(FOR IDLE-UP)
1996-06 → —
3SGE ST202 —
17361-88480 Tube, Air(FOR IDLE-UP)
1994-02 → 1996-06 ended
3SGTE ST205 —
17362A — Tube, Air, NO.2
17362-88460 Tube, Air, NO.2
1996-06 → —
3SGE ST202 —
17362-88480 Tube, Air, NO.2
1994-02 → 1996-06 ended
3SGTE ST205 —
17600A — Valve Assy, Air By-pass W/Hose
17600-74180 Valve Assy, Air By-pass W/Hose
1994-02 → 1996-06 ended
3SGTE ST205 —
17630 — Valve Assy, Air Control
17630-15080 Valve Assy, Air Control
1993-11 → —
7AFE AT200 —
17630-70020 Valve Assy, Air Control
1993-11 → —
3SG# ST20# —
17650G — Valve, Duty Vacuum Switching
90910-12114 Valve, Duty Vacuum Switching
1994-02 → 1996-06 ended
3SGTE ST205 —
17650L — Valve Assy, Air By-pass, NO.2
17650-74010 note Valve Assy, Air By-pass, NO.2
1994-02 → 1994-04 ended
3SGTE ST205 —
17670P — Valve Assy, Air By-pass
17670-74020 Valve Assy, Air By-pass
1994-02 → 1996-06 ended
3SGTE ST205 —
23262 — Valve, Bimetal Vacuum Switching, NO.1
90925-05068 Valve, Bimetal Vacuum Switching, NO.1
1993-11 → —
3SG# ST20# —
90925-05068 Valve, Bimetal Vacuum Switching, NO.1
1995-08 → —
7AFE AT200 —
90925-05068 Valve, Bimetal Vacuum Switching, NO.1
1993-11 → 1995-08 ended
7AFE AT200 —
23265 — Filter, Gas, NO.1
90917-11022 Filter, Gas, NO.1
1993-11 → —
7AFE AT200 —
90917-11031 Filter, Gas, NO.1
1993-11 → 1996-01 ended
3SG# ST20# —
90917-11031 Filter, Gas, NO.1
1996-01 → 1996-06 ended
3SGTE ST205 —
90917-11037 Filter, Gas, NO.1
1996-01 → 1996-06 ended
3SGE ST202 —
90917-11039 Filter, Gas, NO.1
1996-06 → —
3SGE ST202 —
23288 — Jet, NO.1
90925-04036 Jet, NO.1
1993-11 → —
3SG# ST20# —
25706 — Pipe Sub-assy, Vacuum Transmitting, NO.1
25706-88480 Pipe Sub-assy, Vacuum Transmitting, NO.1
1994-02 → 1996-06 ended
3SGTE ST205 —
25740S — Valve Assy, Air Control(FOR IDLE SPEED CONTROL)
25740-88462 Valve Assy, Air Control(FOR IDLE SPEED CONTROL)
1993-11 → 1995-08 ended
3SGE ST202 —
25740-88462 Valve Assy, Air Control(FOR IDLE SPEED CONTROL)
1995-08 → 1995-12 ended
3SGE ST202 CVT —
25740-88465 Valve Assy, Air Control(FOR IDLE SPEED CONTROL)
1995-08 → 1995-12 ended
3SGE ST202 LB —
25740-88465 Valve Assy, Air Control(FOR IDLE SPEED CONTROL)
1995-12 → 1996-06 ended
3SGE ST202 —
25740-88466 Valve Assy, Air Control(FOR IDLE SPEED CONTROL)
1996-06 → —
3SGE ST202 —
25740-88480 Valve Assy, Air Control(FOR IDLE SPEED CONTROL)
1994-02 → 1994-04 ended
3SGTE ST205 —
25780 — Hose Assy, Vacuum Transmitting, NO.3
25780-88480 Hose Assy, Vacuum Transmitting, NO.3
1994-02 → 1994-04 ended
3SGTE ST205 —
25860A — Valve, Vacuum Switching, NO.1
25860-88480 Valve, Vacuum Switching, NO.1
1994-02 → 1996-06 ended
3SGTE ST205 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
