Toyota Celica

1993-11 → 1999-08 · chassis AT200,ST20# · catalogue 252570 · Europe

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

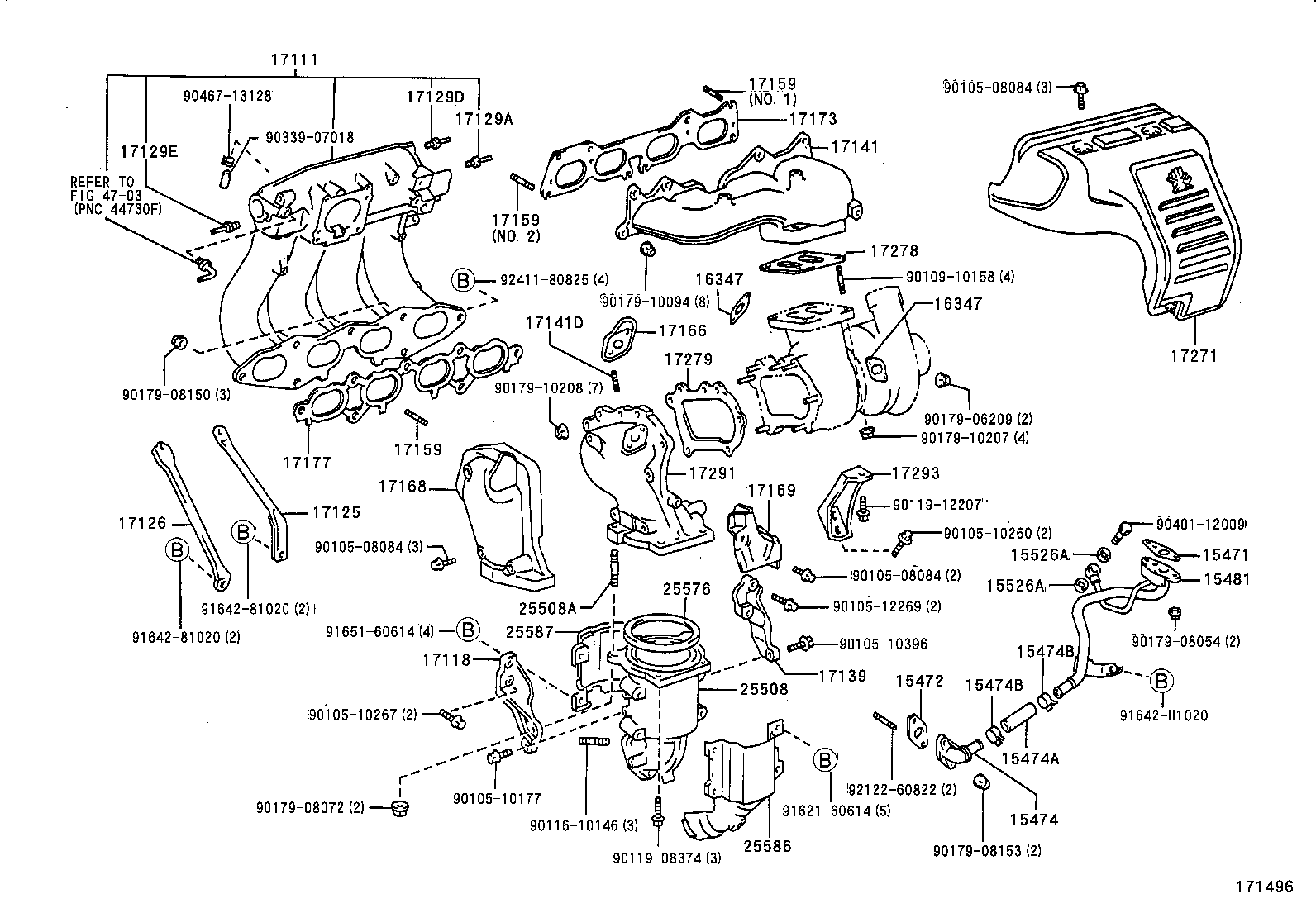

Exploded illustration 171496 17111 — MANIFOLD, INTAKE (5 parts) 17159 — BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) (7 parts) 9010508084 — not listed in this catalogue 9046713128 — not listed in this catalogue 17129D — UNION, NO.2 (1 parts) 17129A — UNION, NO.1 (1 parts) 17173 — GASKET, EXHAUST MANIFOLD TO HEAD (4 parts) 9033907018 — not listed in this catalogue 17141 — MANIFOLD, EXHAUST (6 parts) 17129E — UNION, NO.3 (1 parts) 4703 — not listed in this catalogue 17159 — BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) (7 parts) 17278 — GASKET, TURBO TO EXHAUST MANIFOLD (1 parts) 9010910158 — not listed in this catalogue 16347 — GASKET, WATER BY-PASS (1 parts) 9241180825 — not listed in this catalogue 9017910094 — not listed in this catalogue 16347 — GASKET, WATER BY-PASS (1 parts) 17141D — BOLT, STUD(FOR OXYGEN SENSOR) (1 parts) 17166 — INSULATOR, EXHAUST MANIFOLD HEAT,NO.4 (1 parts) 17271 — INSULATOR, TURBO, NO.1 (2 parts) 17279 — GASKET, TURBINE OUTLET ELBOW (1 parts) 9017910208 — not listed in this catalogue 9017908150 — not listed in this catalogue 9017906209 — not listed in this catalogue 9017910207 — not listed in this catalogue 17159 — BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) (7 parts) 17177 — GASKET, INTAKE MANIFOLD TO HEAD, NO.1 (2 parts) 17291 — ELBOW, TURBINE OUTLET (1 parts) 17293 — STAY, TURBOCHARGER (2 parts) 17168 — INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 (3 parts) 17169 — INSULATOR, EXHAUST MANIFOLD HEAT, NO.3 (1 parts) 9011912207 — not listed in this catalogue 17125 — STAY, SURGE TANK, NO.1 (4 parts) 17126 — STAY, SURGE TANK, NO.2 (2 parts) 9040112009 — not listed in this catalogue 9010510260 — not listed in this catalogue 9010508084 — not listed in this catalogue 15526A — GASKET, JOINT(FOR TURBO OIL PIPE) (1 parts) 15471 — GASKET, TURBO OIL INLET (1 parts) 9010508084 — not listed in this catalogue 15481 — PIPE, TURBO OIL, NO.1 (1 parts) 15526A — GASKET, JOINT(FOR TURBO OIL PIPE) (1 parts) 25576 — GASKET, MANIFOLD CONVERTER (1 parts) 9010512269 — not listed in this catalogue 25508A — BOLT, STUD(FOR MANIFOLD CONVERTER) (1 parts) 9164281020 — not listed in this catalogue 25587 — INSULATOR, MANIFOLD CONVERTER, NO.2 (1 parts) 9165160614 — not listed in this catalogue 9164281020 — not listed in this catalogue 9017908054 — not listed in this catalogue 9010510396 — not listed in this catalogue 15474B — CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) (1 parts) 17118 — STAY, MANIFOLD (5 parts) 17139 — STAY, MANIFOLD, NO.2 (4 parts) 15472 — GASKET, TURBO OIL OUTLET, NO.1 (1 parts) 15474B — CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) (1 parts) 25508 — CONVERTER SUB-ASSY, MANIFOLD (1 parts) 9010510267 — not listed in this catalogue 91642H1020 — not listed in this catalogue 15474A — HOSE, TURBO OIL OUTLET (1 parts) 9212260822 — not listed in this catalogue 9010510177 — not listed in this catalogue 9017908072 — not listed in this catalogue 9162160614 — not listed in this catalogue 15474 — PIPE, TURBO OIL OUTLET (1 parts) 9011610146 — not listed in this catalogue 25586 — INSULATOR, MANIFOLD CONVERTER, NO.1 (1 parts) 9017908153 — not listed in this catalogue 9011908374 — not listed in this catalogue
171496 · 39 callouts, 31 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
68 parts on this figure
Part number Description Fitment Price
15471 — Gasket, Turbo Oil Inlet
15471-88380 Gasket, Turbo Oil Inlet
1994-02 → 1996-06 ended
3SGTE ST205 —
15472 — Gasket, Turbo Oil Outlet, NO.1
15472-88480 Gasket, Turbo Oil Outlet, NO.1
1994-02 → 1996-06 ended
3SGTE ST205 —
15474 — Pipe, Turbo Oil Outlet
15474-88480 Pipe, Turbo Oil Outlet
1994-02 → 1996-06 ended
3SGTE ST205 —
15474A — Hose, Turbo Oil Outlet
15491-88480 Hose, Turbo Oil Outlet
1994-02 → 1996-06 ended
3SGTE ST205 —
15474B — Clamp OR Clip(FOR TURBO OIL OUTLET HOSE)
90467-26007 Clamp OR Clip(FOR TURBO OIL OUTLET HOSE)
1994-02 → 1996-06 ended
3SGTE ST205 —
15481 — Pipe, Turbo Oil, NO.1
15481-88480 Pipe, Turbo Oil, NO.1
1994-02 → 1996-06 ended
3SGTE ST205 —
15526A — Gasket, Joint(FOR TURBO OIL PIPE)
15526-88480 Gasket, Joint(FOR TURBO OIL PIPE)
1994-02 → 1996-06 ended
3SGTE ST205 —
16347 — Gasket, Water By-pass
16347-88380 Gasket, Water By-pass
1994-02 → 1996-06 ended
3SGTE ST205 —
17111 — Manifold, Intake
17101-16190 Manifold, Intake
1993-12 → —
7AFE AT200 —
17101-16200 Manifold, Intake
1993-11 → 1993-12 ended
7AFE AT200 —
17101-88460 Manifold, Intake
1993-11 → —
3SGE ST202 —
17101-88482 Manifold, Intake
1994-02 → 1996-06 ended
3SGTE ST205 —
17101-88483 note Manifold, Intake
1994-02 → 1994-04 ended
3SGTE ST205 —
17118 — Stay, Manifold
17118-16100 Stay, Manifold
1993-11 → —
7AFE AT200 —
17118-88382 Stay, Manifold
1994-02 → 1994-03 ended
3SGTE ST205 —
17118-88460 Stay, Manifold
1993-11 → 1996-06 ended
3SGE ST202 —
17118-88462 Stay, Manifold
1996-06 → —
3SGE ST202 —
17118-88480 Stay, Manifold
1994-03 → 1996-06 ended
3SGTE ST205 —
17125 — Stay, Surge Tank, NO.1
17125-16080 Stay, Surge Tank, NO.1
1993-11 → —
7AFE AT200 —
17125-88460 Stay, Surge Tank, NO.1
1993-11 → 1995-08 ended
3SGE ST202 —
17125-88460 Stay, Surge Tank, NO.1
1995-08 → 1995-12 ended
3SGE ST202 CVT —
17125-88481 Stay, Surge Tank, NO.1
1994-02 → 1996-06 ended
3SGTE ST205 —
17126 — Stay, Surge Tank, NO.2
17126-88460 Stay, Surge Tank, NO.2
1993-11 → —
3SGE ST202 —
17126-88480 Stay, Surge Tank, NO.2
1994-02 → 1996-06 ended
3SGTE ST205 —
17129A — Union, NO.1
90404-51026 Union, NO.1
1994-02 → 1996-06 ended
3SGTE ST205 —
17129D — Union, NO.2
90404-51096 Union, NO.2
1994-02 → 1996-06 ended
3SGTE ST205 —
17129E — Union, NO.3
90404-51319 Union, NO.3
1994-02 → 1996-06 ended
3SGTE ST205 —
17139 — Stay, Manifold, NO.2
17139-88460 Stay, Manifold, NO.2
1993-11 → 1996-06 ended
3SGE ST202 —
17139-88462 Stay, Manifold, NO.2
1996-06 → —
3SGE ST202 —
17139-88480 Stay, Manifold, NO.2
1994-02 → 1994-03 ended
3SGTE ST205 —
17139-88481 Stay, Manifold, NO.2
1994-03 → 1996-06 ended
3SGTE ST205 —
17141 — Manifold, Exhaust
17140-88480 Manifold, Exhaust
1994-02 → 1996-06 ended
3SGTE ST205 —
17140-88481 note Manifold, Exhaust
1994-02 → 1994-04 ended
3SGTE ST205 —
17141-16320 Manifold, Exhaust
1994-10 → —
7AFE AT200 —
17141-16330 Manifold, Exhaust
1993-11 → 1994-10 ended
7AFE AT200 —
17141-88460 Manifold, Exhaust
1993-11 → 1996-06 ended
3SGE ST202 —
17141-88462 Manifold, Exhaust
1996-06 → —
3SGE ST202 —
17141D — Bolt, Stud(FOR OXYGEN SENSOR)
90116-08326 Bolt, Stud(FOR OXYGEN SENSOR)
1994-02 → 1996-06 ended
3SGTE ST205 —
17159 — Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
90116-08242 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1993-11 → —
3SG# ST20# —
90116-10127 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1994-02 → 1996-06 ended
3SGTE ST205 —
90116-10169 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1993-11 → 1995-02 ended
3SG# ST20# —
90116-10169 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1995-02 → 1996-06 ended
3SGTE ST205 —
90116-10169 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1995-02 → —
3SGE ST202 —
92112-60825 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1993-11 → —
7AFE AT200 —
92112-61028 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1993-11 → —
7AFE AT200 —
17166 — Insulator, Exhaust Manifold Heat,NO.4
17166-88480 Insulator, Exhaust Manifold Heat,NO.4
1994-02 → 1996-06 ended
3SGTE ST205 —
17168 — Insulator, Exhaust Manifold Heat, NO.2
17168-88460 Insulator, Exhaust Manifold Heat, NO.2
1993-11 → 1996-06 ended
3SGE ST202 —
17168-88463 Insulator, Exhaust Manifold Heat, NO.2
1996-06 → —
3SGE ST202 —
17168-88480 Insulator, Exhaust Manifold Heat, NO.2
1994-02 → 1996-06 ended
3SGTE ST205 —
17169 — Insulator, Exhaust Manifold Heat, NO.3
17169-88480 Insulator, Exhaust Manifold Heat, NO.3
1994-02 → 1996-06 ended
3SGTE ST205 —
17173 — Gasket, Exhaust Manifold TO Head
17173-15040 Gasket, Exhaust Manifold TO Head
1993-11 → —
7AFE AT200 —
17173-88460 Gasket, Exhaust Manifold TO Head
1993-11 → 1996-04 ended
3SGE ST202 —
17173-88461 Gasket, Exhaust Manifold TO Head
1996-04 → —
3SGE ST202 —
17173-88480 Gasket, Exhaust Manifold TO Head
1994-02 → 1996-06 ended
3SGTE ST205 —
17177 — Gasket, Intake Manifold TO Head, NO.1
17171-15030 Gasket, Intake Manifold TO Head, NO.1
1993-11 → —
7AFE AT200 —
17177-88460 Gasket, Intake Manifold TO Head, NO.1
1993-11 → —
3SG# ST20# —
17271 — Insulator, Turbo, NO.1
17271-88480 Insulator, Turbo, NO.1
1994-02 → 1996-06 ended
3SGTE ST205 —
17271-88481 note Insulator, Turbo, NO.1
1994-02 → 1994-04 ended
3SGTE ST205 —
17278 — Gasket, Turbo TO Exhaust Manifold
17278-88480 Gasket, Turbo TO Exhaust Manifold
1994-02 → 1996-06 ended
3SGTE ST205 —
17279 — Gasket, Turbine Outlet Elbow
17279-88480 Gasket, Turbine Outlet Elbow
1994-02 → 1996-06 ended
3SGTE ST205 —
17291 — Elbow, Turbine Outlet
17291-88480 Elbow, Turbine Outlet
1994-02 → 1996-06 ended
3SGTE ST205 —
17293 — Stay, Turbocharger
17293-88480 Stay, Turbocharger
1994-02 → 1994-03 ended
3SGTE ST205 —
17293-88481 Stay, Turbocharger
1994-03 → 1996-06 ended
3SGTE ST205 —
25508 — Converter Sub-assy, Manifold
25051-74040 Converter Sub-assy, Manifold
1994-02 → 1996-06 ended
3SGTE ST205 —
25508A — Bolt, Stud(FOR MANIFOLD CONVERTER)
90116-08171 Bolt, Stud(FOR MANIFOLD CONVERTER)
1994-02 → 1996-06 ended
3SGTE ST205 —
25576 — Gasket, Manifold Converter
25576-74030 Gasket, Manifold Converter
1994-02 → 1996-06 ended
3SGTE ST205 —
25586 — Insulator, Manifold Converter, NO.1
25586-74040 Insulator, Manifold Converter, NO.1
1994-02 → 1996-06 ended
3SGTE ST205 —
25587 — Insulator, Manifold Converter, NO.2
25587-74040 Insulator, Manifold Converter, NO.2
1994-02 → 1996-06 ended
3SGTE ST205 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
