Toyota Celica

1993-11 → 1999-08 · chassis AT200,ST20# · catalogue 252570 · Europe

Discontinued model Data version 2000-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

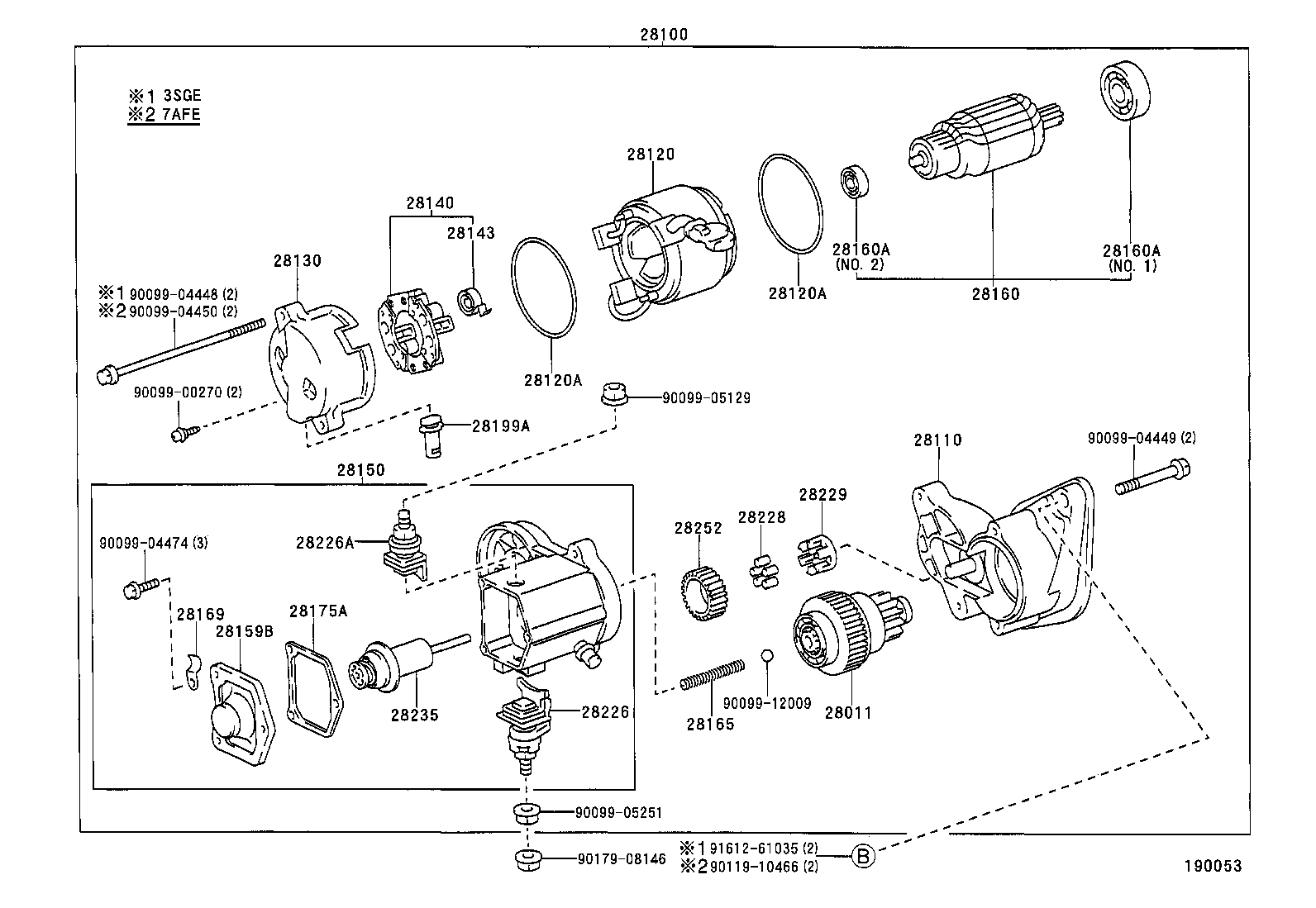

56 parts on this figure

Part number	Description	Fitment	Price
28011 — Clutch Sub-assy, Starter
28011-70020 note	Clutch Sub-assy, Starter 1993-11 → —	7AFE AT200	—
28011-74070	Clutch Sub-assy, Starter 1993-11 → —	3SG# ST20#	—
28011-76070 note	Clutch Sub-assy, Starter 1993-11 → —	7AFE AT200	—
28100 — Starter Assy
28100-16180 note	Starter Assy 1993-11 → —	7AFE AT200	—
28100-16230 note	Starter Assy 1993-11 → —	7AFE AT200	—
28100-74140 note	Starter Assy 1993-11 → —	3SGE ST202	—
28100-74210 note	Starter Assy 1994-02 → 1996-06 ended	3SGTE ST205	—
28110 — Housing Assy, Starter Drive
28110-16071 note	Housing Assy, Starter Drive 1993-11 → —	7AFE AT200	—
28110-16130 note	Housing Assy, Starter Drive 1993-11 → —	7AFE AT200	—
28110-74090	Housing Assy, Starter Drive 1994-02 → 1996-06 ended	3SGTE ST205	—
28110-74100	Housing Assy, Starter Drive 1993-11 → —	3SGE ST202	—
28120 — Yoke Assy, Starter
28120-16180 note	Yoke Assy, Starter 1994-02 → —	7AFE AT200	—
28120-66040	Yoke Assy, Starter 1994-09 → —	3SGE ST202	—
28120-70020 note	Yoke Assy, Starter 1993-11 → —	7AFE AT200	—
28120-74070	Yoke Assy, Starter 1993-11 → 1994-09 ended	3SGE ST202	—
28120-76061	Yoke Assy, Starter 1994-02 → 1996-06 ended	3SGTE ST205	—
28120-76061 note	Yoke Assy, Starter 1993-11 → 1994-02 ended	7AFE AT200	—
28120A — Ring, O(FOR STARTER YOKE)
90099-14064 note	Ring, O(FOR STARTER YOKE) 1993-11 → —	7AFE,3SG# AT200,ST20#	—
90099-14092 note	Ring, O(FOR STARTER YOKE) 1993-11 → —	7AFE AT200	—
28130 — Frame Assy, Starter Commutator End
28130-16070 note	Frame Assy, Starter Commutator End 1993-11 → —	7AFE AT200	—
28130-16180 note	Frame Assy, Starter Commutator End 1993-11 → —	7AFE AT200	—
28130-74100	Frame Assy, Starter Commutator End 1993-11 → —	3SGE ST202	—
28130-74210	Frame Assy, Starter Commutator End 1994-02 → 1996-06 ended	3SGTE ST205	—
28140 — Holder Assy, Starter Brush
28140-70020 note	Holder Assy, Starter Brush 1993-11 → —	7AFE AT200	—
28140-74070	Holder Assy, Starter Brush 1993-11 → —	3SGE ST202	—
28140-74120	Holder Assy, Starter Brush 1994-02 → 1996-06 ended	3SGTE ST205	—
28140-76060 note	Holder Assy, Starter Brush 1993-11 → —	7AFE AT200	—
28143 — Spring, Starter Brush
28143-70020 note	Spring, Starter Brush 1993-11 → —	7AFE AT200	—
28143-76060 note	Spring, Starter Brush 1993-11 → —	7AFE,3SGTE AT200,ST205	—
90099-17112	Spring, Starter Brush 1993-11 → —	3SGE ST202	—
28150 — Switch Assy, Magnet Starter
28150-16160 note	Switch Assy, Magnet Starter 1993-11 → —	7AFE AT200	—
28150-16180 note	Switch Assy, Magnet Starter 1993-11 → 1994-02 ended	7AFE AT200	—
28150-16181 note	Switch Assy, Magnet Starter 1994-02 → —	7AFE AT200	—
28150-74130	Switch Assy, Magnet Starter 1993-11 → 1994-09 ended	3SGE ST202	—
28150-74140	Switch Assy, Magnet Starter 1994-09 → —	3SGE ST202	—
28150-74210	Switch Assy, Magnet Starter 1994-02 → 1996-06 ended	3SGTE ST205	—
28159B — Cover, Magnet Switch
28159-55050	Cover, Magnet Switch 1993-11 → —	7AFE,3SG# AT200,ST20#	—
28160 — Armature Assy, Starter
28160-70021 note	Armature Assy, Starter 1993-11 → —	7AFE AT200	—
28160-74070	Armature Assy, Starter 1993-11 → —	3SGE ST202	—
28160-76060 note	Armature Assy, Starter 1993-11 → —	7AFE,3SGTE AT200,ST205	—
28160A — Bearing, Starter Armature
90099-10196 note	Bearing, Starter Armature 1993-11 → —	7AFE,3SG# AT200,ST20#	—
90099-10197 note	Bearing, Starter Armature 1993-11 → —	7AFE,3SG# AT200,ST20#	—
28165 — Spring, Starter Magnet Switch Return
28165-74070	Spring, Starter Magnet Switch Return 1993-11 → —	3SG# ST20#	—
28165-76070	Spring, Starter Magnet Switch Return 1993-11 → —	7AFE AT200	—
28169 — Clamp, Starter Motor Lead Wire
28169-55050	Clamp, Starter Motor Lead Wire 1993-11 → —	3SG# ST20#	—
28169-55050 note	Clamp, Starter Motor Lead Wire 1993-11 → —	7AFE AT200	—
28175A — Gasket, Magnet Switch Cover
28175-55050	Gasket, Magnet Switch Cover 1993-11 → —	7AFE,3SG# AT200,ST20#	—
28199A — Protector, Dust Starter
28199-46080 note	Protector, Dust Starter 1993-11 → —	7AFE AT200	—
28199-74110 note	Protector, Dust Starter 1993-11 → —	7AFE,3SG# AT200,ST20#	—
28226 — Starter Kit, Battery Terminal
28226-55050	Starter Kit, Battery Terminal 1993-11 → —	7AFE,3SG# AT200,ST20#	—
28226A — Starter Kit, Motor Terminal
28226-74070	Starter Kit, Motor Terminal 1993-11 → —	7AFE,3SG# AT200,ST20#	—
28228 — Roller, Starter Idle Gear Clutch
28228-26040	Roller, Starter Idle Gear Clutch 1993-11 → —	7AFE,3SG# AT200,ST20#	—
28229 — Retainer, Starter Idle Gear
28229-74070	Retainer, Starter Idle Gear 1993-11 → —	7AFE,3SG# AT200,ST20#	—
28235 — Plunger, Magnet Switch
28235-55050	Plunger, Magnet Switch 1993-11 → —	7AFE AT200	—
28235-74130	Plunger, Magnet Switch 1993-11 → —	3SG# ST20#	—
28252 — Gear, Starter Idle
28254-74070	Gear, Starter Idle 1993-11 → —	7AFE,3SG# AT200,ST20#	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
