Toyota Celica

1993-11 → 1999-08 · chassis AT200,ST20# · catalogue 252570 · Europe

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

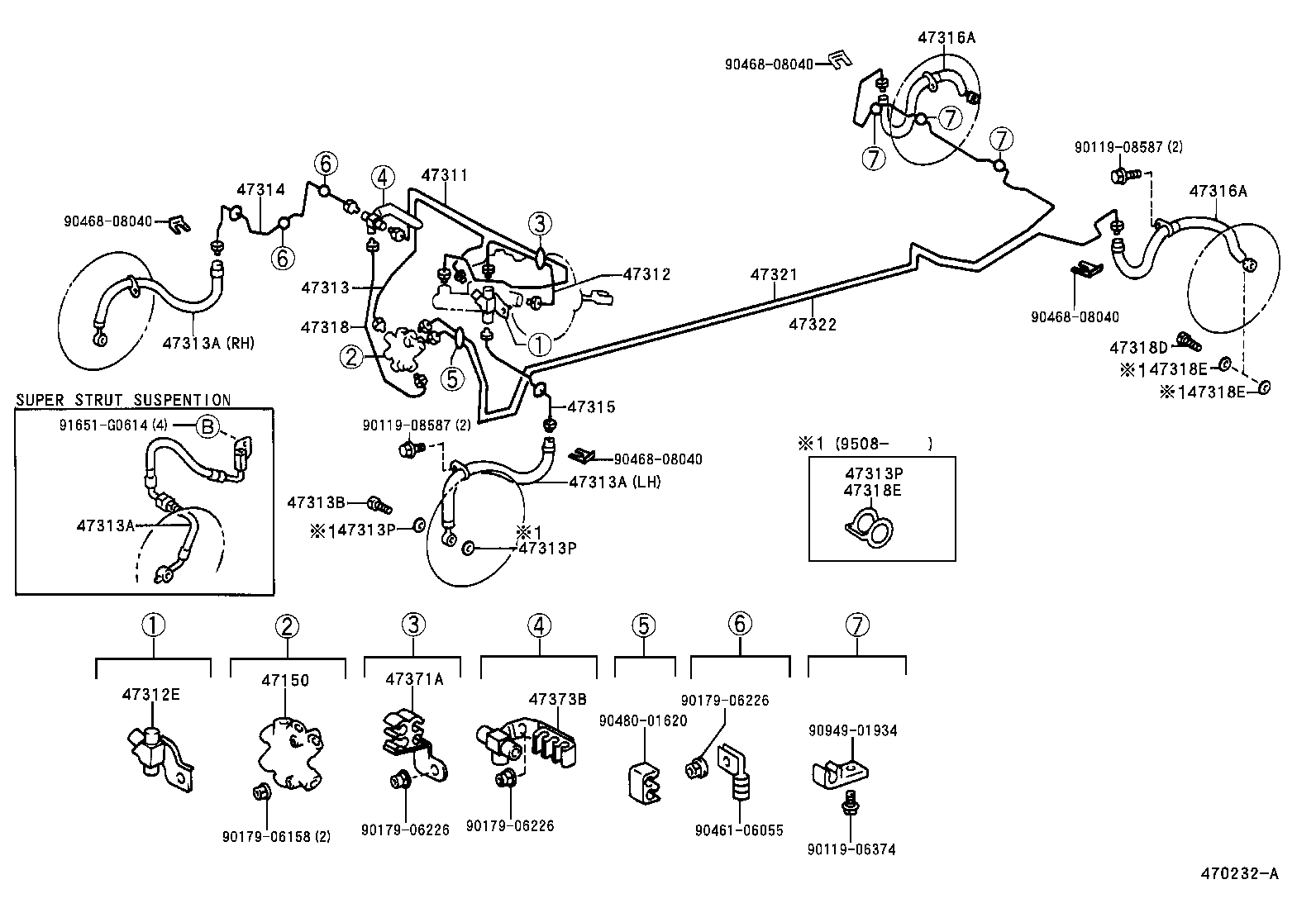

Exploded illustration 470232A 47316A — HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) (4 parts) 9046808040 — not listed in this catalogue 9011908587 — not listed in this catalogue 47311 — TUBE, FRONT BRAKE, NO.1 (9 parts) 47314 — TUBE, FRONT BRAKE, NO.4 (9 parts) 47316A — HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) (4 parts) 9046808040 — not listed in this catalogue 47312 — TUBE, FRONT BRAKE, NO.2 (6 parts) 47321 — TUBE, REAR BRAKE, NO.1 (2 parts) 47313 — TUBE, FRONT BRAKE, NO.3 (9 parts) 9046808040 — not listed in this catalogue 47322 — TUBE, REAR BRAKE, NO.2 (2 parts) 47318 — TUBE, FRONT BRAKE, NO.8 (7 parts) 47313A — HOSE, FLEXIBLE, NO.1(FOR FRONT) (18 parts) 47318D — BOLT, UNION(FOR REAR FLEXIBLE HOSE) (3 parts) 47318E — GASKET(FOR REAR FLEXIBLE HOSE) (4 parts) 47318E — GASKET(FOR REAR FLEXIBLE HOSE) (4 parts) 47315 — TUBE, FRONT BRAKE, NO.5 (4 parts) 91651G0614 — not listed in this catalogue 9011908587 — not listed in this catalogue 9046808040 — not listed in this catalogue 47313P — GASKET(FOR FRONT FLEXIBLE HOSE) (4 parts) 47313A — HOSE, FLEXIBLE, NO.1(FOR FRONT) (18 parts) 47318E — GASKET(FOR REAR FLEXIBLE HOSE) (4 parts) 47313B — BOLT, UNION(FOR FRONT FLEXIBLE HOSE) (3 parts) 47313A — HOSE, FLEXIBLE, NO.1(FOR FRONT) (18 parts) 47313P — GASKET(FOR FRONT FLEXIBLE HOSE) (4 parts) 47313P — GASKET(FOR FRONT FLEXIBLE HOSE) (4 parts) 47371A — CLAMP, BRAKE TUBE, NO.1 (8 parts) 47150 — VALVE ASSY, PROPORTIONING (10 parts) 47312E — WAY, NO.2(FOR FRONT BRAKE TUBE) (4 parts) 47373B — CLAMP, BRAKE TUBE, NO.3 (7 parts) 9017906226 — not listed in this catalogue 9048001620 — not listed in this catalogue 9094901934 — not listed in this catalogue 9017906226 — not listed in this catalogue 9017906226 — not listed in this catalogue 9046106055 — not listed in this catalogue 9017906158 — not listed in this catalogue 9011906374 — not listed in this catalogue
470232A · 25 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
113 parts on this figure
Part number Description Fitment Price
47150 — Valve Assy, Proportioning
47150-16040 Valve Assy, Proportioning
1995-08 → 1995-12 ended
ST202 RHD CVT —
47150-16040 Valve Assy, Proportioning
1994-12 → 1995-08 ended
ST20# RHD —
47150-20160 Valve Assy, Proportioning
1995-05 → 1995-08 ended
AT200 RHD —
47150-20250 note Valve Assy, Proportioning
1994-12 → —
ST20# —
47150-20300 Valve Assy, Proportioning
1993-11 → 1994-07 ended
AT200 —
47150-20320 Valve Assy, Proportioning
1993-11 → 1994-07 ended
ST20# LHD —
47150-20340 Valve Assy, Proportioning
1993-11 → 1994-12 ended
ST20# RHD —
47150-20390 note Valve Assy, Proportioning
1993-11 → 1994-12 ended
ST20# —
47150-20410 note Valve Assy, Proportioning
1993-11 → 1994-12 ended
AT200 —
47150-32100 note Valve Assy, Proportioning
1994-12 → —
AT200 —
47311 — Tube, Front Brake, NO.1
47311-2B080 Tube, Front Brake, NO.1
1993-11 → 1995-08 ended
AT200,ST20# RHD —
47311-2B080 Tube, Front Brake, NO.1
1995-08 → 1995-12 ended
ST202 RHD CVT —
47311-2B090 Tube, Front Brake, NO.1
1993-11 → 1995-08 ended
AT200,ST20# LHD —
47311-2B090 Tube, Front Brake, NO.1
1995-08 → 1995-12 ended
AT200 LHD;ST202 LHD CVT —
47311-2B090 Tube, Front Brake, NO.1
1995-12 → —
AT200 LHD —
47311-2B100 note Tube, Front Brake, NO.1
1993-11 → 1996-06 ended
AT200,ST20# RHD —
47311-2B110 note Tube, Front Brake, NO.1
1993-11 → 1996-06 ended
AT200,ST20# LHD —
47311-2B140 note Tube, Front Brake, NO.1
1996-06 → —
AT200,ST202 RHD —
47311-2B170 note Tube, Front Brake, NO.1
1996-06 → —
AT200,ST202 LHD —
47312 — Tube, Front Brake, NO.2
47311-2B120 Tube, Front Brake, NO.2
1993-11 → 1995-08 ended
AT200,ST20# LHD —
47311-2B120 Tube, Front Brake, NO.2
1995-08 → 1995-12 ended
AT200 LHD;ST202 LHD CVT —
47311-2B120 Tube, Front Brake, NO.2
1995-12 → —
AT200 LHD —
47312-20320 Tube, Front Brake, NO.2
1995-03 → 1995-08 ended
AT200,ST20# RHD —
47312-20320 Tube, Front Brake, NO.2
1995-08 → 1995-12 ended
ST202 RHD CVT —
47312-20340 Tube, Front Brake, NO.2
1993-11 → 1995-03 ended
ST20# RHD —
47312E — Way, NO.2(FOR FRONT BRAKE TUBE)
90904-12015 note Way, NO.2(FOR FRONT BRAKE TUBE)
1993-11 → —
AT200,ST20# LHD —
90904-13009 Way, NO.2(FOR FRONT BRAKE TUBE)
1993-11 → 1995-08 ended
AT200,ST20# LHD —
90904-13009 Way, NO.2(FOR FRONT BRAKE TUBE)
1995-08 → 1995-12 ended
AT200 LHD;ST202 LHD CVT —
90904-13009 Way, NO.2(FOR FRONT BRAKE TUBE)
1995-12 → —
AT200 LHD —
47313 — Tube, Front Brake, NO.3
47313-20690 Tube, Front Brake, NO.3
1995-08 → 1995-12 ended
ST202 RHD CVT —
47313-20690 Tube, Front Brake, NO.3
1993-11 → 1995-08 ended
AT200,ST20# RHD —
47313-20700 Tube, Front Brake, NO.3
1995-08 → 1995-12 ended
AT200 LHD;ST202 LHD CVT —
47313-20700 Tube, Front Brake, NO.3
1995-12 → —
AT200 LHD —
47313-20700 Tube, Front Brake, NO.3
1993-11 → 1995-08 ended
AT200,ST20# LHD —
47313-20710 note Tube, Front Brake, NO.3
1993-11 → 1996-06 ended
AT200,ST20# RHD —
47313-20720 note Tube, Front Brake, NO.3
1993-11 → 1996-06 ended
AT200,ST20# LHD —
47313-20740 note Tube, Front Brake, NO.3
1996-06 → —
AT200,ST202 RHD —
47313-20770 note Tube, Front Brake, NO.3
1996-06 → —
AT200,ST202 LHD —
47313A — Hose, Flexible, NO.1(FOR FRONT)
90947-02761 note Hose, Flexible, NO.1(FOR FRONT)
1995-08 → 1995-12 ended
ST202 CVT —
90947-02761 note Hose, Flexible, NO.1(FOR FRONT)
1993-11 → 1995-08 ended
AT200,ST202 —
90947-02762 note Hose, Flexible, NO.1(FOR FRONT)
1995-08 → 1995-12 ended
ST202 CVT —
90947-02762 note Hose, Flexible, NO.1(FOR FRONT)
1993-11 → 1995-08 ended
AT200,ST202 —
90947-02763 note Hose, Flexible, NO.1(FOR FRONT)
1993-11 → 1993-12 ended
ST202 —
90947-02765 note Hose, Flexible, NO.1(FOR FRONT)
1994-02 → 1995-08 ended
ST205 —
90947-02766 note Hose, Flexible, NO.1(FOR FRONT)
1993-11 → 1993-12 ended
ST202 —
90947-02768 note Hose, Flexible, NO.1(FOR FRONT)
1994-02 → 1995-08 ended
ST205 —
90947-02789 note Hose, Flexible, NO.1(FOR FRONT)
1993-12 → 1995-08 ended
ST202 LB —
90947-02790 note Hose, Flexible, NO.1(FOR FRONT)
1993-12 → 1995-08 ended
ST202 LB —
90947-02845 note Hose, Flexible, NO.1(FOR FRONT)
1995-08 → 1996-06 ended
ST205 —
90947-02846 note Hose, Flexible, NO.1(FOR FRONT)
1995-08 → 1996-06 ended
ST205 —
90947-02847 note Hose, Flexible, NO.1(FOR FRONT)
1995-08 → 1995-12 ended
AT200,ST202 LB —
90947-02847 note Hose, Flexible, NO.1(FOR FRONT)
1995-12 → —
AT200,ST202 —
90947-02848 note Hose, Flexible, NO.1(FOR FRONT)
1995-08 → 1995-12 ended
AT200,ST202 LB —
90947-02848 note Hose, Flexible, NO.1(FOR FRONT)
1995-12 → —
AT200,ST202 —
90947-02849 note Hose, Flexible, NO.1(FOR FRONT)
1995-08 → —
ST202 LB —
90947-02850 note Hose, Flexible, NO.1(FOR FRONT)
1995-08 → —
ST202 LB —
47313B — Bolt, Union(FOR FRONT FLEXIBLE HOSE)
90401-10015 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
1993-11 → 1995-03 ended
AT200,ST202 —
90401-10042 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
1994-02 → 1995-03 ended
ST205 —
90401-10058 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
1995-03 → —
AT200,ST20# —
47313P — Gasket(FOR FRONT FLEXIBLE HOSE)
47389-30010 Gasket(FOR FRONT FLEXIBLE HOSE)
1995-08 → 1995-12 ended
ST202 CVT —
47389-30010 Gasket(FOR FRONT FLEXIBLE HOSE)
1993-11 → 1995-08 ended
AT200,ST20# —
47389-50020 Gasket(FOR FRONT FLEXIBLE HOSE)
1995-08 → 1995-12 ended
AT200,ST20# LB —
47389-50020 Gasket(FOR FRONT FLEXIBLE HOSE)
1995-12 → —
AT200,ST20# —
47314 — Tube, Front Brake, NO.4
47314-20580 Tube, Front Brake, NO.4
1993-11 → 1995-08 ended
AT200,ST20# RHD —
47314-20580 Tube, Front Brake, NO.4
1995-08 → 1995-12 ended
ST202 RHD CVT —
47314-20590 Tube, Front Brake, NO.4
1993-11 → 1995-08 ended
AT200,ST20# LHD —
47314-20590 Tube, Front Brake, NO.4
1995-08 → 1995-12 ended
AT200 LHD;ST202 LHD CVT —
47314-20590 Tube, Front Brake, NO.4
1995-12 → —
AT200 LHD —
47314-20600 note Tube, Front Brake, NO.4
1993-11 → 1996-06 ended
AT200,ST20# RHD —
47314-20610 note Tube, Front Brake, NO.4
1993-11 → 1996-06 ended
AT200,ST20# LHD —
47314-20630 note Tube, Front Brake, NO.4
1996-06 → —
AT200,ST202 RHD —
47314-20650 note Tube, Front Brake, NO.4
1996-06 → —
AT200,ST202 LHD —
47315 — Tube, Front Brake, NO.5
47315-20630 Tube, Front Brake, NO.5
1993-11 → 1995-08 ended
AT200,ST20# RHD —
47315-20630 Tube, Front Brake, NO.5
1995-08 → 1995-12 ended
ST202 RHD CVT —
47315-20640 Tube, Front Brake, NO.5
1993-11 → —
AT200,ST20# LHD —
47315-20650 note Tube, Front Brake, NO.5
1993-11 → —
AT200,ST20# RHD —
47316A — Hose, Flexible(FOR REAR BRAKE TUBE)
90947-02769 Hose, Flexible(FOR REAR BRAKE TUBE)
1993-11 → 1995-08 ended
AT200,ST202 —
90947-02769 Hose, Flexible(FOR REAR BRAKE TUBE)
1995-08 → 1995-12 ended
ST202 CVT —
90947-02852 Hose, Flexible(FOR REAR BRAKE TUBE)
1995-08 → 1995-12 ended
AT200,ST202 LB —
90947-02852 Hose, Flexible(FOR REAR BRAKE TUBE)
1995-12 → —
AT200,ST202 —
47318 — Tube, Front Brake, NO.8
47318-20330 Tube, Front Brake, NO.8
1993-11 → 1996-06 ended
AT200,ST20# RHD —
47318-20340 note Tube, Front Brake, NO.8
1993-11 → 1996-06 ended
AT200,ST20# LHD —
47318-20350 Tube, Front Brake, NO.8
1993-11 → 1995-08 ended
AT200,ST20# LHD —
47318-20350 Tube, Front Brake, NO.8
1995-08 → 1995-12 ended
AT200 LHD;ST202 LHD CVT —
47318-20350 Tube, Front Brake, NO.8
1995-12 → —
AT200 LHD —
47318-20370 Tube, Front Brake, NO.8
1996-06 → —
AT200,ST202 RHD —
47318-20390 note Tube, Front Brake, NO.8
1996-06 → —
AT200,ST202 LHD —
47318D — Bolt, Union(FOR REAR FLEXIBLE HOSE)
90401-10015 Bolt, Union(FOR REAR FLEXIBLE HOSE)
1993-11 → 1995-03 ended
AT200,ST202 —
90401-10042 Bolt, Union(FOR REAR FLEXIBLE HOSE)
1994-02 → 1995-03 ended
ST205 —
90401-10058 Bolt, Union(FOR REAR FLEXIBLE HOSE)
1995-03 → —
AT200,ST20# —
47318E — Gasket(FOR REAR FLEXIBLE HOSE)
47389-30010 Gasket(FOR REAR FLEXIBLE HOSE)
1993-11 → 1995-08 ended
AT200,ST20# —
47389-30010 Gasket(FOR REAR FLEXIBLE HOSE)
1995-08 → 1995-12 ended
ST202 CVT —
47389-50020 Gasket(FOR REAR FLEXIBLE HOSE)
1995-08 → 1995-12 ended
AT200,ST20# LB —
47389-50020 Gasket(FOR REAR FLEXIBLE HOSE)
1995-12 → —
AT200,ST20# —
47321 — Tube, Rear Brake, NO.1
47321-20380 Tube, Rear Brake, NO.1
1993-11 → —
AT200,ST202 —
47321-20390 Tube, Rear Brake, NO.1
1994-02 → 1996-06 ended
ST205 —
47322 — Tube, Rear Brake, NO.2
47322-20490 Tube, Rear Brake, NO.2
1993-11 → —
AT200,ST202 —
47322-20500 Tube, Rear Brake, NO.2
1994-02 → 1996-06 ended
ST205 —
47371A — Clamp, Brake Tube, NO.1
47371-20440 note Clamp, Brake Tube, NO.1
1993-11 → 1996-06 ended
AT200,ST20# —
47371-20480 Clamp, Brake Tube, NO.1
1996-06 → —
AT200,ST202 RHD —
47371-20490 Clamp, Brake Tube, NO.1
1993-11 → 1995-08 ended
AT200,ST20# RHD —
47371-20490 Clamp, Brake Tube, NO.1
1995-08 → 1995-12 ended
ST202 RHD CVT —
47371-20530 Clamp, Brake Tube, NO.1
1993-11 → 1995-08 ended
AT200,ST20# LHD —
47371-20530 Clamp, Brake Tube, NO.1
1996-06 → —
AT200,ST202 LHD —
47371-20530 Clamp, Brake Tube, NO.1
1995-12 → 1996-06 ended
AT200 LHD —
47371-20530 Clamp, Brake Tube, NO.1
1995-08 → 1995-12 ended
AT200 LHD;ST202 LHD CVT —
47373B — Clamp, Brake Tube, NO.3
47371-20480 note Clamp, Brake Tube, NO.3
1993-11 → 1996-06 ended
AT200,ST20# RHD —
47371-20520 Clamp, Brake Tube, NO.3
1993-11 → 1995-08 ended
AT200,ST20# RHD —
47371-20520 Clamp, Brake Tube, NO.3
1995-08 → 1995-12 ended
ST202 RHD CVT —
47371-20540 Clamp, Brake Tube, NO.3
1993-11 → 1995-08 ended
AT200,ST20# LHD —
47371-20540 Clamp, Brake Tube, NO.3
1995-08 → 1995-12 ended
AT200 LHD;ST202 LHD CVT —
47371-20540 Clamp, Brake Tube, NO.3
1995-12 → —
AT200 LHD —
47371-20570 Clamp, Brake Tube, NO.3
1996-06 → —
AT200,ST202 RHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
