Toyota Celica

1993-11 → 1999-08 · chassis AT200,ST20# · catalogue 252570 · Europe

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

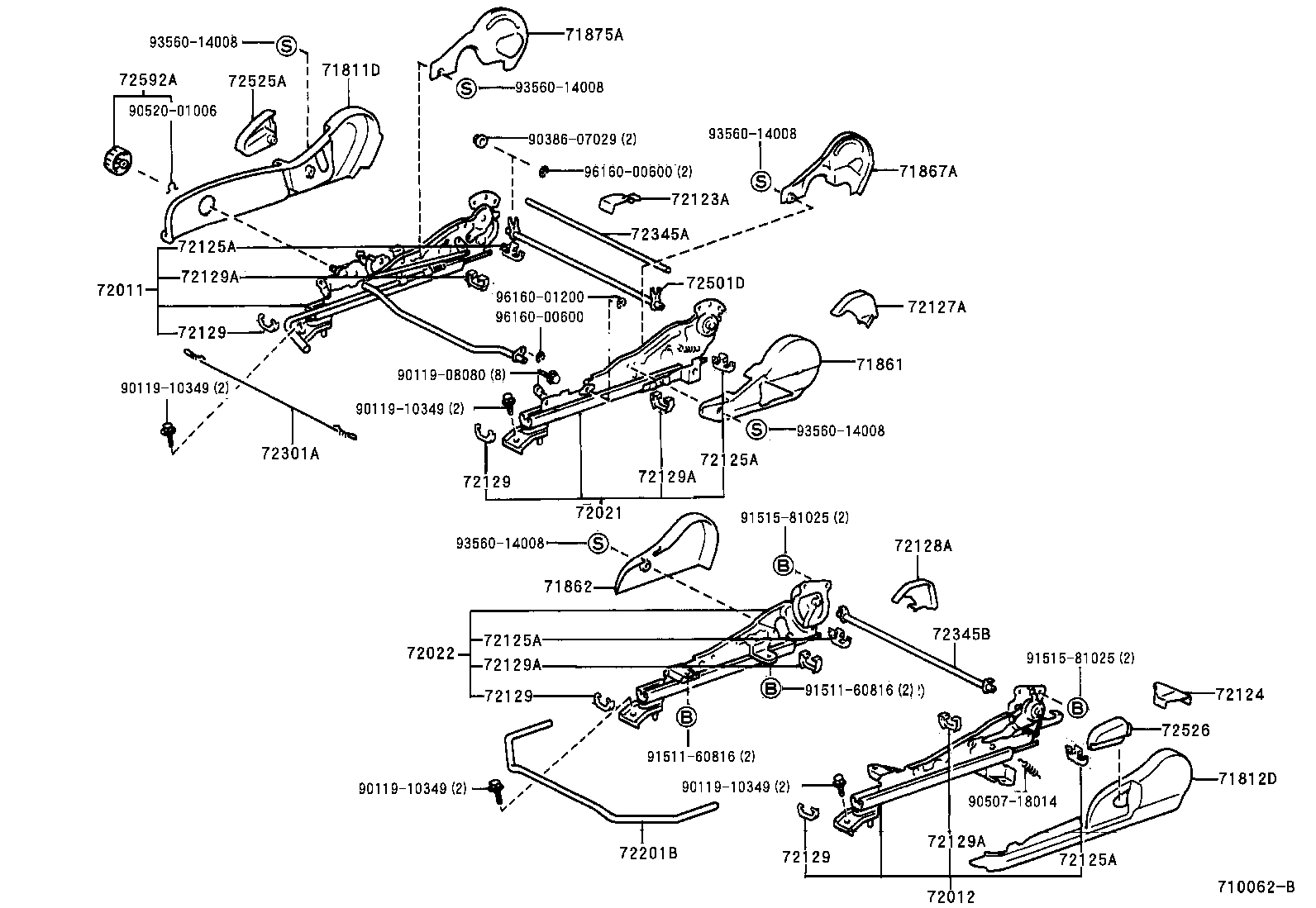

Exploded illustration 710062B 71875A — COVER, RECLINING ADJUSTER INSIDE, RH (3 parts) 9356014008 — not listed in this catalogue 71811D — SHIELD, FRONT SEAT CUSHION, RH (5 parts) 72592A — KNOB,RECLINING ADJUSTER, RH (1 parts) 72525A — HANDLE, RECLINING ADJUSTER RELEASE, RH (5 parts) 9356014008 — not listed in this catalogue 9052001274 — not listed in this catalogue 9052001006 — not listed in this catalogue 9356014008 — not listed in this catalogue 9038607029 — not listed in this catalogue 71867A — SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH (3 parts) 9616000600 — not listed in this catalogue 72123A — COVER, SEAT TRACK BRACKET, OUTER FRONT RH (2 parts) 72345A — PIPE, RECLINING CONNECTING (3 parts) 72125A — COVER, SEAT TRACK, UPPER REAR (2 parts) 72129A — PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 (4 parts) 72501D — PIPE SUB-ASSY, RECLINING CONNECTING, RH (3 parts) 72011 — ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH (7 parts) 9616001200 — not listed in this catalogue 72127A — COVER, SEAT TRACK BRACKET, INNER FRONT RH (2 parts) 9616000600 — not listed in this catalogue 72129 — PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 (2 parts) 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (5 parts) 9011908080 — not listed in this catalogue 9011910349 — not listed in this catalogue 9011910349 — not listed in this catalogue 9356014008 — not listed in this catalogue 72301A — WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH (3 parts) 72125A — COVER, SEAT TRACK, UPPER REAR (2 parts) 72129A — PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 (4 parts) 72129 — PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 (2 parts) 72021 — ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH (7 parts) 9151581025 — not listed in this catalogue 9356014008 — not listed in this catalogue 72128A — COVER, SEAT TRACK BRACKET, INNER FRONT LH (2 parts) 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (5 parts) 72345B — PIPE, RECLINING CONNECTING (3 parts) 72125A — COVER, SEAT TRACK, UPPER REAR (2 parts) 72022 — ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH (11 parts) 9151581025 — not listed in this catalogue 72129A — PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 (4 parts) 9151160816 — not listed in this catalogue 72124 — COVER, SEAT TRACK BRACKET, OUTER FRONT LH (2 parts) 72129 — PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 (2 parts) 72526 — HANDLE, RECLINING ADJUSTER RELEASE, LH (5 parts) 9151160816 — not listed in this catalogue 71812D — SHIELD, FRONT SEAT CUSHION, LH (7 parts) 9011910349 — not listed in this catalogue 9011910349 — not listed in this catalogue 9050718014 — not listed in this catalogue 72129A — PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 (4 parts) 72201B — HANDLE SUB-ASSY, SEAT TRACK LH (2 parts) 72129 — PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 (2 parts) 72125A — COVER, SEAT TRACK, UPPER REAR (2 parts) 72012 — ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH (11 parts)
710062B · 34 callouts, 21 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
105 parts on this figure
Part number Description Fitment Price
71811D — Shield, Front Seat Cushion, RH
71811-16240-C0 note Shield, Front Seat Cushion, RH
1995-08 → 1995-12 ended
AT200,ST20# LHD LB —
71811-16240-C0 note Shield, Front Seat Cushion, RH
1995-12 → —
AT200,ST20# LHD —
71811-20270-C0 note Shield, Front Seat Cushion, RH
1993-11 → —
AT200,ST20# RHD —
71811-20280-C0 note Shield, Front Seat Cushion, RH
1993-11 → 1995-08 ended
AT200,ST20# LHD —
71811-20280-C0 note Shield, Front Seat Cushion, RH
1995-08 → 1995-12 ended
ST202 LHD CVT —
71812D — Shield, Front Seat Cushion, LH
71812-16190-C0 note Shield, Front Seat Cushion, LH
1995-08 → —
AT200 LHD —
71812-16200-C0 note Shield, Front Seat Cushion, LH
1995-08 → 1995-12 ended
AT200,ST20# RHD LB —
71812-16200-C0 note Shield, Front Seat Cushion, LH
1995-12 → —
AT200,ST20# RHD —
71812-20240-C0 note Shield, Front Seat Cushion, LH
1993-11 → —
AT200,ST20# LHD —
71812-20250-C0 note Shield, Front Seat Cushion, LH
1993-11 → 1995-08 ended
AT200 LHD —
71812-20260-C0 note Shield, Front Seat Cushion, LH
1993-11 → 1995-08 ended
AT200,ST20# RHD —
71812-20260-C0 note Shield, Front Seat Cushion, LH
1995-08 → 1995-12 ended
ST202 RHD CVT —
71861 — Shield, Front Seat Cushion, Inner RH
71861-20120-C0 note Shield, Front Seat Cushion, Inner RH
1993-11 → 1995-08 ended
AT200,ST20# —
71861-20120-C0 note Shield, Front Seat Cushion, Inner RH
1995-08 → 1995-12 ended
ST202 LHD CVT;AT200,ST20# RHD —
71861-20120-C0 note Shield, Front Seat Cushion, Inner RH
1995-12 → —
AT200,ST20# RHD —
71861-20130-C0 note Shield, Front Seat Cushion, Inner RH
1995-08 → 1995-12 ended
AT200,ST20# LHD LB —
71861-20130-C0 note Shield, Front Seat Cushion, Inner RH
1995-12 → —
AT200,ST20# LHD —
71862 — Shield, Front Seat Cushion, Inner LH
71862-20120-C0 note Shield, Front Seat Cushion, Inner LH
1993-11 → 1995-08 ended
AT200,ST20# —
71862-20120-C0 note Shield, Front Seat Cushion, Inner LH
1995-12 → —
AT200,ST20# LHD —
71862-20120-C0 note Shield, Front Seat Cushion, Inner LH
1995-08 → 1995-12 ended
ST202 CVT;AT200,ST20# LHD LB —
71862-20130-C0 note Shield, Front Seat Cushion, Inner LH
1995-08 → 1995-12 ended
AT200;ST20# RHD LB —
71862-20130-C0 note Shield, Front Seat Cushion, Inner LH
1995-12 → —
AT200;ST20# RHD —
71867A — Shield, Front Seat Cushion, Inner NO.1 RH
71867-20030-C0 note Shield, Front Seat Cushion, Inner NO.1 RH
1993-11 → 1995-08 ended
AT200,ST20# —
71867-20030-C0 note Shield, Front Seat Cushion, Inner NO.1 RH
1995-08 → 1995-12 ended
ST202 LHD CVT;AT200,ST20# RHD —
71867-20030-C0 note Shield, Front Seat Cushion, Inner NO.1 RH
1995-12 → —
AT200,ST20# RHD —
71875A — Cover, Reclining Adjuster Inside, RH
71875-20040-C0 note Cover, Reclining Adjuster Inside, RH
1993-11 → —
AT200,ST20# RHD —
71875-20050-C0 note Cover, Reclining Adjuster Inside, RH
1993-11 → 1995-08 ended
AT200,ST20# LHD —
71875-20050-C0 note Cover, Reclining Adjuster Inside, RH
1995-08 → 1995-12 ended
ST202 LHD CVT —
72011 — Adjuster Sub-assy, Front Seat, Outer RH
72011-20190 Adjuster Sub-assy, Front Seat, Outer RH
1993-11 → —
AT200,ST20# RHD —
72011-20200 Adjuster Sub-assy, Front Seat, Outer RH
1993-11 → 1995-08 ended
AT200,ST20# LHD —
72011-20200 Adjuster Sub-assy, Front Seat, Outer RH
1995-08 → 1995-12 ended
ST202 LHD CVT —
72011-20230 Adjuster Sub-assy, Front Seat, Outer RH
1995-12 → 1997-12 ended
AT200,ST20# LHD —
72011-20230 Adjuster Sub-assy, Front Seat, Outer RH
1995-08 → 1995-12 ended
AT200,ST20# LHD LB —
72011-20232 Adjuster Sub-assy, Front Seat, Outer RH
1997-12 → 1998-11 ended
AT200,ST202 LHD —
72011-20233 Adjuster Sub-assy, Front Seat, Outer RH
1998-11 → —
AT200,ST202 LHD —
72012 — Adjuster Sub-assy, Front Seat, Outer LH
72012-20240 note Adjuster Sub-assy, Front Seat, Outer LH
1993-11 → —
AT200,ST20# LHD —
72012-20250 Adjuster Sub-assy, Front Seat, Outer LH
1993-11 → 1995-08 ended
AT200 LHD —
72012-20260 Adjuster Sub-assy, Front Seat, Outer LH
1993-11 → 1995-08 ended
AT200,ST20# RHD —
72012-20260 Adjuster Sub-assy, Front Seat, Outer LH
1995-08 → 1995-12 ended
ST202 RHD CVT —
72012-20280 Adjuster Sub-assy, Front Seat, Outer LH
1995-08 → 1997-12 ended
AT200 LHD —
72012-20282 Adjuster Sub-assy, Front Seat, Outer LH
1997-12 → 1998-11 ended
AT200 LHD —
72012-20283 Adjuster Sub-assy, Front Seat, Outer LH
1998-11 → —
AT200 LHD —
72012-20290 Adjuster Sub-assy, Front Seat, Outer LH
1995-12 → 1997-12 ended
AT200,ST20# RHD —
72012-20290 Adjuster Sub-assy, Front Seat, Outer LH
1995-08 → 1995-12 ended
AT200,ST20# RHD LB —
72012-20292 Adjuster Sub-assy, Front Seat, Outer LH
1997-12 → 1998-11 ended
AT200,ST202 RHD —
72012-20293 Adjuster Sub-assy, Front Seat, Outer LH
1998-11 → —
AT200,ST202 RHD —
72021 — Adjuster Sub-assy, Front Seat, Inner RH
72021-20160 Adjuster Sub-assy, Front Seat, Inner RH
1993-11 → —
AT200,ST20# RHD —
72021-20170 Adjuster Sub-assy, Front Seat, Inner RH
1993-11 → 1995-08 ended
AT200,ST20# LHD —
72021-20170 Adjuster Sub-assy, Front Seat, Inner RH
1995-08 → 1995-12 ended
ST202 LHD CVT —
72021-20200 Adjuster Sub-assy, Front Seat, Inner RH
1995-08 → 1995-12 ended
AT200,ST20# LHD LB —
72021-20200 Adjuster Sub-assy, Front Seat, Inner RH
1995-12 → 1997-12 ended
AT200,ST20# LHD —
72021-20201 Adjuster Sub-assy, Front Seat, Inner RH
1997-12 → 1998-11 ended
AT200,ST202 LHD —
72021-20202 Adjuster Sub-assy, Front Seat, Inner RH
1998-11 → —
AT200,ST202 LHD —
72022 — Adjuster Sub-assy, Front Seat, Inner LH
72022-20210 note Adjuster Sub-assy, Front Seat, Inner LH
1993-11 → —
AT200,ST20# LHD —
72022-20220 Adjuster Sub-assy, Front Seat, Inner LH
1993-11 → 1995-08 ended
AT200 LHD —
72022-20230 Adjuster Sub-assy, Front Seat, Inner LH
1993-11 → 1995-08 ended
AT200,ST20# RHD —
72022-20230 Adjuster Sub-assy, Front Seat, Inner LH
1995-08 → 1995-12 ended
ST202 RHD CVT —
72022-20250 Adjuster Sub-assy, Front Seat, Inner LH
1995-08 → 1997-12 ended
AT200 LHD —
72022-20251 Adjuster Sub-assy, Front Seat, Inner LH
1997-12 → 1998-11 ended
AT200 LHD —
72022-20252 Adjuster Sub-assy, Front Seat, Inner LH
1998-11 → —
AT200 LHD —
72022-20260 Adjuster Sub-assy, Front Seat, Inner LH
1995-08 → 1995-12 ended
AT200,ST20# RHD LB —
72022-20260 Adjuster Sub-assy, Front Seat, Inner LH
1995-12 → 1997-12 ended
AT200,ST20# RHD —
72022-20261 Adjuster Sub-assy, Front Seat, Inner LH
1997-12 → 1998-11 ended
AT200,ST202 RHD —
72022-20262 Adjuster Sub-assy, Front Seat, Inner LH
1998-11 → —
AT200,ST202 RHD —
72123A — Cover, Seat Track Bracket, Outer Front RH
72123-20150 Cover, Seat Track Bracket, Outer Front RH
1993-12 → —
AT200,ST20# —
72123-20150-C0 note Cover, Seat Track Bracket, Outer Front RH
1993-11 → 1993-12 ended
AT200,ST202 —
72124 — Cover, Seat Track Bracket, Outer Front LH
72124-20070 Cover, Seat Track Bracket, Outer Front LH
1993-12 → —
AT200,ST20# —
72124-20070-C0 note Cover, Seat Track Bracket, Outer Front LH
1993-11 → 1993-12 ended
AT200,ST202 —
72125A — Cover, Seat Track, Upper Rear
72125-10010 Cover, Seat Track, Upper Rear
1997-12 → —
AT200,ST202 —
72125-20020 Cover, Seat Track, Upper Rear
1997-04 → 1997-12 ended
AT200,ST202 —
72127A — Cover, Seat Track Bracket, Inner Front RH
72157-20040 Cover, Seat Track Bracket, Inner Front RH
1993-12 → —
AT200,ST20# —
72157-20040-C0 note Cover, Seat Track Bracket, Inner Front RH
1993-11 → 1993-12 ended
AT200,ST202 —
72128A — Cover, Seat Track Bracket, Inner Front LH
72158-20030 Cover, Seat Track Bracket, Inner Front LH
1993-12 → —
AT200,ST20# —
72158-20030-C0 note Cover, Seat Track Bracket, Inner Front LH
1993-11 → 1993-12 ended
AT200,ST202 —
72129 — Protector, Seat Track Lower Rail, NO.1
72129-20010 note Protector, Seat Track Lower Rail, NO.1
1997-05 → —
AT200,ST202 LHD —
72129-20020 Protector, Seat Track Lower Rail, NO.1
1997-04 → —
AT200,ST202 —
72129A — Protector, Seat Track Lower Rail, NO.2
72129-12010 note Protector, Seat Track Lower Rail, NO.2
1997-12 → 1999-08 ended
AT200,ST202 —
72129-20030 note Protector, Seat Track Lower Rail, NO.2
1993-11 → 1998-11 ended
AT200,ST202 —
72129-20031 note Protector, Seat Track Lower Rail, NO.2
1998-11 → 1999-08 ended
AT200,ST202 —
72129-20040 note Protector, Seat Track Lower Rail, NO.2
1993-11 → 1997-12 ended
AT200,ST202 —
72201B — Handle Sub-assy, Seat Track LH
72201-20100 Handle Sub-assy, Seat Track LH
1995-08 → 1995-12 ended
AT200;ST20# RHD LB —
72201-20100 Handle Sub-assy, Seat Track LH
1995-12 → —
AT200;ST20# RHD —
72301A — Wire Sub-assy, Seat Track Equalizing, RH
72301-20280 Wire Sub-assy, Seat Track Equalizing, RH
1993-11 → 1995-08 ended
AT200,ST20# —
72301-20280 Wire Sub-assy, Seat Track Equalizing, RH
1995-08 → 1995-12 ended
ST202 LHD CVT;AT200,ST20# RHD —
72301-20280 Wire Sub-assy, Seat Track Equalizing, RH
1995-12 → —
AT200,ST20# RHD —
72345A — Pipe, Reclining Connecting
72345-20030 Pipe, Reclining Connecting
1993-11 → —
AT200,ST20# RHD —
72345-20040 Pipe, Reclining Connecting
1995-08 → 1995-12 ended
AT200,ST20# LHD LB —
72345-20040 Pipe, Reclining Connecting
1995-12 → —
AT200,ST20# LHD —
72345B — Pipe, Reclining Connecting
72345-20030 note Pipe, Reclining Connecting
1993-11 → —
AT200,ST20# LHD —
72345-20040 Pipe, Reclining Connecting
1995-08 → 1995-12 ended
AT200;ST20# RHD LB —
72345-20040 Pipe, Reclining Connecting
1995-12 → —
AT200;ST20# RHD —
72501D — Pipe Sub-assy, Reclining Connecting, RH
72501-20050 Pipe Sub-assy, Reclining Connecting, RH
1995-08 → 1995-12 ended
ST202 LHD CVT;AT200,ST20# RHD —
72501-20050 Pipe Sub-assy, Reclining Connecting, RH
1995-12 → —
AT200,ST20# RHD —
72501-20050 Pipe Sub-assy, Reclining Connecting, RH
1993-11 → 1995-08 ended
AT200,ST20# —
72525A — Handle, Reclining Adjuster Release, RH
72525-16010-C0 note Handle, Reclining Adjuster Release, RH
1995-08 → 1995-12 ended
AT200,ST20# LHD LB —
72525-16010-C0 note Handle, Reclining Adjuster Release, RH
1995-12 → —
AT200,ST20# LHD —
72525-20070-C0 note Handle, Reclining Adjuster Release, RH
1993-11 → 1995-08 ended
AT200,ST20# —
72525-20070-C0 note Handle, Reclining Adjuster Release, RH
1995-08 → 1995-12 ended
ST202 LHD CVT;AT200,ST20# RHD —
72525-20070-C0 note Handle, Reclining Adjuster Release, RH
1995-12 → —
AT200,ST20# RHD —
72526 — Handle, Reclining Adjuster Release, LH
72526-16010-C0 note Handle, Reclining Adjuster Release, LH
1995-08 → 1995-12 ended
AT200;ST20# RHD LB —
72526-16010-C0 note Handle, Reclining Adjuster Release, LH
1995-12 → —
AT200;ST20# RHD —
72526-20110-C0 note Handle, Reclining Adjuster Release, LH
1993-11 → 1995-08 ended
AT200,ST20# —
72526-20110-C0 note Handle, Reclining Adjuster Release, LH
1995-08 → 1995-12 ended
ST202 CVT;AT200,ST20# LHD LB —
72526-20110-C0 note Handle, Reclining Adjuster Release, LH
1995-12 → —
AT200,ST20# LHD —
72592A — Knob,Reclining Adjuster, RH
72592-20040-C0 note Knob,Reclining Adjuster, RH
1993-11 → —
AT200,ST20# RHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
