Toyota Celica

1993-11 → 1999-08 · chassis AT200,ST20# · catalogue 252570 · Europe

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

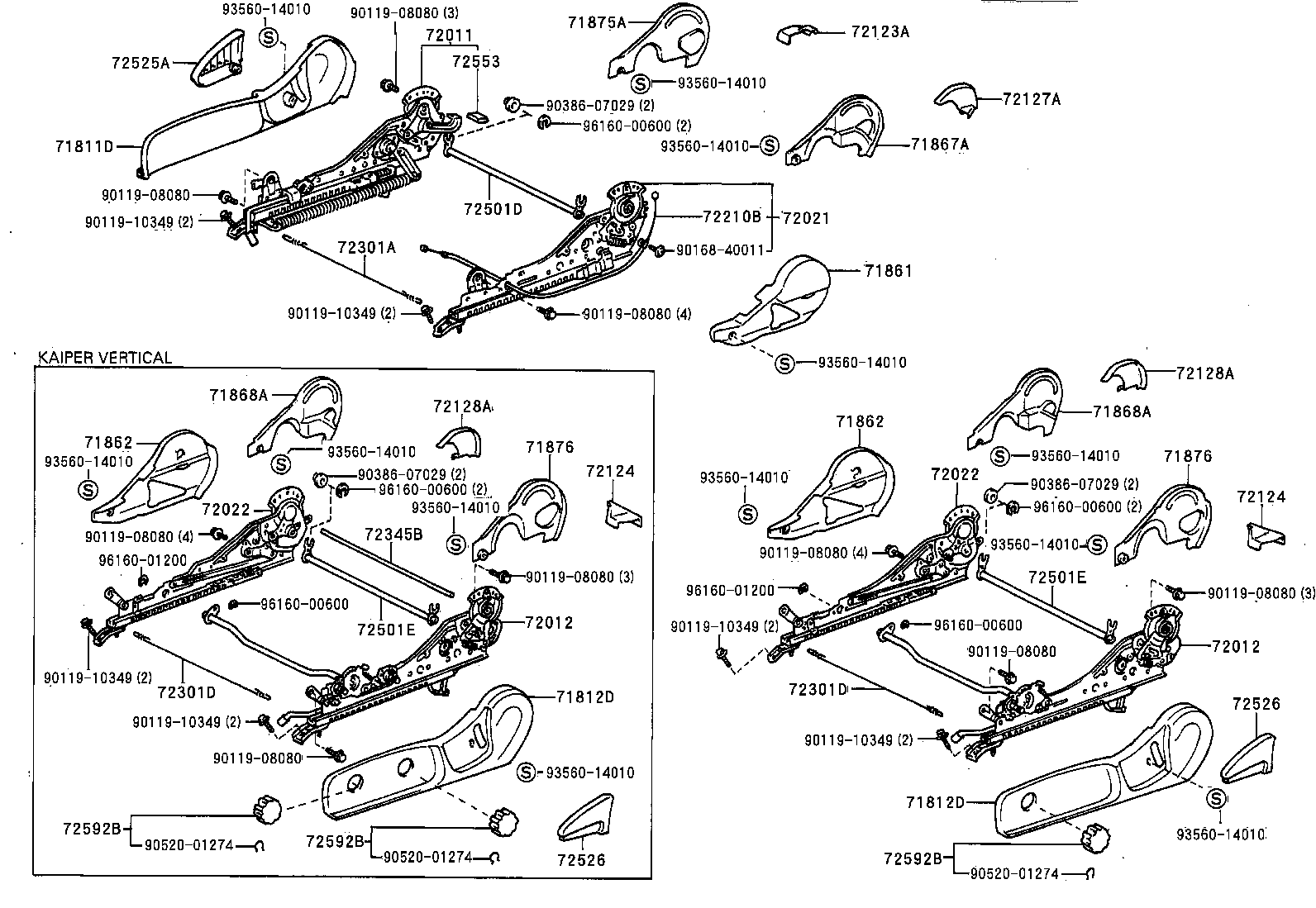

Exploded illustration 710074 9356014010 — not listed in this catalogue 9011908080 — not listed in this catalogue 71875A — COVER, RECLINING ADJUSTER INSIDE, RH (3 parts) 72123A — COVER, SEAT TRACK BRACKET, OUTER FRONT RH (2 parts) 72011 — ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH (7 parts) 72553 — COVER, RECLINING PEDAL (2 parts) 72525A — HANDLE, RECLINING ADJUSTER RELEASE, RH (5 parts) 9356014010 — not listed in this catalogue 72127A — COVER, SEAT TRACK BRACKET, INNER FRONT RH (2 parts) 9038607029 — not listed in this catalogue 9616000600 — not listed in this catalogue 71867A — SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH (3 parts) 71811D — SHIELD, FRONT SEAT CUSHION, RH (5 parts) 9356014010 — not listed in this catalogue 9011908080 — not listed in this catalogue 72501D — PIPE SUB-ASSY, RECLINING CONNECTING, RH (3 parts) 72210B — CABLE ASSY, SEAT TRACK CONTROL, RH (2 parts) 72021 — ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH (7 parts) 9011910349 — not listed in this catalogue 72301A — WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH (3 parts) 9016840011 — not listed in this catalogue 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (5 parts) 9011910349 — not listed in this catalogue 9011908080 — not listed in this catalogue 9356014010 — not listed in this catalogue 72128A — COVER, SEAT TRACK BRACKET, INNER FRONT LH (2 parts) 71868A — SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH (3 parts) 72128A — COVER, SEAT TRACK BRACKET, INNER FRONT LH (2 parts) 71868A — SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH (3 parts) 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (5 parts) 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (5 parts) 71876 — COVER, RECLINING ADJUSTER INSIDE, LH (3 parts) 9356014010 — not listed in this catalogue 9356014010 — not listed in this catalogue 71876 — COVER, RECLINING ADJUSTER INSIDE, LH (3 parts) 9356014010 — not listed in this catalogue 72124 — COVER, SEAT TRACK BRACKET, OUTER FRONT LH (2 parts) 72022 — ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH (11 parts) 9038607029 — not listed in this catalogue 9356014010 — not listed in this catalogue 9038607029 — not listed in this catalogue 9616000600 — not listed in this catalogue 72124 — COVER, SEAT TRACK BRACKET, OUTER FRONT LH (2 parts) 9616000600 — not listed in this catalogue 9356014010 — not listed in this catalogue 72022 — ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH (11 parts) 72345B — PIPE, RECLINING CONNECTING (3 parts) 9011908080 — not listed in this catalogue 9356014010 — not listed in this catalogue 9011908080 — not listed in this catalogue 9616001200 — not listed in this catalogue 9011908080 — not listed in this catalogue 72501E — PIPE SUB-ASSY, RECLINING CONNECTING, LH (3 parts) 9616001200 — not listed in this catalogue 9011908080 — not listed in this catalogue 9616000600 — not listed in this catalogue 72012 — ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH (11 parts) 9616000600 — not listed in this catalogue 9011910349 — not listed in this catalogue 72501E — PIPE SUB-ASSY, RECLINING CONNECTING, LH (3 parts) 72012 — ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH (11 parts) 9011908080 — not listed in this catalogue 9011910349 — not listed in this catalogue 72301D — WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH (3 parts) 72301D — WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH (3 parts) 71812D — SHIELD, FRONT SEAT CUSHION, LH (7 parts) 72526 — HANDLE, RECLINING ADJUSTER RELEASE, LH (5 parts) 9011910349 — not listed in this catalogue 9011910349 — not listed in this catalogue 9011908080 — not listed in this catalogue 9356014010 — not listed in this catalogue 71812D — SHIELD, FRONT SEAT CUSHION, LH (7 parts) 72592B — KNOB,RECLINING ADJUSTER, LH (2 parts) 9356014010 — not listed in this catalogue 72592B — KNOB,RECLINING ADJUSTER, LH (2 parts) 9052001274 — not listed in this catalogue 9052001274 — not listed in this catalogue 72592B — KNOB,RECLINING ADJUSTER, LH (2 parts) 72526 — HANDLE, RECLINING ADJUSTER RELEASE, LH (5 parts) 9052001274 — not listed in this catalogue
710074 · 39 callouts, 41 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
109 parts on this figure
Part number Description Fitment Price
71811D — Shield, Front Seat Cushion, RH
71811-16240-C0 note Shield, Front Seat Cushion, RH
1995-08 → 1995-12 ended
AT200,ST20# LHD LB —
71811-16240-C0 note Shield, Front Seat Cushion, RH
1995-12 → —
AT200,ST20# LHD —
71811-20270-C0 note Shield, Front Seat Cushion, RH
1993-11 → —
AT200,ST20# RHD —
71811-20280-C0 note Shield, Front Seat Cushion, RH
1995-08 → 1995-12 ended
ST202 LHD CVT —
71811-20280-C0 note Shield, Front Seat Cushion, RH
1993-11 → 1995-08 ended
AT200,ST20# LHD —
71812D — Shield, Front Seat Cushion, LH
71812-16190-C0 note Shield, Front Seat Cushion, LH
1995-08 → —
AT200 LHD —
71812-16200-C0 note Shield, Front Seat Cushion, LH
1995-08 → 1995-12 ended
AT200,ST20# RHD LB —
71812-16200-C0 note Shield, Front Seat Cushion, LH
1995-12 → —
AT200,ST20# RHD —
71812-20240-C0 note Shield, Front Seat Cushion, LH
1993-11 → —
AT200,ST20# LHD —
71812-20250-C0 note Shield, Front Seat Cushion, LH
1993-11 → 1995-08 ended
AT200 LHD —
71812-20260-C0 note Shield, Front Seat Cushion, LH
1993-11 → 1995-08 ended
AT200,ST20# RHD —
71812-20260-C0 note Shield, Front Seat Cushion, LH
1995-08 → 1995-12 ended
ST202 RHD CVT —
71861 — Shield, Front Seat Cushion, Inner RH
71861-20120-C0 note Shield, Front Seat Cushion, Inner RH
1995-12 → —
AT200,ST20# RHD —
71861-20120-C0 note Shield, Front Seat Cushion, Inner RH
1993-11 → 1995-08 ended
AT200,ST20# —
71861-20120-C0 note Shield, Front Seat Cushion, Inner RH
1995-08 → 1995-12 ended
ST202 LHD CVT;AT200,ST20# RHD —
71861-20130-C0 note Shield, Front Seat Cushion, Inner RH
1995-08 → 1995-12 ended
AT200,ST20# LHD LB —
71861-20130-C0 note Shield, Front Seat Cushion, Inner RH
1995-12 → —
AT200,ST20# LHD —
71862 — Shield, Front Seat Cushion, Inner LH
71862-20120-C0 note Shield, Front Seat Cushion, Inner LH
1993-11 → 1995-08 ended
AT200,ST20# —
71862-20120-C0 note Shield, Front Seat Cushion, Inner LH
1995-08 → 1995-12 ended
ST202 CVT;AT200,ST20# LHD LB —
71862-20120-C0 note Shield, Front Seat Cushion, Inner LH
1995-12 → —
AT200,ST20# LHD —
71862-20130-C0 note Shield, Front Seat Cushion, Inner LH
1995-12 → —
AT200;ST20# RHD —
71862-20130-C0 note Shield, Front Seat Cushion, Inner LH
1995-08 → 1995-12 ended
AT200;ST20# RHD LB —
71867A — Shield, Front Seat Cushion, Inner NO.1 RH
71867-20030-C0 note Shield, Front Seat Cushion, Inner NO.1 RH
1993-11 → 1995-08 ended
AT200,ST20# —
71867-20030-C0 note Shield, Front Seat Cushion, Inner NO.1 RH
1995-08 → 1995-12 ended
ST202 LHD CVT;AT200,ST20# RHD —
71867-20030-C0 note Shield, Front Seat Cushion, Inner NO.1 RH
1995-12 → —
AT200,ST20# RHD —
71868A — Shield, Front Seat Cushion, Inner NO.1 LH
71868-20030-C0 note Shield, Front Seat Cushion, Inner NO.1 LH
1993-11 → 1995-08 ended
AT200,ST20# —
71868-20030-C0 note Shield, Front Seat Cushion, Inner NO.1 LH
1995-08 → 1995-12 ended
ST202 CVT;AT200,ST20# LHD LB —
71868-20030-C0 note Shield, Front Seat Cushion, Inner NO.1 LH
1995-12 → —
AT200,ST20# LHD —
71875A — Cover, Reclining Adjuster Inside, RH
71875-20040-C0 note Cover, Reclining Adjuster Inside, RH
1993-11 → —
AT200,ST20# RHD —
71875-20050-C0 note Cover, Reclining Adjuster Inside, RH
1993-11 → 1995-08 ended
AT200,ST20# LHD —
71875-20050-C0 note Cover, Reclining Adjuster Inside, RH
1995-08 → 1995-12 ended
ST202 LHD CVT —
71876 — Cover, Reclining Adjuster Inside, LH
71876-20040-C0 note Cover, Reclining Adjuster Inside, LH
1993-11 → —
AT200,ST20# LHD —
71876-20050-C0 note Cover, Reclining Adjuster Inside, LH
1993-11 → 1995-08 ended
AT200,ST20# RHD —
71876-20050-C0 note Cover, Reclining Adjuster Inside, LH
1995-08 → 1995-12 ended
ST202 RHD CVT —
72011 — Adjuster Sub-assy, Front Seat, Outer RH
72011-20190 Adjuster Sub-assy, Front Seat, Outer RH
1993-11 → —
AT200,ST20# RHD —
72011-20200 Adjuster Sub-assy, Front Seat, Outer RH
1993-11 → 1995-08 ended
AT200,ST20# LHD —
72011-20200 Adjuster Sub-assy, Front Seat, Outer RH
1995-08 → 1995-12 ended
ST202 LHD CVT —
72011-20230 Adjuster Sub-assy, Front Seat, Outer RH
1995-08 → 1995-12 ended
AT200,ST20# LHD LB —
72011-20230 Adjuster Sub-assy, Front Seat, Outer RH
1995-12 → 1997-12 ended
AT200,ST20# LHD —
72011-20232 Adjuster Sub-assy, Front Seat, Outer RH
1997-12 → 1998-11 ended
AT200,ST202 LHD —
72011-20233 Adjuster Sub-assy, Front Seat, Outer RH
1998-11 → —
AT200,ST202 LHD —
72012 — Adjuster Sub-assy, Front Seat, Outer LH
72012-20240 note Adjuster Sub-assy, Front Seat, Outer LH
1993-11 → —
AT200,ST20# LHD —
72012-20250 Adjuster Sub-assy, Front Seat, Outer LH
1993-11 → 1995-08 ended
AT200 LHD —
72012-20260 Adjuster Sub-assy, Front Seat, Outer LH
1995-08 → 1995-12 ended
ST202 RHD CVT —
72012-20260 Adjuster Sub-assy, Front Seat, Outer LH
1993-11 → 1995-08 ended
AT200,ST20# RHD —
72012-20280 Adjuster Sub-assy, Front Seat, Outer LH
1995-08 → 1997-12 ended
AT200 LHD —
72012-20282 Adjuster Sub-assy, Front Seat, Outer LH
1997-12 → 1998-11 ended
AT200 LHD —
72012-20283 Adjuster Sub-assy, Front Seat, Outer LH
1998-11 → —
AT200 LHD —
72012-20290 Adjuster Sub-assy, Front Seat, Outer LH
1995-08 → 1995-12 ended
AT200,ST20# RHD LB —
72012-20290 Adjuster Sub-assy, Front Seat, Outer LH
1995-12 → 1997-12 ended
AT200,ST20# RHD —
72012-20292 Adjuster Sub-assy, Front Seat, Outer LH
1997-12 → 1998-11 ended
AT200,ST202 RHD —
72012-20293 Adjuster Sub-assy, Front Seat, Outer LH
1998-11 → —
AT200,ST202 RHD —
72021 — Adjuster Sub-assy, Front Seat, Inner RH
72021-20160 Adjuster Sub-assy, Front Seat, Inner RH
1993-11 → —
AT200,ST20# RHD —
72021-20170 Adjuster Sub-assy, Front Seat, Inner RH
1993-11 → 1995-08 ended
AT200,ST20# LHD —
72021-20170 Adjuster Sub-assy, Front Seat, Inner RH
1995-08 → 1995-12 ended
ST202 LHD CVT —
72021-20200 Adjuster Sub-assy, Front Seat, Inner RH
1995-08 → 1995-12 ended
AT200,ST20# LHD LB —
72021-20200 Adjuster Sub-assy, Front Seat, Inner RH
1995-12 → 1997-12 ended
AT200,ST20# LHD —
72021-20201 Adjuster Sub-assy, Front Seat, Inner RH
1997-12 → 1998-11 ended
AT200,ST202 LHD —
72021-20202 Adjuster Sub-assy, Front Seat, Inner RH
1998-11 → —
AT200,ST202 LHD —
72022 — Adjuster Sub-assy, Front Seat, Inner LH
72022-20210 note Adjuster Sub-assy, Front Seat, Inner LH
1993-11 → —
AT200,ST20# LHD —
72022-20220 Adjuster Sub-assy, Front Seat, Inner LH
1993-11 → 1995-08 ended
AT200 LHD —
72022-20230 Adjuster Sub-assy, Front Seat, Inner LH
1993-11 → 1995-08 ended
AT200,ST20# RHD —
72022-20230 Adjuster Sub-assy, Front Seat, Inner LH
1995-08 → 1995-12 ended
ST202 RHD CVT —
72022-20250 Adjuster Sub-assy, Front Seat, Inner LH
1995-08 → 1997-12 ended
AT200 LHD —
72022-20251 Adjuster Sub-assy, Front Seat, Inner LH
1997-12 → 1998-11 ended
AT200 LHD —
72022-20252 Adjuster Sub-assy, Front Seat, Inner LH
1998-11 → —
AT200 LHD —
72022-20260 Adjuster Sub-assy, Front Seat, Inner LH
1995-08 → 1995-12 ended
AT200,ST20# RHD LB —
72022-20260 Adjuster Sub-assy, Front Seat, Inner LH
1995-12 → 1997-12 ended
AT200,ST20# RHD —
72022-20261 Adjuster Sub-assy, Front Seat, Inner LH
1997-12 → 1998-11 ended
AT200,ST202 RHD —
72022-20262 Adjuster Sub-assy, Front Seat, Inner LH
1998-11 → —
AT200,ST202 RHD —
72123A — Cover, Seat Track Bracket, Outer Front RH
72123-20150 Cover, Seat Track Bracket, Outer Front RH
1993-12 → —
AT200,ST20# —
72123-20150-C0 note Cover, Seat Track Bracket, Outer Front RH
1993-11 → 1993-12 ended
AT200,ST202 —
72124 — Cover, Seat Track Bracket, Outer Front LH
72124-20070 Cover, Seat Track Bracket, Outer Front LH
1993-12 → —
AT200,ST20# —
72124-20070-C0 note Cover, Seat Track Bracket, Outer Front LH
1993-11 → 1993-12 ended
AT200,ST202 —
72127A — Cover, Seat Track Bracket, Inner Front RH
72157-20040 Cover, Seat Track Bracket, Inner Front RH
1993-12 → —
AT200,ST20# —
72157-20040-C0 note Cover, Seat Track Bracket, Inner Front RH
1993-11 → 1993-12 ended
AT200,ST202 —
72128A — Cover, Seat Track Bracket, Inner Front LH
72158-20030 Cover, Seat Track Bracket, Inner Front LH
1993-12 → —
AT200,ST20# —
72158-20030-C0 note Cover, Seat Track Bracket, Inner Front LH
1993-11 → 1993-12 ended
AT200,ST202 —
72210B — Cable Assy, Seat Track Control, RH
72210-20080 Cable Assy, Seat Track Control, RH
1993-11 → 1995-08 ended
AT200,ST20# LHD —
72210-20080 Cable Assy, Seat Track Control, RH
1995-08 → 1995-12 ended
ST202 LHD CVT —
72301A — Wire Sub-assy, Seat Track Equalizing, RH
72301-20280 Wire Sub-assy, Seat Track Equalizing, RH
1995-12 → —
AT200,ST20# RHD —
72301-20280 Wire Sub-assy, Seat Track Equalizing, RH
1993-11 → 1995-08 ended
AT200,ST20# —
72301-20280 Wire Sub-assy, Seat Track Equalizing, RH
1995-08 → 1995-12 ended
ST202 LHD CVT;AT200,ST20# RHD —
72301D — Wire Sub-assy, Seat Track Equalizing, LH
72301-20280 Wire Sub-assy, Seat Track Equalizing, LH
1993-11 → 1995-08 ended
AT200,ST20# —
72301-20280 Wire Sub-assy, Seat Track Equalizing, LH
1995-08 → 1995-12 ended
ST202 CVT;AT200,ST20# LHD LB —
72301-20280 Wire Sub-assy, Seat Track Equalizing, LH
1995-12 → —
AT200,ST20# LHD —
72345B — Pipe, Reclining Connecting
72345-20030 note Pipe, Reclining Connecting
1993-11 → —
AT200,ST20# LHD —
72345-20040 Pipe, Reclining Connecting
1995-08 → 1995-12 ended
AT200;ST20# RHD LB —
72345-20040 Pipe, Reclining Connecting
1995-12 → —
AT200;ST20# RHD —
72501D — Pipe Sub-assy, Reclining Connecting, RH
72501-20050 Pipe Sub-assy, Reclining Connecting, RH
1995-08 → 1995-12 ended
ST202 LHD CVT;AT200,ST20# RHD —
72501-20050 Pipe Sub-assy, Reclining Connecting, RH
1995-12 → —
AT200,ST20# RHD —
72501-20050 Pipe Sub-assy, Reclining Connecting, RH
1993-11 → 1995-08 ended
AT200,ST20# —
72501E — Pipe Sub-assy, Reclining Connecting, LH
72501-20050 Pipe Sub-assy, Reclining Connecting, LH
1993-11 → 1995-08 ended
AT200,ST20# —
72501-20050 Pipe Sub-assy, Reclining Connecting, LH
1995-08 → 1995-12 ended
ST202 CVT;AT200,ST20# LHD LB —
72501-20050 Pipe Sub-assy, Reclining Connecting, LH
1995-12 → —
AT200,ST20# LHD —
72525A — Handle, Reclining Adjuster Release, RH
72525-16010-C0 note Handle, Reclining Adjuster Release, RH
1995-08 → 1995-12 ended
AT200,ST20# LHD LB —
72525-16010-C0 note Handle, Reclining Adjuster Release, RH
1995-12 → —
AT200,ST20# LHD —
72525-20070-C0 note Handle, Reclining Adjuster Release, RH
1993-11 → 1995-08 ended
AT200,ST20# —
72525-20070-C0 note Handle, Reclining Adjuster Release, RH
1995-12 → —
AT200,ST20# RHD —
72525-20070-C0 note Handle, Reclining Adjuster Release, RH
1995-08 → 1995-12 ended
ST202 LHD CVT;AT200,ST20# RHD —
72526 — Handle, Reclining Adjuster Release, LH
72526-16010-C0 note Handle, Reclining Adjuster Release, LH
1995-08 → 1995-12 ended
AT200;ST20# RHD LB —
72526-16010-C0 note Handle, Reclining Adjuster Release, LH
1995-12 → —
AT200;ST20# RHD —
72526-20110-C0 note Handle, Reclining Adjuster Release, LH
1993-11 → 1995-08 ended
AT200,ST20# —
72526-20110-C0 note Handle, Reclining Adjuster Release, LH
1995-08 → 1995-12 ended
ST202 CVT;AT200,ST20# LHD LB —
72526-20110-C0 note Handle, Reclining Adjuster Release, LH
1995-12 → —
AT200,ST20# LHD —
72553 — Cover, Reclining Pedal
72553-12040 Cover, Reclining Pedal
1993-11 → 1995-08 ended
AT200,ST20# —
72553-12040 Cover, Reclining Pedal
1995-08 → 1995-12 ended
ST202 CVT —
72592B — Knob,Reclining Adjuster, LH
72592-20040-C0 note Knob,Reclining Adjuster, LH
1993-11 → —
AT200 LHD —
72592-20040-C0 note Knob,Reclining Adjuster, LH
1993-11 → —
AT200,ST20# LHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
