Toyota Celica

1993-11 → 1999-08 · chassis AT200,ST20# · catalogue 252570 · Europe

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

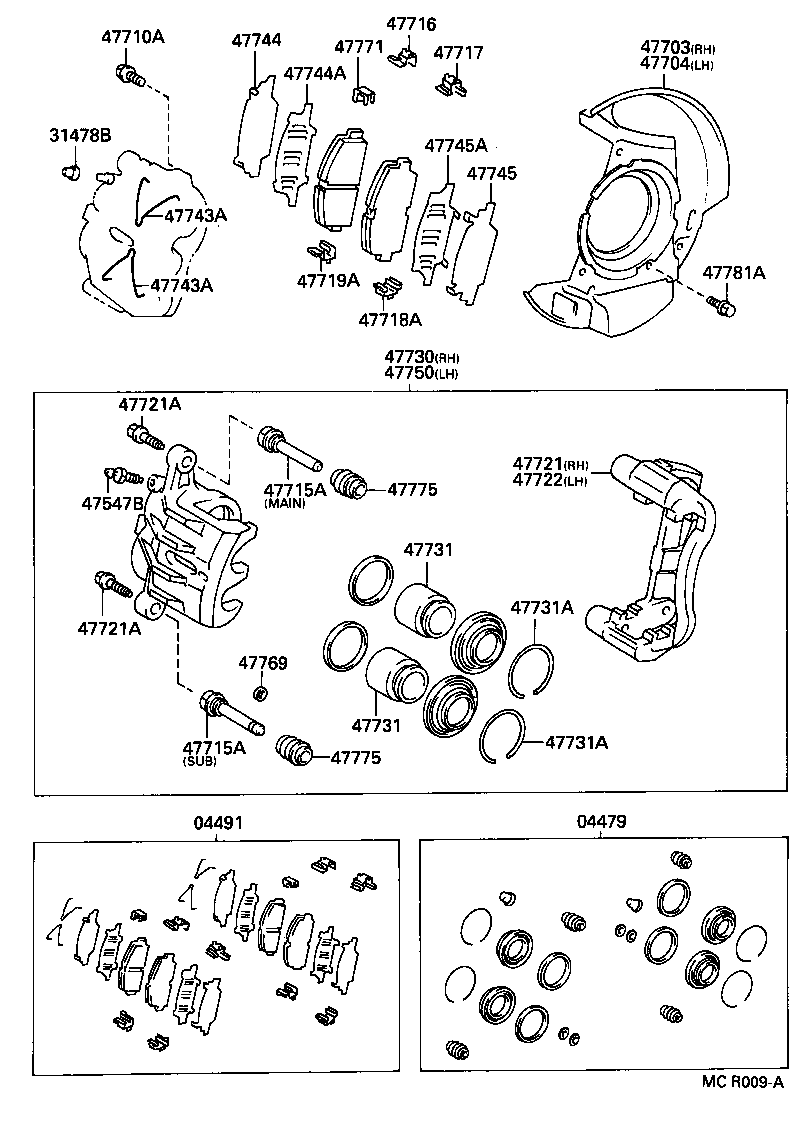

Exploded illustration MCR009A 47716 — PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) (5 parts) 47710A — BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) (2 parts) 47744 — SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) (3 parts) 47771 — PLATE, PAD WEAR INDICATOR, NO.1 (1 parts) 47703 — COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH (4 parts) 47717 — PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) (5 parts) 47704 — COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH (4 parts) 47744A — SHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE) (2 parts) 31478B — CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) (2 parts) 47745A — SHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE) (2 parts) 47745 — SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) (2 parts) 47743A — SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) (2 parts) 47781A — BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) (3 parts) 47719A — PLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE) (5 parts) 47743A — SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) (2 parts) 47718A — PLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE) (5 parts) 47730 — CYLINDER ASSY, FRONT DISC BRAKE, RH (6 parts) 47750 — CYLINDER ASSY, DISC BRAKE, LH (6 parts) 47721A — BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) (1 parts) 47721 — MOUNTING, FRONT DISC BRAKE CYLINDER, RH (4 parts) 47722 — MOUNTING, FRONT DISC BRAKE CYLINDER, LH (4 parts) 47715A — PIN, FRONT DISC BRAKE CYLINDER SLIDE (2 parts) 47775 — BOOT, BUSH DUST(FOR FRONT DISC BRAKE) (2 parts) 47547B — PLUG, BLEEDER(FOR FRONT DISC BRAKE) (2 parts) 47731 — PISTON, FRONT DISC BRAKE (4 parts) 47731A — RING, SET(FOR FRONT DISC BRAKE PISTON) (3 parts) 47721A — BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) (1 parts) 47769 — BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) (1 parts) 47731 — PISTON, FRONT DISC BRAKE (4 parts) 47731A — RING, SET(FOR FRONT DISC BRAKE PISTON) (3 parts) 47715A — PIN, FRONT DISC BRAKE CYLINDER SLIDE (2 parts) 47775 — BOOT, BUSH DUST(FOR FRONT DISC BRAKE) (2 parts) 04479 — CYLINDER KIT, DISC BRAKE, FRONT (5 parts) 04491 — PAD KIT, DISC BRAKE, FRONT (5 parts)
MCR009A · 34 callouts Full size ↗
92 parts on this figure
Part number Description Fitment Price
04479 — Cylinder Kit, Disc Brake, Front
04479-20170 Cylinder Kit, Disc Brake, Front
1993-11 → 1999-08 ended
AT200 —
04479-20210 note Cylinder Kit, Disc Brake, Front
1993-11 → 1999-08 ended
ST202 LB —
04479-20220 Cylinder Kit, Disc Brake, Front
1994-02 → 1995-08 ended
ST205 —
04479-20260 Cylinder Kit, Disc Brake, Front
1995-08 → 1996-06 ended
ST205 —
04479-33010 Cylinder Kit, Disc Brake, Front
1993-11 → 1999-08 ended
ST202 —
04491 — Pad Kit, Disc Brake, Front
04491-20890 Pad Kit, Disc Brake, Front
1993-11 → 1995-05 ended
AT200 —
04491-2B030 note Pad Kit, Disc Brake, Front
1993-11 → 1995-05 ended
ST202 LB —
04491-2B040 Pad Kit, Disc Brake, Front
1994-02 → 1995-05 ended
ST205 —
04491-2B040 Pad Kit, Disc Brake, Front
1995-08 → 1996-06 ended
ST205 —
04491-2B060 Pad Kit, Disc Brake, Front
1993-11 → 1995-05 ended
ST202 —
31478B — Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
31478-14010 Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
1994-02 → 1996-06 ended
ST205 —
31478-30010 Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
1993-11 → 1999-08 ended
AT200,ST202 —
47547B — Plug, Bleeder(FOR FRONT DISC BRAKE)
47547-20010 Plug, Bleeder(FOR FRONT DISC BRAKE)
1993-11 → 1999-08 ended
AT200,ST202 —
47547-20030 Plug, Bleeder(FOR FRONT DISC BRAKE)
1994-02 → 1996-06 ended
ST205 —
47703 — Cover Sub-assy, Disc Brake Dust, Front RH
47781-20300 note Cover Sub-assy, Disc Brake Dust, Front RH
1993-11 → —
ST202 LB —
47781-20310 Cover Sub-assy, Disc Brake Dust, Front RH
1994-02 → 1996-06 ended
ST205 —
47781-20320 Cover Sub-assy, Disc Brake Dust, Front RH
1993-11 → —
ST202 —
47781-20330 Cover Sub-assy, Disc Brake Dust, Front RH
1993-11 → —
AT200 —
47704 — Cover Sub-assy, Disc Brake Dust, Front LH
47782-20300 note Cover Sub-assy, Disc Brake Dust, Front LH
1993-11 → —
ST202 LB —
47782-20310 Cover Sub-assy, Disc Brake Dust, Front LH
1994-02 → 1996-06 ended
ST205 —
47782-20320 Cover Sub-assy, Disc Brake Dust, Front LH
1993-11 → —
ST202 —
47782-20330 Cover Sub-assy, Disc Brake Dust, Front LH
1993-11 → —
AT200 —
47710A — Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
90105-12131 note Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
1993-11 → 1999-08 ended
AT200,ST202 —
90105-12228 note Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
1994-02 → 1996-06 ended
ST205 —
47715A — Pin, Front Disc Brake Cylinder Slide
47715-50010 note Pin, Front Disc Brake Cylinder Slide
1993-11 → 1999-08 ended
AT200,ST202 —
47715-50030 note Pin, Front Disc Brake Cylinder Slide
1993-11 → 1999-08 ended
AT200,ST202 —
47716 — Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
47716-33010 note Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
1996-10 → 1999-08 ended
ST202 LB —
47716-33010 note Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
1993-11 → 1996-08 ended
AT200,ST202 LB —
47716-33031 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
1993-11 → 1999-08 ended
ST202 —
47716-33050 note Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
1996-08 → 1996-10 ended
AT200,ST202 LB —
47716-33050 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
1996-10 → 1999-08 ended
AT200 —
47717 — Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
47716-33020 note Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
1993-11 → 1996-08 ended
AT200,ST202 LB —
47716-33020 note Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
1996-10 → 1999-08 ended
ST202 LB —
47716-33041 Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
1993-11 → 1999-08 ended
ST202 —
47716-33060 note Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
1996-08 → 1996-10 ended
AT200,ST202 LB —
47716-33060 Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
1996-10 → 1999-08 ended
AT200 —
47718A — Plate, Pad Support, NO.3(FOR FRONT DISC BRAKE)
47717-20150 note Plate, Pad Support, NO.3(FOR FRONT DISC BRAKE)
1996-08 → 1996-10 ended
AT200,ST202 LB —
47717-20150 Plate, Pad Support, NO.3(FOR FRONT DISC BRAKE)
1996-10 → 1999-08 ended
AT200 —
47717-33010 note Plate, Pad Support, NO.3(FOR FRONT DISC BRAKE)
1993-11 → 1996-08 ended
AT200,ST202 LB —
47717-33020 note Plate, Pad Support, NO.3(FOR FRONT DISC BRAKE)
1996-10 → 1999-08 ended
ST202 LB —
47717-33031 Plate, Pad Support, NO.3(FOR FRONT DISC BRAKE)
1993-11 → 1999-08 ended
ST202 —
47719A — Plate, Pad Support, NO.4(FOR FRONT DISC BRAKE)
47717-20160 note Plate, Pad Support, NO.4(FOR FRONT DISC BRAKE)
1996-08 → 1996-10 ended
AT200,ST202 LB —
47717-20160 Plate, Pad Support, NO.4(FOR FRONT DISC BRAKE)
1996-10 → 1999-08 ended
AT200 —
47717-33010 note Plate, Pad Support, NO.4(FOR FRONT DISC BRAKE)
1996-10 → 1999-08 ended
ST202 LB —
47717-33020 note Plate, Pad Support, NO.4(FOR FRONT DISC BRAKE)
1993-11 → 1996-08 ended
AT200,ST202 LB —
47717-33041 Plate, Pad Support, NO.4(FOR FRONT DISC BRAKE)
1993-11 → 1999-08 ended
ST202 —
47721 — Mounting, Front Disc Brake Cylinder, RH
47721-20370 Mounting, Front Disc Brake Cylinder, RH
1993-11 → 1996-08 ended
AT200 —
47721-20371 Mounting, Front Disc Brake Cylinder, RH
1996-08 → 1999-08 ended
AT200 —
47721-20410 note Mounting, Front Disc Brake Cylinder, RH
1993-11 → 1999-08 ended
ST202 LB —
47721-20420 Mounting, Front Disc Brake Cylinder, RH
1993-11 → 1999-08 ended
ST202 —
47721A — Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90105-08164 note Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
1993-11 → 1999-08 ended
AT200,ST202 —
47722 — Mounting, Front Disc Brake Cylinder, LH
47722-20080 Mounting, Front Disc Brake Cylinder, LH
1993-11 → 1996-08 ended
AT200 —
47722-20081 Mounting, Front Disc Brake Cylinder, LH
1996-08 → 1999-08 ended
AT200 —
47722-20110 note Mounting, Front Disc Brake Cylinder, LH
1993-11 → 1999-08 ended
ST202 LB —
47722-20120 Mounting, Front Disc Brake Cylinder, LH
1993-11 → 1999-08 ended
ST202 —
47730 — Cylinder Assy, Front Disc Brake, RH
47730-20480 Cylinder Assy, Front Disc Brake, RH
1993-11 → 1996-08 ended
AT200 —
47730-20481 Cylinder Assy, Front Disc Brake, RH
1996-08 → 1999-08 ended
AT200 —
47730-20520 Cylinder Assy, Front Disc Brake, RH
1993-11 → 1999-08 ended
ST202 —
47730-20530 note Cylinder Assy, Front Disc Brake, RH
1993-11 → 1999-08 ended
ST202 LB —
47730-20560 Cylinder Assy, Front Disc Brake, RH
1994-02 → 1995-08 ended
ST205 —
47730-20561 Cylinder Assy, Front Disc Brake, RH
1995-08 → 1996-06 ended
ST205 —
47731 — Piston, Front Disc Brake
47731-14120 Piston, Front Disc Brake
1994-02 → 1996-06 ended
ST205 —
47731-20190 Piston, Front Disc Brake
1993-11 → 1999-08 ended
AT200 —
47731-20200 note Piston, Front Disc Brake
1993-11 → 1999-08 ended
ST202 LB —
47731-33010 Piston, Front Disc Brake
1993-11 → 1999-08 ended
ST202 —
47731A — Ring, Set(FOR FRONT DISC BRAKE PISTON)
90522-45002 Ring, Set(FOR FRONT DISC BRAKE PISTON)
1994-02 → 1996-06 ended
ST205 —
90522-50002 note Ring, Set(FOR FRONT DISC BRAKE PISTON)
1993-11 → 1999-08 ended
ST202 LB —
90522-66001 Ring, Set(FOR FRONT DISC BRAKE PISTON)
1993-11 → 1999-08 ended
AT200,ST202 —
47743A — Spring, Anti-squeal(FOR FRONT DISC BRAKE)
47743-50010 Spring, Anti-squeal(FOR FRONT DISC BRAKE)
1993-11 → 1999-08 ended
AT200 —
47743-50030 Spring, Anti-squeal(FOR FRONT DISC BRAKE)
1993-11 → 1999-08 ended
ST202 —
47744 — Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
47744-20120 Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
1993-11 → 1995-08 ended
AT200 —
47745-12060 note Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
1993-11 → 1999-08 ended
ST202 LB —
47745-33020 Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
1993-11 → 1999-08 ended
ST202 —
47744A — Shim, Anti-squeal, NO.3(FOR FRONT DISC BRAKE)
47742-20060 note Shim, Anti-squeal, NO.3(FOR FRONT DISC BRAKE)
1993-11 → 1999-08 ended
ST202 LB —
47744-33020 Shim, Anti-squeal, NO.3(FOR FRONT DISC BRAKE)
1993-11 → 1999-08 ended
ST202 —
47745 — Shim, Anti-squeal, NO.2(FOR FRONT DISC BRAKE)
47745-12060 note Shim, Anti-squeal, NO.2(FOR FRONT DISC BRAKE)
1993-11 → 1999-08 ended
ST202 LB —
47745-33020 Shim, Anti-squeal, NO.2(FOR FRONT DISC BRAKE)
1993-11 → 1999-08 ended
ST202 —
47745A — Shim, Anti-squeal, NO.4(FOR FRONT DISC BRAKE)
47742-20060 note Shim, Anti-squeal, NO.4(FOR FRONT DISC BRAKE)
1993-11 → 1999-08 ended
ST202 LB —
47744-33020 Shim, Anti-squeal, NO.4(FOR FRONT DISC BRAKE)
1993-11 → 1999-08 ended
ST202 —
47750 — Cylinder Assy, Disc Brake, LH
47750-20480 Cylinder Assy, Disc Brake, LH
1993-11 → 1996-08 ended
AT200 —
47750-20481 Cylinder Assy, Disc Brake, LH
1996-08 → 1999-08 ended
AT200 —
47750-20520 Cylinder Assy, Disc Brake, LH
1993-11 → 1999-08 ended
ST202 —
47750-20530 note Cylinder Assy, Disc Brake, LH
1993-11 → 1999-08 ended
ST202 LB —
47750-20560 Cylinder Assy, Disc Brake, LH
1994-02 → 1995-08 ended
ST205 —
47750-20561 Cylinder Assy, Disc Brake, LH
1995-08 → 1996-06 ended
ST205 —
47769 — Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
47769-50010 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
1993-11 → 1999-08 ended
AT200,ST202 —
47771 — Plate, Pad Wear Indicator, NO.1
47771-50010 Plate, Pad Wear Indicator, NO.1
1993-11 → 1999-08 ended
ST202 —
47775 — Boot, Bush Dust(FOR FRONT DISC BRAKE)
47775-20080 Boot, Bush Dust(FOR FRONT DISC BRAKE)
1993-11 → 1999-08 ended
AT200 —
47775-50010 Boot, Bush Dust(FOR FRONT DISC BRAKE)
1993-11 → 1999-08 ended
ST202 —
47781A — Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90109-06134 note Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
1993-11 → 1995-06 ended
ST20# LB —
90109-06134 Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
1995-06 → —
AT200,ST20# —
90109-06192 Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
1993-11 → 1995-06 ended
AT200,ST202 —
