Toyota Celica
1993-11 → 1999-08 · chassis AT200,ST20# · catalogue 252570 · Europe
Discontinued model
Data version 2000-03

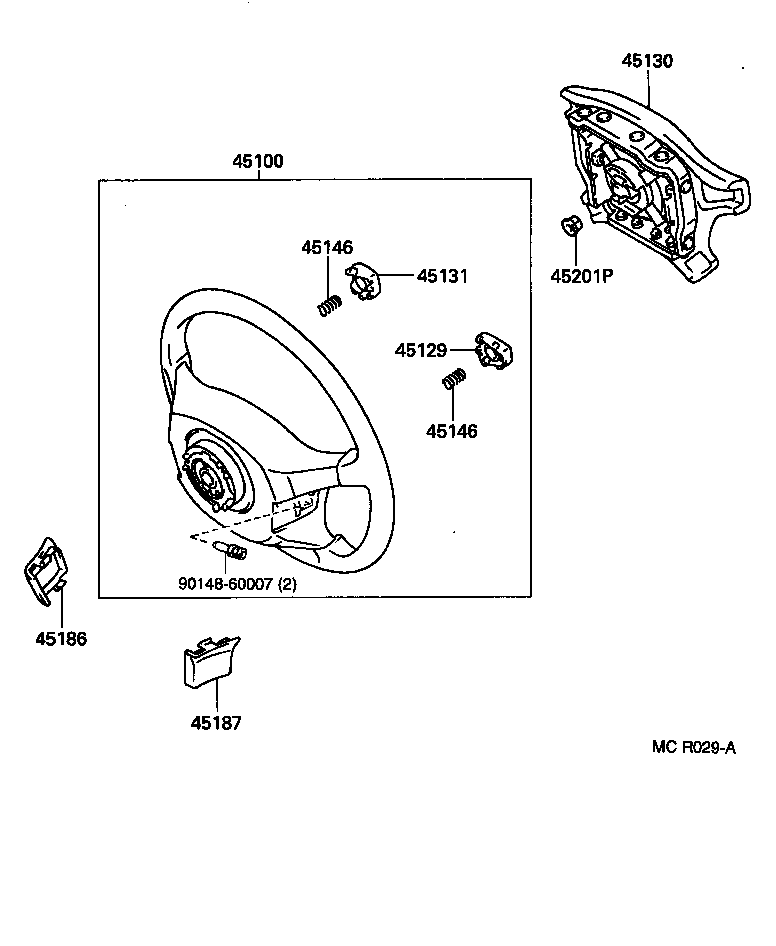

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 45100 — Wheel Assy, Steering | ||||
| 45100-12891-C1 note |
Wheel Assy, Steering
1997-12 → —
|
ST202 | — | |
| 45100-12891-C2 note |
Wheel Assy, Steering
1997-12 → —
|
ST202 | — | |
| 45100-14640-C0 note |
Wheel Assy, Steering
1997-12 → —
|
AT200 | — | |
| 45100-2B290-C0 note |
Wheel Assy, Steering
1993-11 → 1995-08
ended
|
AT200 LHD | — | |
| 45100-2B310-C0 note |
Wheel Assy, Steering
1993-11 → 1995-08
ended
|
ST20# | — | |
| 45100-2B310-C0 note |
Wheel Assy, Steering
1995-08 → 1995-12
ended
|
ST202 CVT | — | |
| 45100-2B340-C0 note |
Wheel Assy, Steering
1993-11 → 1995-08
ended
|
AT200 | — | |
| 45100-2B360-C0 note |
Wheel Assy, Steering
1995-08 → 1995-12
ended
|
ST202 CVT | — | |
| 45100-2B360-C0 note |
Wheel Assy, Steering
1993-11 → 1995-08
ended
|
ST20# | — | |
| 45100-2B460-C0 note |
Wheel Assy, Steering
1995-08 → 1996-12
ended
|
AT200 | — | |
| 45100-2B540-C0 note |
Wheel Assy, Steering
1995-08 → 1995-12
ended
|
ST20# LB | — | |
| 45100-2B540-C0 note |
Wheel Assy, Steering
1995-12 → 1997-12
ended
|
ST20# | — | |
| 45100-2B590-C0 note |
Wheel Assy, Steering
1996-12 → 1997-12
ended
|
AT200 | — | |
| 45129 — Button, Horn, NO.2 | ||||
| 45129-20130-C0 note |
Button, Horn, NO.2
1993-11 → 1995-08
ended
|
AT200,ST20# | — | |
| 45129-20130-C0 note |
Button, Horn, NO.2
1995-08 → 1995-12
ended
|
ST202 CVT | — | |
| 45130 — Button Assy, Horn | ||||
| 45130-14360-C0 note |
Button Assy, Horn
1997-12 → —
|
AT200,ST202 | — | |
| 45130-2B230-C0 note |
Button Assy, Horn
1995-08 → 1995-12
ended
|
AT200,ST20# LB | — | |
| 45130-2B230-C0 note |
Button Assy, Horn
1995-12 → 1997-12
ended
|
AT200,ST20# | — | |
| 45130-2B270-C0 note |
Button Assy, Horn
1993-11 → 1995-08
ended
|
ST20#;AT200 LHD | — | |
| 45130-2B270-C0 note |
Button Assy, Horn
1995-08 → 1995-12
ended
|
ST202 CVT | — | |
| 45130-2B290-C0 note |
Button Assy, Horn
1993-11 → 1995-08
ended
|
AT200,ST20# | — | |
| 45130-2B290-C0 note |
Button Assy, Horn
1995-08 → 1995-12
ended
|
ST202 CVT | — | |
| 45131 — Button, Horn, NO.1 | ||||
| 45131-20250-C0 note |
Button, Horn, NO.1
1993-11 → 1995-08
ended
|
AT200,ST20# | — | |
| 45131-20250-C0 note |
Button, Horn, NO.1
1995-08 → 1995-12
ended
|
ST202 CVT | — | |
| 45146 — Spring, Horn Button Contact | ||||
| 45146-20260 |
Spring, Horn Button Contact
1993-11 → 1995-08
ended
|
AT200,ST20# | — | |
| 45146-20260 |
Spring, Horn Button Contact
1995-08 → 1995-12
ended
|
ST202 CVT | — | |
| 45186 — Cover, Steering Wheel, Lower NO.2 | ||||
| 45186-20050-C0 note |
Cover, Steering Wheel, Lower NO.2
1993-11 → 1997-12
ended
|
AT200,ST20# | — | |
| 45187 — Cover, Steering Wheel, Lower NO.3 | ||||
| 45187-20040-C0 note |
Cover, Steering Wheel, Lower NO.3
1993-11 → 1995-08
ended
|
AT200,ST20# | — | |
| 45187-20040-C0 note |
Cover, Steering Wheel, Lower NO.3
1995-08 → 1995-12
ended
|
ST202 CVT | — | |
| 45187-20050-C0 note |
Cover, Steering Wheel, Lower NO.3
1995-08 → 1995-12
ended
|
AT200,ST20# LB | — | |
| 45187-20050-C0 note |
Cover, Steering Wheel, Lower NO.3
1995-12 → 1997-12
ended
|
AT200,ST20# | — | |
| 45201P — Nut, Steering Wheel Set | ||||
| 90179-12071 |
Nut, Steering Wheel Set
1993-11 → —
|
AT200,ST20# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
