Toyota Celica

1993-11 → 1999-08 · chassis AT200,ST20# · catalogue 252570 · Europe

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

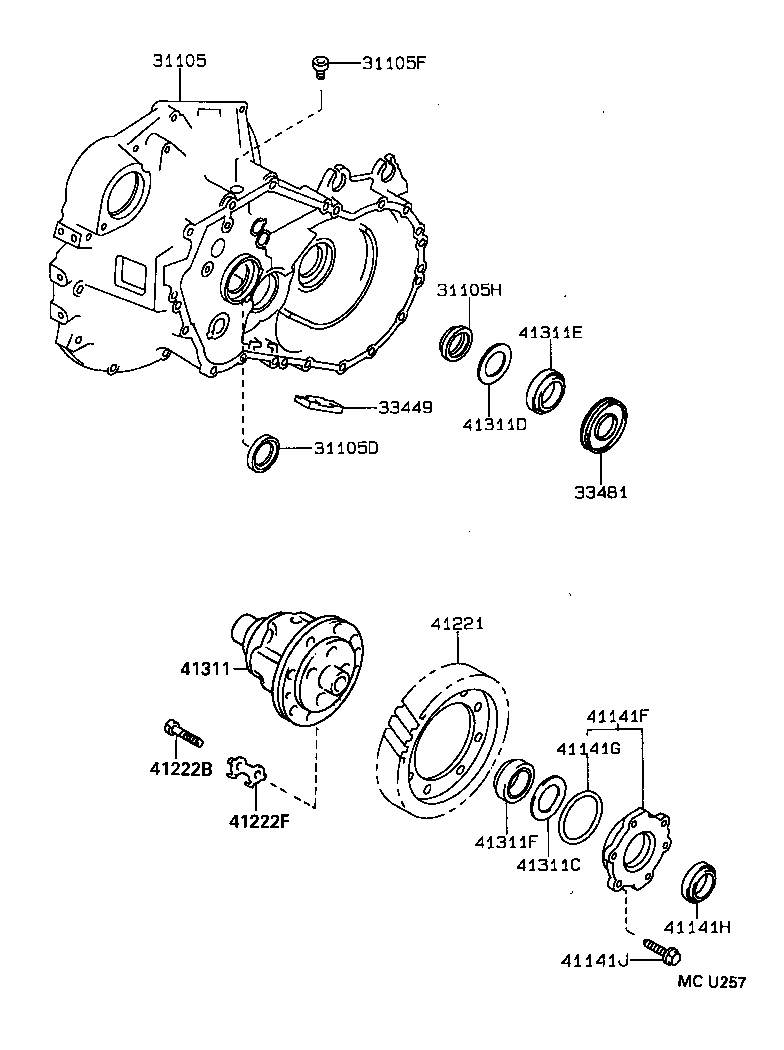

Exploded illustration MCU257 31105 — CASE SUB-ASSY, TRANSAXLE(MTM) (3 parts) 31105F — PLUG(FOR TRANSAXLE CASE) (2 parts) 31105H — SEAL, OIL, NO.2(FOR TRANSAXLE CASE) (5 parts) 41311E — BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT) (5 parts) 33449 — MAGNET, TRANSMISSION (5 parts) 41311D — SHIM (FOR FRONT DIFFERENTIAL CASE FRONT) (2 parts) 31105D — SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) (3 parts) 33481 — GEAR, SPEEDOMETER DRIVE (MTM) (5 parts) 41221 — GEAR, FRONT DIFFERENTIAL RING (5 parts) 41311 — CASE, FRONT DIFFERENTIAL (7 parts) 41141F — RETAINER, FRONT DIFFERENTIAL SIDE BEARING (2 parts) 41141G — RING, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER) (2 parts) 41222B — BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) (7 parts) 41222F — PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK (2 parts) 41311F — BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR) (6 parts) 41311C — SHIM (FOR FRONT DIFFERENTIAL CASE REAR) (74 parts) 41141H — SEAL, OIL(FOR DIFFERENTIAL SIDE BEARING RETAINER) (4 parts) 41141J — BOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER) (2 parts)
MCU257 · 18 callouts Full size ↗
141 parts on this figure
Part number Description Fitment Price
31105 — Case Sub-assy, Transaxle(MTM)
31105-32080 Case Sub-assy, Transaxle(MTM)
1997-04 → 1999-03 ended
ST202 —
31105-32080 Case Sub-assy, Transaxle(MTM)
1999-03 → —
ST202 LB —
31105-33030 Case Sub-assy, Transaxle(MTM)
1993-11 → 1997-04 ended
ST202 —
31105D — Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE)
90311-25016 Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE)
1993-11 → —
AT200 —
90311-30006 Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE)
1993-11 → 1999-03 ended
ST20# —
90311-30006 Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE)
1999-03 → —
ST202 LB —
31105F — Plug(FOR TRANSAXLE CASE)
90341-10065 Plug(FOR TRANSAXLE CASE)
1993-11 → 1999-03 ended
ST202 —
90341-10065 Plug(FOR TRANSAXLE CASE)
1999-03 → —
ST202 LB —
31105H — Seal, Oil, NO.2(FOR TRANSAXLE CASE)
90311-34016 Seal, Oil, NO.2(FOR TRANSAXLE CASE)
1993-11 → —
AT200 —
90311-35019 Seal, Oil, NO.2(FOR TRANSAXLE CASE)
1994-10 → 1995-07 ended
ST202 —
90311-35026 Seal, Oil, NO.2(FOR TRANSAXLE CASE)
1993-11 → 1994-10 ended
ST202 —
90311-35033 Seal, Oil, NO.2(FOR TRANSAXLE CASE)
1995-07 → 1999-03 ended
ST202 —
90311-35033 Seal, Oil, NO.2(FOR TRANSAXLE CASE)
1999-03 → —
ST202 LB —
33449 — Magnet, Transmission
33449-12020 Magnet, Transmission
1993-11 → —
AT200 —
33449-20010 note Magnet, Transmission
1993-11 → 1995-08 ended
ST20# LB —
33449-20010 Magnet, Transmission
1995-08 → 1996-06 ended
ST205 —
33449-32020 Magnet, Transmission
1993-11 → 1999-03 ended
ST202 —
33449-32020 Magnet, Transmission
1999-03 → —
ST202 LB —
33481 — Gear, Speedometer Drive (MTM)
33481-12040 Gear, Speedometer Drive (MTM)
1993-11 → —
AT200 —
33481-12100 note Gear, Speedometer Drive (MTM)
1993-11 → 1995-08 ended
ST202 LB —
33481-20130 note Gear, Speedometer Drive (MTM)
1994-02 → 1996-06 ended
ST205 —
33481-32070 note Gear, Speedometer Drive (MTM)
1993-11 → 1999-03 ended
ST202 —
33481-32070 note Gear, Speedometer Drive (MTM)
1999-03 → —
ST202 LB —
41141F — Retainer, Front Differential Side Bearing
41101-32010 Retainer, Front Differential Side Bearing
1993-11 → 1999-03 ended
ST202 —
41101-32010 Retainer, Front Differential Side Bearing
1999-03 → —
ST202 LB —
41141G — Ring, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
90301-63004 Ring, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
1993-11 → 1999-03 ended
ST202 —
90301-63004 Ring, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
1999-03 → —
ST202 LB —
41141H — Seal, Oil(FOR DIFFERENTIAL SIDE BEARING RETAINER)
90311-35019 Seal, Oil(FOR DIFFERENTIAL SIDE BEARING RETAINER)
1994-10 → 1995-07 ended
ST202 —
90311-35026 Seal, Oil(FOR DIFFERENTIAL SIDE BEARING RETAINER)
1993-11 → 1994-10 ended
ST202 —
90311-35033 Seal, Oil(FOR DIFFERENTIAL SIDE BEARING RETAINER)
1999-03 → —
ST202 LB —
90311-35033 Seal, Oil(FOR DIFFERENTIAL SIDE BEARING RETAINER)
1995-07 → 1999-03 ended
ST202 —
41141J — Bolt(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
90105-08061 note Bolt(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
1993-11 → 1999-03 ended
ST202 —
90105-08061 note Bolt(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
1999-03 → —
ST202 LB —
41221 — Gear, Front Differential Ring
41221-12290 note Gear, Front Differential Ring
1993-11 → 1995-08 ended
ST202 LB —
41221-12330 Gear, Front Differential Ring
1993-11 → —
AT200 —
41221-20240 Gear, Front Differential Ring
1994-02 → 1996-06 ended
ST205 —
41221-32090 Gear, Front Differential Ring
1993-11 → 1999-03 ended
ST202 —
41221-32090 Gear, Front Differential Ring
1999-03 → —
ST202 LB —
41222B — Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
90101-11003 Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
1993-11 → 1995-06 ended
ST202 —
90101-11353 Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
1993-11 → 1995-01 ended
AT200 —
90105-11040 Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
1995-06 → 1999-03 ended
AT200,ST202 —
90105-11040 Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
1999-03 → —
AT200,ST202 LB —
90105-11040 Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
1995-01 → 1995-06 ended
AT200 —
90105-12150 Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
1995-08 → 1996-06 ended
ST205 —
90105-12150 note Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
1993-11 → 1995-08 ended
ST20# LB —
41222F — Plate, Fornt Differential Ring Gear Set Bolt Lock
41222-12040 Plate, Fornt Differential Ring Gear Set Bolt Lock
1993-11 → 1995-01 ended
AT200 —
41222-32010 Plate, Fornt Differential Ring Gear Set Bolt Lock
1993-11 → 1995-06 ended
ST202 —
41311 — Case, Front Differential
41301-12040 Case, Front Differential
1993-11 → 1994-12 ended
AT200 —
41301-12041 Case, Front Differential
1994-12 → —
AT200 —
41301-20190 note Case, Front Differential
1995-08 → 1999-02 ended
ST202 LB —
41301-20230 note Case, Front Differential
1999-02 → —
ST202 LB —
41301-32060 Case, Front Differential
1993-11 → 1999-02 ended
ST202 —
41301-32061 Case, Front Differential
1999-03 → —
ST202 LB —
41301-32061 Case, Front Differential
1999-02 → 1999-03 ended
ST202 —
41311C — Shim (FOR FRONT DIFFERENTIAL CASE REAR)
90564-45001 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1999-03 → —
ST202 LB —
90564-45001 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1999-03 ended
ST202 —
90564-45002 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1999-03 ended
ST202 —
90564-45002 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1999-03 → —
ST202 LB —
90564-45003 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1999-03 ended
ST202 —
90564-45003 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1999-03 → —
ST202 LB —
90564-45004 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1999-03 ended
ST202 —
90564-45004 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1999-03 → —
ST202 LB —
90564-45005 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1999-03 → —
ST202 LB —
90564-45005 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1999-03 ended
ST202 —
90564-45006 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1999-03 ended
ST202 —
90564-45006 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1999-03 → —
ST202 LB —
90564-45007 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1999-03 → —
ST202 LB —
90564-45007 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1999-03 ended
ST202 —
90564-45008 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1999-03 → —
ST202 LB —
90564-45008 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1999-03 ended
ST202 —
90564-45009 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1999-03 → —
ST202 LB —
90564-45009 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1999-03 ended
ST202 —
90564-45010 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1999-03 → —
ST202 LB —
90564-45010 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1999-03 ended
ST202 —
90564-45011 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1999-03 ended
ST202 —
90564-45011 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1999-03 → —
ST202 LB —
90564-45012 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1999-03 ended
ST202 —
90564-45012 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1999-03 → —
ST202 LB —
90564-45013 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1999-03 ended
ST202 —
90564-45013 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1999-03 → —
ST202 LB —
90564-45014 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1999-03 ended
ST202 —
90564-45014 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1999-03 → —
ST202 LB —
90564-45015 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1999-03 ended
ST202 —
90564-45015 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1999-03 → —
ST202 LB —
90564-45016 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1999-03 ended
ST202 —
90564-45016 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1999-03 → —
ST202 LB —
90564-45017 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1999-03 → —
ST202 LB —
90564-45017 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1999-03 ended
ST202 —
90564-45018 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1999-03 → —
ST202 LB —
90564-45018 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1999-03 ended
ST202 —
90564-45019 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1999-03 ended
ST202 —
90564-45019 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1999-03 → —
ST202 LB —
90564-76001 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1995-08 ended
ST20# LB —
90564-76001 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1995-08 → 1996-06 ended
ST205 —
90564-76002 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1995-08 ended
ST20# LB —
90564-76002 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1995-08 → 1996-06 ended
ST205 —
90564-76003 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1995-08 ended
ST20# LB —
90564-76003 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1995-08 → 1996-06 ended
ST205 —
90564-76004 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1995-08 ended
ST20# LB —
90564-76004 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1995-08 → 1996-06 ended
ST205 —
90564-76005 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1995-08 → 1996-06 ended
ST205 —
90564-76005 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1995-08 ended
ST20# LB —
90564-76006 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1995-08 → 1996-06 ended
ST205 —
90564-76006 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1995-08 ended
ST20# LB —
90564-76007 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1995-08 → 1996-06 ended
ST205 —
90564-76007 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1995-08 ended
ST20# LB —
90564-76008 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1995-08 → 1996-06 ended
ST205 —
90564-76008 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1995-08 ended
ST20# LB —
90564-76009 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1995-08 → 1996-06 ended
ST205 —
90564-76009 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1995-08 ended
ST20# LB —
90564-76010 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1995-08 → 1996-06 ended
ST205 —
90564-76010 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1995-08 ended
ST20# LB —
90564-76011 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1995-08 → 1996-06 ended
ST205 —
90564-76011 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1995-08 ended
ST20# LB —
90564-76012 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1995-08 → 1996-06 ended
ST205 —
90564-76012 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1995-08 ended
ST20# LB —
90564-76013 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1995-08 → 1996-06 ended
ST205 —
90564-76013 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1995-08 ended
ST20# LB —
90564-76014 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1995-08 ended
ST20# LB —
90564-76014 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1995-08 → 1996-06 ended
ST205 —
90564-76015 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1995-08 ended
ST20# LB —
90564-76015 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1995-08 → 1996-06 ended
ST205 —
90564-76016 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1995-08 → 1996-06 ended
ST205 —
90564-76016 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1995-08 ended
ST20# LB —
90564-76017 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1995-08 ended
ST20# LB —
90564-76017 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1995-08 → 1996-06 ended
ST205 —
90564-76018 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1995-08 → 1996-06 ended
ST205 —
90564-76018 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1995-08 ended
ST20# LB —
41311D — Shim (FOR FRONT DIFFERENTIAL CASE FRONT)
90564-45011 note Shim (FOR FRONT DIFFERENTIAL CASE FRONT)
1993-11 → 1999-03 ended
ST202 —
90564-45011 note Shim (FOR FRONT DIFFERENTIAL CASE FRONT)
1999-03 → —
ST202 LB —
41311E — Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
90366-38004 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
1993-11 → —
AT200 —
90366-40016 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
1993-11 → 1999-03 ended
ST202 —
90366-40016 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
1999-03 → —
ST202 LB —
90366-57001 note Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
1993-11 → 1995-08 ended
ST20# LB —
90366-57001 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
1995-08 → 1996-06 ended
ST205 —
41311F — Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
90366-40023 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1995-08 ended
ST202 —
90366-40064 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
1995-08 → 1999-03 ended
ST202 —
90366-40064 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
1999-03 → —
ST202 LB —
90366-50014 note Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → 1995-08 ended
ST20# LB —
90366-50014 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
1995-08 → 1996-06 ended
ST205 —
90368-38010 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
1993-11 → —
AT200 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
