Toyota Celica
1993-11 → 1999-08 · chassis AT200,ST20# · catalogue 252570 · Europe
Discontinued model
Data version 2000-03

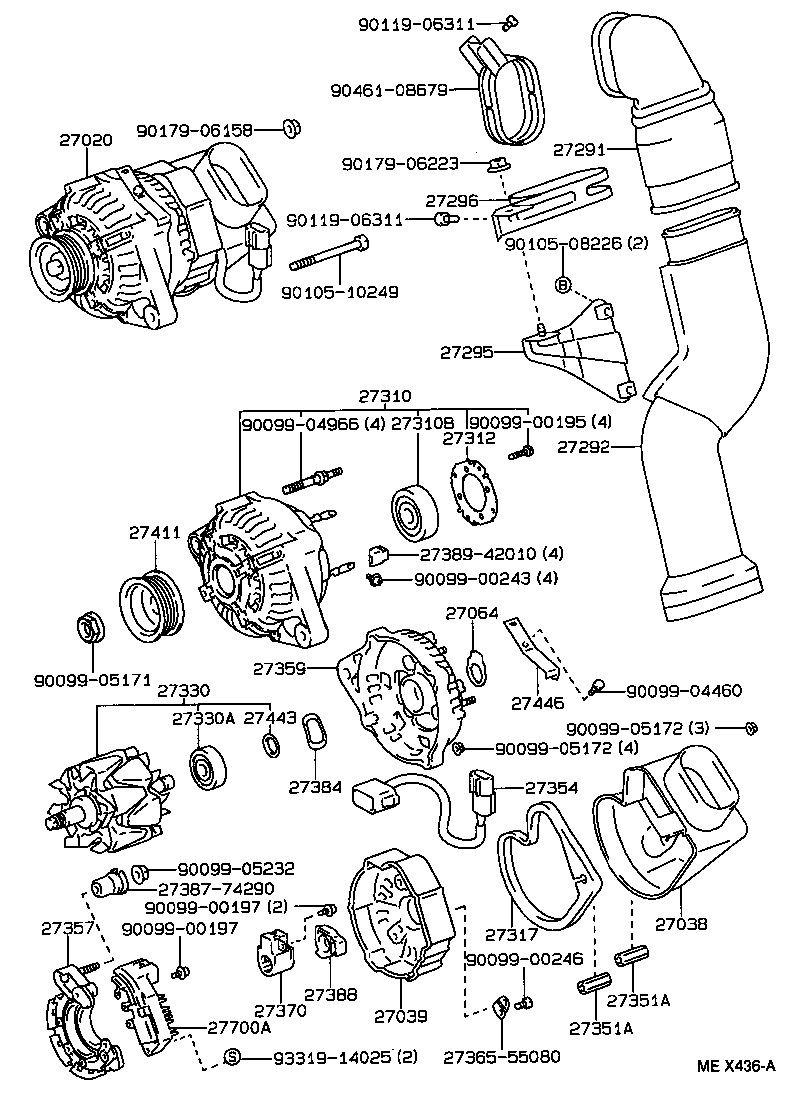

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 27020 — Alternator Assy | ||||
| 27060-15080 note |
Alternator Assy
1993-11 → —
|
7AFE AT200 | — | |
| 27060-74470 note |
Alternator Assy
1993-11 → —
|
3SGE ST202 | — | |
| 27060-74490 note |
Alternator Assy
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 27038 — Duct Sub-assy, Alternator Air | ||||
| 27038-74450 |
Duct Sub-assy, Alternator Air
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 27039 — Cover, Alternator Rear End | ||||
| 27039-16380 |
Cover, Alternator Rear End
1997-01 → —
|
7AFE AT200 | — | |
| 27039-73020 |
Cover, Alternator Rear End
1993-11 → 1997-01
ended
|
7AFE AT200 | — | |
| 27039-74380 note |
Cover, Alternator Rear End
1993-11 → 1997-01
ended
|
3SGE ST202 | — | |
| 27039-74381 note |
Cover, Alternator Rear End
1997-01 → —
|
3SGE ST202 | — | |
| 27039-74390 note |
Cover, Alternator Rear End
1994-02 → 1995-08
ended
|
3SGTE ST205 | — | |
| 27039-74390 |
Cover, Alternator Rear End
1995-08 → 1996-06
ended
|
3SGTE ST205 | — | |
| 27039-74440 note |
Cover, Alternator Rear End
1993-11 → 1995-08
ended
|
3SG# ST20# | — | |
| 27039-74440 note |
Cover, Alternator Rear End
1995-08 → —
|
3SGE ST202 | — | |
| 27064 — Seal, Alternator Plate | ||||
| 27064-42010 |
Seal, Alternator Plate
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 27291 — Duct, Alternator, NO.1 | ||||
| 27291-74030 |
Duct, Alternator, NO.1
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 27292 — Duct, Alternator, NO.2 | ||||
| 27292-74030 |
Duct, Alternator, NO.2
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 27295 — Bracket, Alternator Duct | ||||
| 27295-74030 |
Bracket, Alternator Duct
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 27296 — Clamp, Alternator Duct | ||||
| 27296-74020 |
Clamp, Alternator Duct
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 27310 — Frame Assy, Drive End, Alternator | ||||
| 27310-15170 |
Frame Assy, Drive End, Alternator
1993-11 → —
|
7AFE AT200 | — | |
| 27310-74430 |
Frame Assy, Drive End, Alternator
1993-11 → —
|
3SGE ST202 | — | |
| 27310-74440 |
Frame Assy, Drive End, Alternator
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 27310B — Bearing(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10178 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1993-11 → —
|
7AFE,3SGE AT200,ST202 | — | |
| 90099-10192 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 27312 — Plate, Retainer | ||||
| 27312-42010 |
Plate, Retainer
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 27312-70200 |
Plate, Retainer
1993-11 → —
|
7AFE,3SGE AT200,ST202 | — | |
| 27317 — Packing, Cover, Rear End | ||||
| 27317-74270 |
Packing, Cover, Rear End
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 27330 — Rotor Assy, Alternator | ||||
| 27330-64570 |
Rotor Assy, Alternator
1997-01 → —
|
7AFE,3SGE AT200,ST202 | — | |
| 27330-72101 |
Rotor Assy, Alternator
1993-11 → 1997-01
ended
|
7AFE,3SGE AT200,ST202 | — | |
| 27330-76030 |
Rotor Assy, Alternator
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 27330A — Bearing(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
Bearing(FOR ALTERNATOR ROTOR)
1993-11 → —
|
7AFE,3SG# AT200,ST20# | — | |
| 27351A — Collar, Adjusting Alternator | ||||
| 27351-74120 |
Collar, Adjusting Alternator
1994-02 → 1995-08
ended
|
3SGTE ST205 | — | |
| 27351-74120 |
Collar, Adjusting Alternator
1995-08 → 1996-06
ended
|
3SGTE ST205 | — | |
| 27351-74120 |
Collar, Adjusting Alternator
1993-11 → —
|
3SGE ST202 | — | |
| 27354 — Wire Sub-assy, Alternator Lead | ||||
| 27037-74450 |
Wire Sub-assy, Alternator Lead
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 27357 — Holder, Alternator, W/Rectifier | ||||
| 27357-16380 |
Holder, Alternator, W/Rectifier
1997-01 → —
|
7AFE AT200 | — | |
| 27357-63020 |
Holder, Alternator, W/Rectifier
1993-11 → 1997-01
ended
|
7AFE AT200 | — | |
| 27357-70081 |
Holder, Alternator, W/Rectifier
1993-11 → 1997-01
ended
|
3SGE ST202 | — | |
| 27357-74260 |
Holder, Alternator, W/Rectifier
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 27359 — Frame, Alternator Rectifier End | ||||
| 27359-15170 |
Frame, Alternator Rectifier End
1993-11 → 1996-01
ended
|
7AFE AT200 | — | |
| 27359-15171 |
Frame, Alternator Rectifier End
1996-01 → 1997-01
ended
|
7AFE AT200 | — | |
| 27359-16380 |
Frame, Alternator Rectifier End
1997-01 → —
|
7AFE AT200 | — | |
| 27359-74120 |
Frame, Alternator Rectifier End
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 27359-74130 |
Frame, Alternator Rectifier End
1993-11 → 1996-01
ended
|
3SGE ST202 | — | |
| 27359-74131 |
Frame, Alternator Rectifier End
1996-01 → 1997-01
ended
|
3SGE ST202 | — | |
| 27359-74132 |
Frame, Alternator Rectifier End
1997-01 → —
|
3SGE ST202 | — | |
| 27370 — Holder Assy, Alternator Brush | ||||
| 27370-35060 |
Holder Assy, Alternator Brush
1993-11 → —
|
7AFE,3SGE AT200,ST202 | — | |
| 27370-75060 |
Holder Assy, Alternator Brush
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 27384 — Washer | ||||
| 27384-50030 |
Washer
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 27388 — Cover, Alternator Brush | ||||
| 27388-42010 |
Cover, Alternator Brush
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 27411 — Pulley, Alternator | ||||
| 27411-16180 |
Pulley, Alternator
1993-11 → —
|
7AFE AT200 | — | |
| 27411-16211 |
Pulley, Alternator
1993-11 → —
|
3SGE ST202 | — | |
| 27411-74050 |
Pulley, Alternator
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 27443 — Cover, Alternator Bearing | ||||
| 27443-63020 |
Cover, Alternator Bearing
1993-11 → —
|
7AFE,3SG# AT200,ST20# | — | |
| 27446 — Clip, Alternator Cord | ||||
| 27446-15170 |
Clip, Alternator Cord
1993-11 → —
|
7AFE AT200 | — | |
| 27446-74120 |
Clip, Alternator Cord
1994-02 → 1996-06
ended
|
3SGTE ST205 | — | |
| 27700A — Regulator Assy, Generator | ||||
| 27700-74030 |
Regulator Assy, Generator
1993-11 → —
|
7AFE,3SG# AT200,ST20# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
