Toyota Celica

1993-11 → 1999-08 · chassis AT200,ST20# · catalogue 252570 · Europe

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

18 part groups · 3 illustrations

Illustrations

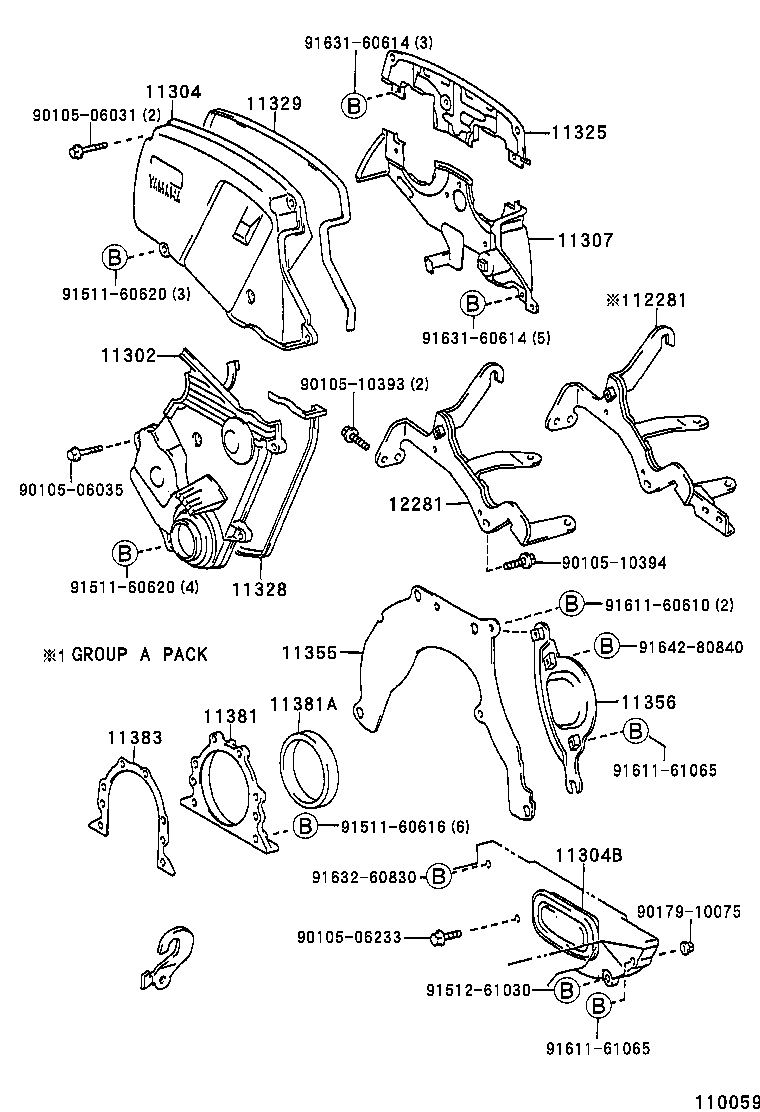

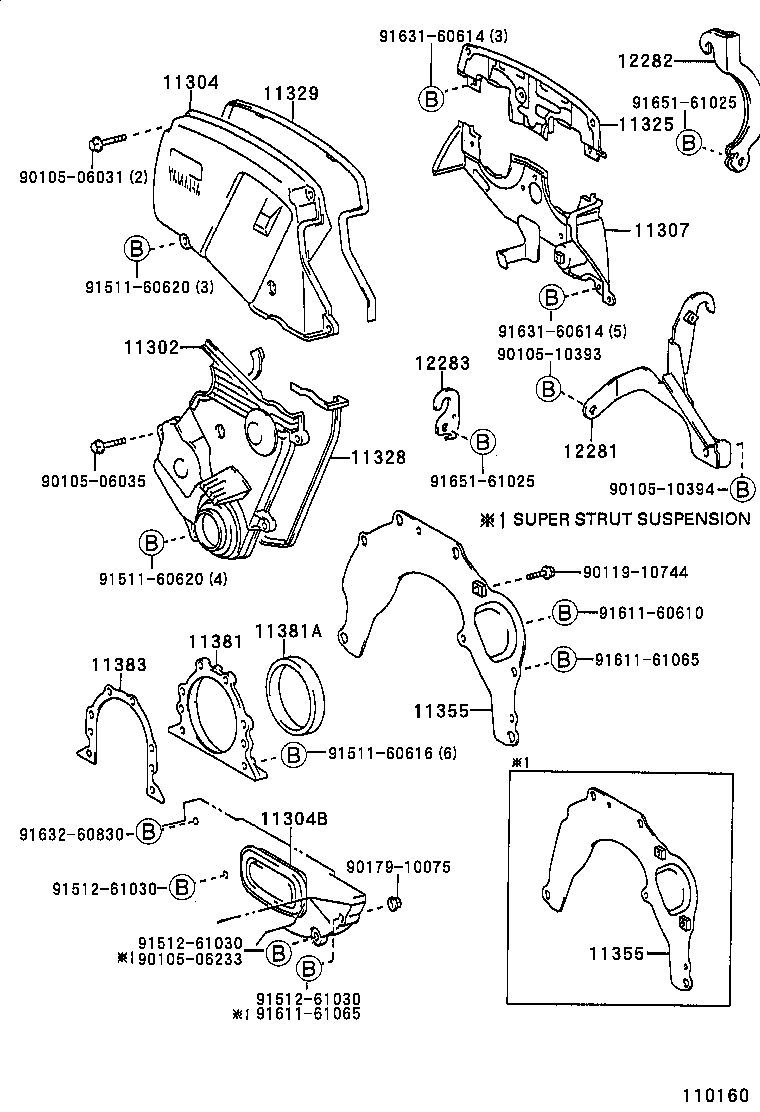

Figure MAH035B MAH035B 1993-11 → — Figure 110160 110160 1993-11 → — Figure 110059 110059 1994-02 → 1996-06

Part groups

PNCDescription
11302 Cover Sub-assy, Timing Chain OR Belt
11302T Plug, Hole
11303 Cover Sub-assy, Crankshaft Gear OR Pulley
11304 Cover, Timing Chain OR Belt, NO.2
11304B Plug, Semi Circular(FOR CHAIN COVER NO.2)
11307 Cover, Sub-assy, Timing Belt, NO.3
11325 Cover, Timing Belt, NO.4
11328 Gasket, Timing Gear OR Chain Cover
11329 Gasket, Timing Gear Rear Cover
11355 Plate, Rear End
11356 Plate, Rear End, NO.2
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
12156A Insulator, Oil Pan
12281 Hanger, Engine, NO.1
12282 Hanger, Engine, NO.2
12283 Hanger, Engine, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
