Toyota Celica
1993-11 → 1999-08 · chassis AT200,ST20# · catalogue 252570 · Europe
Discontinued model
Data version 2000-03

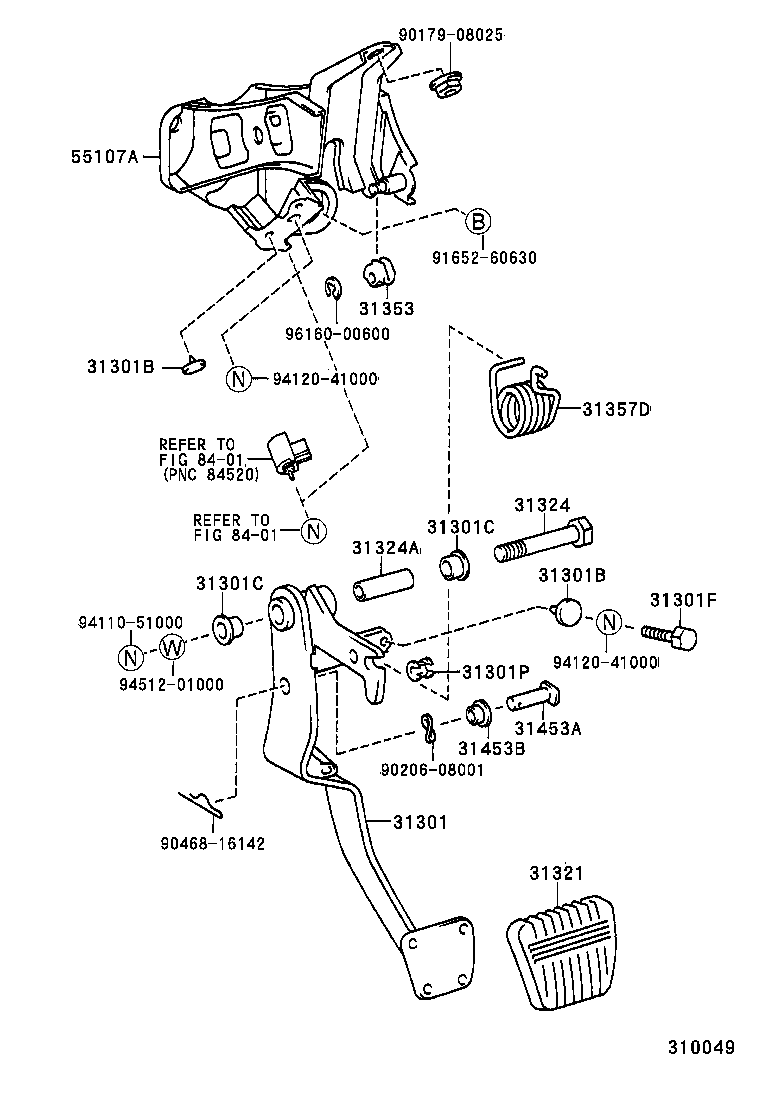

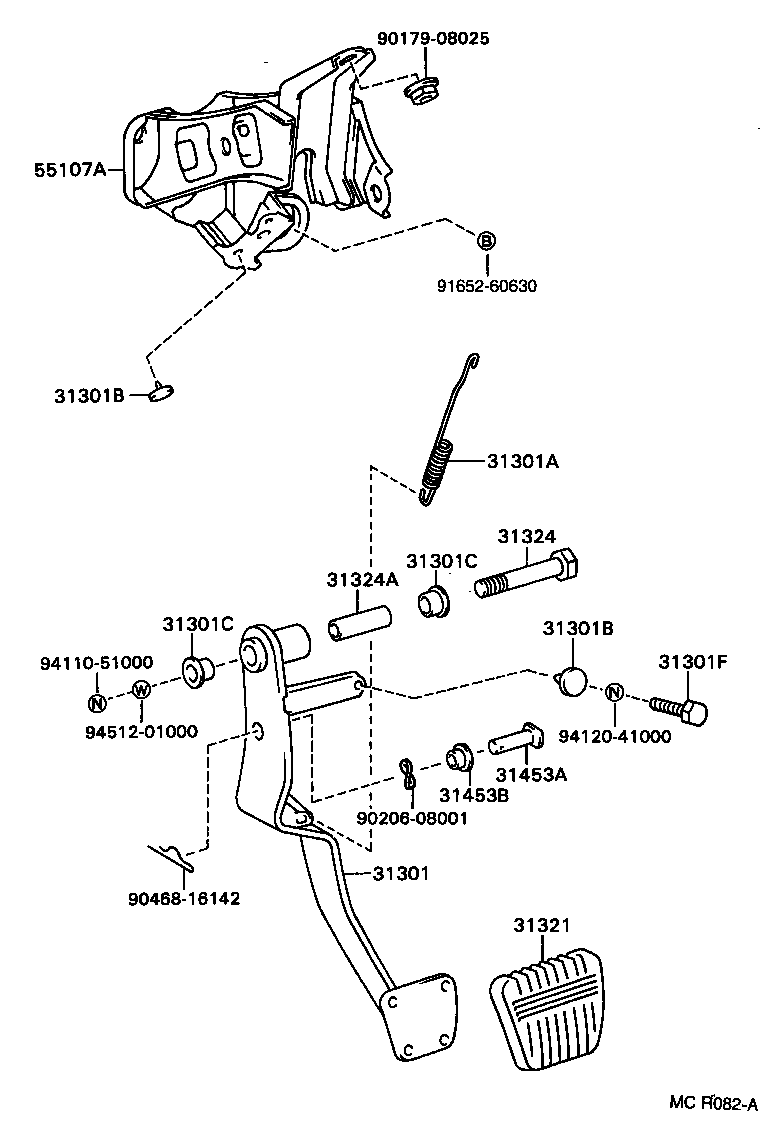

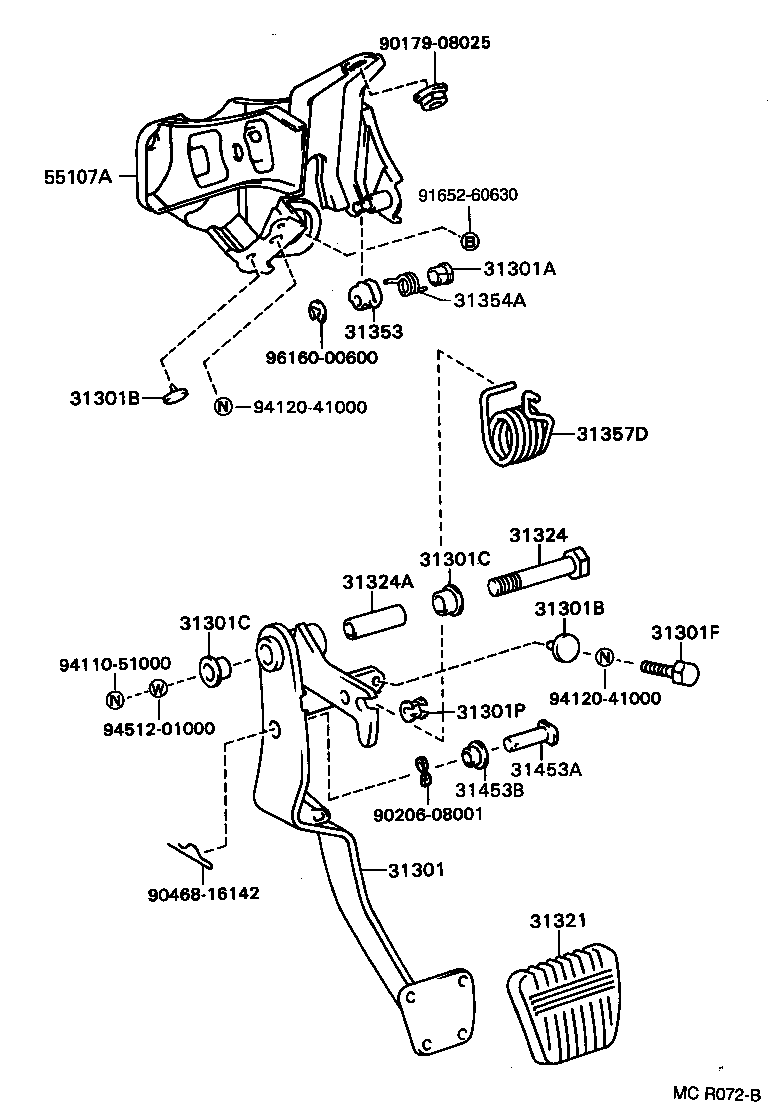

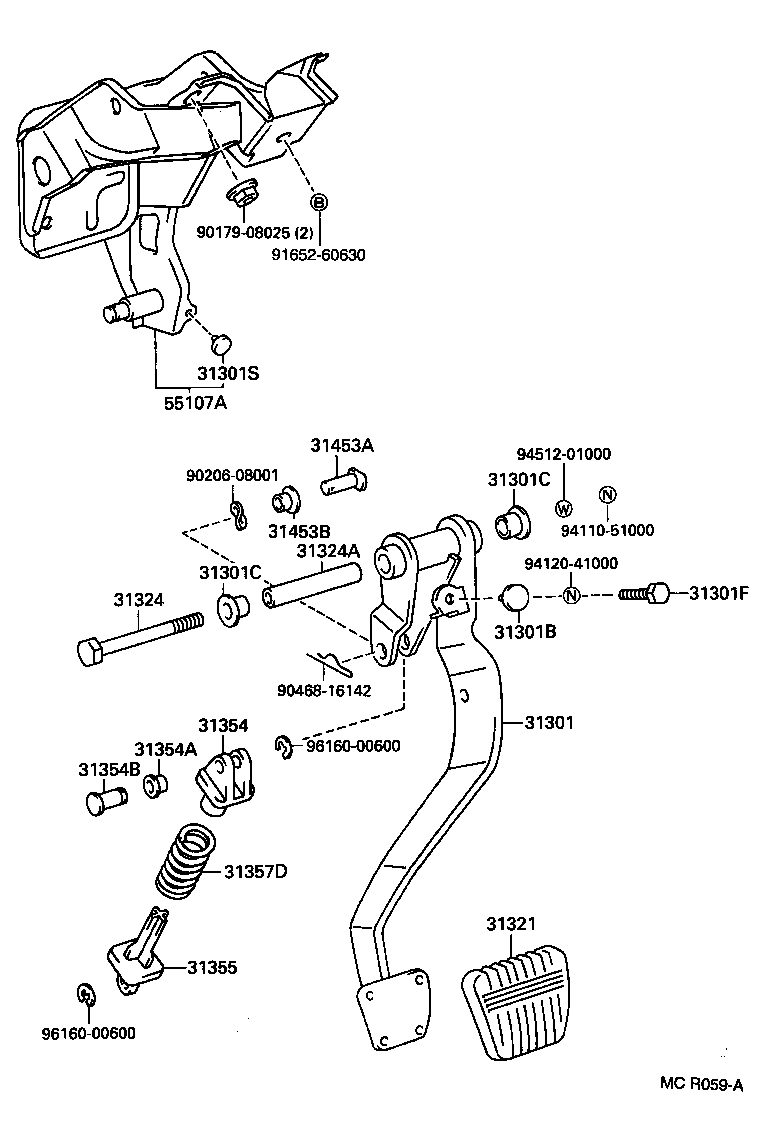

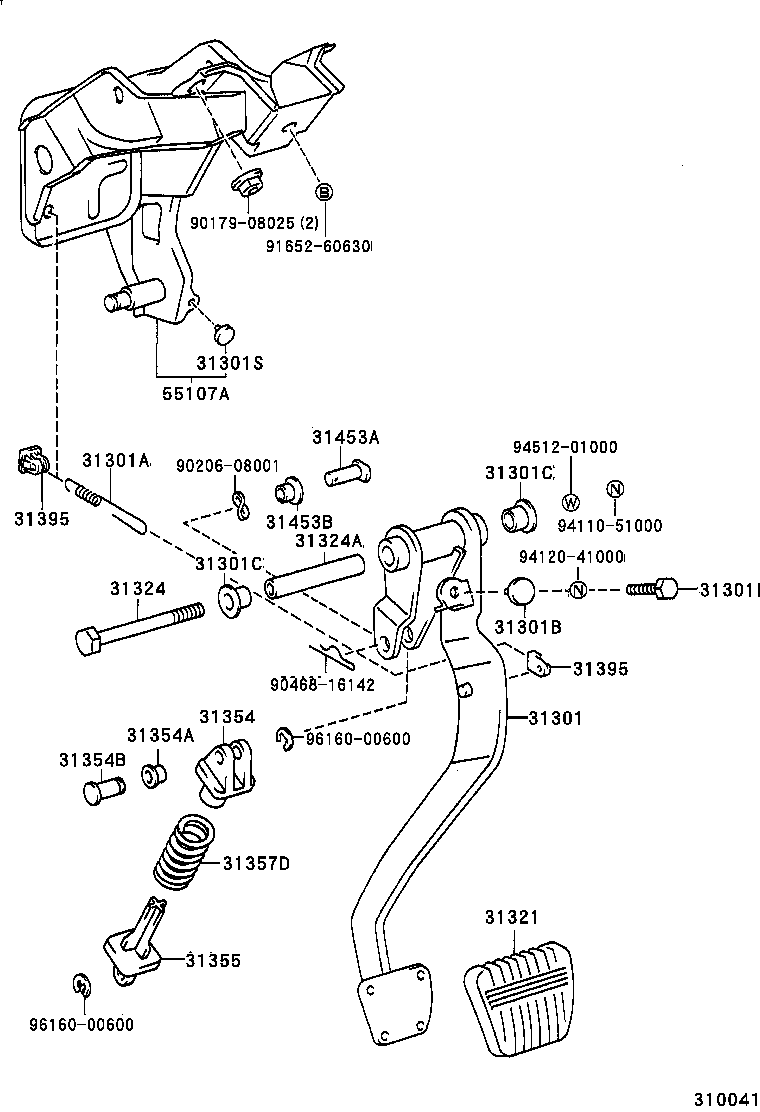

Clutch Pedal & Flexible Hose
30 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 31301 | Pedal Sub-assy, Clutch |
| 31301A | Spring(FOR CLUTCH PEDAL) |
| 31301B | Cushion, NO.1(FOR CLUTCH PEDAL) |
| 31301C | Bush(FOR CLUTCH PEDAL) |
| 31301F | Bolt(FOR CLUTCH PEDAL STOPPER) |
| 31301P | Bush(FOR CLUTCH PEDAL TURNOVER) |
| 31301S | Cushion, NO.2(FOR CLUTCH PEDAL) |
| 31321 | Pad, Clutch Pedal |
| 31324 | Shaft, Clutch Pedal |
| 31324A | Collar, Clutch Pedal Shaft |
| 31353 | Holder, Clutch Pedal Spring |
| 31354 | Seat, Clutch Pedal Spring, Upper |
| 31354A | Bush(FOR CLUTCH PEDAL SPRING SEAT UPPER) |
| 31354B | Pin, W/Hole(FOR CLUTCH PEDAL SPRING SEAT UPPER) |
| 31355 | Seat, Clutch Pedal Spring, Lower |
| 31357D | Spring, Compression(FOR OVER CENTER ADJUSTING ROD) |
| 31395 | Hook, Pedal Spring |
| 31418 | Hose, Clutch |
| 31453A | Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 31453B | Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 31481 | Tube, Clutch Master Cylinder TO Flexible Hose |
| 31482 | Tube, Clutch Release Cylinder TO Flexible Hose |
| 31483A | Tube, Clutch Master Cylinder TO Orifice |
| 31484A | Bracket, Flexible Hose, NO.1(FOR CLUTCH) |
| 31484C | Bracket, Clutch Tube, NO.1 |
| 31484D | Bracket, Clutch Tube, NO.2 |
| 31485 | Bracket, Flexible Hose, NO.2(FOR CLUTCH) |
| 31485A | Tube, Orifice TO Flexible Hose |
| 31510 | Orifice Assy, Clutch |
| 55107A | Support Sub-assy, Clutch Pedal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
