Toyota Celica
1993-11 → 1999-08 · chassis AT200,ST20# · catalogue 252570 · Europe
Discontinued model
Data version 2000-03

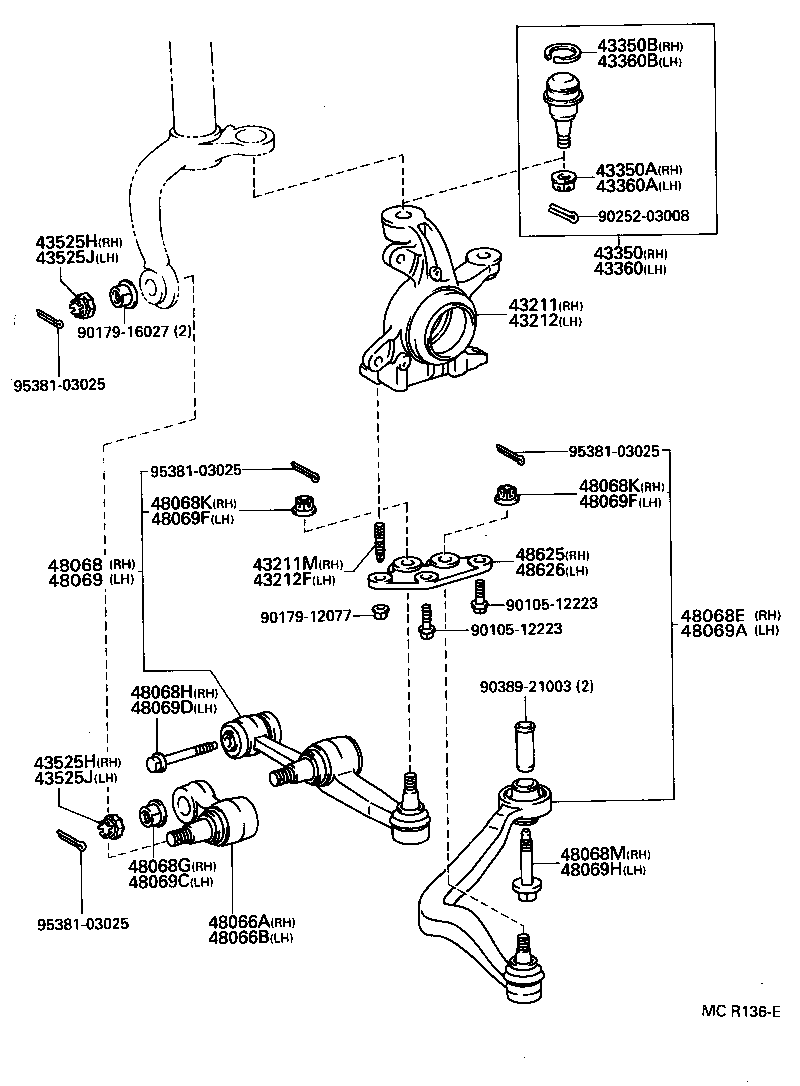

Front Axle Arm & Steering Knuckle
36 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 43211 | Knuckle, Steering, RH |
| 43211K | Bolt (FOR STEERING KNUCKLE RH) |
| 43211L | Nut (FOR STEERING KNUCKLE RH) |
| 43211M | Stud, Hexagon Lobular (FOR STEERING KNUCKLE RH) |
| 43212 | Knuckle, Steering, LH |
| 43212D | Bolt (FOR STEERING KNUCKLE LH) |
| 43212E | Nut (FOR STEERING KNUCKLE LH) |
| 43212F | Stud, Hexagon Lobular (FOR STEERING KNUCKLE LH) |
| 43330K | Joint Assy, Lower Ball, Front RH |
| 43330L | Nut, Castle (FOR FRONT LOWER BALL JOINT RH) |
| 43340A | Joint Assy, Lower Ball, Front LH |
| 43340B | Nut, Castle (FOR FRONT LOWER BALL JOINT LH) |
| 43350 | Joint Assy, Front Upper Ball, RH |
| 43350A | Nut (FOR FRONT UPPER BALL JOINT RH) |
| 43350B | Ring, Snap (FOR FRONT UPPER BALL JOINT RH) |
| 43360 | Joint Assy, Front Upper Ball, LH |
| 43360A | Nut (FOR FRONT UPPER BALL JOINT LH) |
| 43360B | Ring, Snap (FOR FRONT UPPER BALL JOINT LH) |
| 43525H | Cap, Front Suspension Camber Control Arm, RH |
| 43525J | Cap, Front Suspension Camber Control Arm, LH |
| 48066A | Arm Sub-assy, Front Suspension Camber Control, RH |
| 48066B | Arm Sub-assy, Front Suspension Camber Control, LH |
| 48068 | Arm Sub-assy, Front Suspension, Lower NO.1 RH |
| 48068E | Arm Sub-assy, Front Suspension, Lower NO.2 RH |
| 48068G | Nut(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) |
| 48068H | Bolt(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) |
| 48068K | Nut(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) |
| 48068M | Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) |
| 48069 | Arm Sub-assy, Front Suspension, Lower NO.1 LH |
| 48069A | Arm Sub-assy, Front Suspension, Lower NO.2 LH |
| 48069C | Nut(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) |
| 48069D | Bolt(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) |
| 48069F | Nut(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) |
| 48069H | Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) |
| 48625 | Attachment, Front Lower Ball Joint, RH |
| 48626 | Attachment, Front Lower Ball Joint, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
