Toyota Celica

1993-11 → 1999-08 · chassis AT200,ST20# · catalogue 252570 · Europe

Discontinued model Data version 2000-03

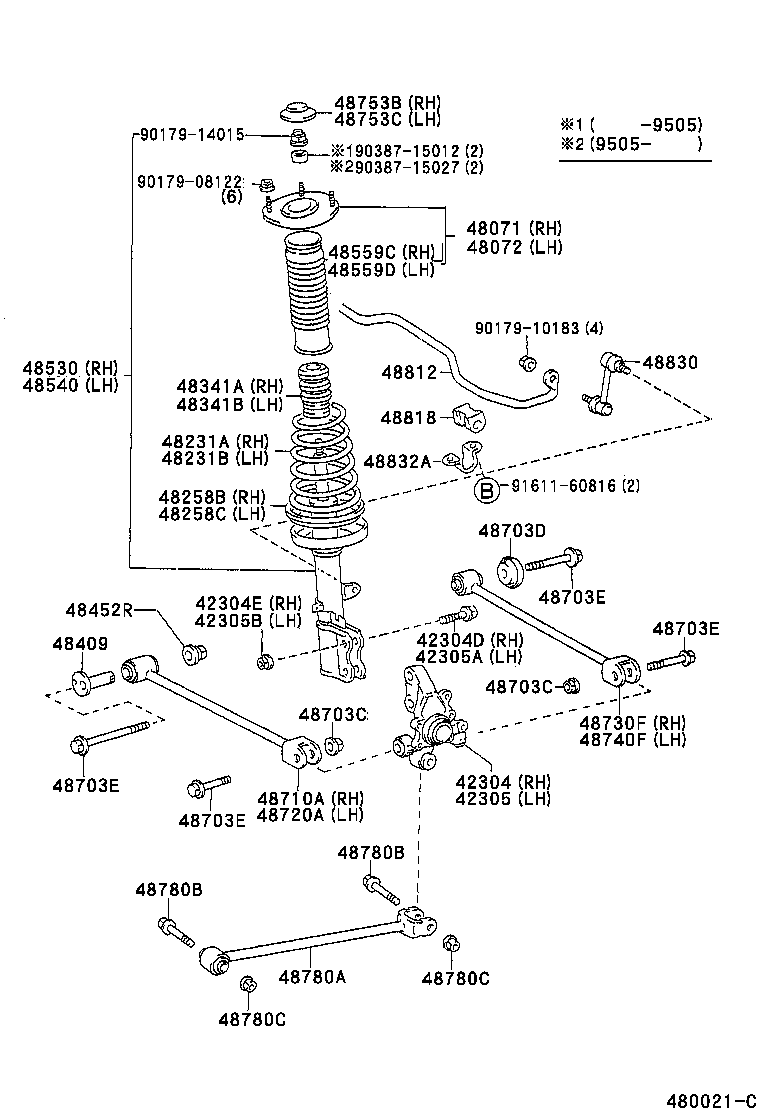

Rear Spring & Shock Absorber

38 part groups · 2 illustrations

PNC	Description
42304	Carrier Sub-assy, Rear Axle, RH
42304D	Bolt (FOR REAR AXLE CARRIER RH)
42304E	Nut (FOR REAR AXLE CARRIER RH)
42305	Carrier Sub-assy, Rear Axle, LH
42305A	Bolt (FOR REAR AXLE CARRIER LH)
42305B	Nut (FOR REAR AXLE CARRIER LH)
48071	Support Sub-assy, Rear Suspension, RH
48072	Support Sub-assy, Rear Suspension, LH
48231A	Spring, Coil, Rear RH
48231B	Spring, Coil, Rear LH
48258B	Insulator, Rear Coil Spring, Lower RH
48258C	Insulator, Rear Coil Spring, Lower LH
48341A	Bumper, Rear Spring, NO.1 RH
48341B	Bumper, Rear Spring, NO.1 LH
48409	Cam Sub-assy, Rear Suspension Toe Adjust
48452R	Plate, Rear Suspension Toe Adjust, NO.2
48530	Absorber Assy, Shock, Rear RH
48540	Absorber Assy, Shock, Rear LH
48559C	Cover, Rear Shock Absorber Dust, RH NO.1
48559D	Cover, Rear Shock Absorber Dust, LH NO.1
48703C	Nut(FOR REAR SUSPENSION ARM)
48703D	Washer(FOR REAR SUSPENSION ARM)
48703E	Bolt(FOR REAR SUSPENSION ARM)
48703J	Washer, NO.2(FOR REAR SUSPENSION ARM)
48710A	Arm Assy, Rear Suspension, NO.1 RH
48720A	Arm Assy, Rear Suspension, NO.1 LH
48725B	Bush, Rear Suspension Arm, NO.1
48730F	Arm Assy, Rear Suspension, NO.2 RH
48740F	Arm Assy, Rear Suspension, NO.2 LH
48753B	Cover, Rear Suspension Supoport, NO.1 RH
48753C	Cover, Rear Suspension Supoport, NO.1 LH
48780A	Rod Assy, Strut, Rear
48780B	Bolt(FOR STRUT ROD)
48780C	Nut(FOR STRUT ROD)
48812	Bar, Stabilizer, Rear
48818	Bush, Stabilizer, Rear
48830	Link Assy, Rear Stabilizer
48832A	Bracket, Rear Stabilizer Bar, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
