Toyota Celica
1993-11 → 1999-08 · chassis AT200,ST20# · catalogue 252570 · Europe
Discontinued model
Data version 2000-03

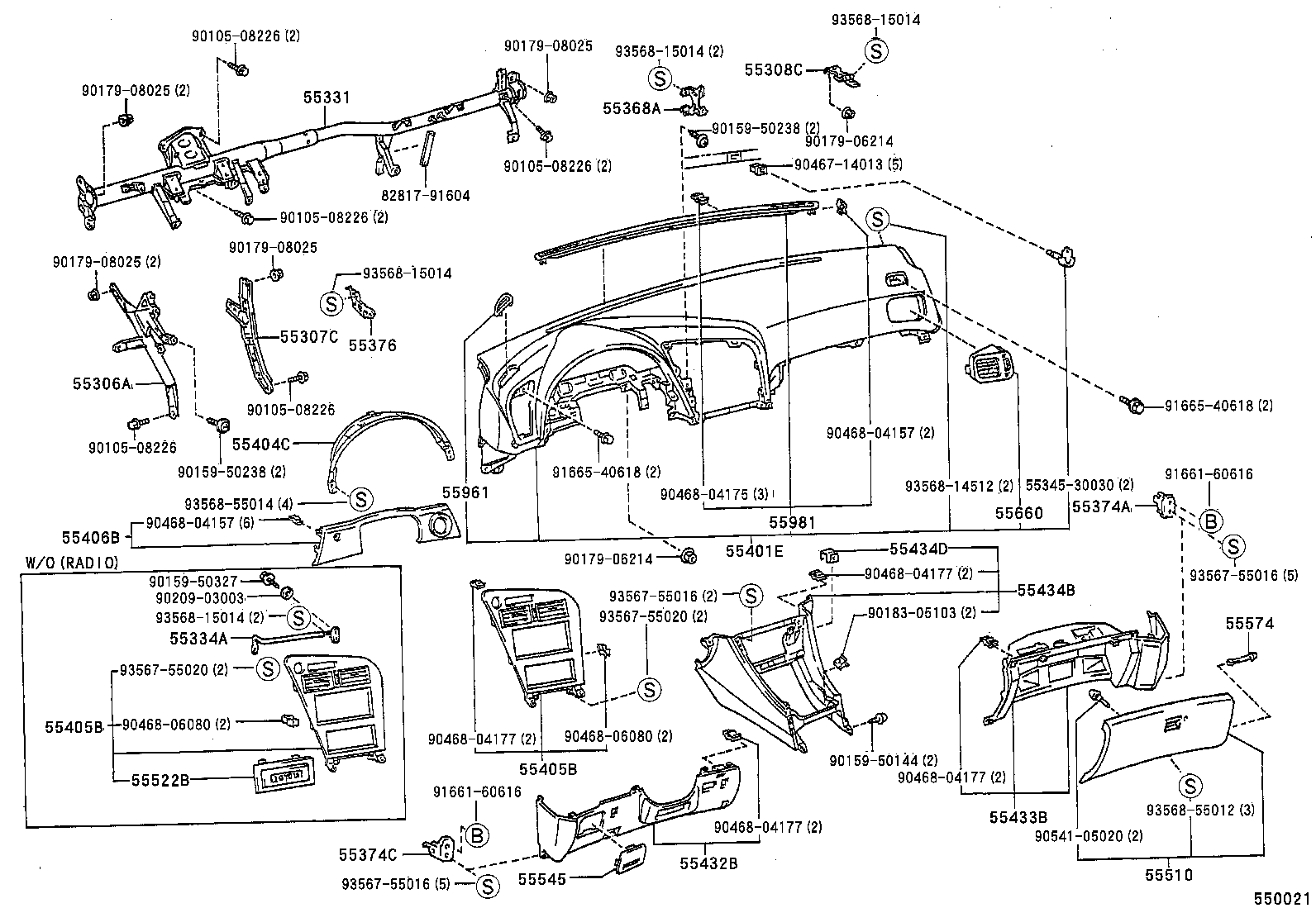

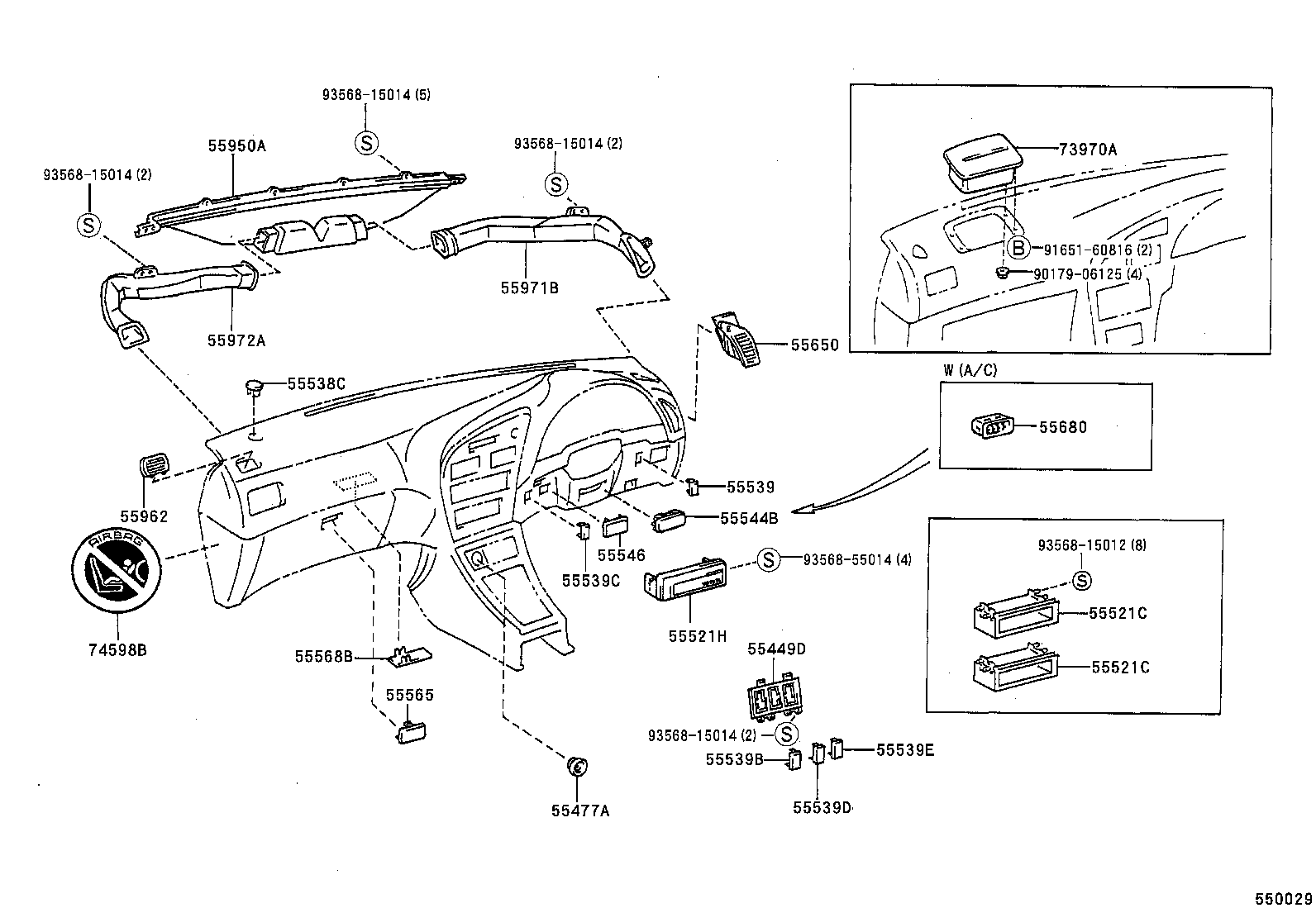

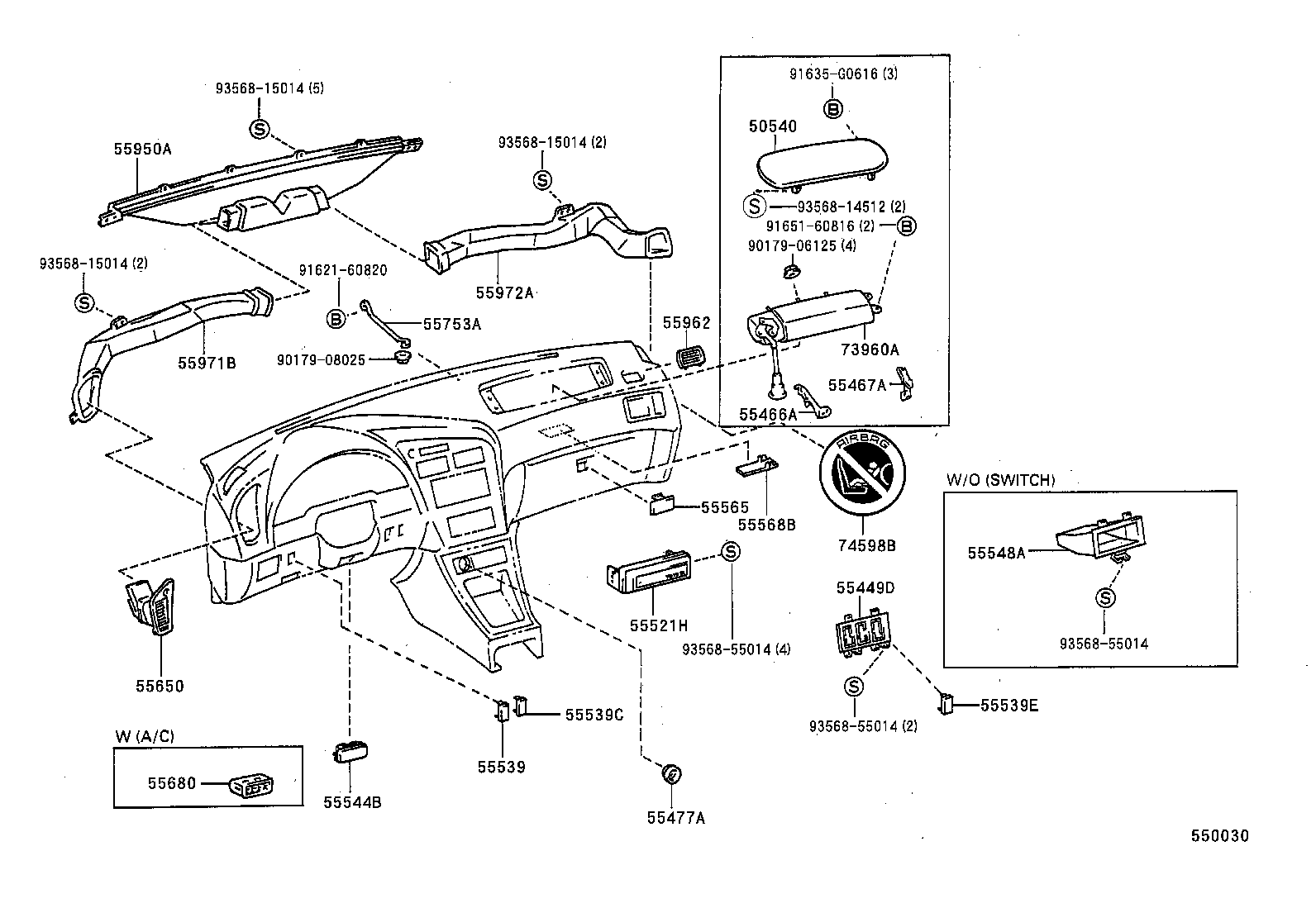

Instrument Panel & Glove Compartment
53 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 50540 | DO0R Assy, Airbag Passenger |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55324B | Bracket, Instrument Panel, NO.4 |
| 55331 | Reinforcement, Instrument Panel |
| 55334A | Reinforcement, Instrument Panel, Upper |
| 55368A | Bracket, Radio Mounting, NO.2 |
| 55374A | Bracket, Instrument Panel Lower Mounting, RH |
| 55374C | Bracket, Instrument Panel Lower Mounting, NO.1 |
| 55376 | Bracket, Instrument Panel Mounting, NO.1 |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55404C | Panel Sub-assy, Instrument Cluster Finish, NO.2 |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55406B | Panel Sub-assy, Instrument Cluster Finish, Lower Center |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55433B | Panel, Instrument Panel Finish, Lower NO.2 |
| 55434B | Panel, Instrument Panel Finish, Lower Center |
| 55434D | Clip, Instrument Panel Finish, Lower Center |
| 55449D | Base, Switch |
| 55466A | Retainer, Instrument Panel Safety Pad |
| 55467A | Retainer, Instrument Panel Safety Pad, NO.2 |
| 55477A | Bezel, Cigarette Lighter Hole |
| 55510 | Door Assy, Glove Compartment |
| 55521C | Cover, Stereo Opening |
| 55521H | Cover Assy, Stereo Opening |
| 55522B | Cover, Radio Tuner Opening |
| 55538C | Cover, Cooler Switch Hole |
| 55539 | Cover, Spare Switch Hole |
| 55539B | Cover, Spare Switch Hole, NO.2 |
| 55539C | Cover, Spare Switch Hole |
| 55539D | Cover, Spare Switch Hole |
| 55539E | Cover, Spare Switch Hole |
| 55544B | Cover, Instrument Panel Lower Register Hole |
| 55545 | Cover, Fuse Box Opening |
| 55546 | Cover, Luggage Compartment Opener Switch Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55565 | Handle, Glove Compartment Door Lock |
| 55568B | Plate, Glove Compartment Door Finish |
| 55574 | Shaft, Glove Compartment Door Hinge |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55680 | Register Assy, Instrument Panel, Lower NO.1 |
| 55753A | Bracket, Instrument Panel TO Cowl |
| 55950A | Nozzle Assy, Defroster |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 55971B | Duct, Side Defroster Nozzle, NO.1 |
| 55972A | Duct, Side Defroster Nozzle, NO.2 |
| 55981 | Garnish, Defroster Nozzle, NO.1 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
| 73970A | Airbag Assy, Instrument Panel Passenger |
| 74598B | Label, Passenger Airbag Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
