Toyota Celica

1993-11 → 1999-08 · chassis AT200,ST20# · catalogue 252570 · Europe

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

14 part groups · 2 illustrations

Illustrations

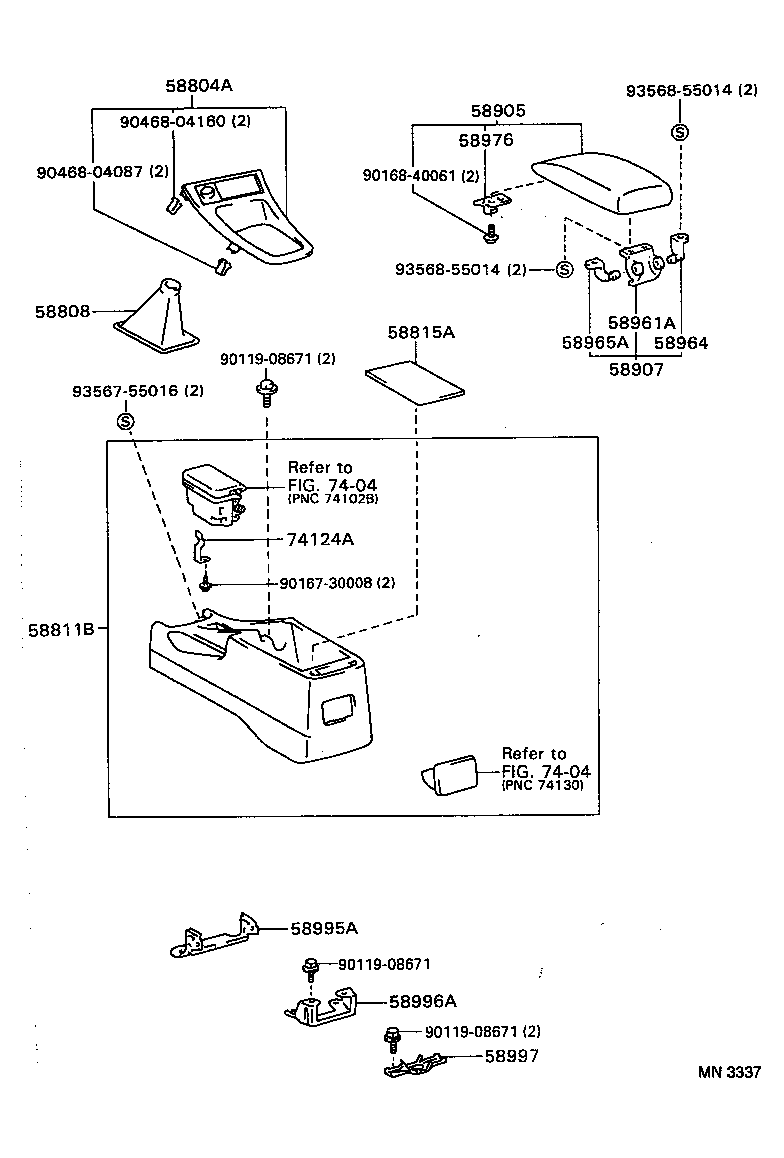

Figure MN2427D MN2427D 1993-11 → — Figure MN3337 MN3337 1993-11 → —

Part groups

PNCDescription
58804A Panel Sub-assy, Console, Upper
58808 Cover Sub-assy, Shifting Hole
58811B Box, Console
58815A Carpet, Console Box
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58961A Hinge, Console Compartment Door Male
58964 Stopper, Console Compartment Door, NO.1
58965A Stopper, Console Compartment Door, NO.2
58976 Striker, Console Compartment Door Lock
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
58997 Bracket, Console Box Mounting, NO.3
74124A Spring, Ash Receptacle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
