Toyota Celica

1993-11 → 1999-08 · chassis AT200,ST20# · catalogue 252570 · Europe

Discontinued model Data version 2000-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

79 part groups · 2 illustrations

Illustrations

610171A 1993-11 → —

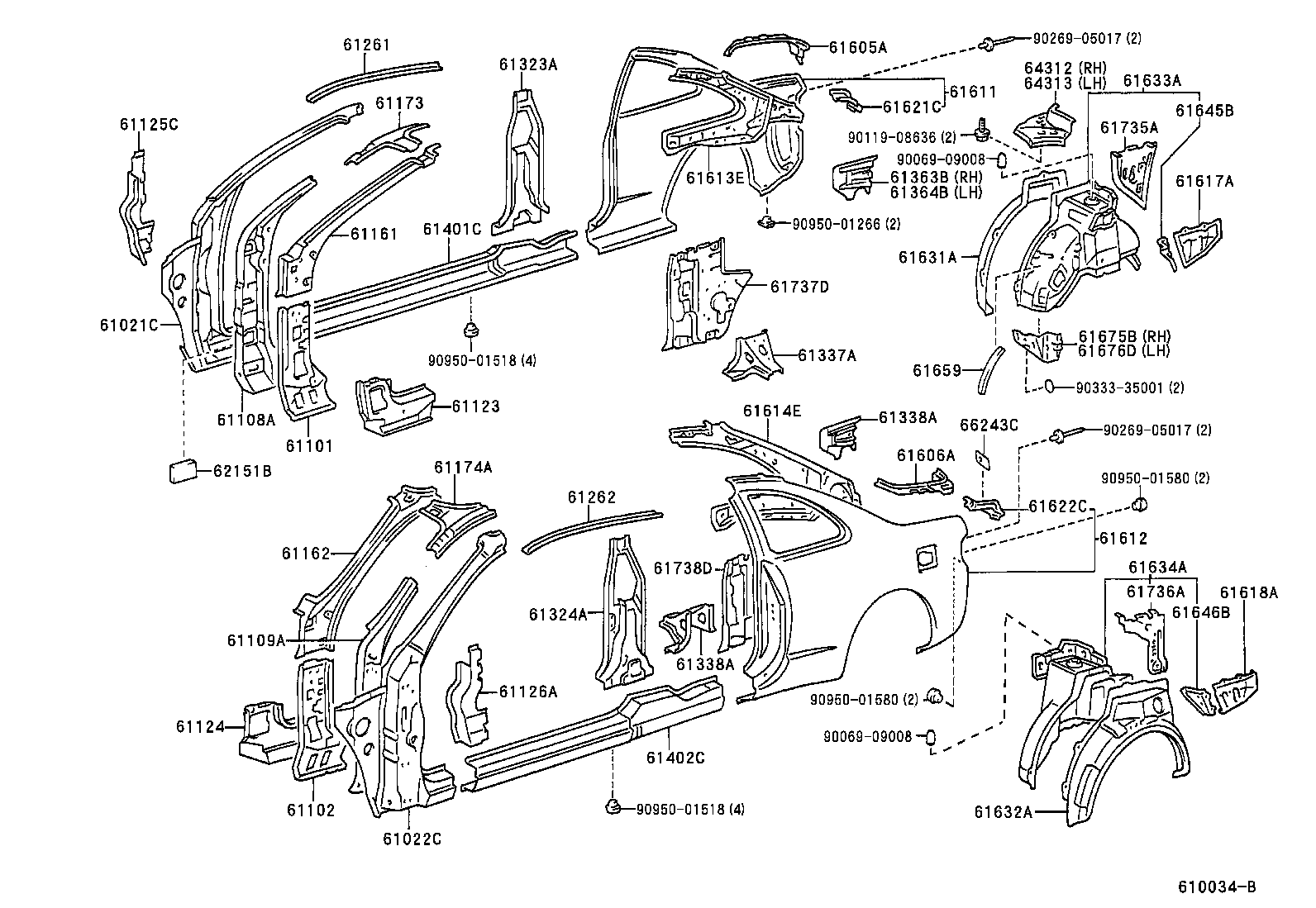

610034B 1994-08 → —

Part groups

PNC	Description
53605A	Brace Sub-assy, Rear Suspension, Upper
61021C	Pillar Sub-assy, Front Body, RH
61022C	Pillar Sub-assy, Front Body, LH
61061	Reinforcement Sub-assy, Wheel House, RH
61062	Reinforcement Sub-assy, Wheel House, LH
61101	Panel Sub-assy, Cowl Side, RH
61102	Panel Sub-assy, Cowl Side, LH
61108A	Reinforce Sub-assy, Front Body Pillar, Lower RH
61109A	Reinforce Sub-assy, Front Body Pillar, Lower LH
61123	Panel, Cowl Side Lower, RH
61124	Panel, Cowl Side Lower, LH
61125C	Reinforcement, Cowl Side Panel, RH
61126A	Reinforcement, Cowl Side Panel, LH
61127B	Reinforcement, Cowl Side Panel, NO.2 RH
61128C	Reinforcement, Cowl Side Panel, NO.2 LH
61161	Pillar, Front Body, Upper Inner RH
61162	Pillar, Front Body, Upper Inner LH
61173	Reinforcement, Front Body Pillar, Upper Inner
61174A	Reinforcement, Front Body Pillar, Upper Inner LH
61211	Rail, Roof Side, Outer RH
61212	Rail, Roof Side, Outer LH
61231	Rail, Roof Side, Inner RH
61232	Rail, Roof Side, Inner LH
61233A	Rail, Roof Side, Inner NO.2 RH
61234A	Rail, Roof Side, Inner NO.2 LH
61261	Channel, Roof Drip, RH
61262	Channel, Roof Drip, LH
61305	Reinforce Sub-assy, Center Body Pillar, Lower RH
61306	Reinforce Sub-assy, Center Body Pillar, Lower LH
61311B	Pillar, Center Body, Outer RH
61312B	Pillar, Center Body, Outer LH
61323A	Reinforcement, Center Body Pillar, Lower RH
61324A	Reinforcement, Center Body Pillar, Lower LH
61337A	Reinforcement, Center Body Pillar, Inner RH
61338A	Reinforcement, Center Body Pillar, Inner LH
61343A	Pillar, Center Body, Inner RH
61344A	Pillar, Center Body, Inner LH
61347A	Reinforcement, Belt Anchor TO Center Pillar, RH
61348A	Reinforcement, Belt Anchor TO Center Pillar, LH
61363B	Reinforcement, Seat Belt Anchor Side, RH
61364B	Reinforcement, Seat Belt Anchor Side, LH
61401C	Panel Sub-assy, Rocker, Outer RH
61402C	Panel Sub-assy, Rocker, Outer LH
61605A	Reinforcement Sub-assy, Quarter Panel, RH
61606A	Reinforcement Sub-assy, Quarter Panel, LH
61611	Panel, Quarter, RH
61612	Panel, Quarter, LH
61613E	Panel, Quarter, Inner RH
61614E	Panel, Quarter, Inner LH
61617A	Panel, Quarter Inner, Rear RH
61618A	Panel, Quarter, Inner Rear LH
61621C	Trough, Luggage Compartment Opening, RH
61622C	Trough, Luggage Compartment Opening, LH
61623B	Trough, Back Door Opening, Rear RH
61624B	Trough, Back Door Opening, Rear LH
61631A	Panel, Quarter Wheel House, Outer RH
61632A	Panel, Quarter Wheel House, Outer LH
61633A	Panel, Quarter Wheel House, Inner RH
61634A	Panel, Quarter Wheel House, Inner LH
61645B	Gusset, Quarter Wheel House, Rear RH
61646B	Gusset, Quarter Wheel House, Rear LH
61659	Housing, Spare Wheel
61675B	Reinforcement, Rear Suspension Spring Support
61676D	Reinforcement, Quarter Wheel House, Inner Rear LH
61735A	Panel, Roof Side, Inner Rear RH
61736A	Panel, Roof Side, Inner Rear LH
61737D	Reinforcement, Roof Side, Inner RH
61738D	Reinforcement, Roof Side, Inner LH
61743A	Reinforcement, Back Door Opening Side, RH
61744A	Reinforcement, Back Door Opening Side, LH
61747	Brace, Roof Side Inner TO Wheel House, RH
61748C	Brace, Roof Side Inner TO Wheel House, LH
61824	Plate, Noise Control, NO.1
61825A	Plate, Noise Control, NO.2
61826A	Plate, Noise Control, NO.3
62151B	Pad, Cowl Side Silencer
64312	Bracket, Package Tray, RH
64313	Bracket, Package Tray, LH
66243C	Protector, Rear Body, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
