Toyota Celica
1993-11 → 1999-08 · chassis AT200,ST20# · catalogue 252570 · Europe
Discontinued model
Data version 2000-03

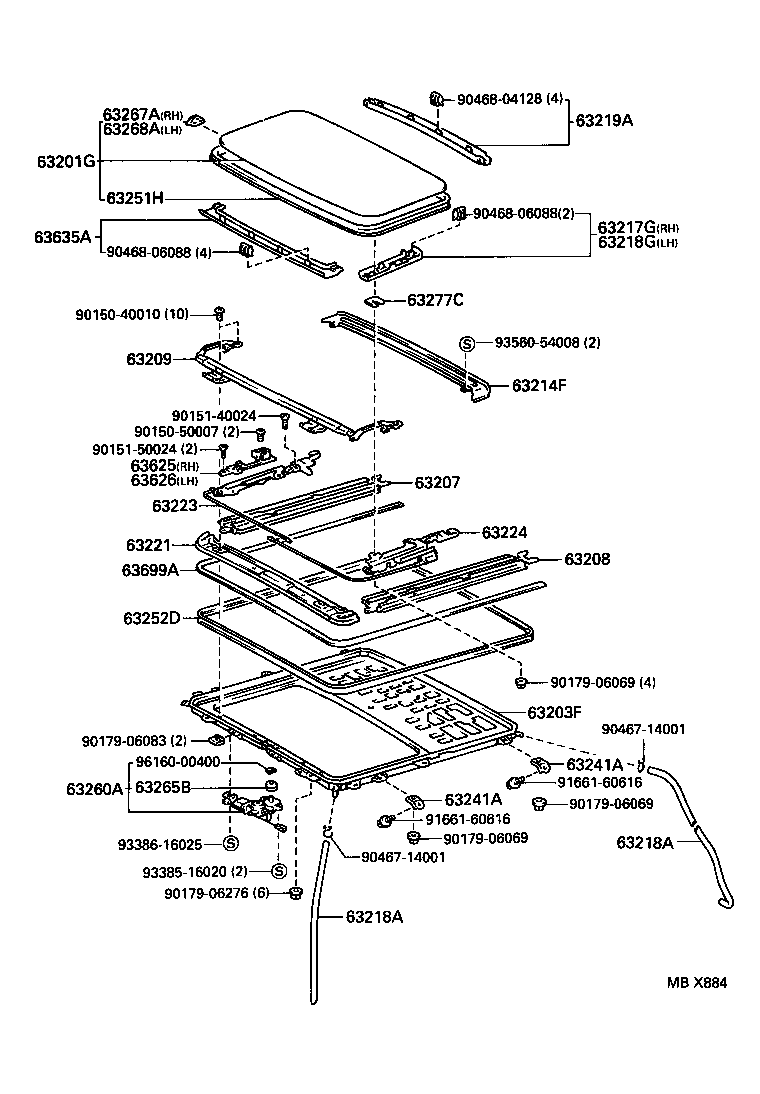

Roof Panel & Back Window Glass
36 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 61281A | Bracket, Sliding Roof Housing Side Mounting, NO.1 |
| 61282A | Bracket, Sliding Roof Housing Side Mounting, NO.2 |
| 61827C | Plate, Noise Control, NO.4 |
| 61838D | Plate, Noise Control, NO.5 |
| 63102A | Panel Sub-assy, Windshield Header |
| 63105A | Frame Sub-assy, Back Door Opening |
| 63111 | Panel, Roof |
| 63141H | Reinforcement, Roof Panel, Center |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63149E | Bracket, Roof Panel Reinforcement, NO.2 |
| 63201G | Glass Sub-assy, Sliding Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63207 | Rail Sub-assy, Sliding Roof Guide, RH |
| 63208 | Rail Sub-assy, Sliding Roof Guide, LH |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63214F | Channel, Roof Drip, Rear |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63218A | Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63219A | Garnish, Sliding Roof, Rear |
| 63221 | Casing, Sliding Roof Cable Guide |
| 63223 | Cable, Sliding Roof Drive, RH |
| 63224 | Cable, Sliding Roof Drive, LH |
| 63241A | Bracket, Sliding Roof Housing Front Mounting, RH |
| 63251H | Weatherstrip, Sliding Roof |
| 63252D | Weatherstrip, Sliding Roof Housing |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63265B | Gear, Sliding Roof Drive |
| 63267A | Protector, Sliding Roof Weatherstrip, RH |
| 63268A | Protector, Sliding Roof Weatherstrip, LH |
| 63277C | Shim, Sliding Roof Panel |
| 63625 | Block, Sliding Roof Guide, RH |
| 63626 | Block, Sliding Roof Guide, LH |
| 63635A | Garnish, Sliding Roof, Front |
| 63699A | Seal, Sliding Roof Guide Rail |
| 64101 | Panel Sub-assy, Upper Back |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
