Toyota Celica
1993-11 → 1999-08 · chassis AT200,ST20# · catalogue 252570 · Europe
Discontinued model
Data version 2000-03

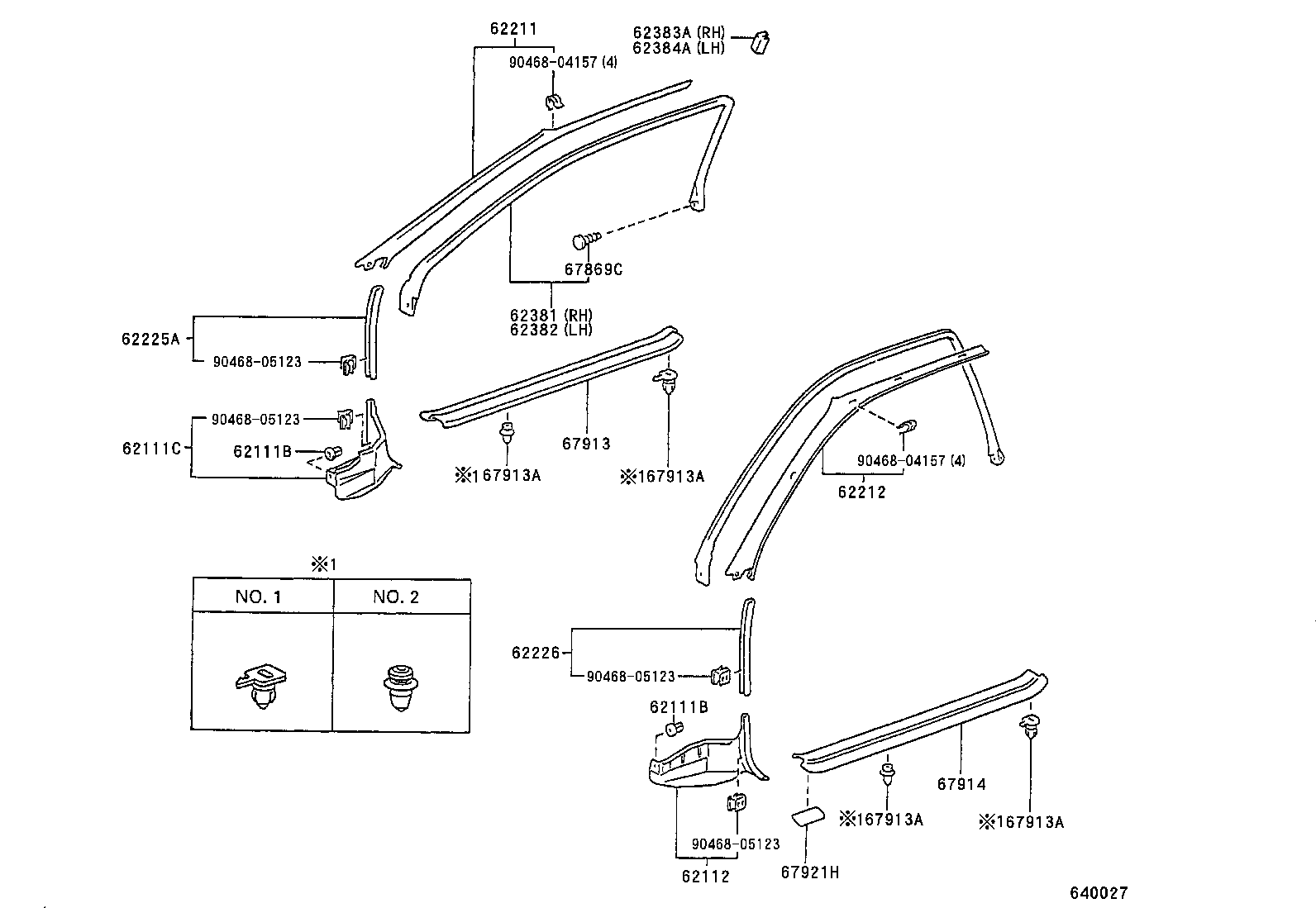

Inside Trim Board & Door Opening Trim Moulding
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62225A | Garnish, Front Pillar, Lower RH |
| 62226 | Garnish, Front Pillar, Lower LH |
| 62381 | Weatherstrip, Roof Side Rail, Front RH |
| 62382 | Weatherstrip, Roof Side Rail, Front LH |
| 62383A | Weatherstrip, Roof Side Rail, Rear RH |
| 62384A | Weatherstrip, Roof Side Rail, Rear LH |
| 62471A | Garnish, Roof Side, Inner RH |
| 62471J | Clip (FOR ROOF SIDE GARNISH) |
| 62472A | Garnish, Roof Side, Inner LH |
| 62510P | Panel Assy, Quarter Trim, Front RH |
| 62511F | Retainer (FOR QUARTER INSIDE TRIM BOARD) |
| 62520P | Panel Assy, Quarter Trim, Front LH |
| 64033D | Grille Sub-assy, Rear Speaker, RH |
| 64034D | Grille Sub-assy, Rear Speaker, LH |
| 67869C | Clip, Roof Side Rail Weatherstrip |
| 67913 | Plate, Front Door Scuff, RH |
| 67913A | Clip(FOR SCUFF PLATE) |
| 67914 | Plate, Front Door Scuff, LH |
| 67921H | Pad, Front Door Scuff Plate |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
