Toyota Celica

1993-11 → 1999-08 · chassis AT200,ST20# · catalogue 252570 · Europe

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

13 part groups · 2 illustrations

Illustrations

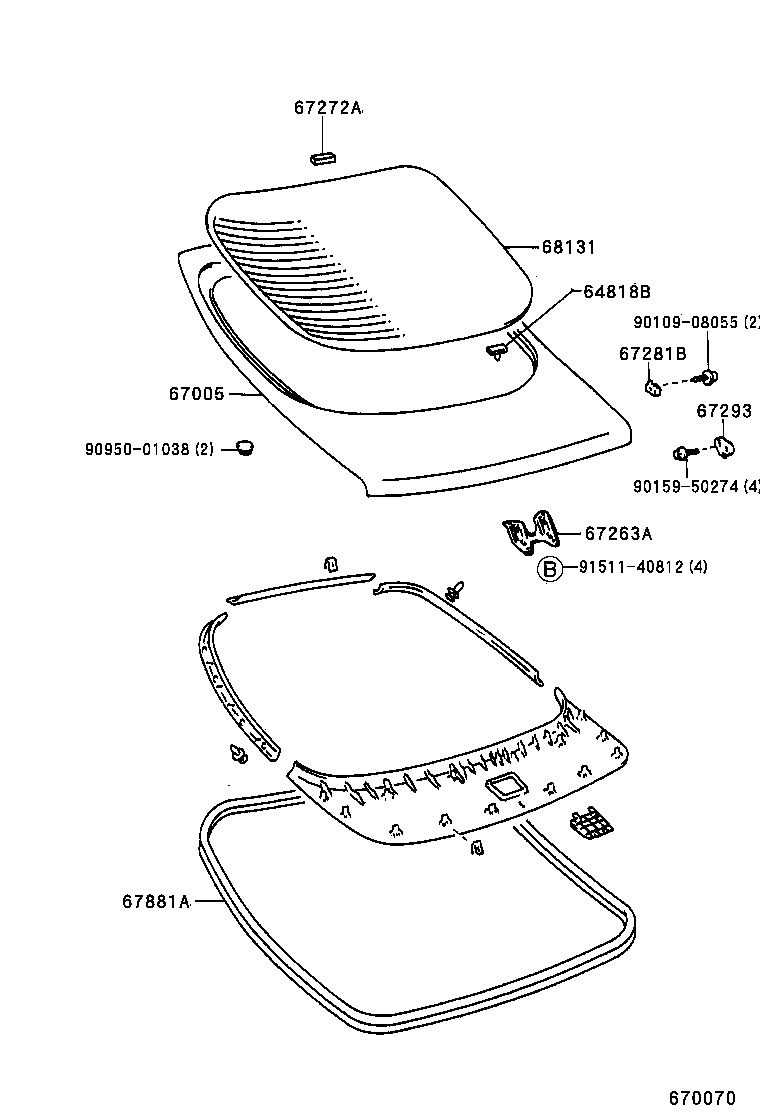

Figure 670062 670062 1993-11 → — Figure 670070 670070 1993-11 → —

Part groups

PNCDescription
64333C Cover, Package Tray Trim Side
64791C Cover, Back Door Trim, RH
64792 Cover, Back Door Trim, LH
64818B Spacer, Back Door Glass, NO.1
67005 Panel Sub-assy, Back Door
67263A Plate, Back Door Reinforcement, NO.2 RH
67272A Cushion, Back Door Stopper, NO.2
67281B Stopper, Back Door, Lower
67293 Cushion, Back Door Lower Stopper
67750 Board Assy, Back Door Trim
67759 Board, Back Door Trim, Upper
67881A Weatherstrip, Back Door
68131 Glass, Back Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
