Toyota Celica

1993-11 → 1999-08 · chassis AT200,ST20# · catalogue 252570 · Europe

Discontinued model Data version 2000-03

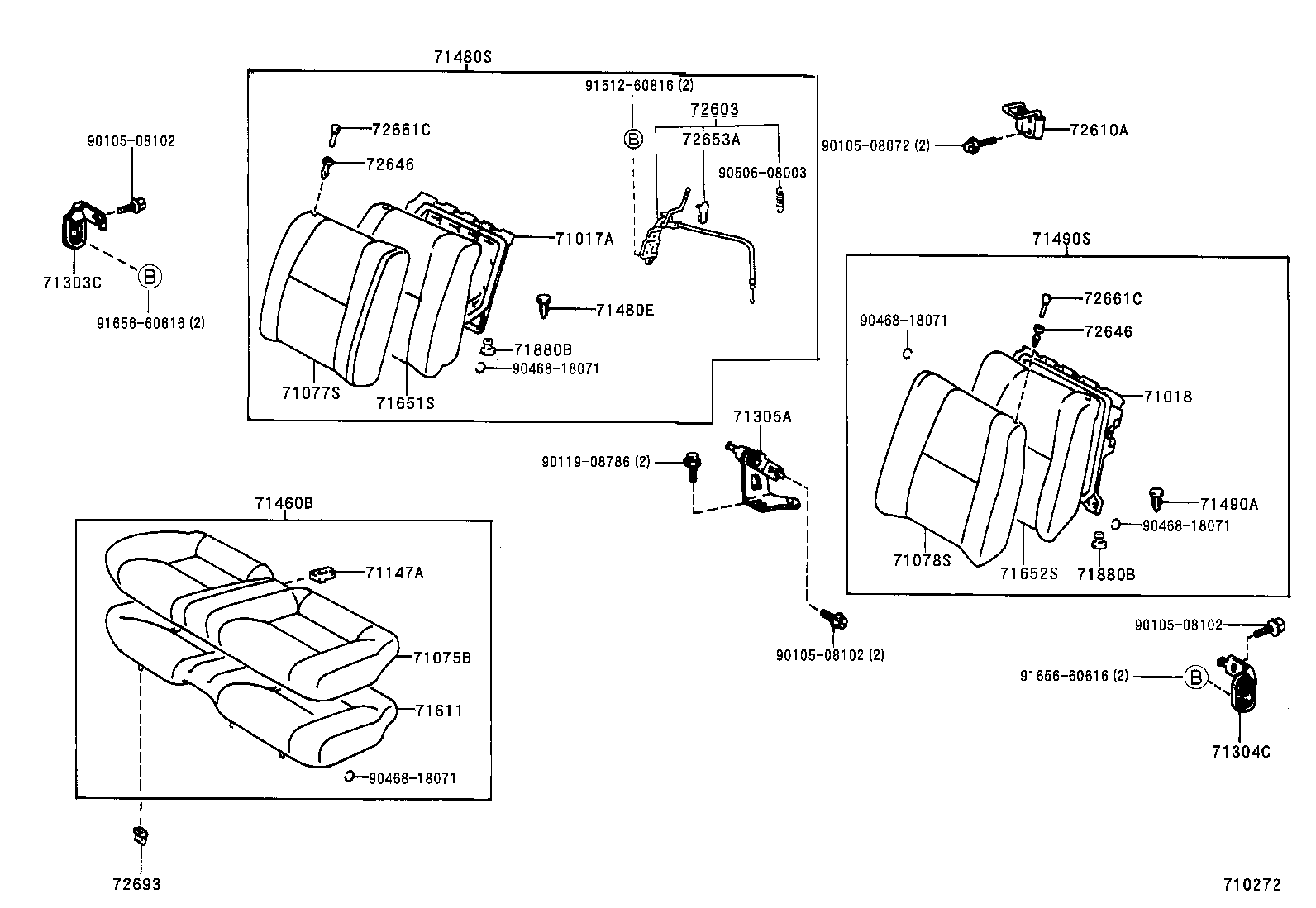

Rear Seat & Seat Track

36 part groups · 3 illustrations

PNC	Description
64793B	Retainer, Tarpaulin Storage Cover
71015	Frame Sub-assy, Rear Seat Cushion
71017A	Frame Sub-assy, Rear Seatback
71018	Frame Sub-assy, Rear Seatback, LH
71075B	Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B	Cover, Rear Seatback (FOR BENCH TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71147A	Silencer, Rear Seat Spring
71202B	Panel, Rear Seatback
71303C	Hinge Sub-assy, Rear Seatback, RH
71304C	Hinge Sub-assy, Rear Seatback, LH
71305A	Hinge Sub-assy, Rear Seatback, Center
71460B	Cushion Assy, Rear Seat (FOR BENCH TYPE)
71480B	Back Assy, Rear Seat (FOR BENCH TYPE)
71480E	Clip, Rear Seatback, RH
71480S	Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490A	Clip, Rear Seatback, LH
71490S	Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71611	Pad, Rear Seat Cushion
71651B	Pad, Rear Seatback(FOR BENCH TYPE)
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71880A	Carpet Assy, Rear Seatback Board, RH
71880B	Clip(FOR REAR SEATBACK CARPET)
71890A	Carpet Assy, Rear Seatback Board, LH
72067	Lever Sub-assy, Rear Back Lock Control, RH
72068	Lever Sub-assy, Rear Back Lock Control, LH
72603	Lock Sub-assy, Rear Seatback, RH
72604	Lock Sub-assy, Rear Seatback, LH
72610A	Striker Assy, Rear Seatback Lock
72646	Grommet, Rear Seatback Stop Button
72653A	Snap, Rear Seatback Lock Rod
72661C	Button, Rear Seatback Lock Release
72679	Bezel, Rear Seatback Lock Control
72693	Hook, Rear Seat Cushion Lock

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
