Toyota Celica

1993-11 → 1999-08 · chassis AT200,ST20# · catalogue 252570 · Europe

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

13 part groups · 2 illustrations

Illustrations

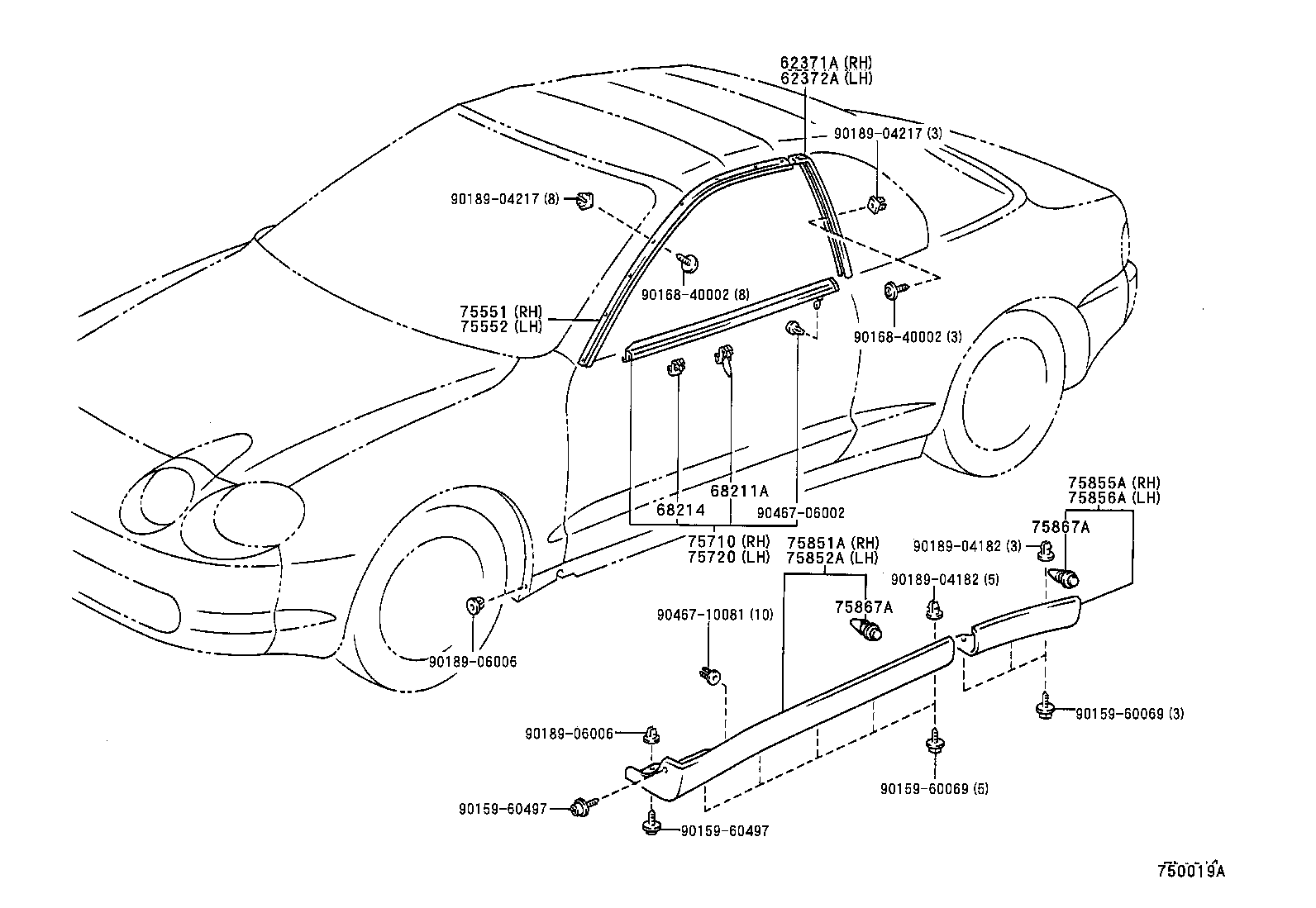

Figure MBX763 MBX763 1993-11 → — Figure 750019A 750019A 1994-08 → —

Part groups

PNCDescription
62371A Retainer, Roof Side Rail Weather Strip, Rear RH
62372A Retainer, Roof Side Rail Weather Strip, Rear LH
68211A Clip, Door Belt Moulding
68214 Clip, Door Belt Moulding
75551 Moulding, Roof Drip Side Finish, RH
75552 Moulding, Roof Drip Side Finish, LH
75710 Moulding Assy, Front Door Belt, RH
75720 Moulding Assy, Front Door Belt, LH
75851A Moulding, Rocker Panel, Front RH
75852A Moulding, Rocker Panel, Front LH
75855A Moulding, Rocker Panel, Rear RH
75856A Moulding, Rocker Panel, Rear LH
75867A Clip, Rocker Panel Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
