Toyota Celica
1993-11 → 1999-08 · chassis AT200,ST20# · catalogue 252570 · Europe
Discontinued model
Data version 2000-03

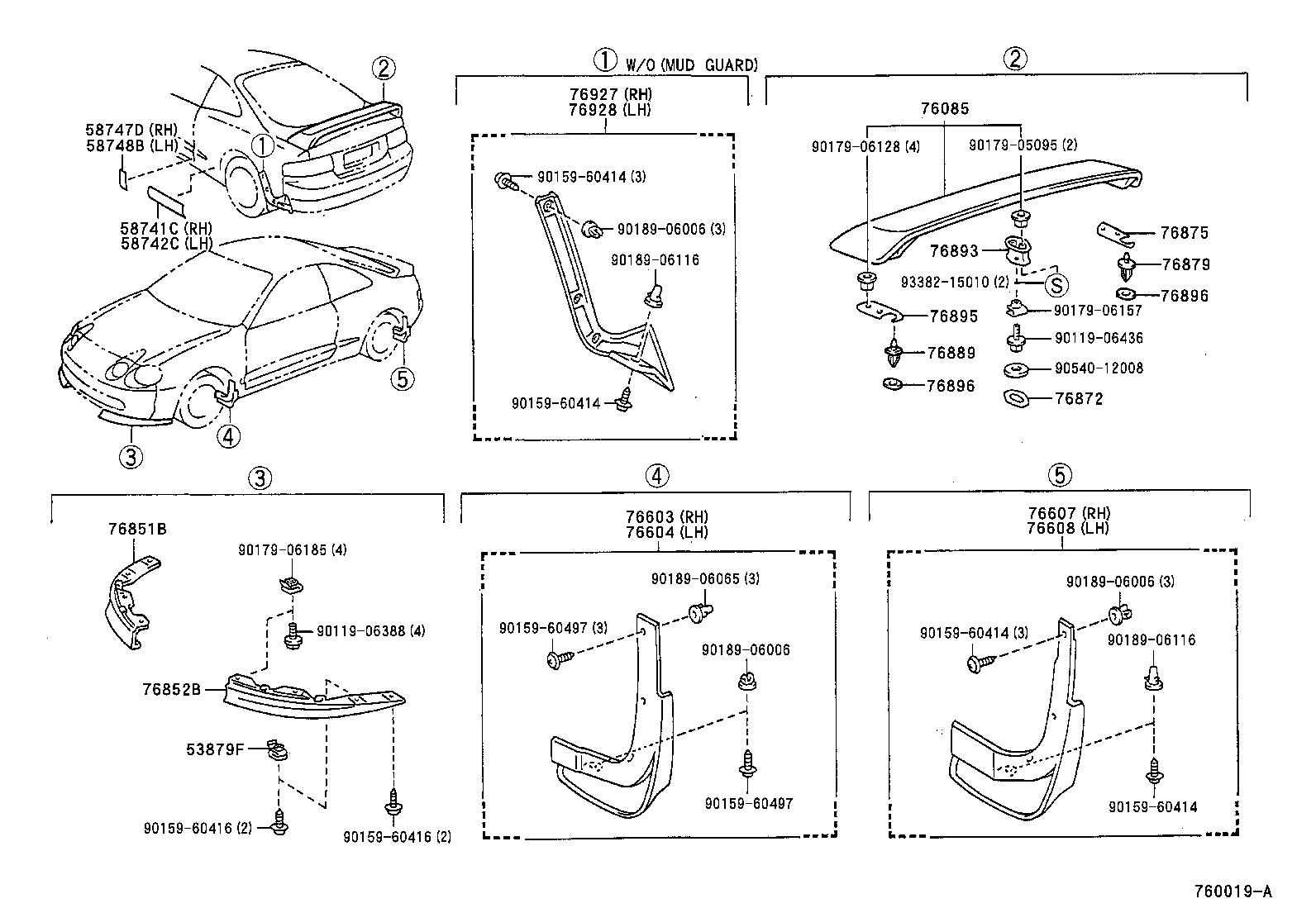

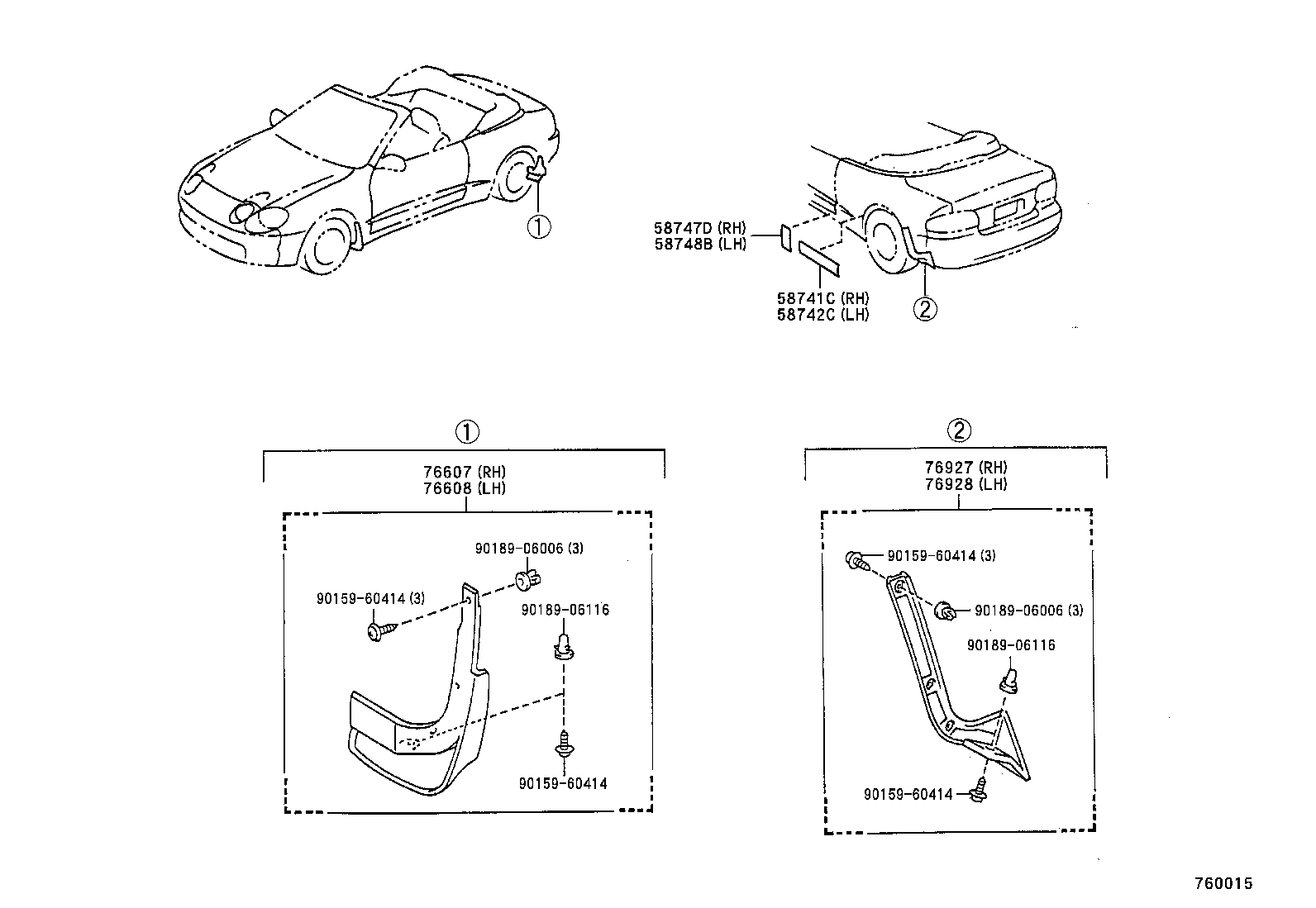

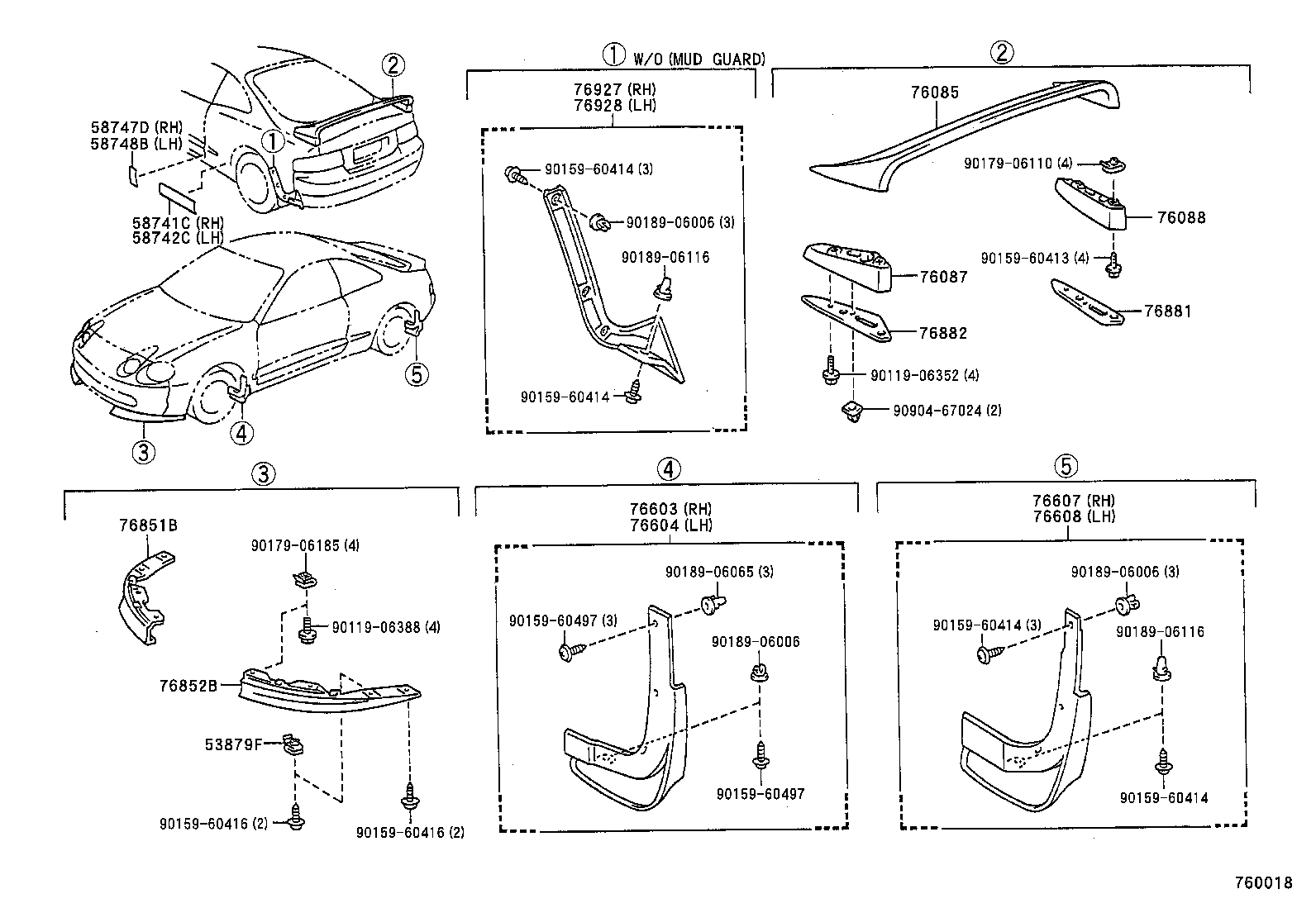

Mudguard & Spoiler
33 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 53879F | Retainer, Front Fender Liner |
| 58741C | Protector, Quarter Panel, RH |
| 58742C | Protector, Quarter Panel, LH |
| 58747D | Protector, Quarter Panel, Rear RH |
| 58748B | Protector, Quarter Panel, Rear LH |
| 76085 | Spoiler Sub-assy, Rear |
| 76087 | Spoiler Sub-assy, Rear NO.1 |
| 76088 | Spoiler Sub-assy, Rear NO.2 |
| 76603 | Mudguard Sub-assy, Front Fender, RH |
| 76604 | Mudguard Sub-assy, Front Fender, LH |
| 76607 | Mudguard Sub-assy, Quarter Panel, Rear RH |
| 76608 | Mudguard Sub-assy, Quarter Panel, Rear LH |
| 76851B | Spoiler, Front, RH |
| 76852B | Spoiler, Front, LH |
| 76865A | Retainer, Side Mudguard |
| 76872 | Protector, Rear Spoiler, NO.1 |
| 76875 | Protector, Rear Spoiler, NO.4 |
| 76879 | Clip, Rear Spoiler, NO.1 |
| 76881 | Protector, Rear Spoiler Side, NO.1 RH |
| 76882 | Protector, Rear Spoiler Side, NO.1 LH |
| 76889 | Clip, Rear Spoiler, NO.2 |
| 76893 | Cover, Rear Spoiler, NO.1 |
| 76895 | Protector, Rear Spoiler, NO.5 |
| 76896 | Protector, Rear Spoiler, NO.6 |
| 76901 | Mudguard Sub-assy, Side, RH |
| 76902 | Mudguard Sub-assy, Side, LH |
| 76922D | Protector, Side Mudguard, NO.2 |
| 76925D | Protector, Side Mudguard, RH |
| 76926D | Protector, Side Mudguard, LH |
| 76927 | Protecter, Rear Mudguard, RH |
| 76927A | Protector, Side Mudguard, Rear RH |
| 76928 | Protecter, Rear Mudguard, LH |
| 76928A | Protector, Side Mudguard, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
