Toyota Celica

1993-11 → 1999-08 · chassis AT200,ST20# · catalogue 252570 · Europe

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

12 part groups · 15 illustrations

Illustrations

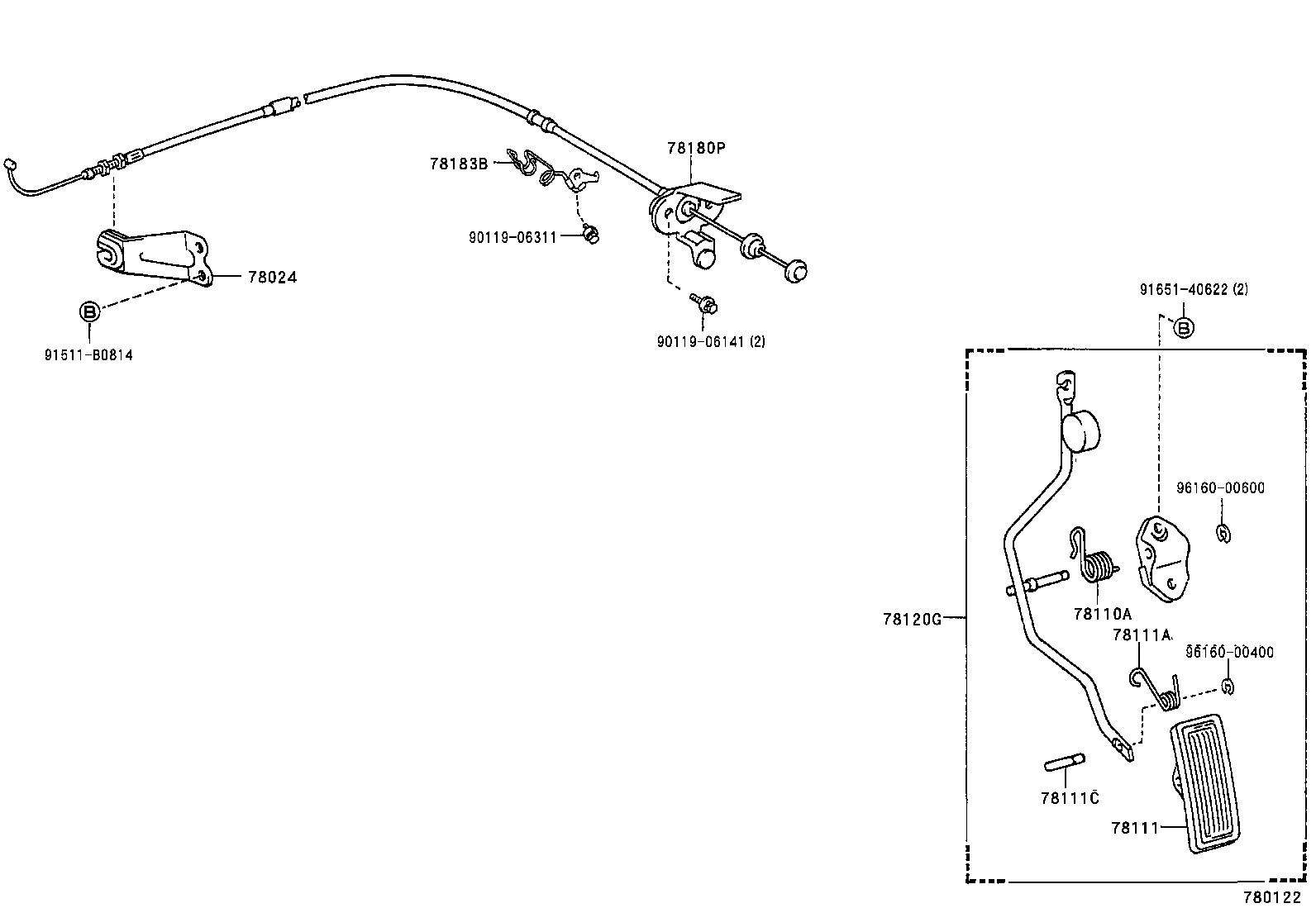

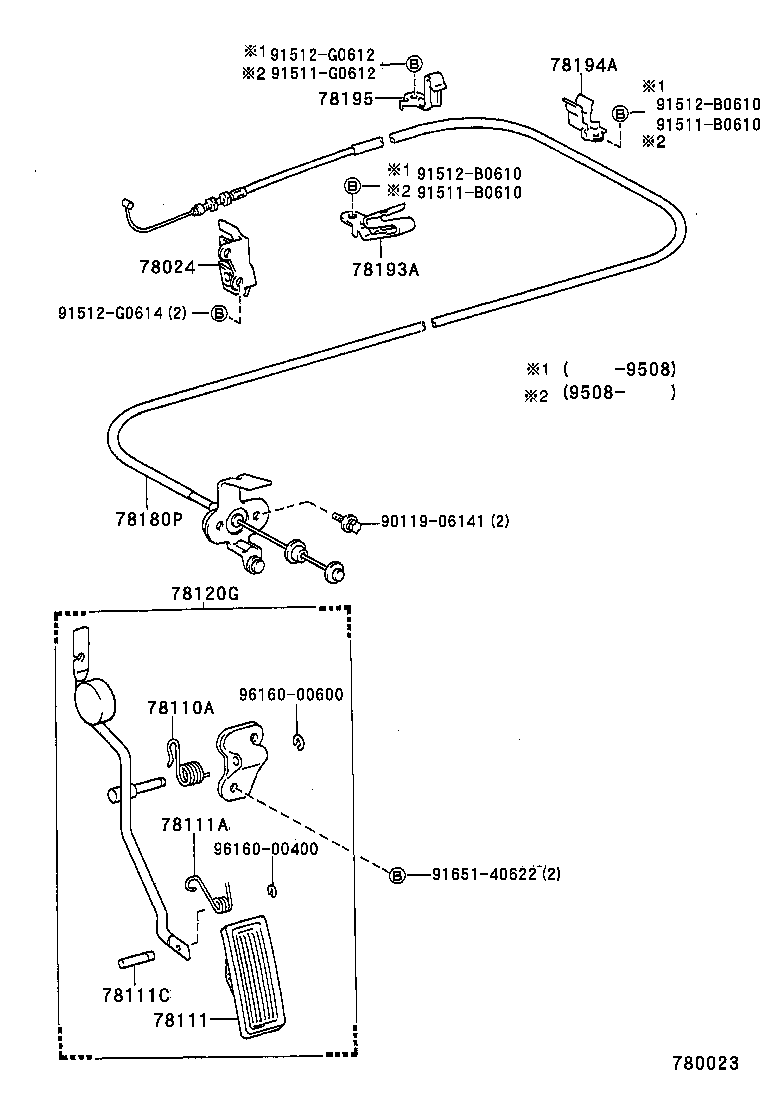

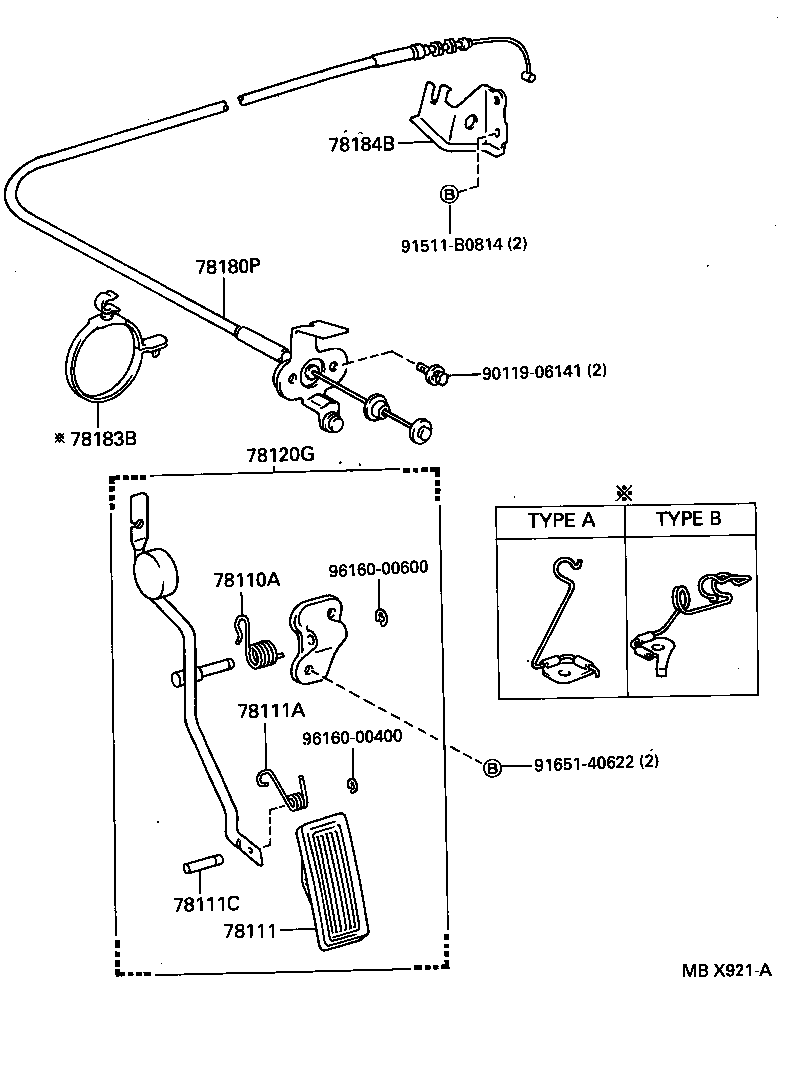

Figure 780071A 780071A 1993-11 → 1995-08 Figure 780071A 780071A 1994-08 → 1995-12 Figure 780023 780023 1993-11 → 1995-08 Figure 780023 780023 1995-08 → 1995-12 Figure MBX921A MBX921A 1993-11 → 1995-08 Figure MBY021 MBY021 1994-02 → 1995-08 Figure 780122 780122 1994-02 → 1995-08 Figure MBZ709 MBZ709 1995-08 → — Figure 780125 780125 1995-08 → — Figure 780024 780024 1995-08 → — Figure 780024 780024 1995-12 → — Figure 780025A 780025A 1995-08 → — Figure 780025A 780025A 1995-12 → — Figure MBZ712 MBZ712 1995-08 → 1996-06 Figure 780124 780124 1995-08 → 1996-06

Part groups

PNCDescription
78024 Bracket Sub-assy, Accelerator Control Cable
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78111 Pedal, Accelerator
78111A Spring (FOR ACCELERATOR PEDAL)
78111C Pin (FOR ACCELERATOR PEDAL)
78120G Rod Assy, Accelerator Pedal
78180P Cable Assy, Accelerator Control
78183B Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78193A Support, Accelerator Control Cable, NO.3
78194A Support, Accelerator Control Cable, NO.4
78195 Bracket, Accelerator Link
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
