Toyota Celica

1993-11 → 1999-08 · chassis AT200,ST20# · catalogue 252570 · Europe

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Convertible Parts

127 part groups · 16 illustrations

Illustrations

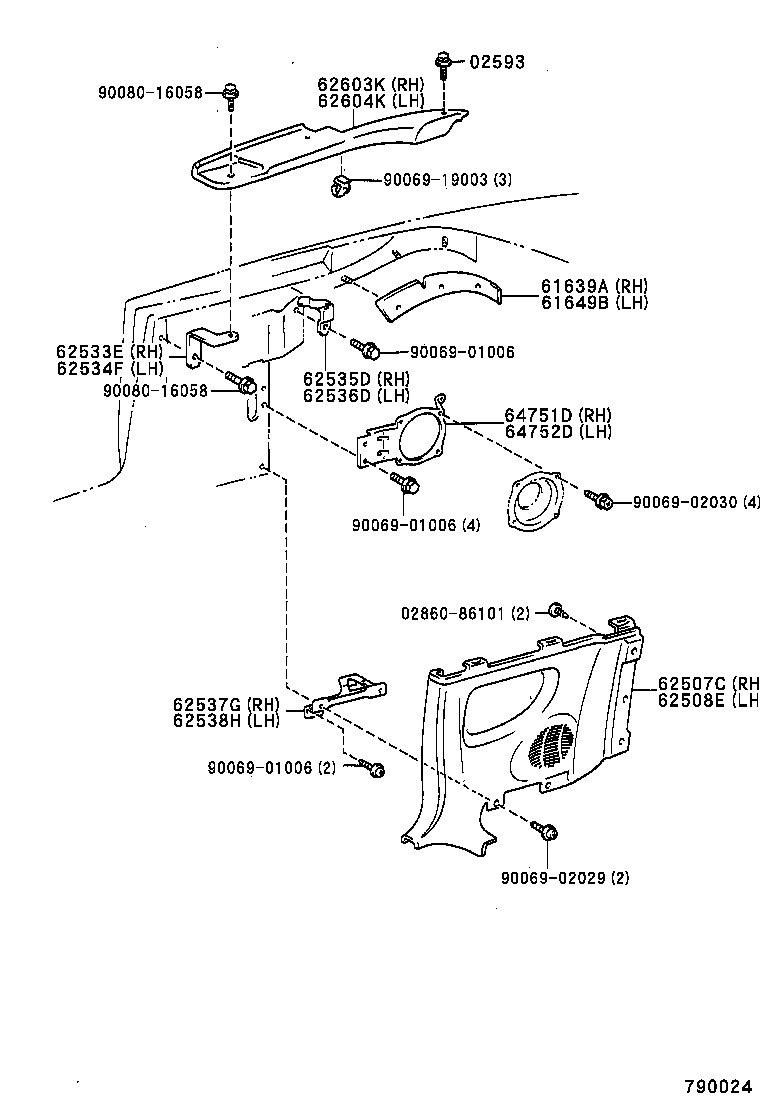

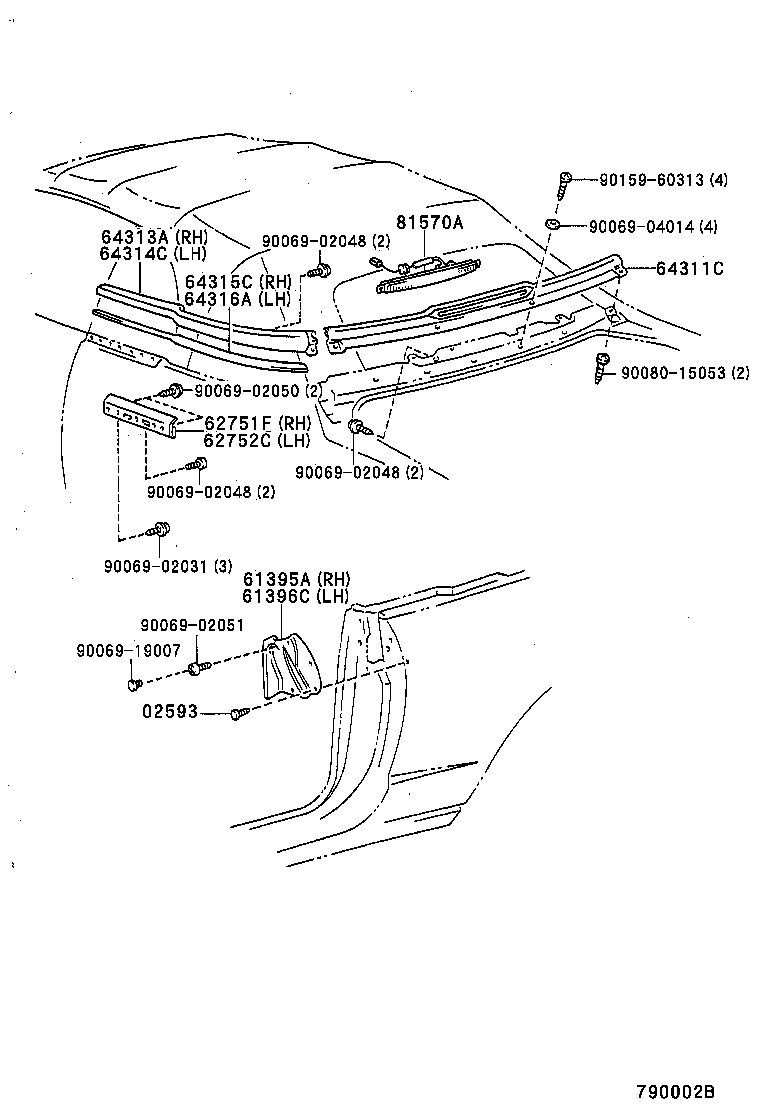

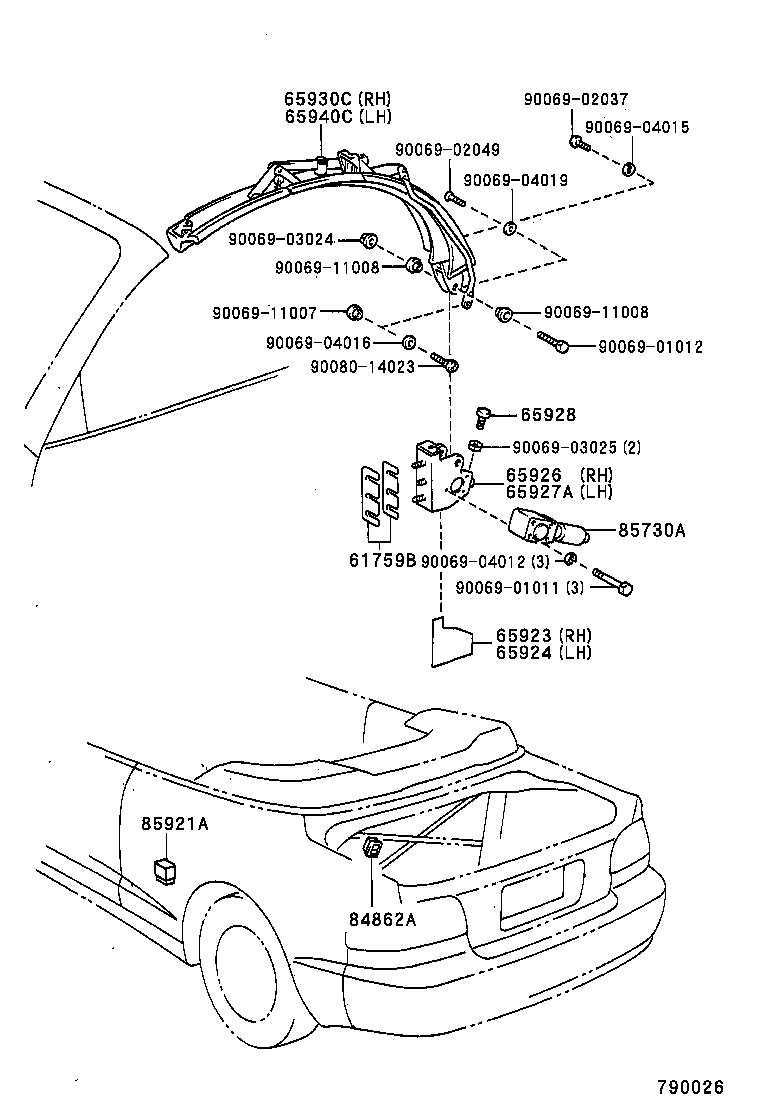

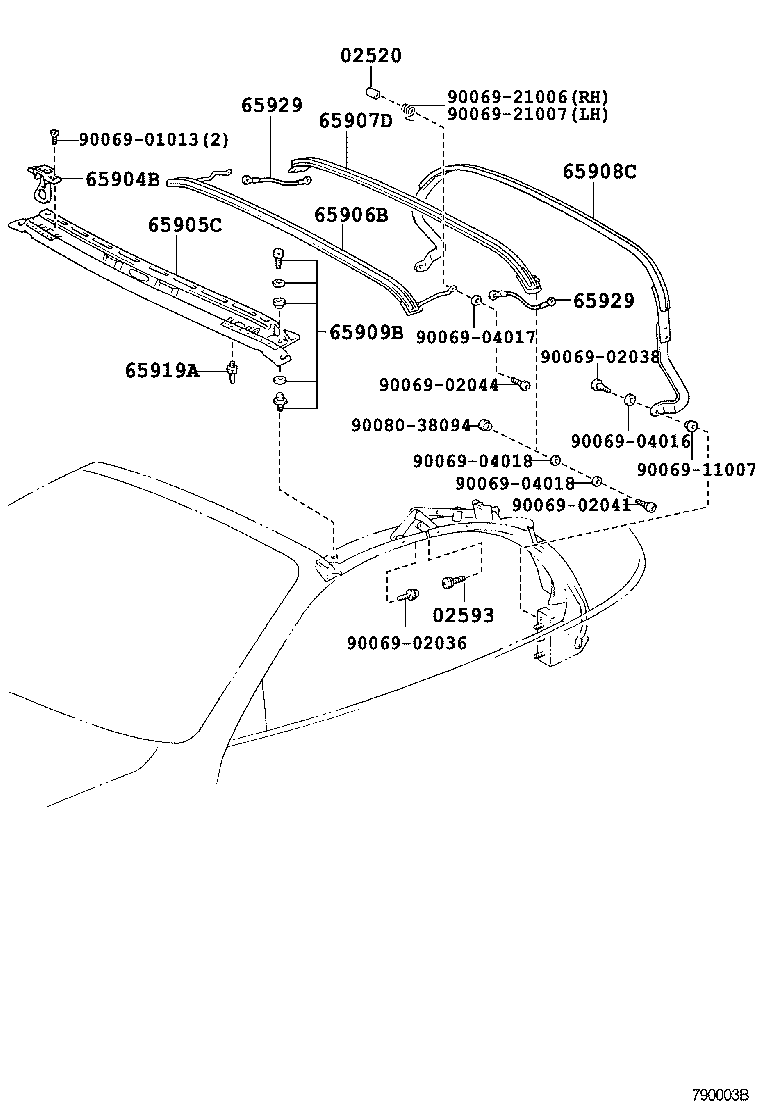

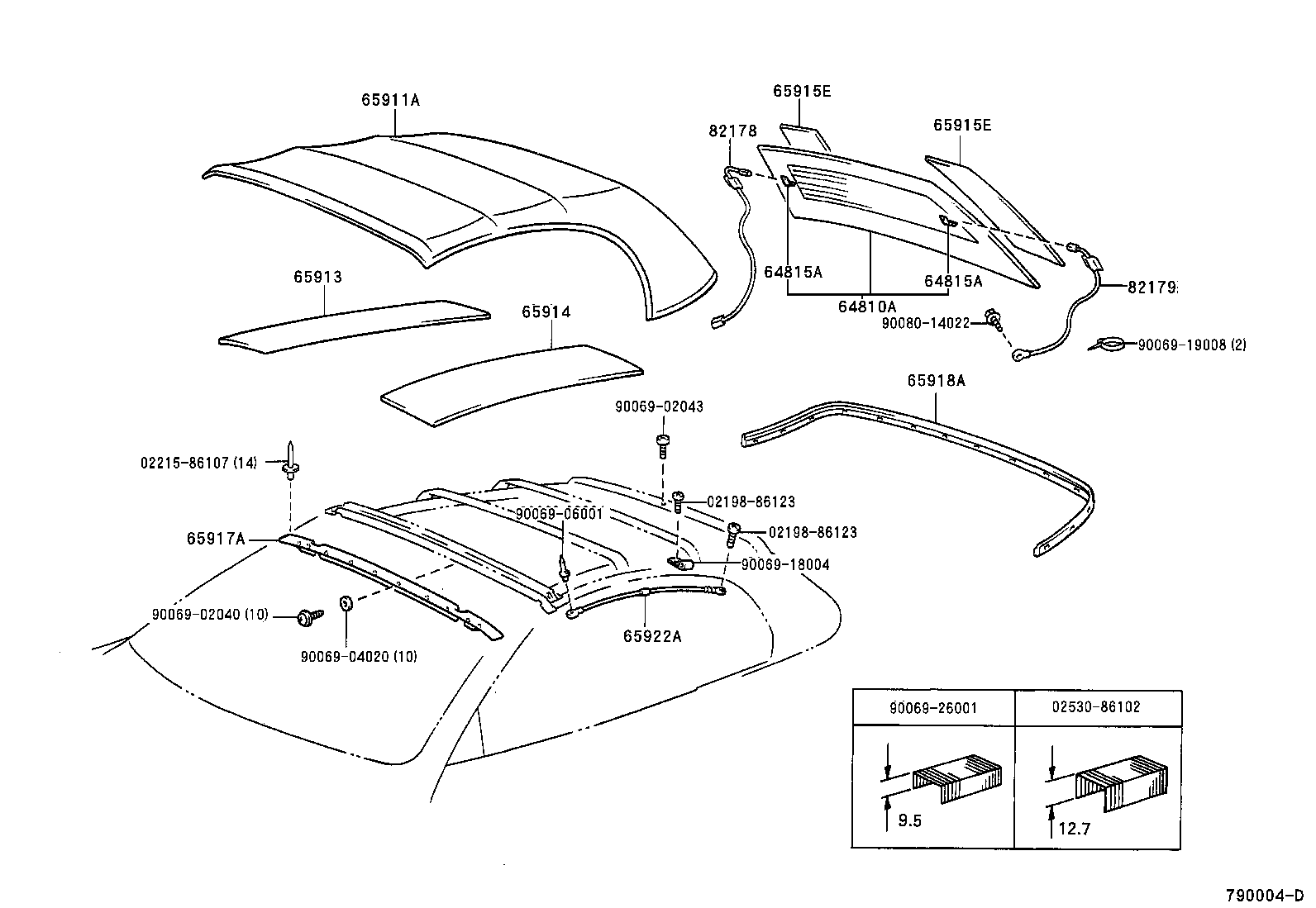

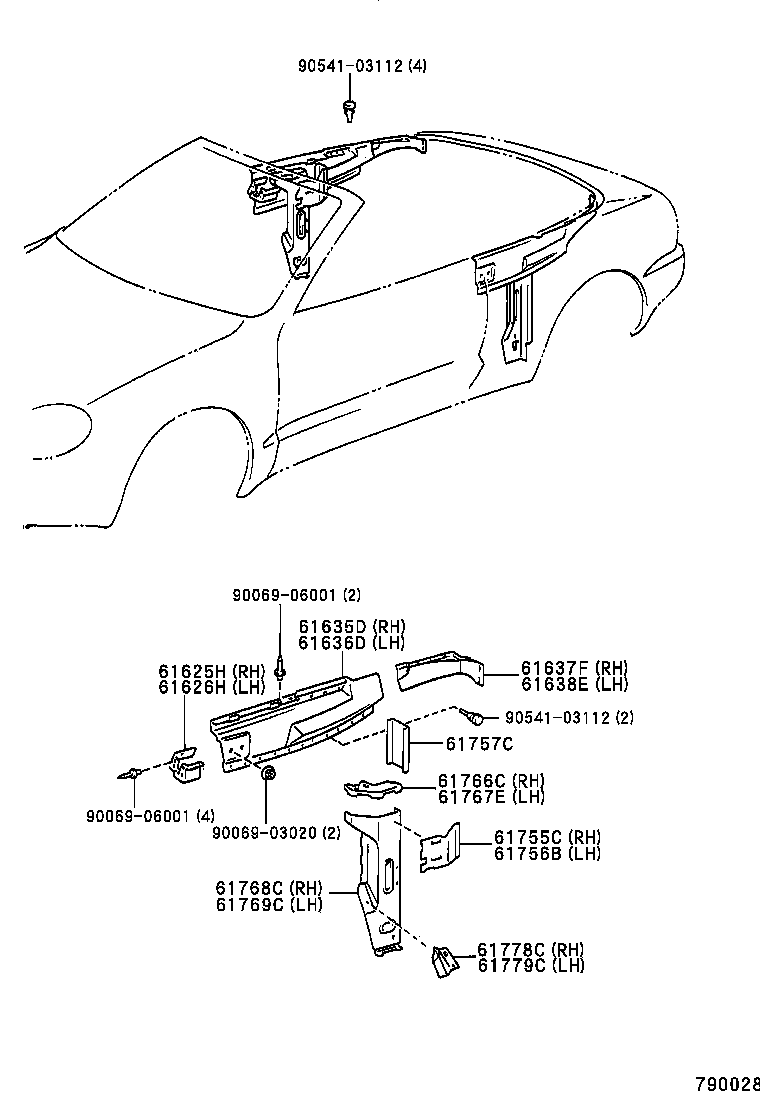

Figure 790027 790027 1994-08 → — Figure 790028 790028 1994-08 → — Figure 790001 790001 1994-08 → — Figure MBY312A MBY312A 1994-08 → — Figure 790032 790032 1994-08 → — Figure 790009B 790009B 1994-08 → — Figure 790008B 790008B 1994-08 → — Figure 790007B 790007B 1994-08 → — Figure 790006A 790006A 1994-08 → — Figure 790002B 790002B 1994-08 → — Figure 790004D 790004D 1994-08 → — Figure 790024 790024 1994-08 → — Figure 790030 790030 1994-08 → — Figure MBY566A MBY566A 1994-08 → — Figure 790026 790026 1994-08 → — Figure 790003B 790003B 1994-08 → —

Part groups

PNCDescription
02193 Stud
02520 Bush
02593 Retainer, Front Header
53605B Brace Sub-assy, Rear Suspension
61087 Brace Sub-assy, Rear Seatback Side Mounting, RH
61088 Brace Sub-assy, Rear Seatback Side Mounting, LH
61395A Dust Proof, Center Pillar, RH
61396C Dust Proof, Center Pillar, LH
61601C Trough Set, Tarpaulin Front Rail, NO.1 RH
61625H Bracket, Quarter Panel Reinforcement, RH
61626H Bracket, Quarter Panel Reinforcement, LH
61635D Reinforcement, Quarter Panel, Upper RH
61636D Reinforcement, Quarter Panel, Upper LH
61637F Reinforcement, Quarter Panel, Upper RH NO.2
61638E Reinforcement, Quarter Panel, Upper LH NO.2
61639A Cover, Quarter Panel Reinforcement, RH
61649B Cover, Quarter Panel Reinforcement, LH
61687E Bracket, Rear Seatback Side Mounting, NO.1 RH
61689C Reinforcement, Rear Seatback Side Mounting Brace
61755C Plate, Pivot Mounting Support, RH
61756B Plate, Pivot Mounting Support, LH
61757C Support, Pivot Mounting, RH
61759B Shim, Pivot Mounting Support
61766C Reinforce, Belt Anchor TO Quarter, Inner NO.1 RH
61767E Reinforce, Belt Anchor TO Quarter, Inner NO.1 LH
61768C Reinforce, Belt Anchor TO Quarter, Inner NO.2 RH
61769C Reinforce, Belt Anchor TO Quarter, Inner NO.2 LH
61778C Bracket, Belt Anchor TO Quarter Reinforcement, RH
61779C Bracket, Belt Anchor TO Quarter Reinforcement, LH
62211S Garnish Assy, Front Pillar, RH
62212A Garnish Assy, Front Pillar, LH
62365B Retainer, Convertible Roof Weatherstrip
62507C Panel Sub-assy, Quarter Trim, RH
62508E Panel Sub-assy, Quarter Trim, LH
62533E Bracket, Quarter Trim Panel, NO.1 RH
62534F Bracket, Quarter Trim Panel, NO.1 LH
62535D Bracket, Quarter Trim Panel, NO.2
62536D Bracket, Quarter Trim Panel, NO.2 LH
62537G Bracket, Quarter Trim Panel, N0.3 RH
62538H Bracket, Quarter Trim Panel, NO.3 LH
62603K Panel Sub-assy, Quarter Trim, Upper RH
62604K Panel Sub-assy, Quarter Trim, Upper LH
62710E Window Assy, Quarter, RH
62720E Window Assy, Quarter, LH
62751F Weatherstrip, Quarter Window Glass, Outer RH
62752C Weatherstrip, Quarter Window Glass, Outer LH
62761J Retainer, Quarter Window Glass, Front RH
63131A Panel, Windshield Header, Outer
63132B Panel, Windshield Header, Inner
63145C Reinforcement, Windshield Header Panel
63217J Hook, Convertible Roof, RH
63218L Hook, Convertible Roof, LH
63251L Weatherstrip, Convertible Roof, Front
63311A Headlining, Roof NO.1
63312A Headlining, Roof, NO.2
63323B Case, Headlining Lamp
64311C Moulding, Back Belt
64313A Moulding, Side Belt, RH
64314C Moulding, Side Belt, LH
64315C Protector, Side Belt Moulding
64316A Protector, Side Belt Moulding, LH
64700 Cover Assy, Tarpaulin Storage
64751D Bracket, Speaker Setting, RH
64752D Bracket, Speaker Setting, LH
64810A Window Assy, Convertible Roof Tarpaulin Back
64815A Terminal, Back Window Glass
64902C Cover Sub-assy, Tonneau
64959 Bag, Tonneau Cover
65903B Headlining Sub-assy, Tarpaulin
65904B Latch Sub-assy, Tarpaulin
65905C Bow Sub-assy, Tarpaulin, NO.1
65906B Bow Sub-assy, Tarpaulin, NO.2
65907D Bow Sub-assy, Tarpaulin, NO.3
65908C Bow Set, Tarpaulin, NO.4
65909B Bolt Set, NO.1 Bow
65911A Cover, Tarpaulin
65913 Pad, Tarpaulin Cover, Front RH
65914 Pad, Tarpaulin Cover, Front LH
65915E Pad, Tarpaulin Cover, Rear
65917A Retainer, Tarpaulin Cover, Upper
65918A Retainer, Tarpaulin Cover, Lower
65919A Pin, NO.1 Bow Locating
65922A Cable, Tarpaulin Cover
65923 Bracket, Bezel Stand
65924 Cover, Tarpaulin Rail Pivot Bracket, LH
65926 Bracket, Tarpaulin Rail Pivot, RH
65927A Bracket, Tarpaulin Rail Pivot, LH
65928 Stopper, Tarpaulin Rail
65929 Cable, Tarpaulin NO.3 Bow
65930C Rail Assy, Tarpaulin, RH
65931E Weatherstrip, Tarpaulin Front Rail, NO.1 RH
65932A Tarpaulin, Side Cover, LH
65933A Retainer, Tarpaulin Front Rail, RH
65934 Weatherstrip, Tarpaulin Center Rail, NO.1 RH
65935 Weatherstrip, Tarpaulin Center Rail, NO.2 RH
65936C Retainer, Tarpaulin Center Rail, RH
65937C Weatherstrip, Tarpaulin Rear Rail, RH
65938B Retainer, Tarpaulin Rear Rail, RH
65940C Rail Assy, Tarpaulin, LH
65941B Weatherstrip, Tarpaulin Front Rail, NO.1 LH
65942 Weatherstrip, Tarpaulin Front Rail, NO.2 LH
65943 Retainer, Tarpaulin Front Rail, LH
65944 Weatherstrip, Tarpaulin Center Rail, NO.1 LH
65945B Weatherstrip, Tarpaulin Center Rail, NO.2 LH
65946 Rail, Curtain, NO.6
65947A Weatherstrip, Tarpaulin Rear Rail, LH
65948 Retainer, Tarpaulin Rear Rail, LH
69081 Plate Sub-assy, Quarter Window, RH
69082 Plate Sub-assy, Quarter Window, LH
69083 Guide Sub-assy, Quarter Window, RH
69084 Guide Sub-assy, Quarter Window, LH
69830B Regulator Assy, Quarter Window, RH
69840R Regulator Assy, Quarter Window, LH
69860B Motor Assy, Quarter Window Regulator, RH
69870 Motor Assy, Quarter Window Regulator, LH
75531D Moulding, Windshield, Outside Upper
75533F Moulding, Windshield, Outside RH
75534E Moulding, Windshield, Outside LH
75545D Bolt, Windshield Outside Moulding
75551F Moulding, Roof Drip Side, RH
75552F Moulding, Roof Drip Side, LH
81570A Lamp Assy, Stop Center
82178 Cable, Back Window Glass Wire, RH
82179 Cable, Back Window Glass Wire, LH
84862A Switch, Convertible Roof Motor
85730A Motor Assy, Convertible Roof
85921A Relay, Convertible Roof Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
