Toyota Celica

1993-11 → 1999-08 · chassis AT200,ST20# · catalogue 252570 · Europe

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

8 part groups · 5 illustrations

Illustrations

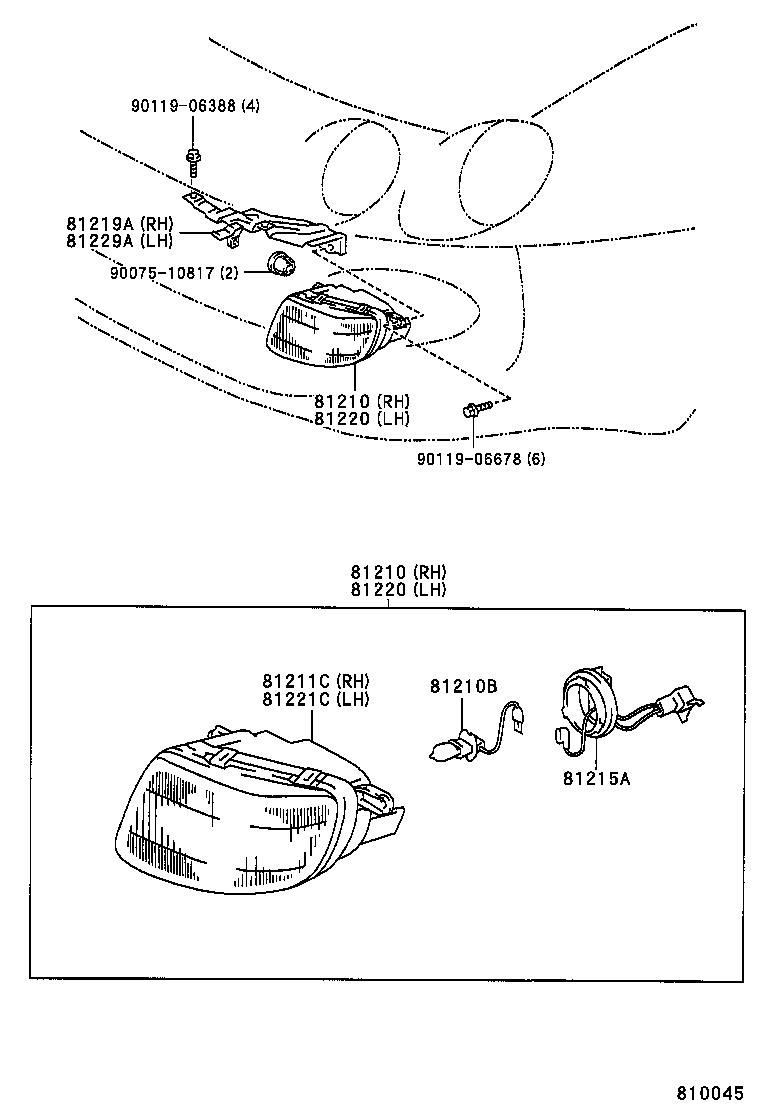

Figure 810034 810034 1993-11 → 1995-08 Figure 810034 810034 1994-02 → 1996-06 Figure 810034 810034 1994-08 → 1995-12 Figure 810045 810045 1995-08 → — Figure 810045 810045 1995-12 → —

Part groups

PNCDescription
81210 Lamp Assy, Fog
81210B Bulb, Fog Lamp
81211C Lamp Unit, Fog Lamp, RH
81215A Socket & Wire, Fog Lamp
81219A Bracket, Fog Lamp, RH
81220 Lamp Assy, Fog, LH
81221C Lamp Unit, Fog Lamp, LH
81229A Bracket, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
